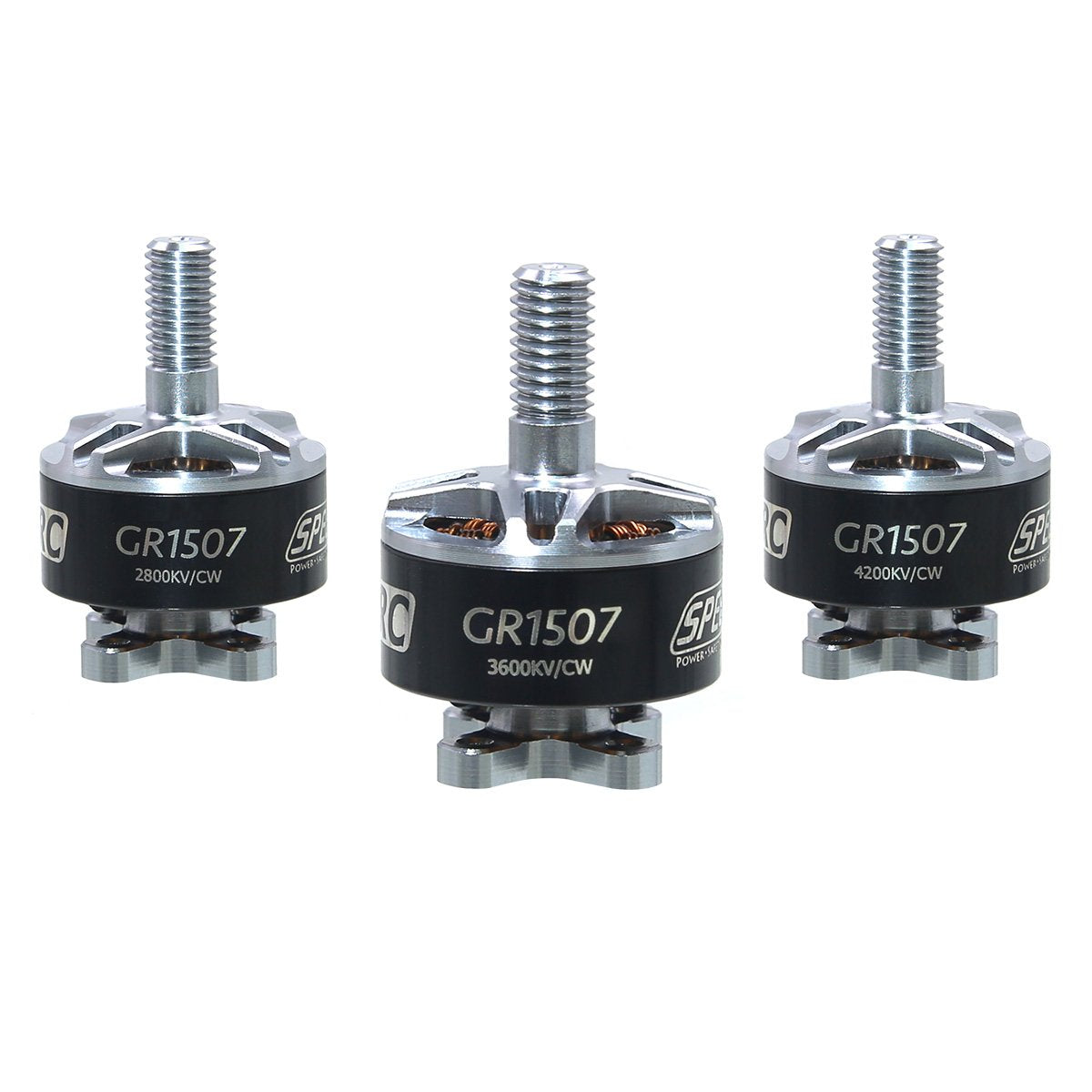

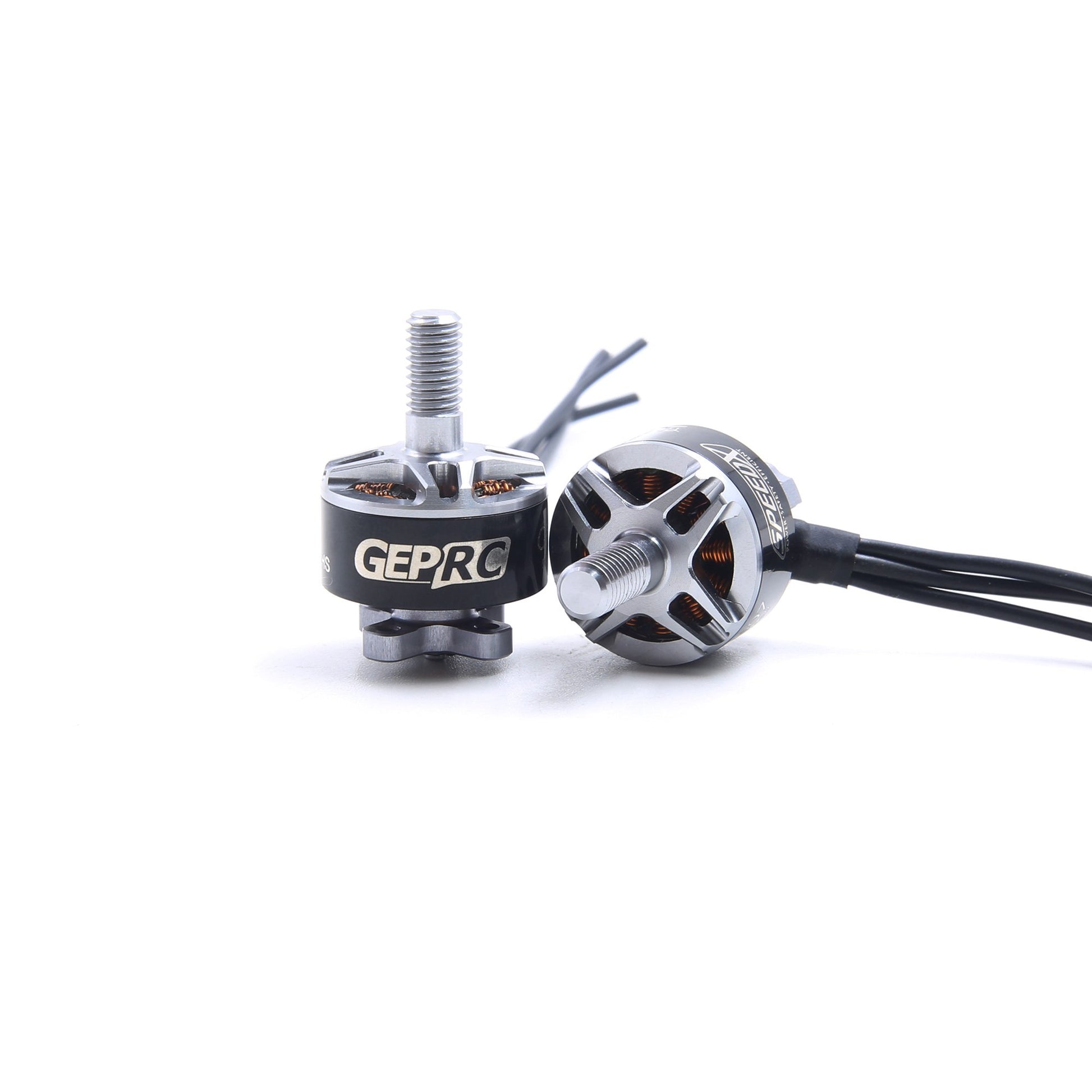

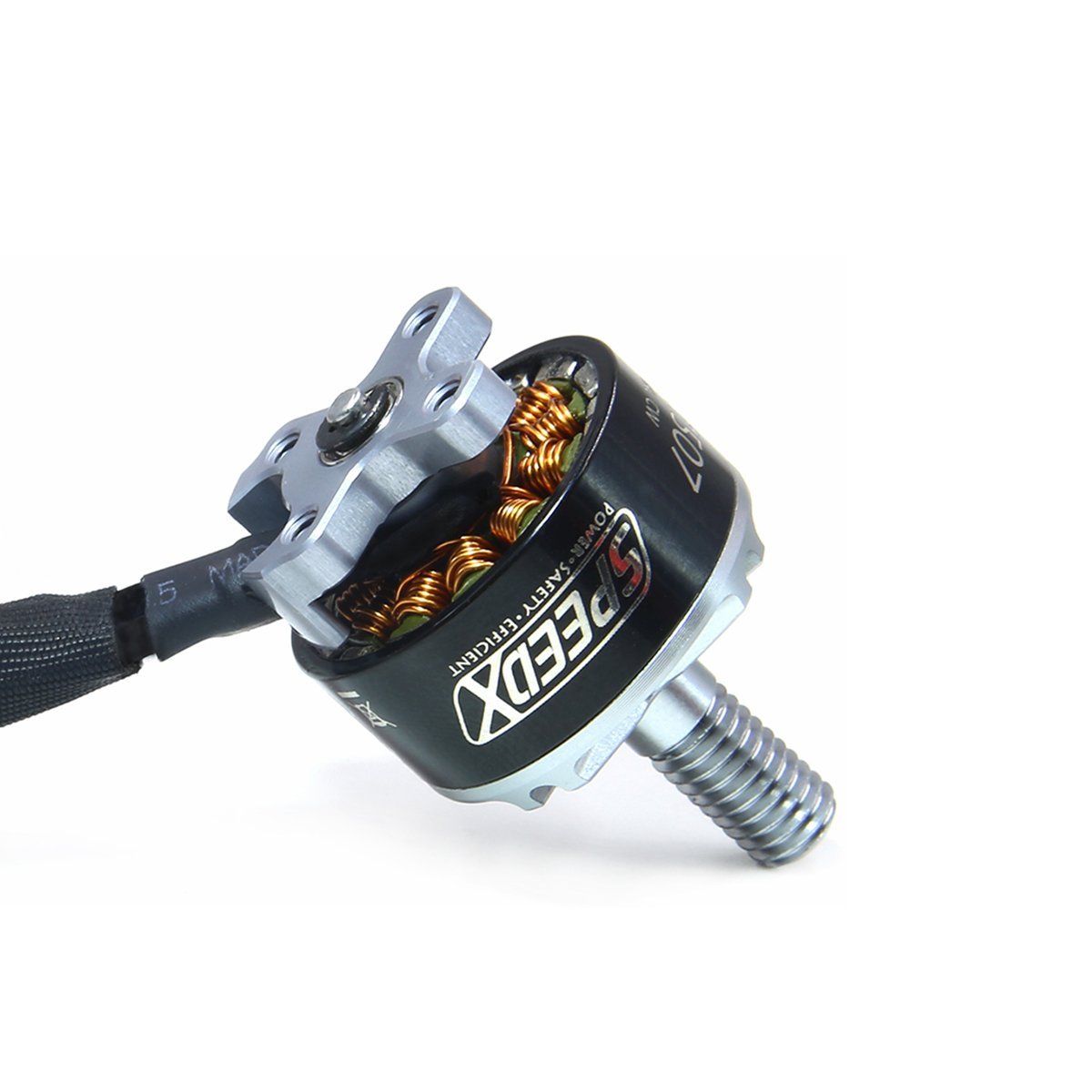

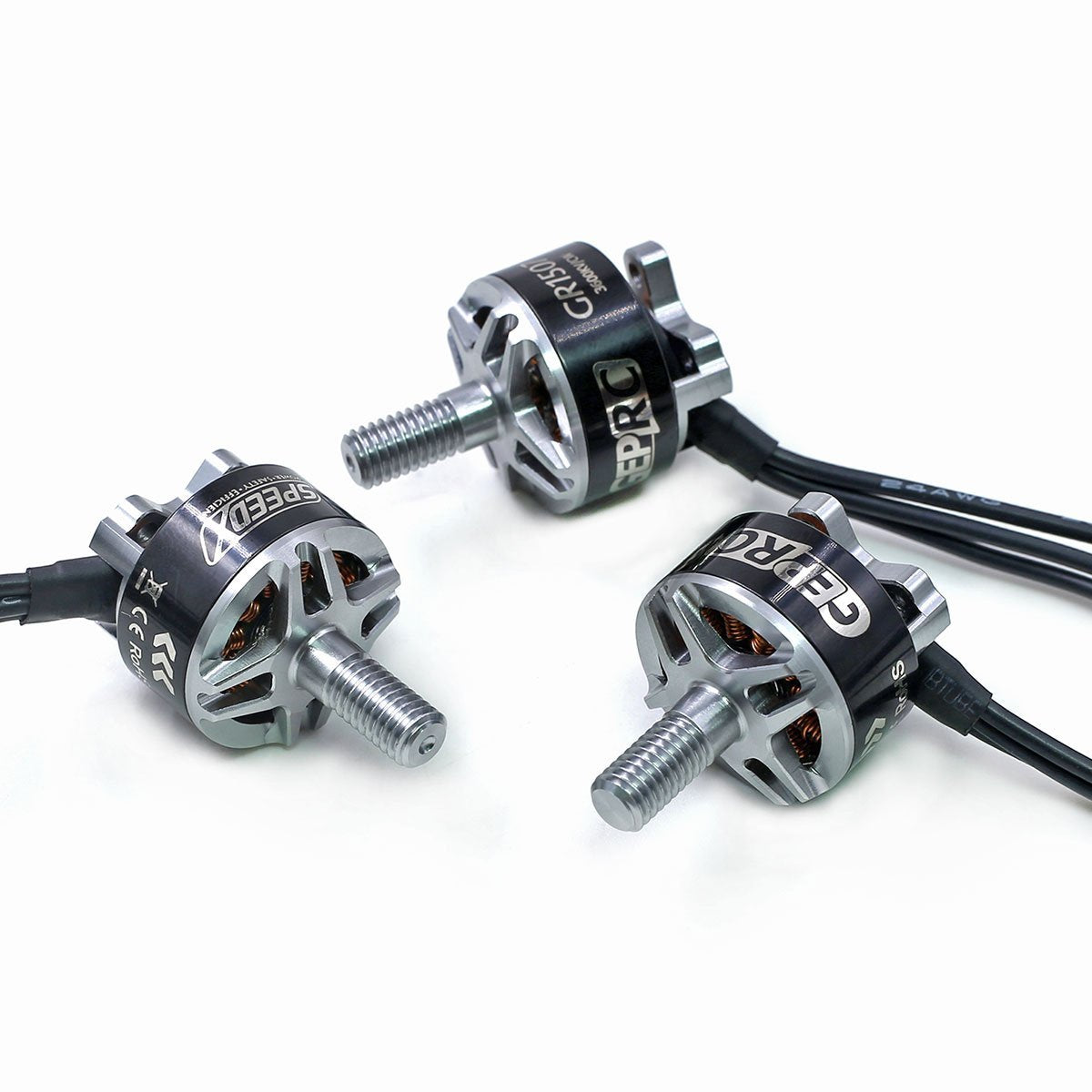

    GEP-GR1507 (4200 KV)

The GEP-GR1507 motor is designed to offer improved performance and cooling for 3-inch and 4-inch drone models. It provides more KV options and includes a number of features for efficiency and reliability:
- High precision CNC machining and use of 7075 aluminum alloy materials results in high precision and strength.
- N52H magnets guarantee torque, high temperature resistance and magnet retention.
- Designed for optimal power delivery in the range of 50% to 90% throttle.
- Precise dynamic balancing of the engine body reduces vibration and noise at high speeds.
- Japanese NSK bearings ensure smooth engine operation.

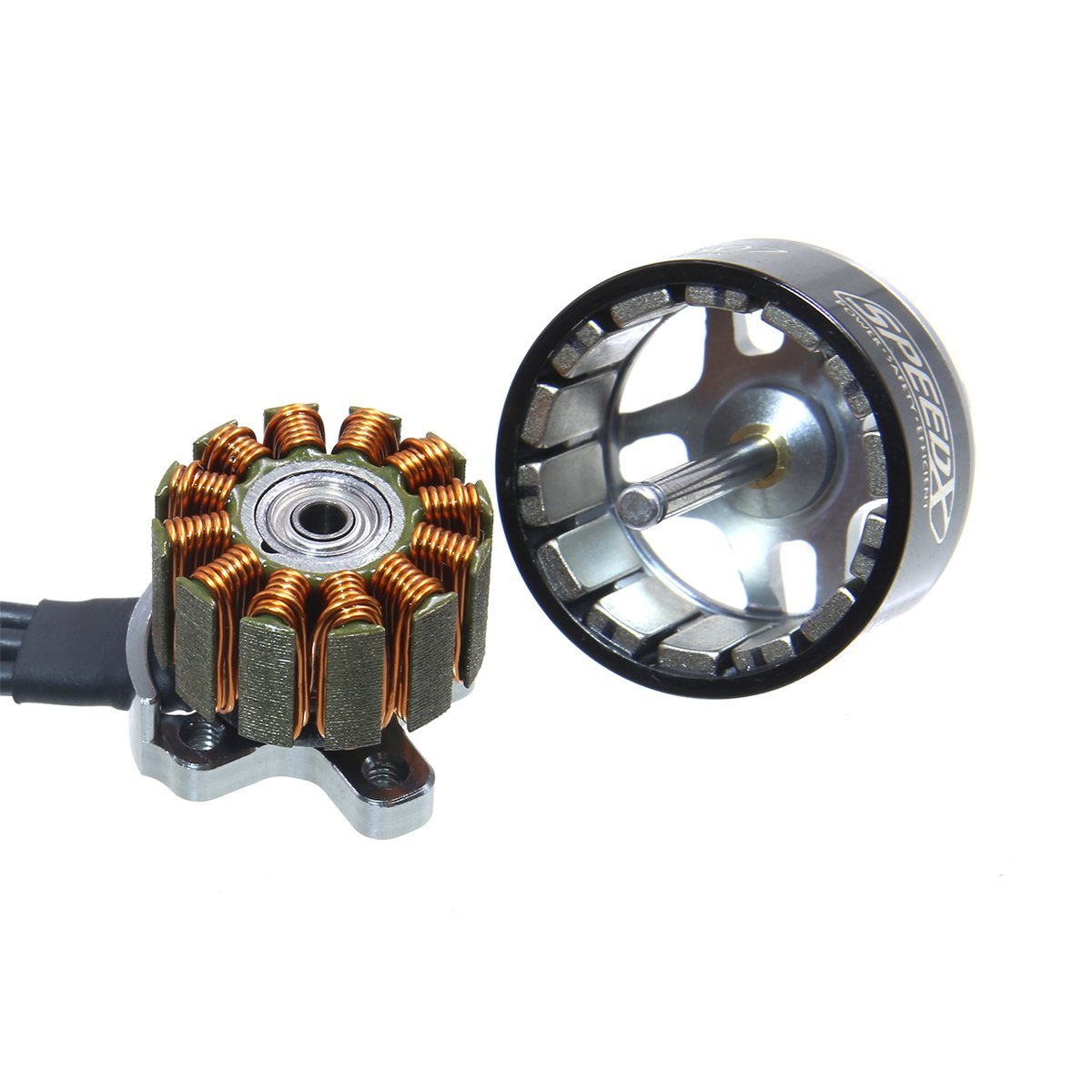

- Tile-shaped magnets and 0.15mm air gap improve power delivery.
- Heat radiation design reduces temperature by 20% compared to same type motors.

Specifications:
Item name: GEP-GR1507
Option KV: 4200KV
Configuration: 12N14P
Stator diameter: 15mm
Stator length: 7 mm
Shaft diameter: 2 mm (hollow)
Motor dimensions (diameter x length): 19.6 mm x 29.1 mm
Battery (LiPo): 2-4S
Rotor: Arc magnets N52H
Bearings: NSK
Base case: Al 7075
Wire AWG: 24AWG
Weight: 15.5g
