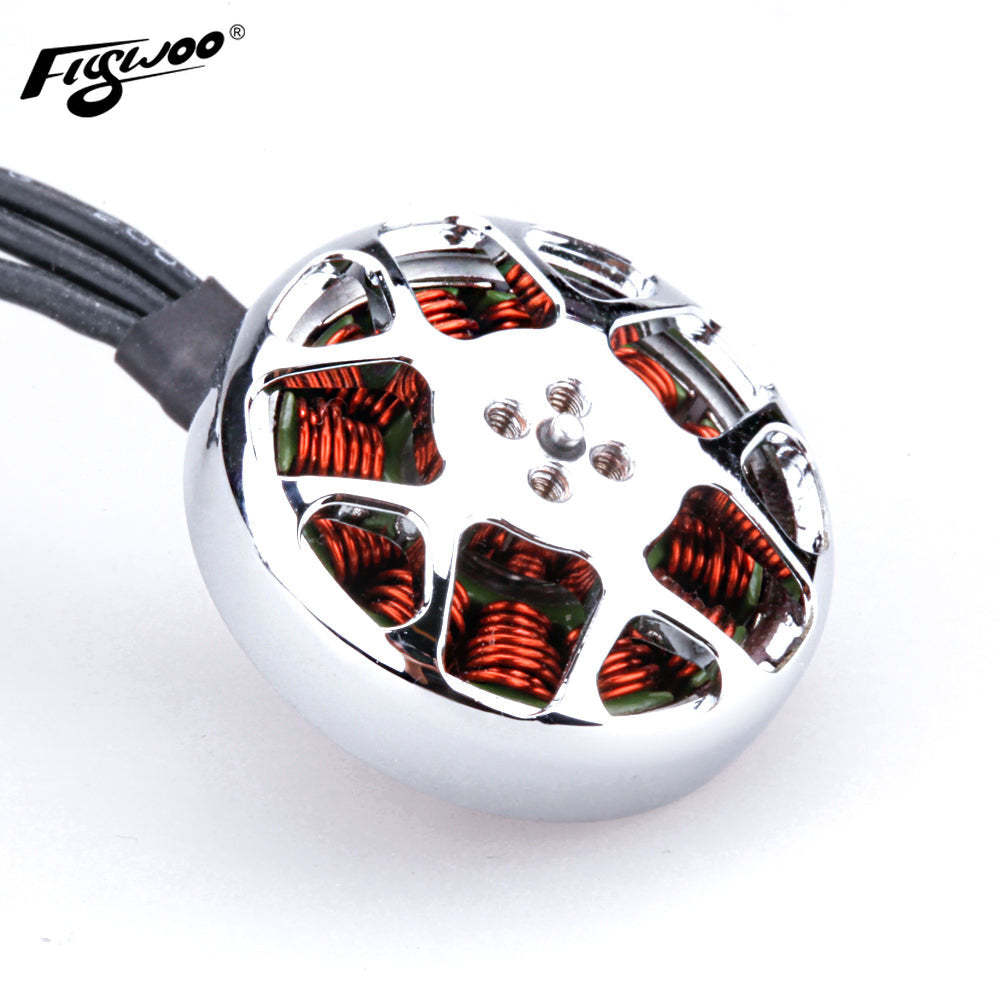

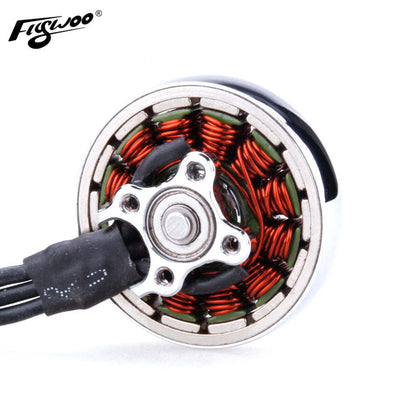

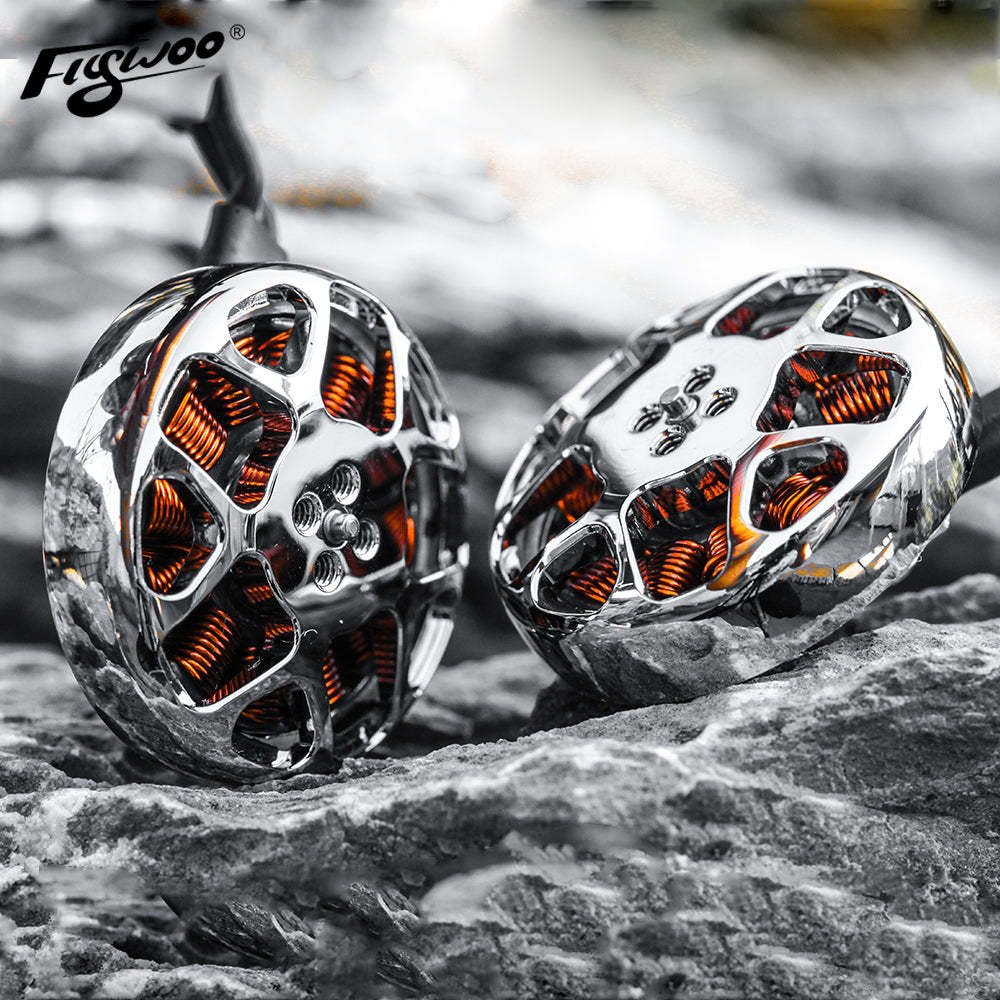

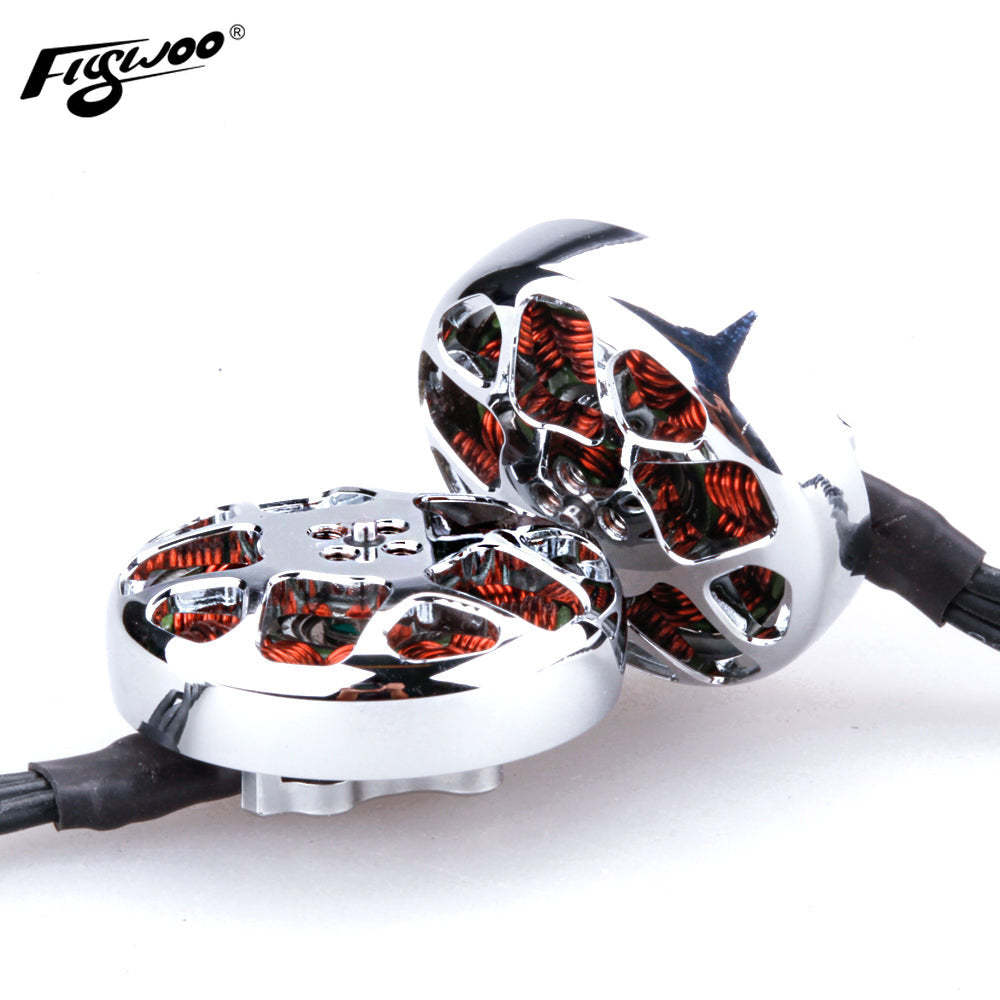

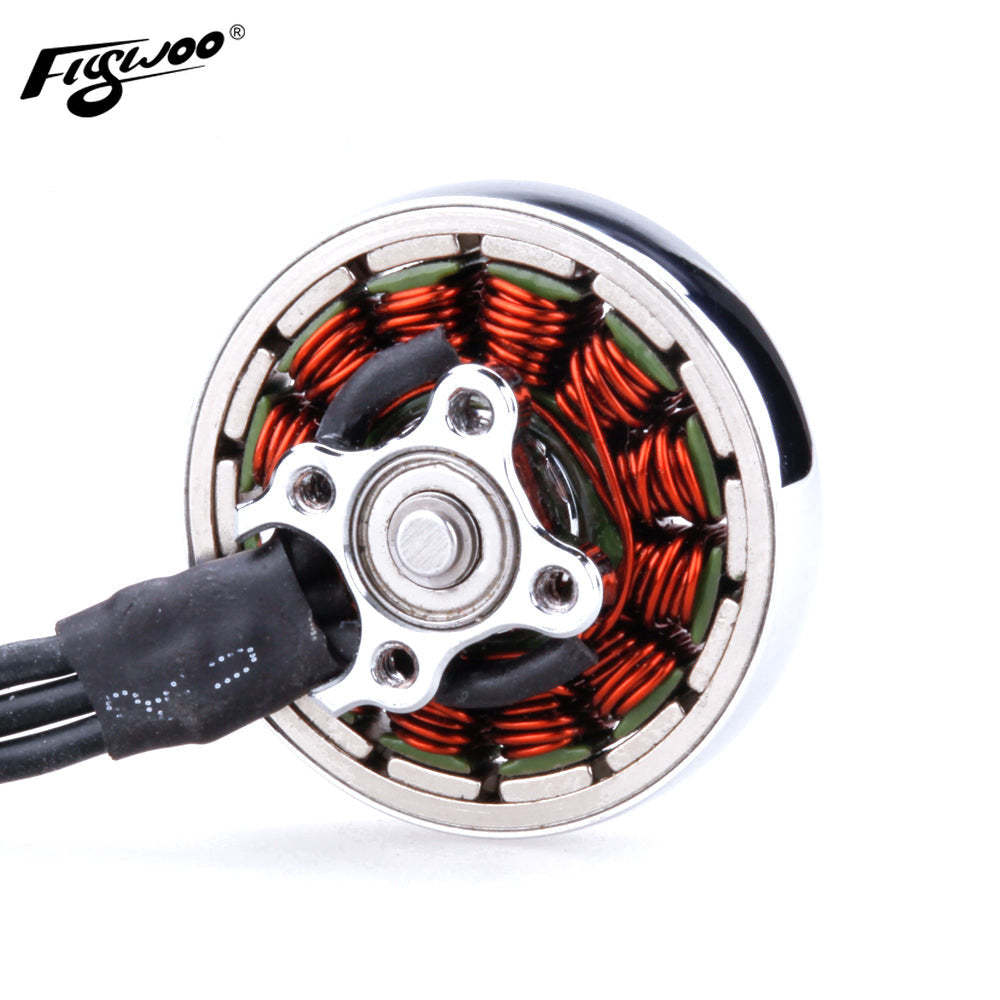

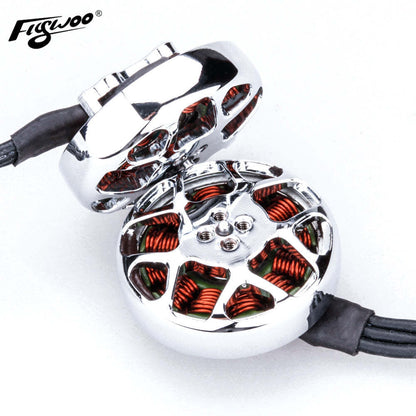

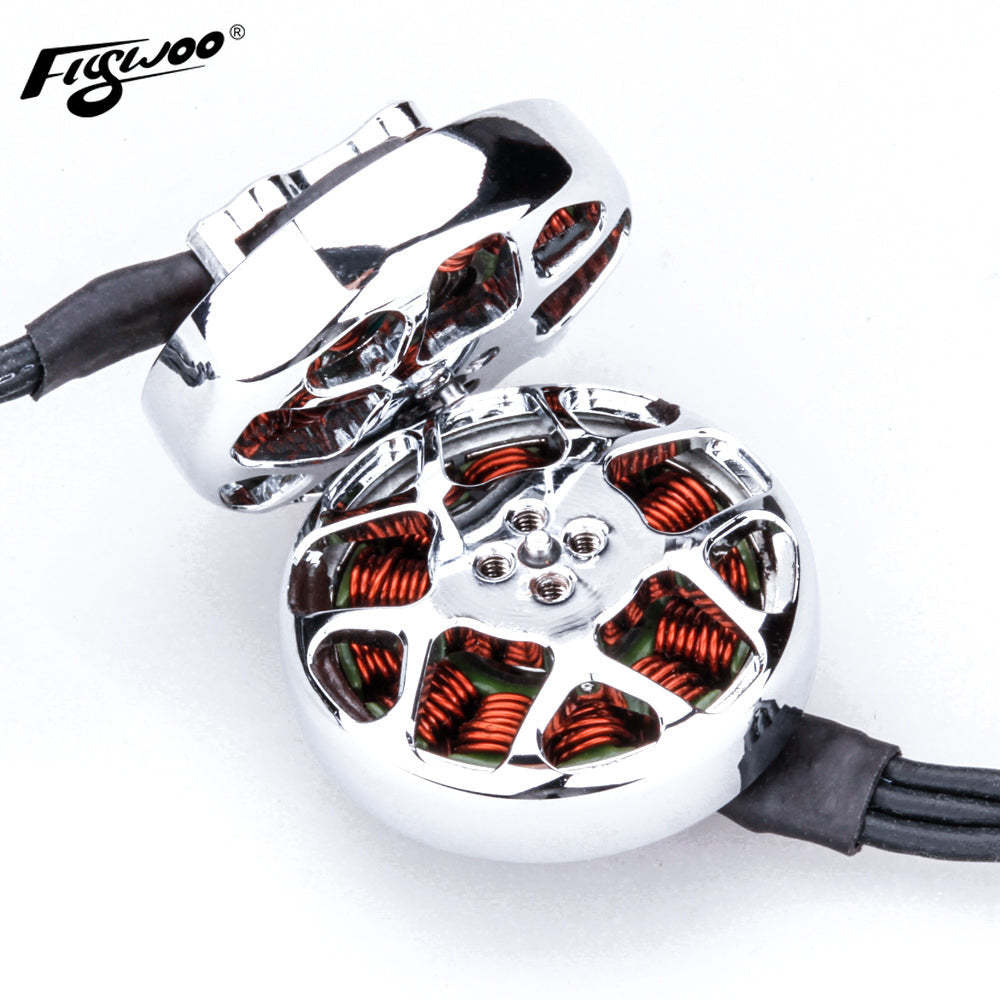

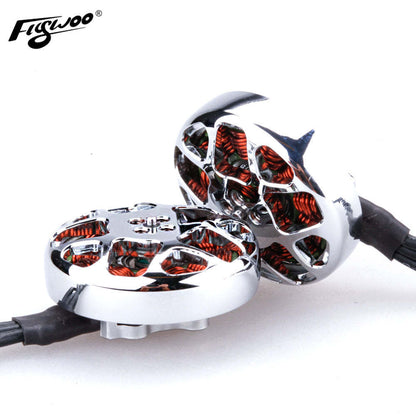

Flywoo Nin V2 2303.5 3000KV motor The Flywoo NIN V2 2303.5 3000KV motor is designed for demanding FPV freestyle pilots looking for performance, efficiency and smooth control. With a stator size of 23 x 3.5mm and a high output of 3000KV, this motor provides impressive thrust and response at 3-4S settings. It uses premium components, including N52H curved magnets, durable NSK bearings and a sleek galvanized unibell design. Weighing just 21.5g including wires, it offers an excellent power-to-weight ratio, ideal for agile tricks and precise control. Whether for racing or film freestyle, the NIN V2 2303.5 offers powerful, stable and efficient performance in every flight. Specifications: KV rating: 3000KV Configuration: 12N14P Stator diameter: 23 mm Stator length: 3.5 mm Shaft diameter: 3mm (inner), 1.5mm (outer) Motor dimensions: 29.1 x 13.5 mm Weight: 21.5g (with 3cm wire) Quiescent current at 10 V: 1.25 A Input voltage: 3-4S LiPo Maximum continuous power (3S): 656 W Maximum current (3S): 41 A Maximum current efficiency: 2.5-5 A (>85%) Internal resistance: 71 mΩ Bearings: Japanese NSK Magnet: Curved N52H The package contains: 1 × Flywoo Nin V2 2303.5 3000KV motor
