Code: SKU:0101096024

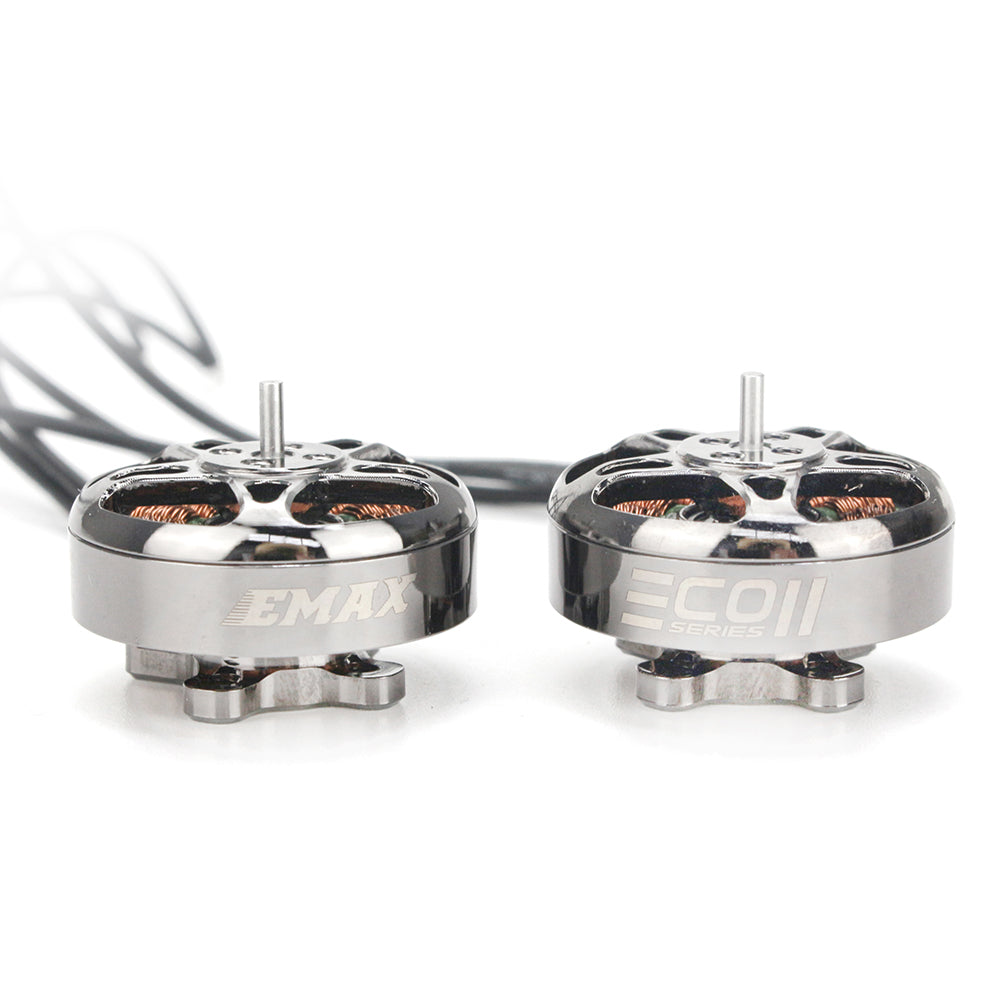

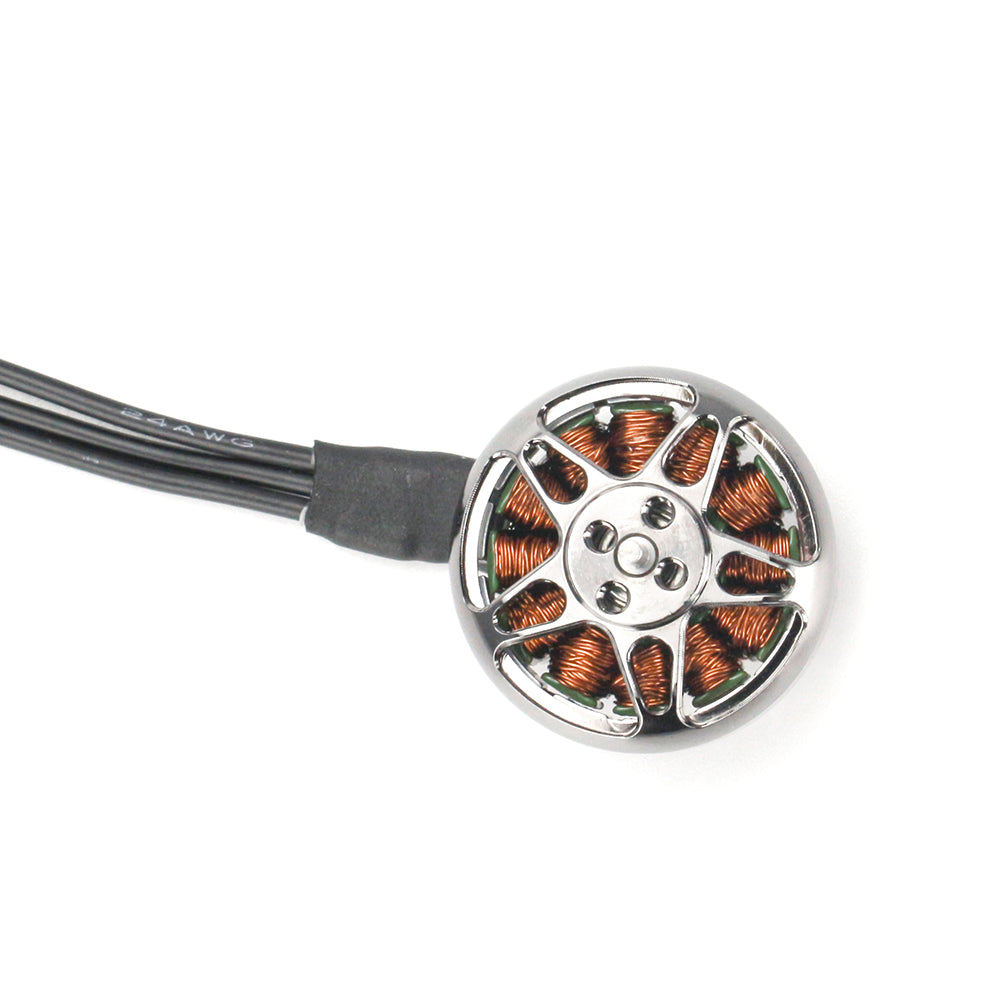

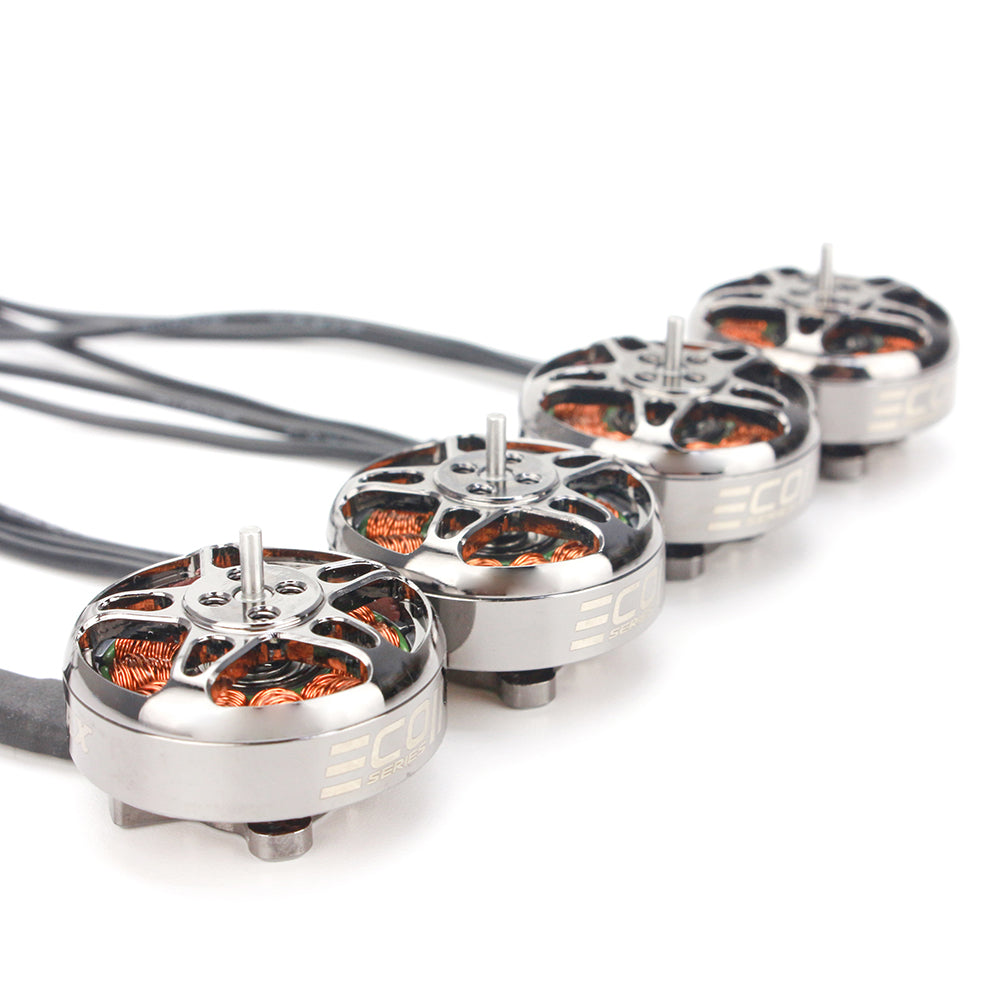

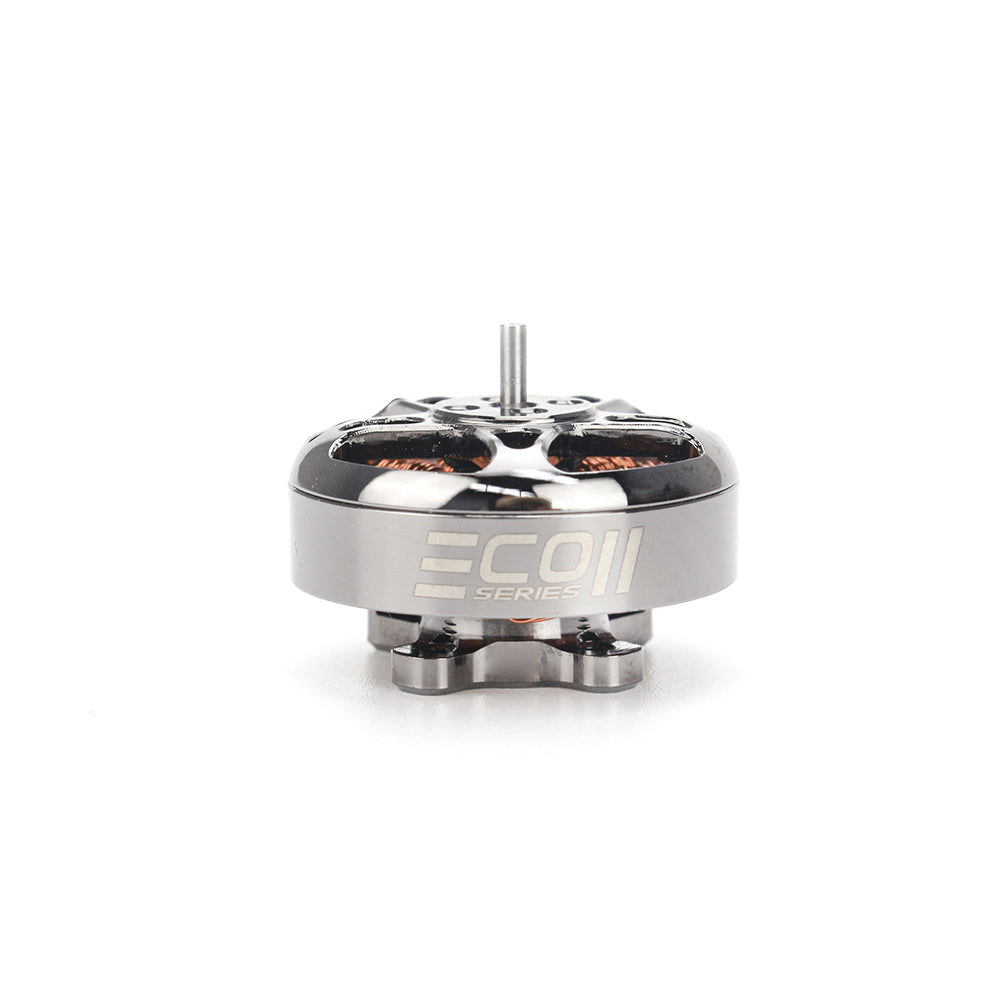

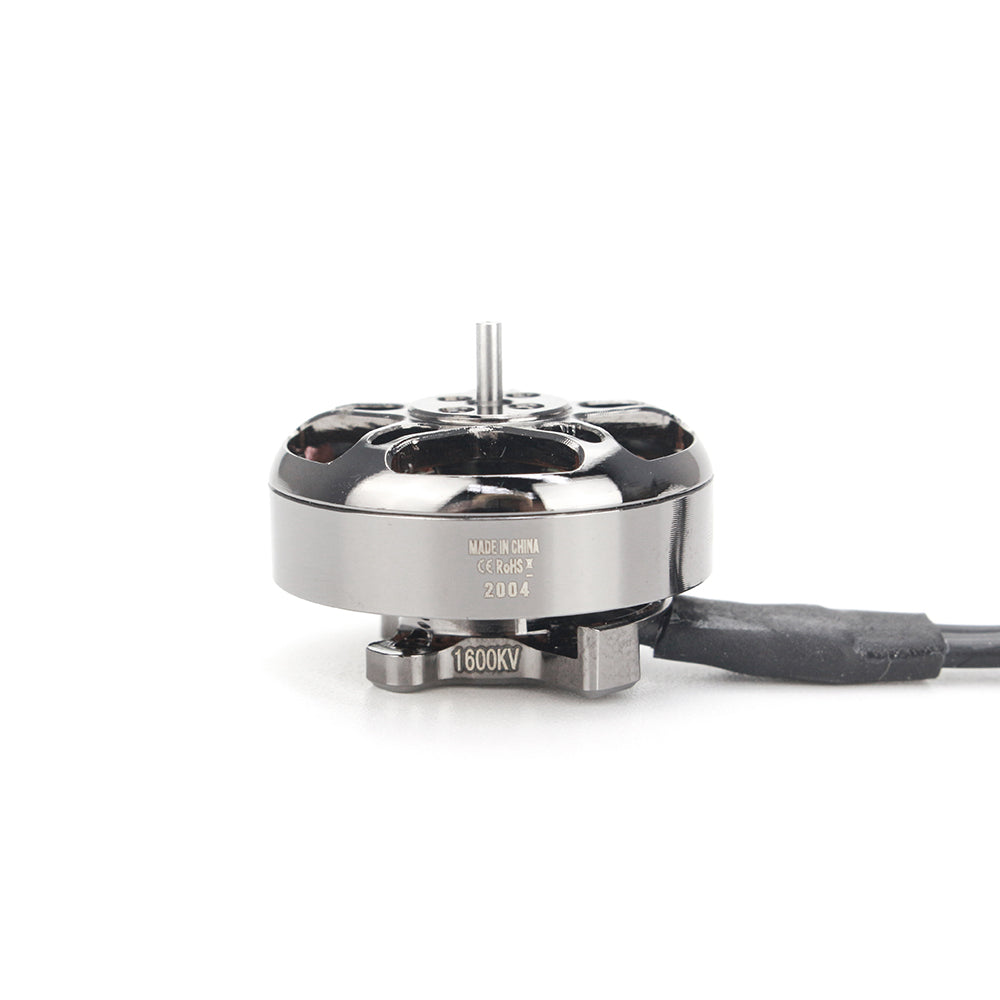

Motor Emax ECOII 2004 1600KV
Motor Emax ECOII 2004 1600KV
Brand: Emax
Regular price
€13,40
Regular price
€13,40
Sale price
€13,40
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

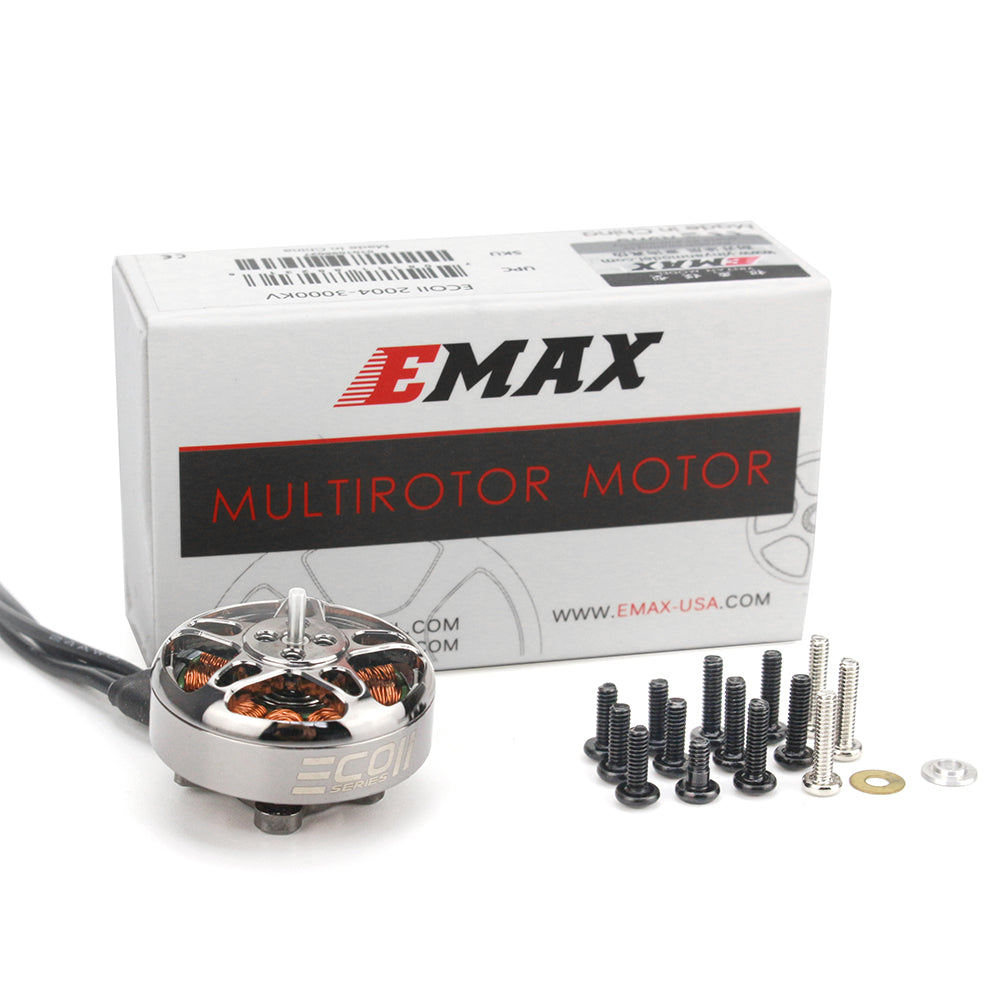

ECOII 2004 1600KV The ECO II series is a new series of brushless motors with improved performance and durability while maintaining the same affordability. The ECO II uses an NSK precision bearing for smooth operation and N52SH arc magnets over the previous N48 magnets, allowing for more powerful throttle response and higher revs. More torque and thrust is generated, allowing pilots the flexibility to comfortably ride on any race track. The ECO II series offers four variants: 1600KV, 2000KV, 2400KV and 3000KV. Function: - Completely new design with stronger attachment points for increased durability. - Improved N52SH curved arc magnets for tighter air gap and better performance. - Motor mounting 12x12mm. Specifications: Motor KV: 1600KV Length: 19.2 mm Diameter: 24.7 mm Frame: 12N14P Propeller adapter shaft diameter: 1.5mm Terminal: 24#AWG 120mm Weight: 16.6g (W/O silicone wire) No load current (10V): 0.5A Internal resistance: 200mΩ Number of articles: 4-6S Propeller: 4-5 inches Peak current (6S): 18A Maximum power (6S): 450W Mounting holes: M2 12x12mm The package includes: 1x engine 2004 1600KV 5x M2*6 screw 5x M2*7.5 Screw 3x M2*8.5 Screw 1x washer and screw for the shaft
