    Code: 0101096012

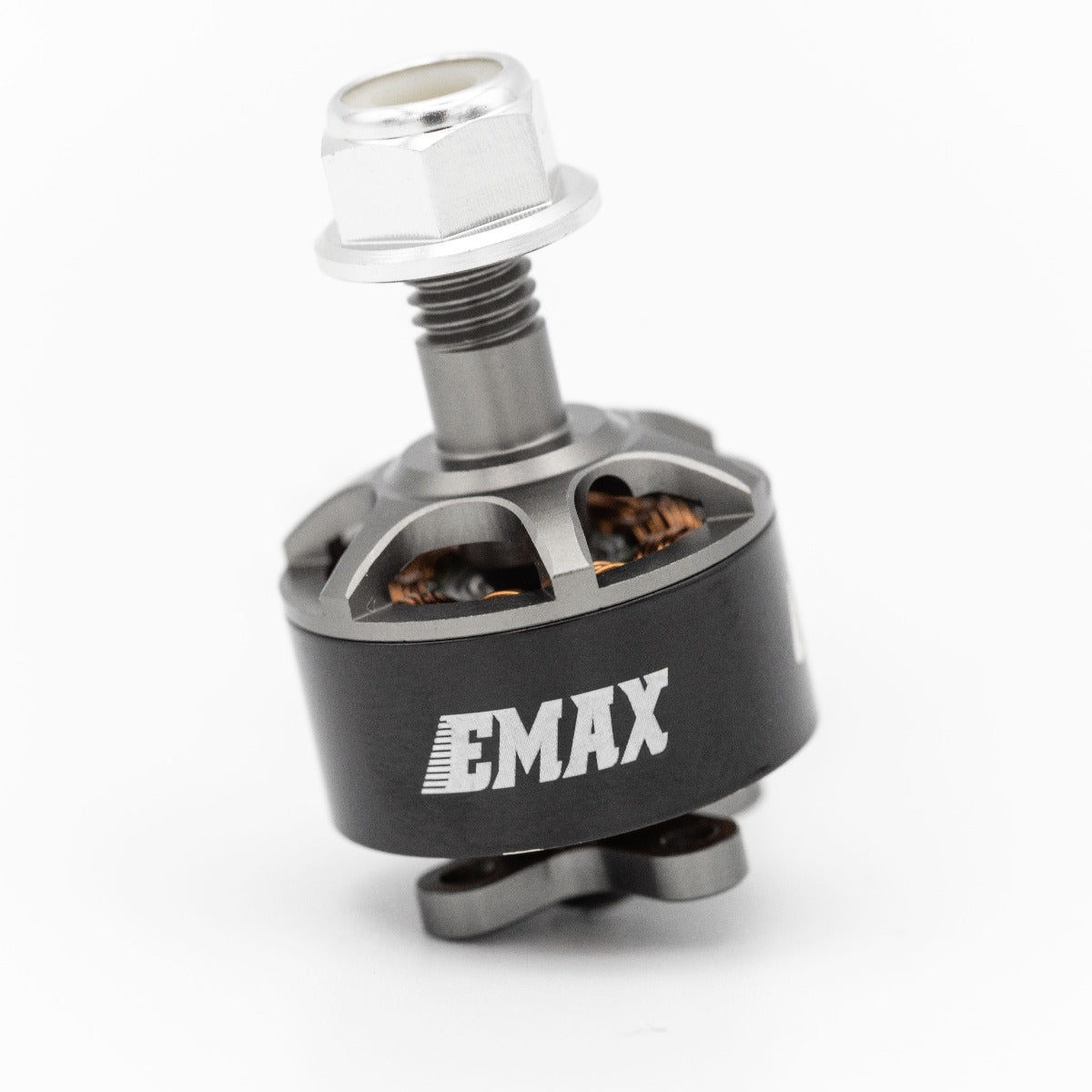

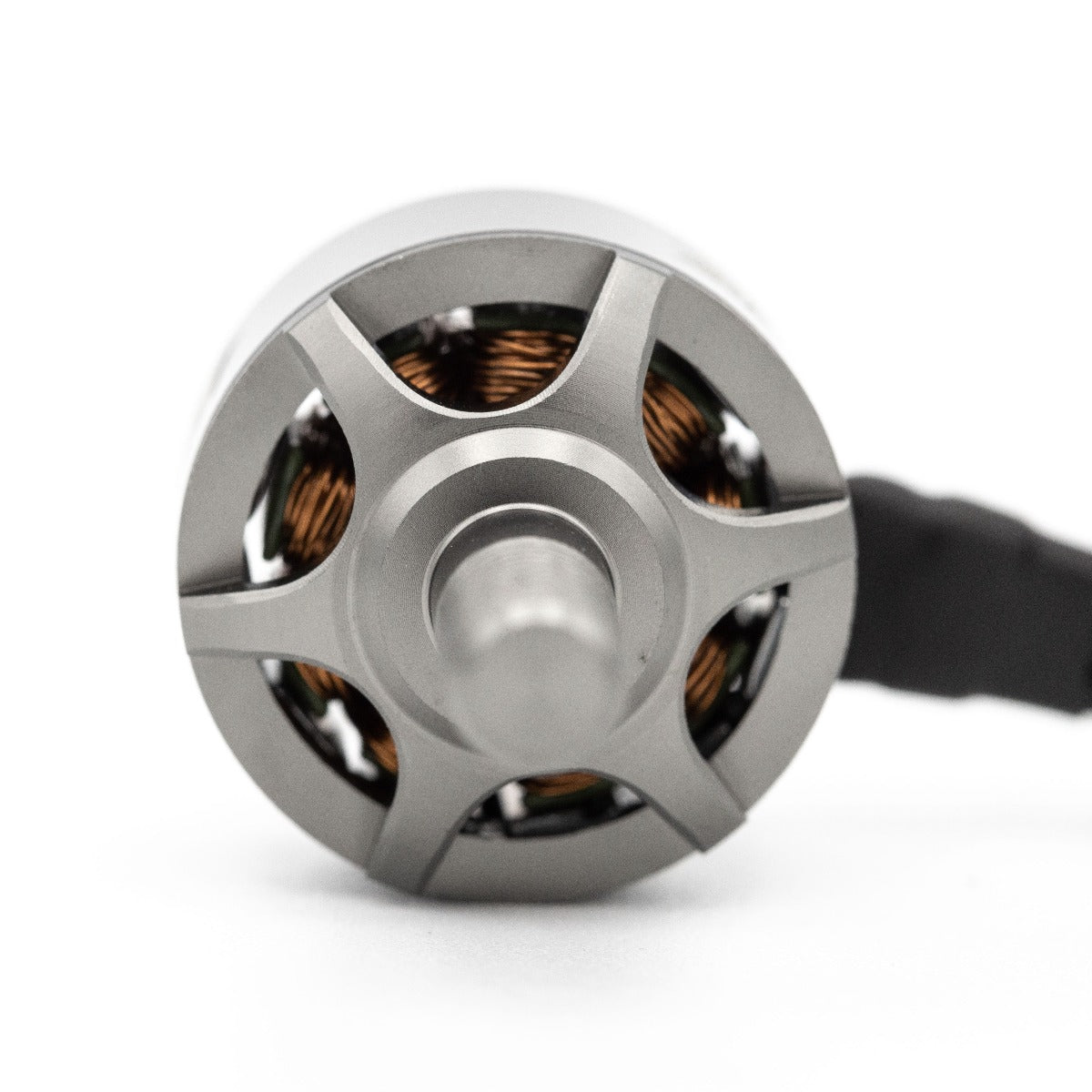

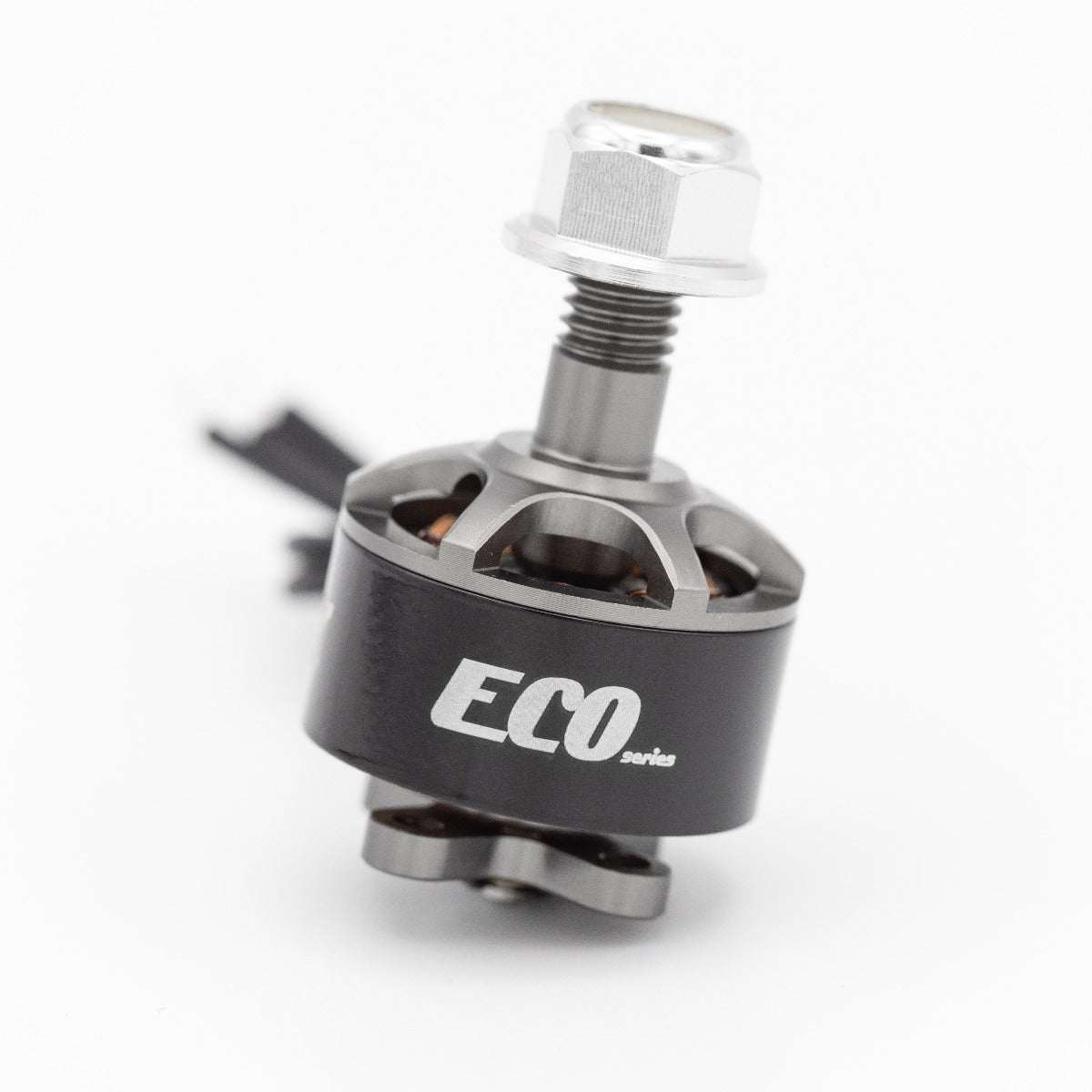

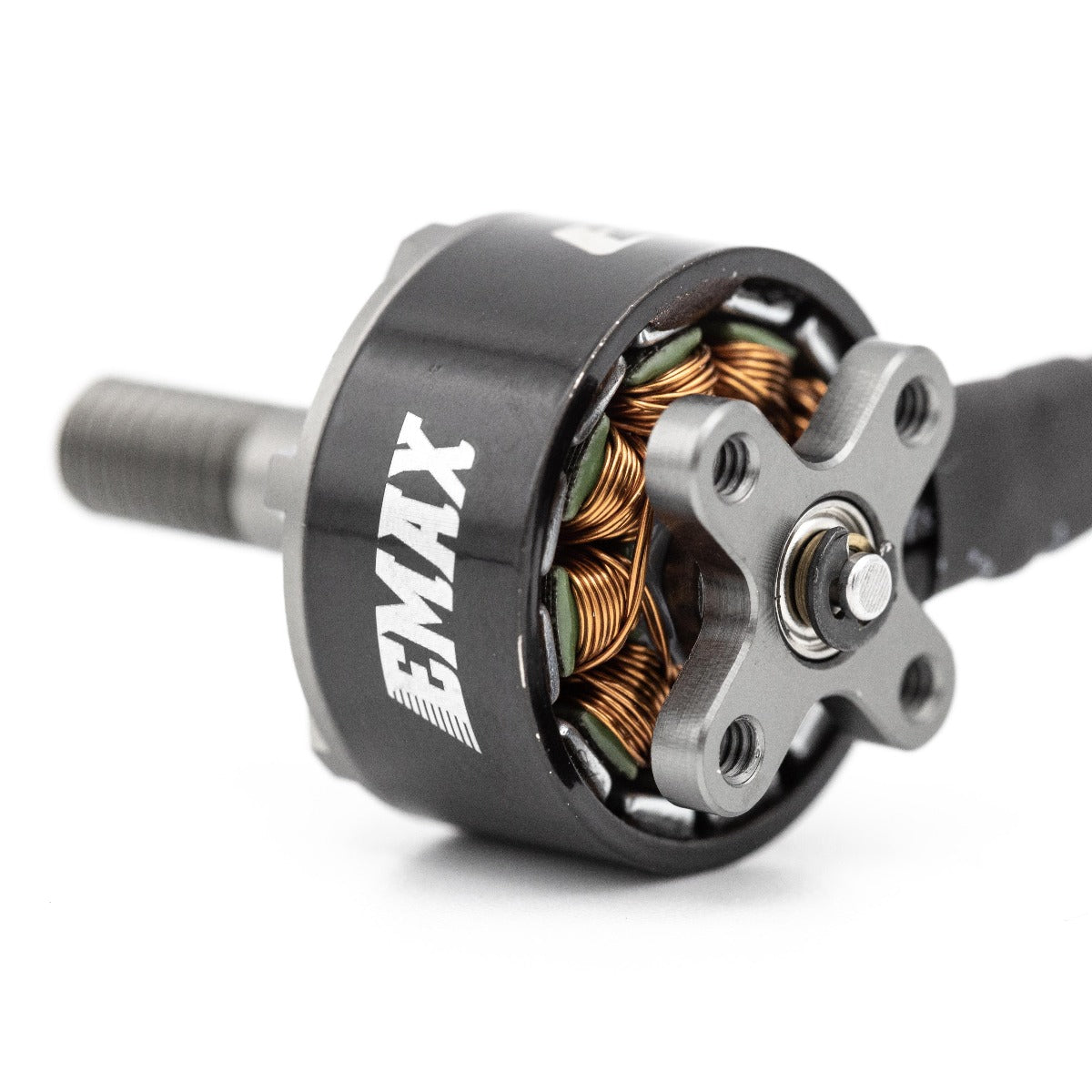

    Motor Emax ECO1407 2800KV

    Motor Emax ECO1407 2800KV

    Brand: Emax

    €12,99
    €12,99 €12,99
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    ECO1407 2800KV

EMAX ECO Micro Series 1407 2-4S Brushless Motor for FPV Racing RC Drone. This motor is available in three variants: 2800KV, 3300KV, 4100KV.

Function:
- Precision durable ball bearings
- Steel shaft for high strength
- Anodizing for finish and corrosion resistance
- Hole pattern 12x12mm
- Multi-strand copper winding
- Silicone wire 90 mm 26 AWG

Specifications:
Motor KV: 2800KV
Frame: 9N12P
Length: 31.2 mm
Diameter: 18.8mm
Propeller: 3" - 4"
Weight: 13.7g (W/O silicone wire)
Propeller adapter: M5
Bearing shaft: 2 mm
Shaft thread: CW
No load current: 0.7A (10V)
Internal resistance: 180mΩ
Number of articles: 2-4S
Peak current: 13.6A (10S)
Maximum power: 220W (10S)
