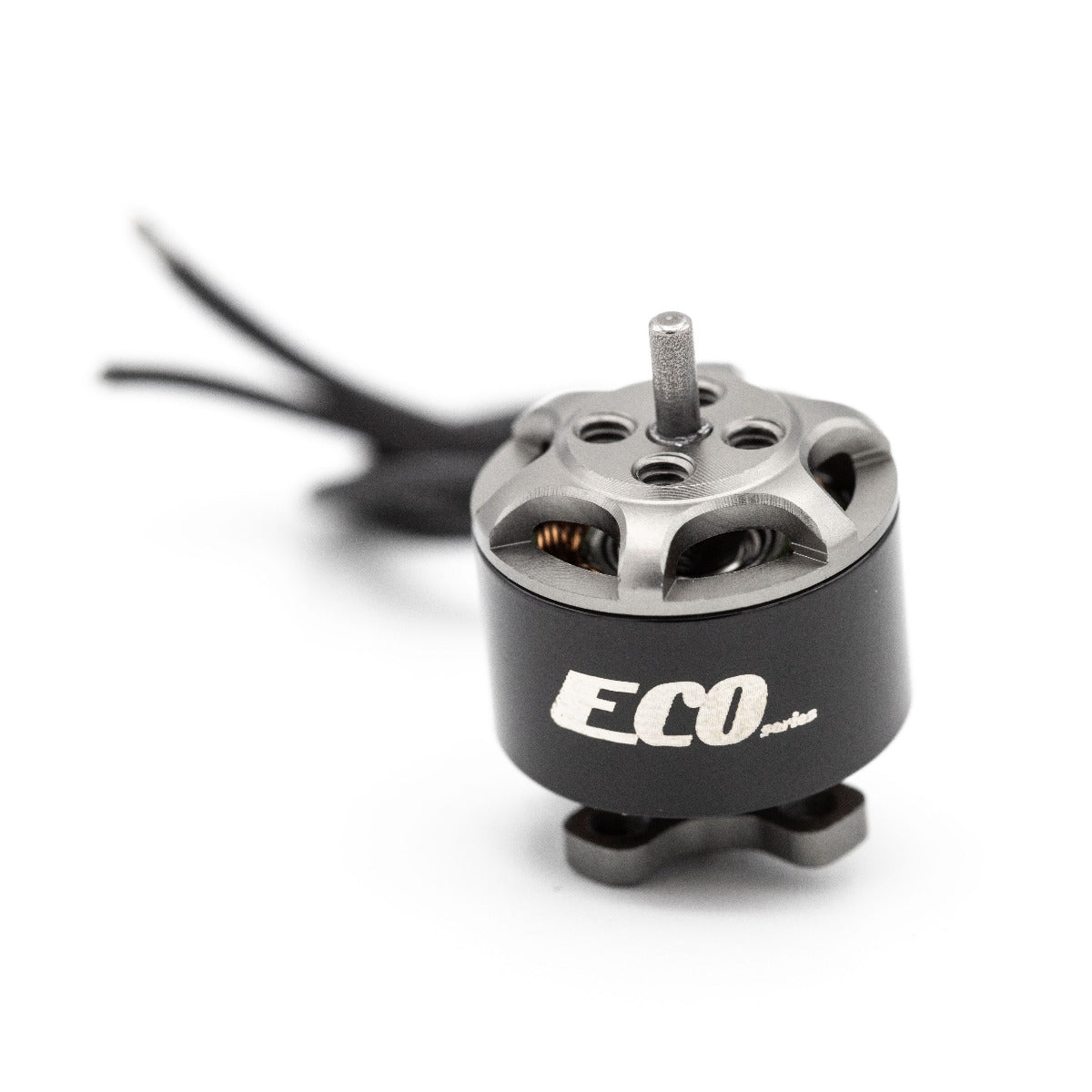

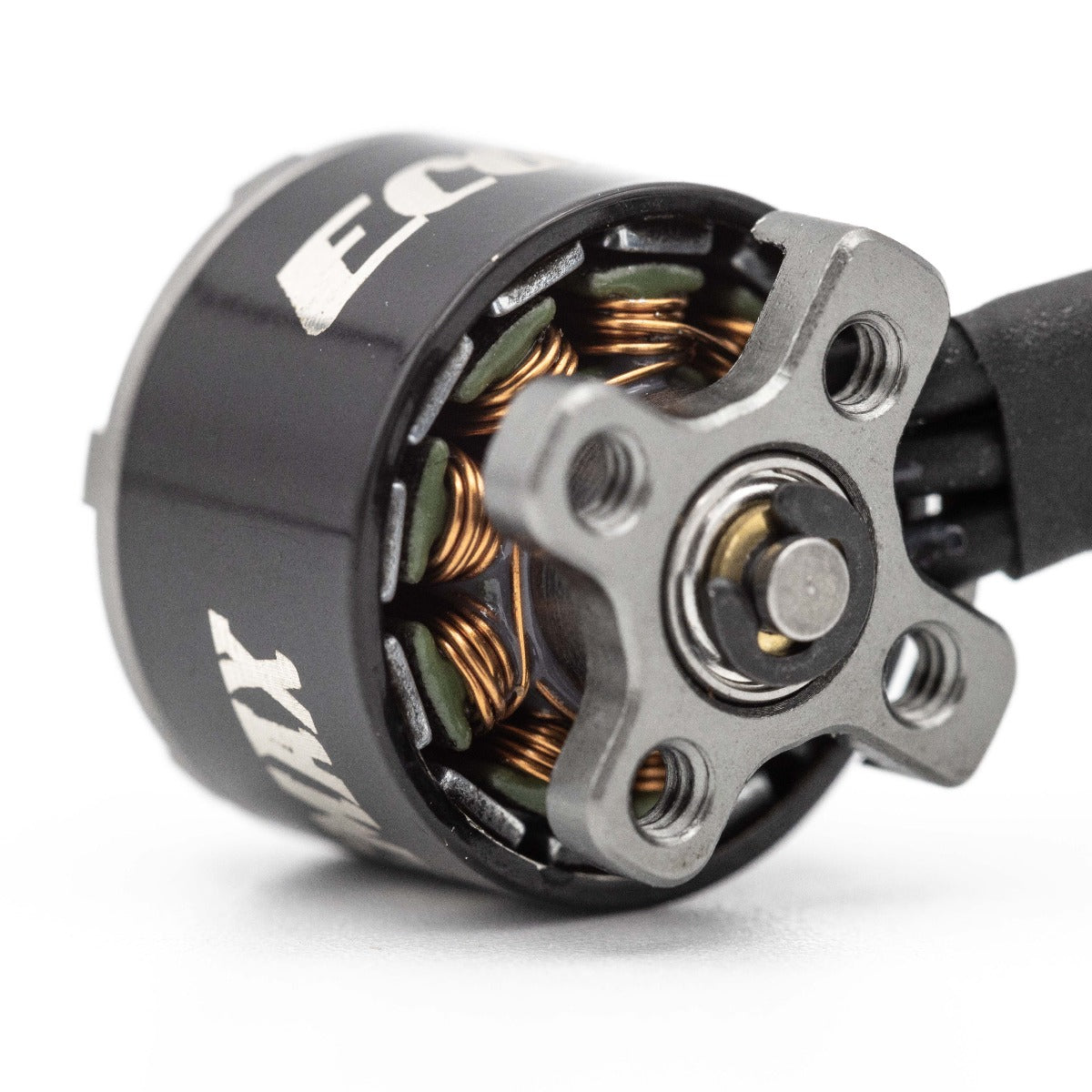

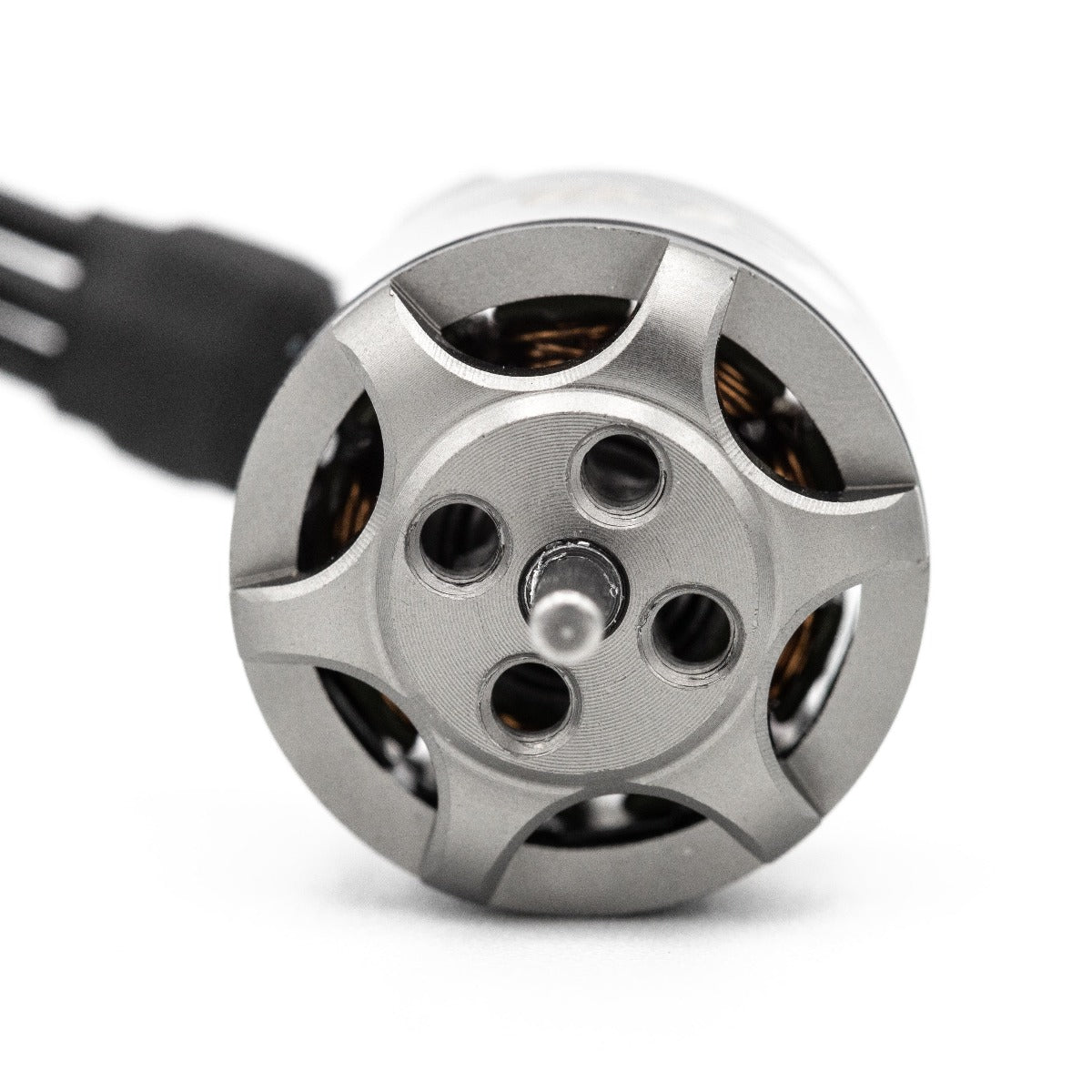

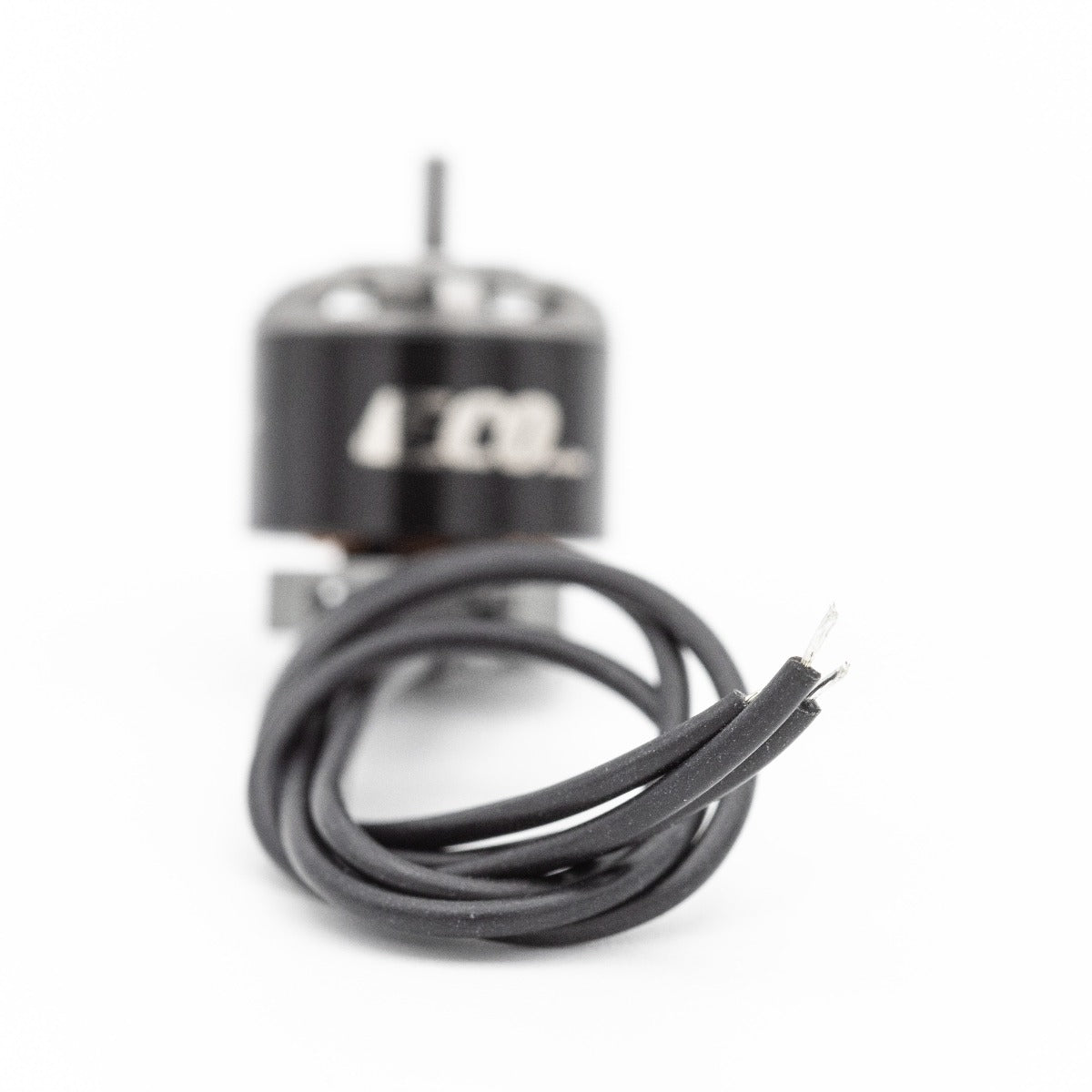

ECO1106 4500KV Brushless motor ECO Micro Series 1106 - 4500kv Function: - Precision durable ball bearings - Steel shaft for high strength - Anodizing for finish and corrosion resistance - Hole pattern 9x9 mm - Multi-strand copper winding - 100mm 26 AWG silicone wire Specifications: Motor KV: 4500KV Frame: 9N12P Length: 19.9 mm Diameter: 14.2mm Propeller: 2-3 inches Weight: 6.7g (W/O silicone wire) Propeller adapter shaft diameter: 1.5mm Bearing shaft: 2 mm Shaft thread: CW No load current (10V): 0.6A Internal resistance: 300mΩ Number of articles: 2-3S Peak current (3S): 11.6A Maximum power (3S): 146W
