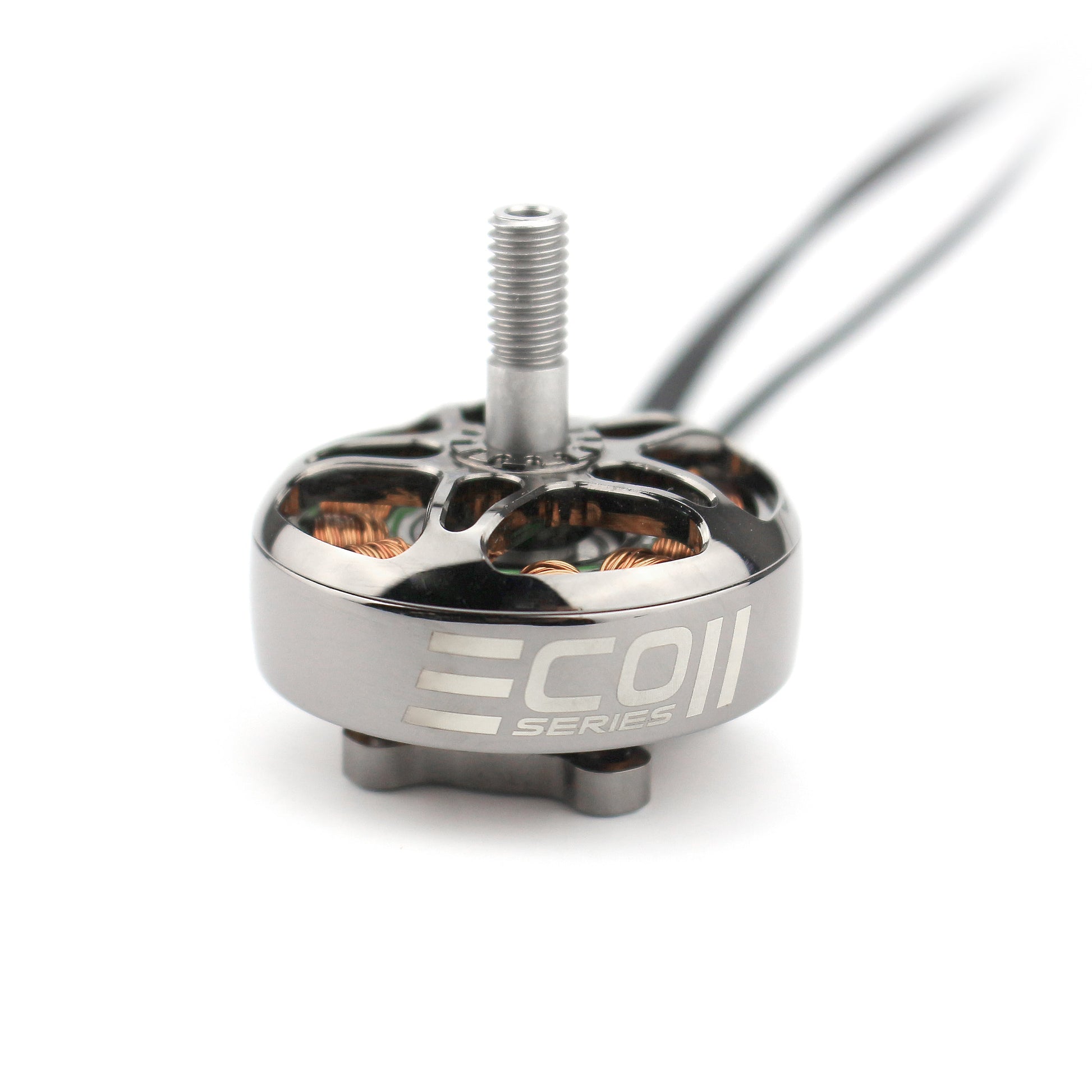

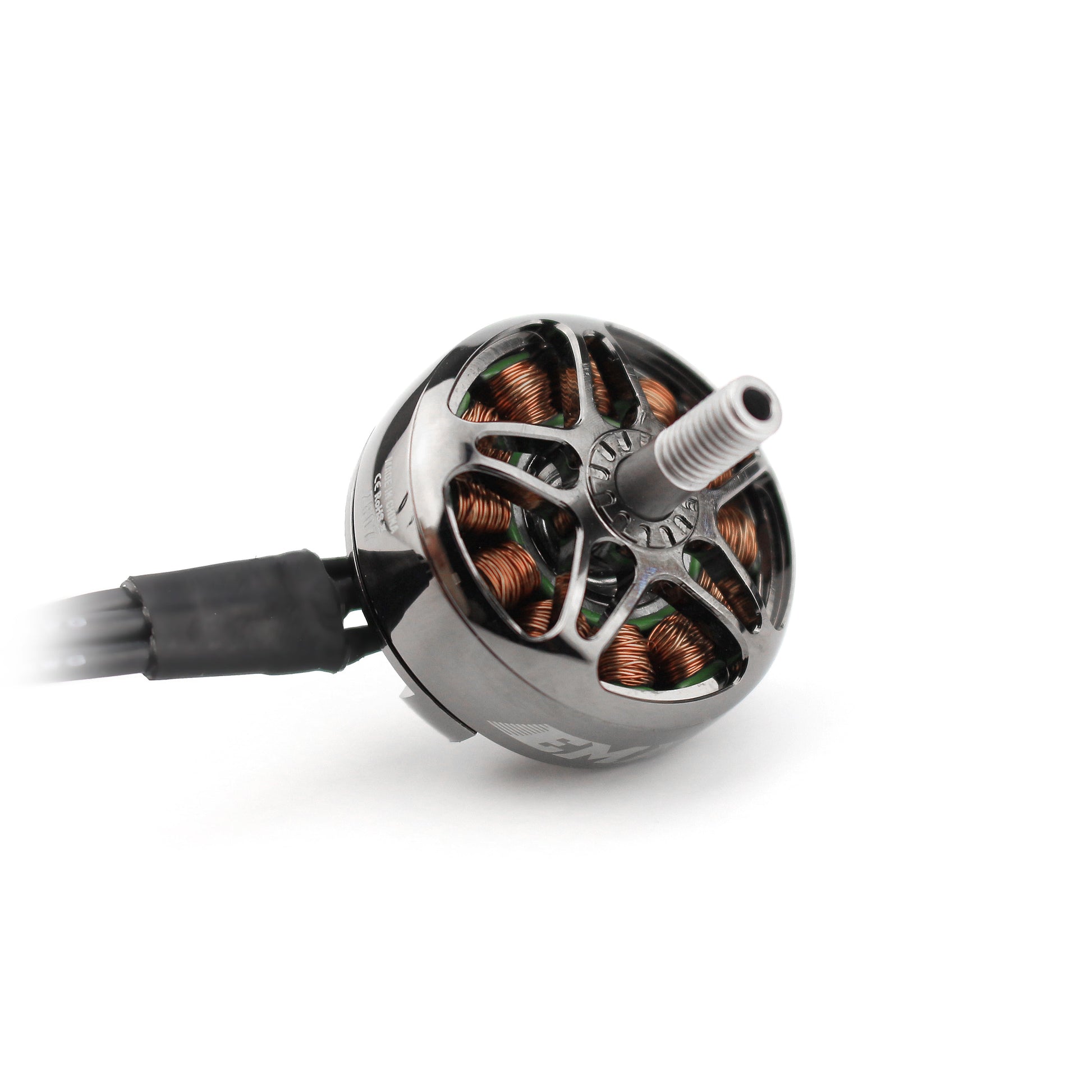

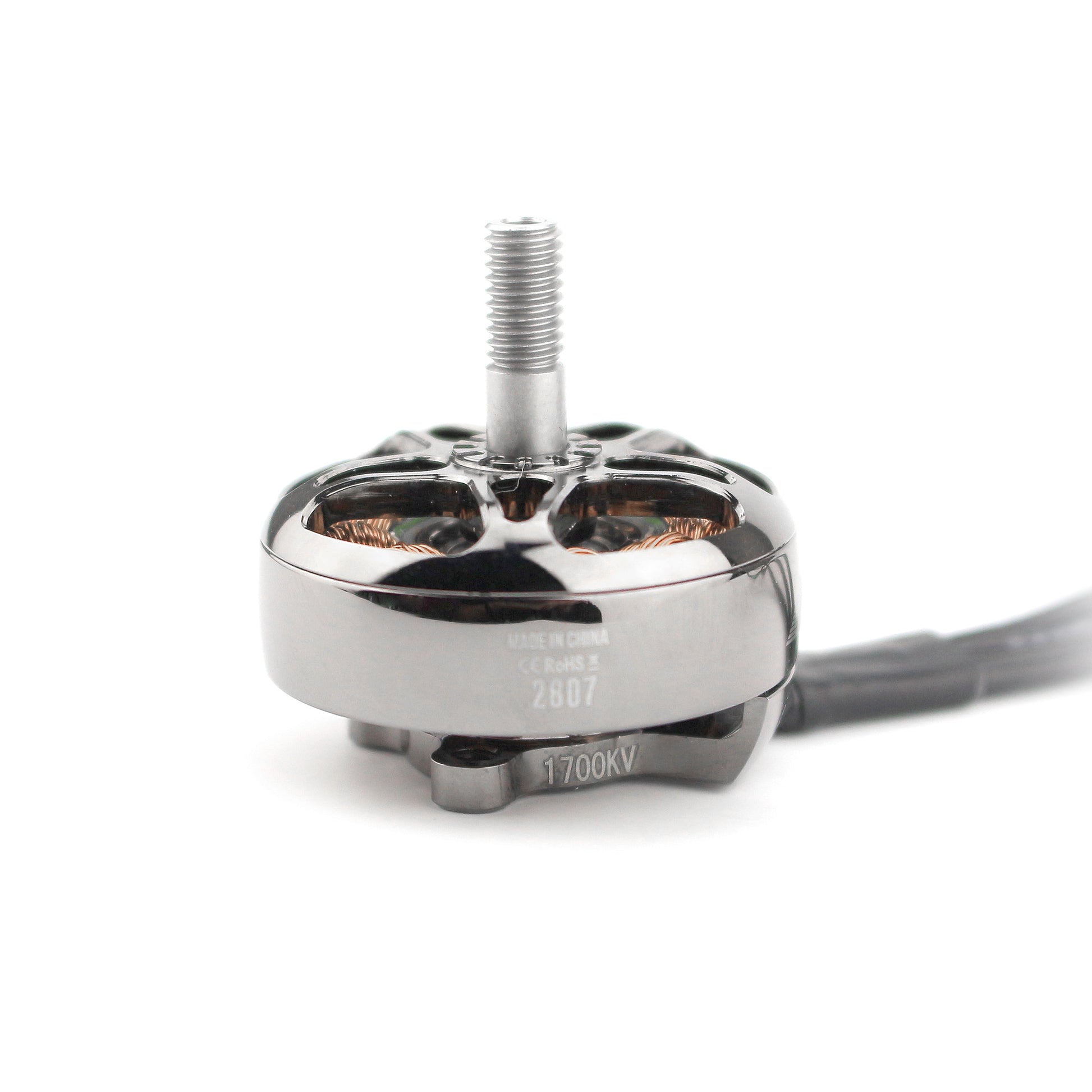

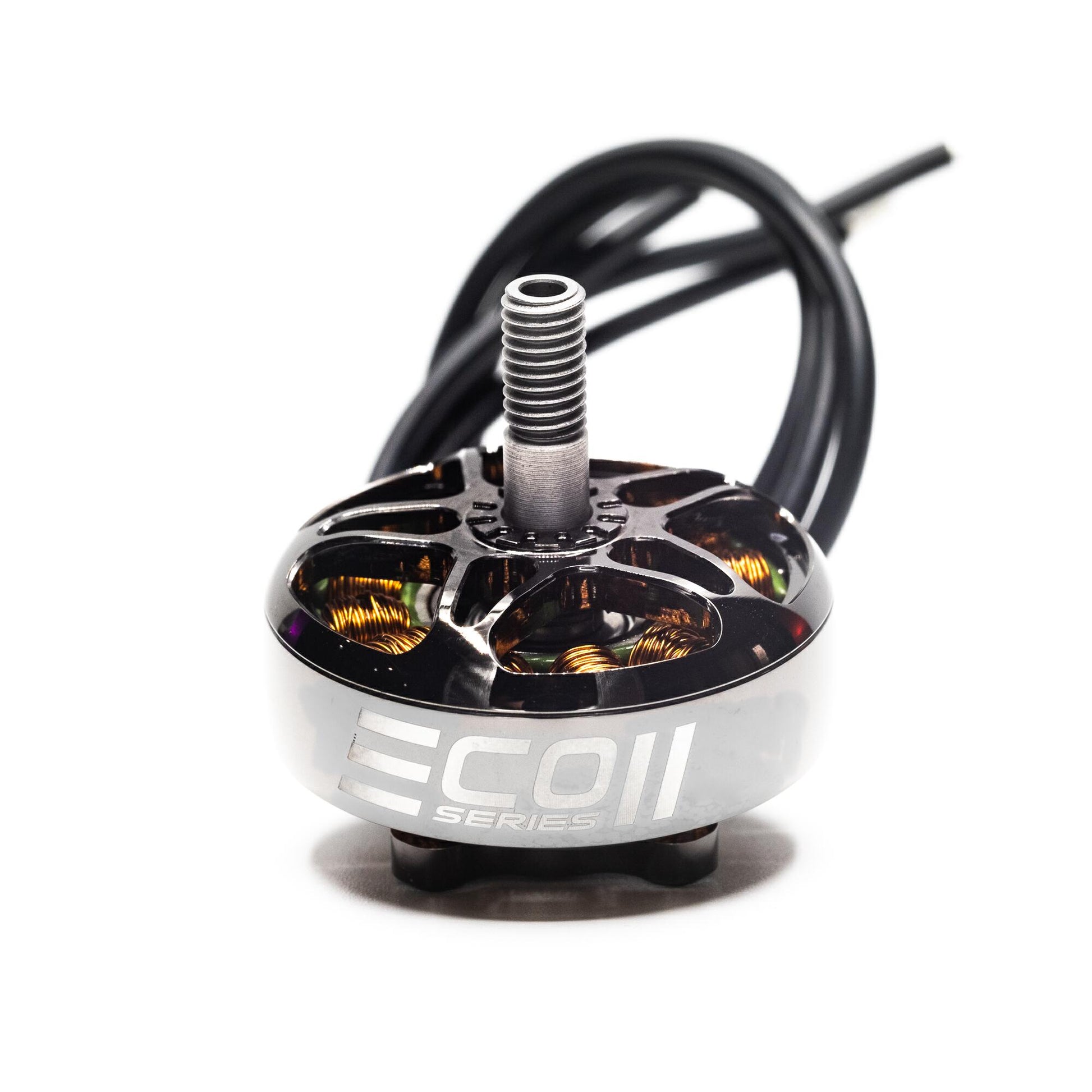

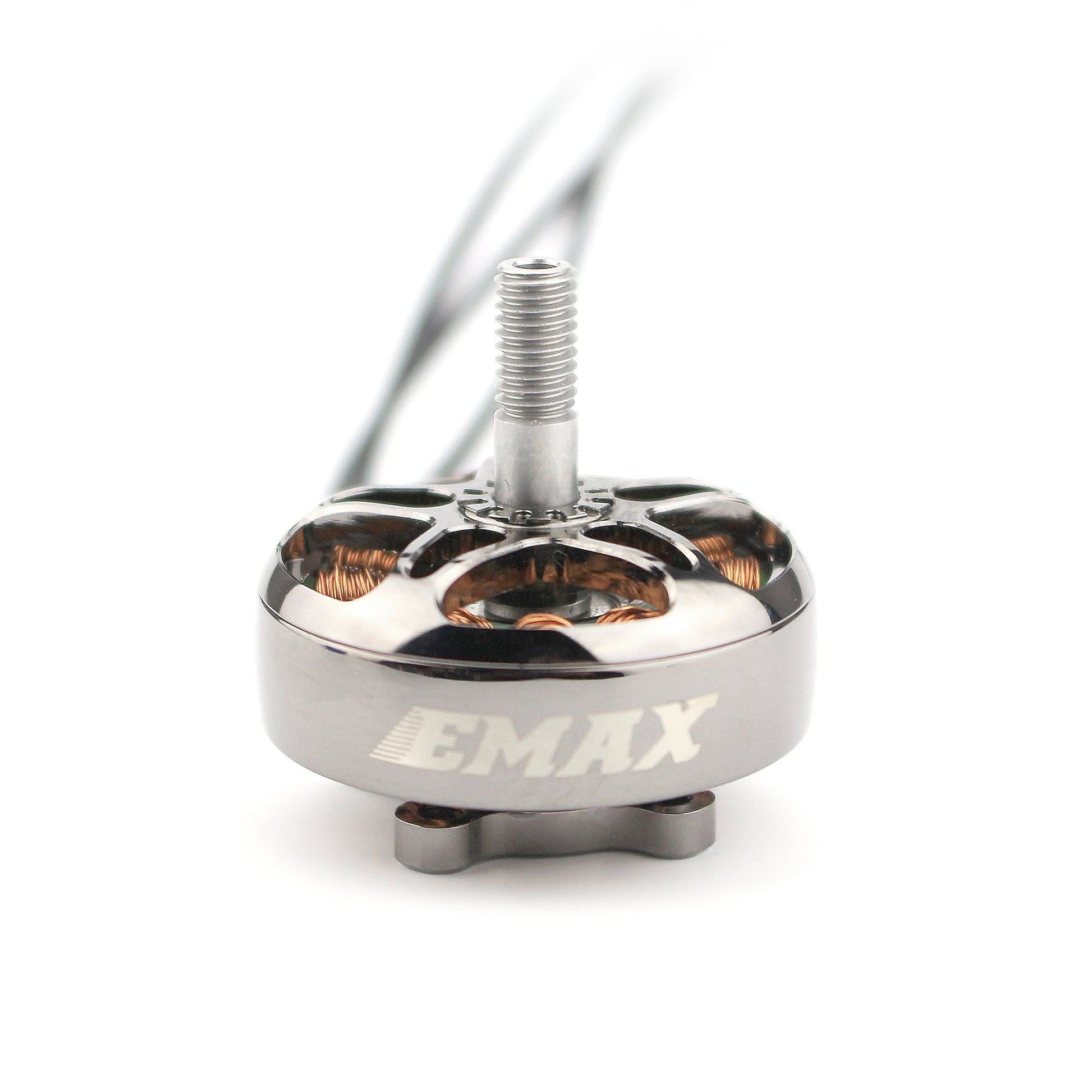

    ECO II 2807 1700KV

Emax ECO II Series 2807 brushless motors with improved performance and durability are compatible with 7-inch propellers. They are ideal for Freestyle, CineLifter and Long-Range drones.

Function:
- All new design with rounded bell and stronger attachment points for increased durability.
- Improved N52SH curved arc magnets for tighter air gap and better performance.
- EZO 12mm bearing for smooth operation.
- Motor mounting 19x19mm

Specifications:
Motor KV: 1700KV
Engine dimensions: 33.9 x 34 mm
Frame: 12N14P
Propeller Adapter Shaft Diameter: M5
Lead: 18#AWG 200mm
Weight: 47.9g
No load current (10V): 2.1A
Internal resistance: 41mΩ
Number of articles: 3-4S
Propeller: 6-7 inches
Peak current (6S): 52A
Maximum power (6S): 870W
Mounting holes: 19x19mm

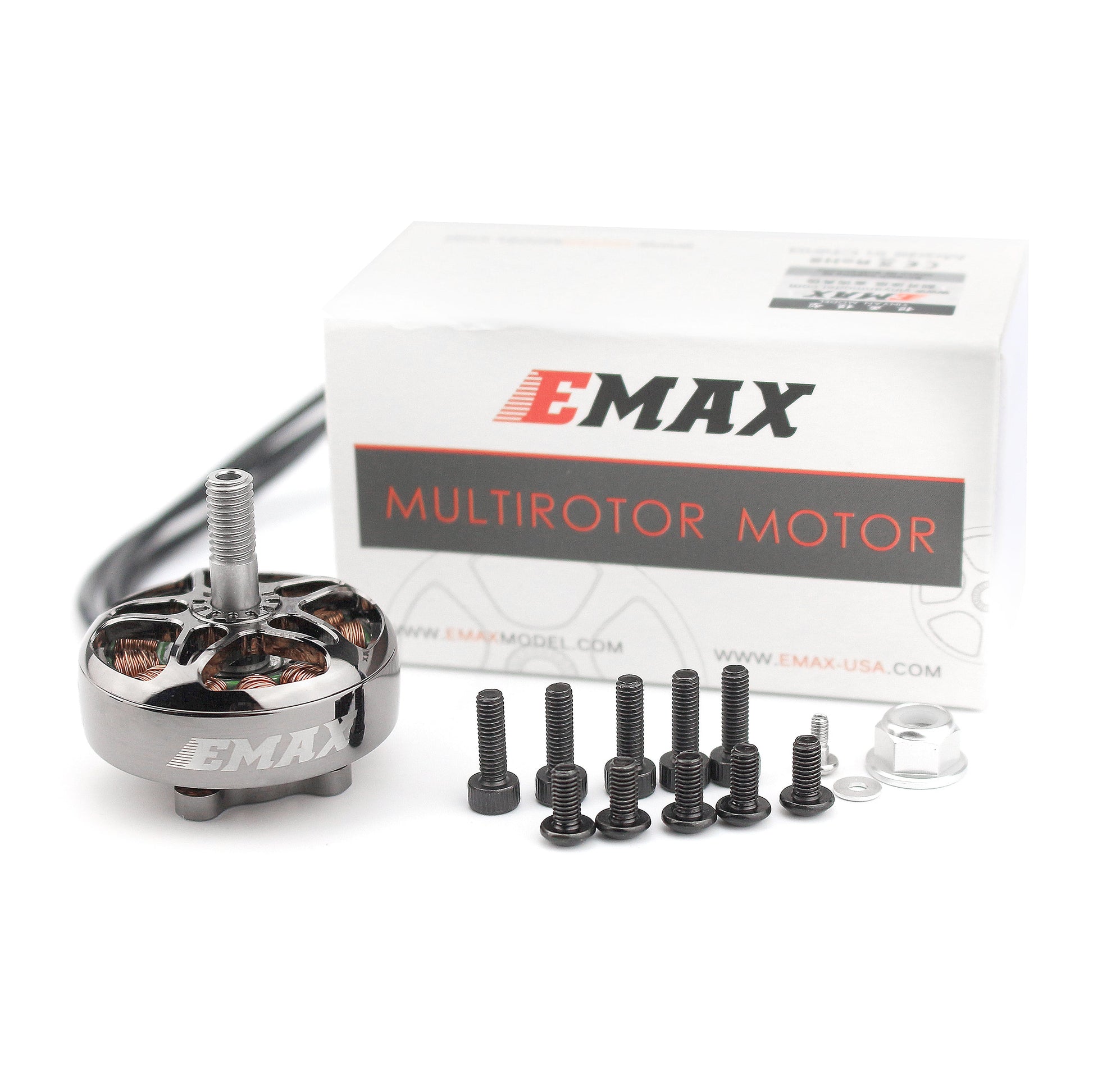

The package includes:
1x 2807 1700KV motor
5x МЗ*10 Ѕсrеw
5x M3*8 screw
1x M5 aluminum nut
1x washer and screw for the shaft
