    Motor Emax ECO II 2207 1700KV

    Motor Emax ECO II 2207 1700KV

    Brand: Emax

    €15,99
    €15,99 €15,99
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

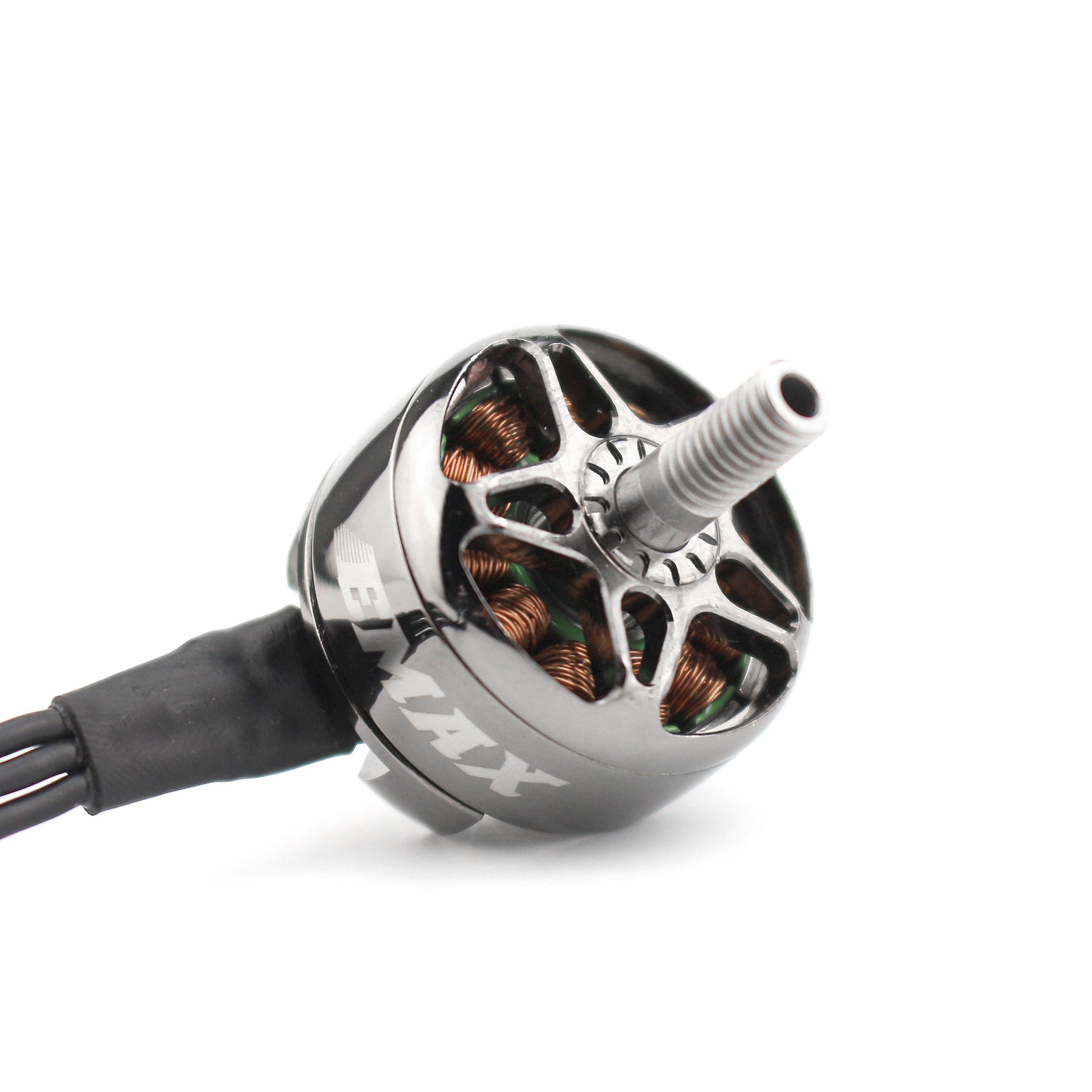

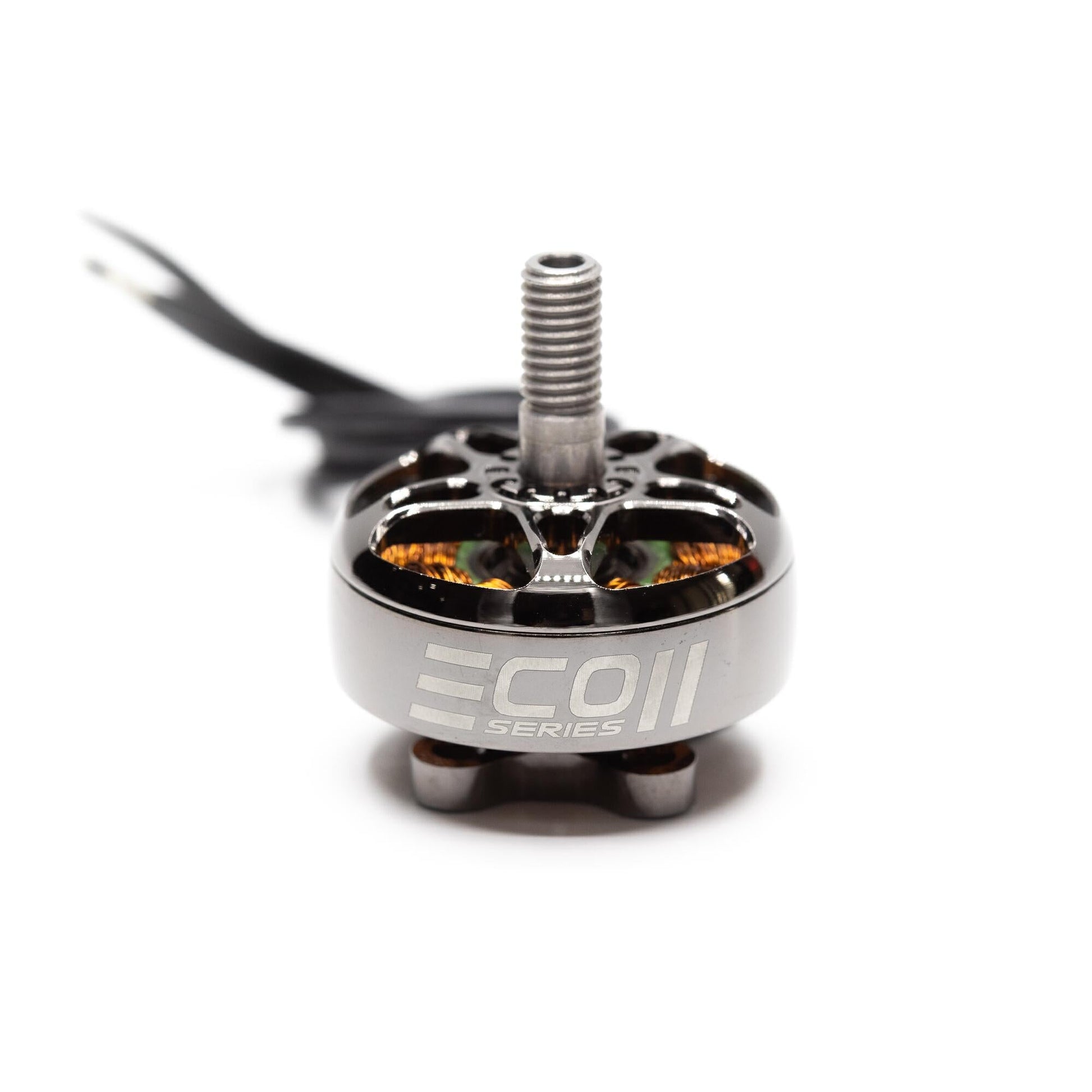

    ECO II 2207 1700KV

Emax ECO II 2207 is compatible with 5" propellers for racing and freestyle drones and offers three variants: 1700KV, 1900KV, 2400KV.

Function:
- All new design with rounded bell and stronger attachment points for increased durability.
- Improved N52SH curved arc magnets for tighter air gap and better performance.
- EZO 9mm bearing for smooth operation.
- Motor mounting 16x16mm

Specifications:
Motor KV: 1700KV
Length: 33.2 mm
Diameter: 27.5mm
Frame: 12N14P
Propeller Adapter Shaft Diameter: M5
Terminal: 20#AWG 120mm
Weight: 33.4g (W/O silicone wire
No load current (10V): 1.2A
Internal resistance: 72mΩ
Number of articles: 3-6S
Propeller: 5-5.5 inches
Peak current (6S): 38A
Maximum power (6S): 960W
Mounting holes: 16x16mm

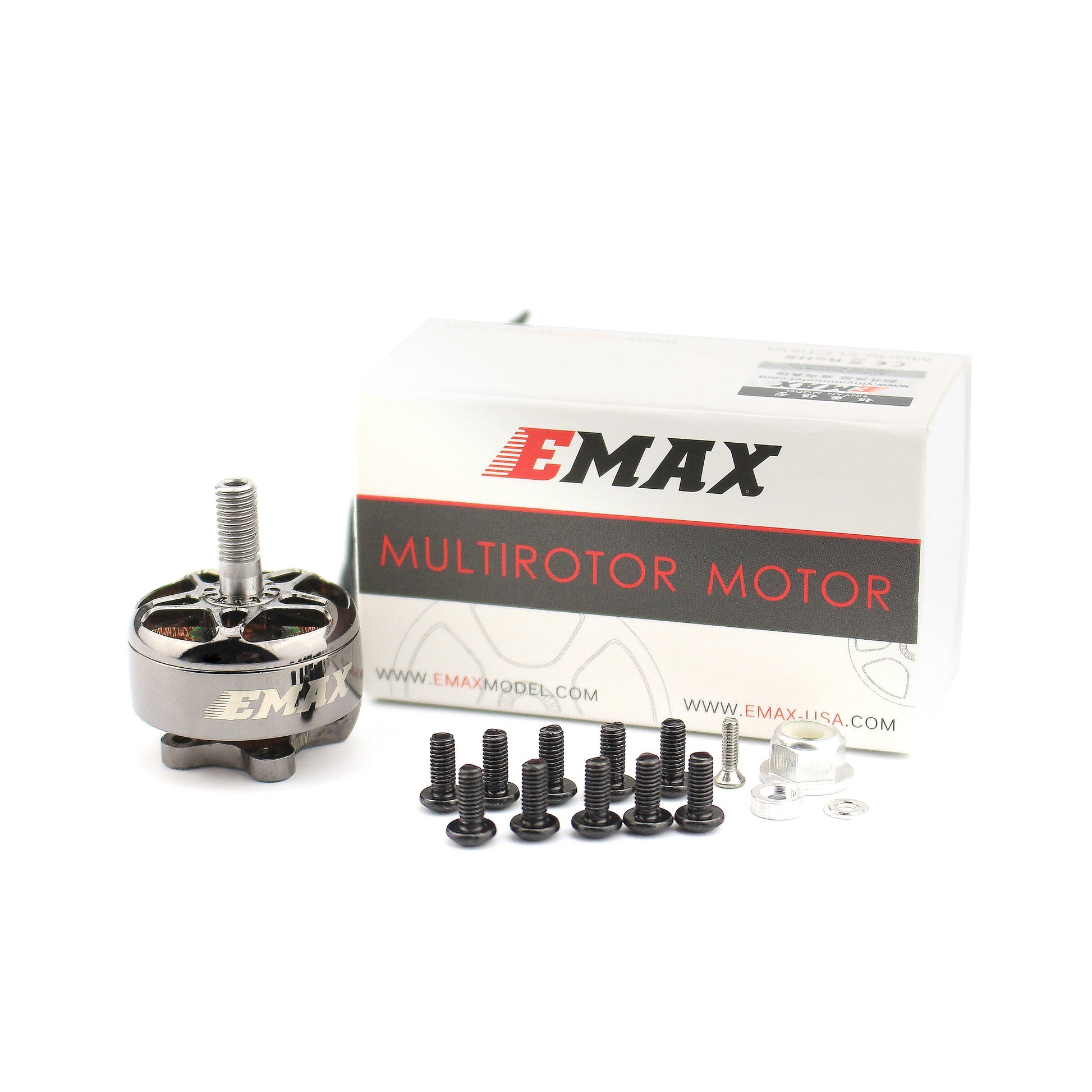

The package includes:
1x 2207 1700KV motor
5x МЗ*8 Ѕсrеw
5x M3*7 screw
5x МЗ*6 Ѕсrеw
1x M5 aluminum nut
1x washer and screw for the shaft
