Motor Brotherhobby Avenger 4215 V5 435KV
Motor Brotherhobby Avenger 4215 V5 435KV
Brand: Brotherhobby
Couldn't load pickup availability
- Description
- Related Files
- Discussion
Brotherhobby Avenger 4215 V5 435KV Engine
The Brotherhobby Avenger 4215 V5 435KV is a high performance brushless motor designed for demanding applications requiring performance, efficiency and durability. Constructed from premium materials, including 7075 aircraft aluminum and SUS420 heat treated steel, it ensures exceptional strength and thermal efficiency. Its N52H arc magnets and TU1 class enameled wire contribute to a stable magnetic circuit and low internal resistance, optimizing performance for drones and UAVs powered by 6-8S LiPo batteries.
Specifications:
KV: 435KV
Base Case Material: Aluminum 7075
Stator Height: 15mm
Configuration: 12N14P
Propeller Adapter Shaft Thread: M5
Shaft Material: SUS420 Heat Treated Steel
Battery Compatibility: 6-8S LiPo
Screw Pitch: M3 (30 x 30mm)
Bearings: 12x6x4mm (high precision, high axial load capacity)
Rotor magnets: N52H arc magnets (consistent air gap, stable magnetic circuit)
Weight: 213g (including 30cm SR wires)
Wire size: 16AWG, length 30cm
Material housing: aluminum 7075
Maximum pull: 6902g
Throttle: 100%
Voltage: 33.6V
Propeller: folding 15558 Triblade
Recommended controller: 8S 60A
Maximum power: 1821W
Maximum current: 54.2A
Revolutions: 9114 rpm
Thrust efficiency: 3.79

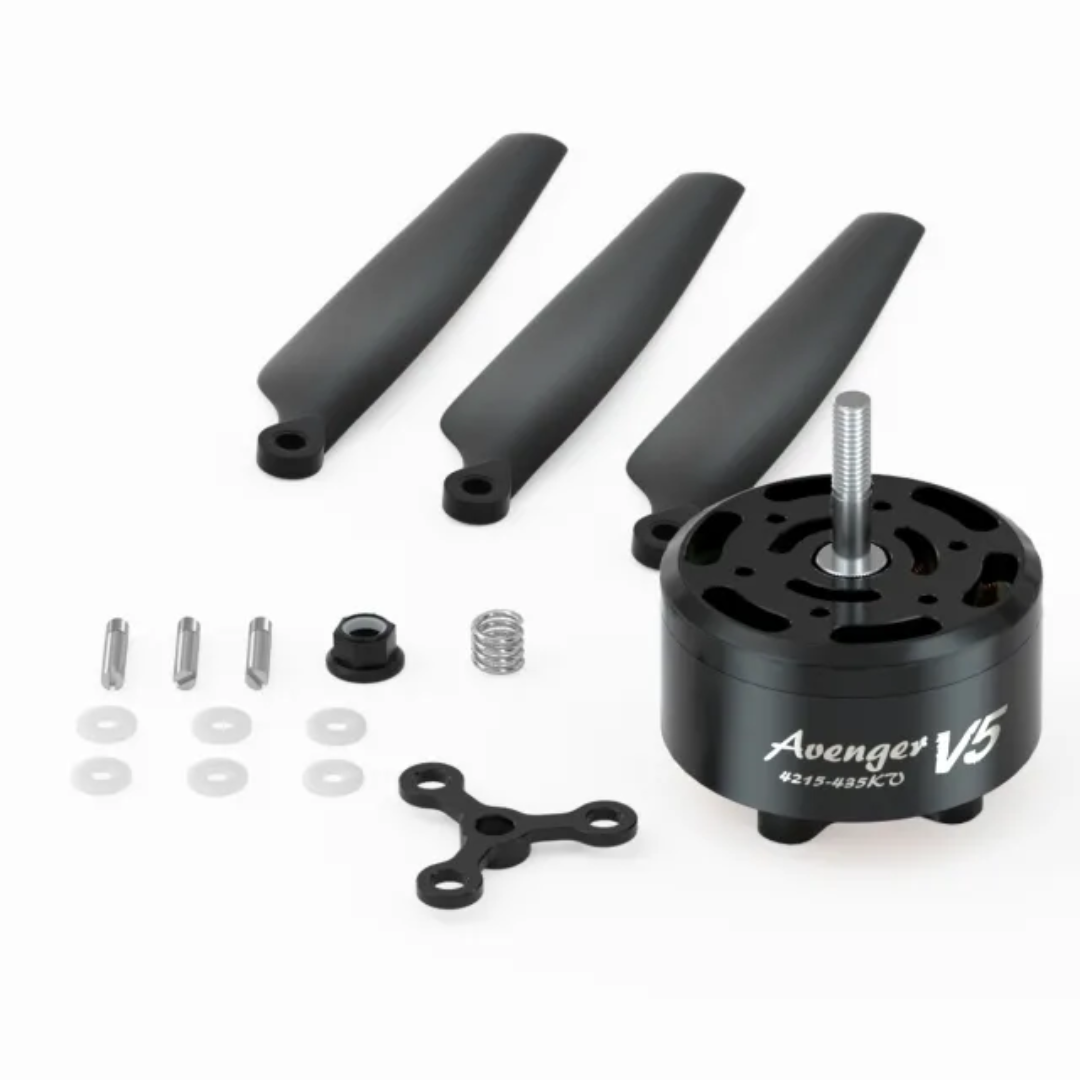

Package includes:
1 x Brotherhobby Avenger 4215 V5 435KV Motor
1 x Folding 3-blade Propeller
1 x Propeller Connector
4 x Screw
4 x Spacer
1 x Flange Nut
3 x Outer Threaded Cylindrical Groove
1 x Spring
