    Code: 01050012_1

    Motor BETAFPV 1506-4200KV(1PCS)

    Motor BETAFPV 1506-4200KV(1PCS)

    Brand: BETAFPV

    €15,00
    €15,00 €15,00
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

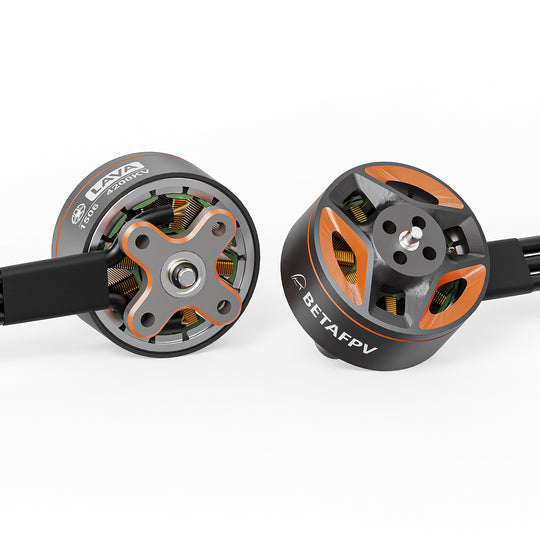

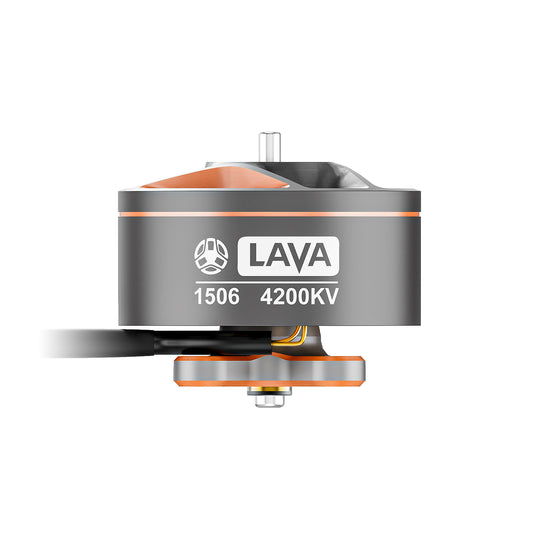

    AC motors 1506-4200KV (1pc)

LAVA Series 1506 brushless motors are designed for 4S 2.5'' ATVs with smoother output torque.

Function

- LAVA series 1506 reciprocating engines with GF D63 3-blade propellers guaranteeing powerful flight capabilities and reduced noise level.
- Ensuring smoother and more efficient performance while conserving energy and improving the overall flying experience.

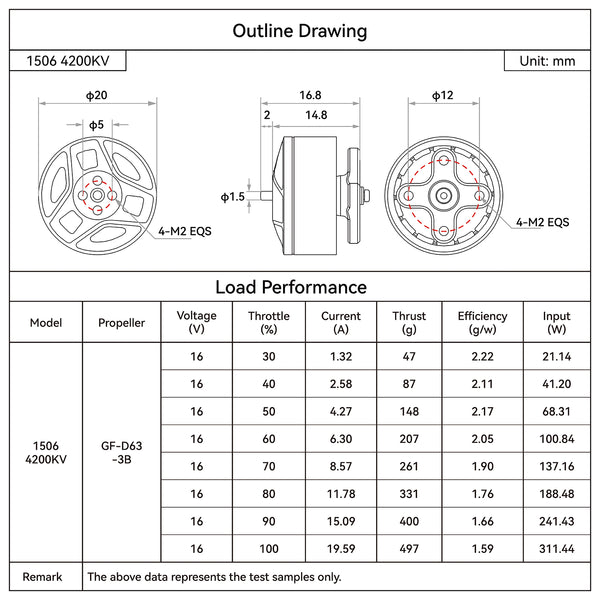

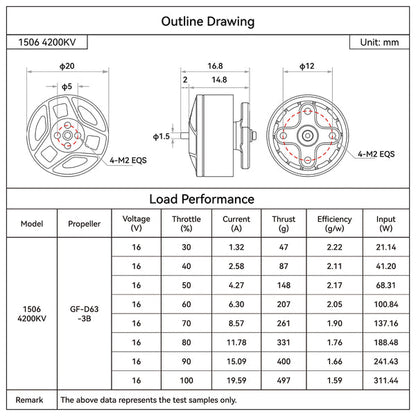

Specifications
Items: LAVA Series 1506 4200KV AC Motors
Maximum power: 313.44W
Maximum current: 19.59A

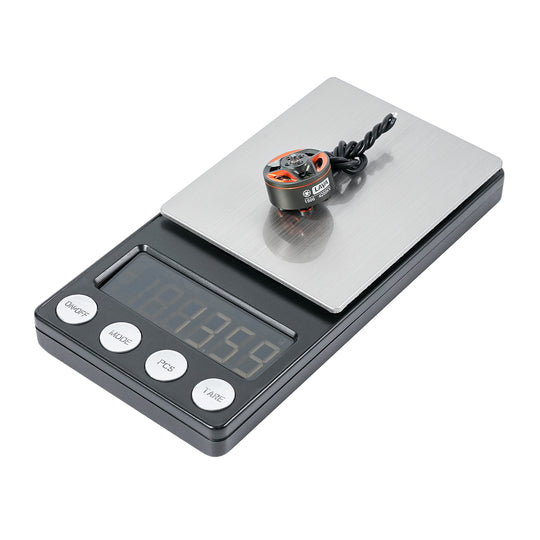

Weight: 13.6g

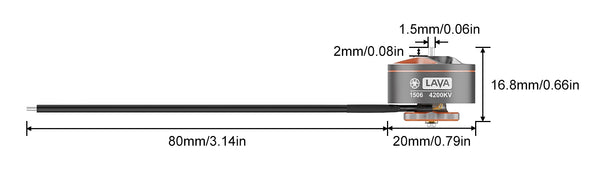

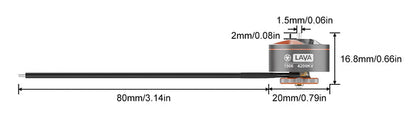

Shaft diameter: ø1.5mm
Shaft length: 4 mm
Wire specification: 24AWG
Wire length: 80 mm
Motor mounting hole size: 4*M2 Ø12mm
Propeller mounting hole size: 4*M2 Ø5mm

Recommended parts
Props: GF D63 3-blade propellers 1.5mm shaft
Quadcopter: Pavo25 V2 brushless quadcopter
FC: F722 35A AIO V2 FC
Battery: LAVA Series 4S 850mAh LiPo Battery, 4S 650mAh LiPo Battery

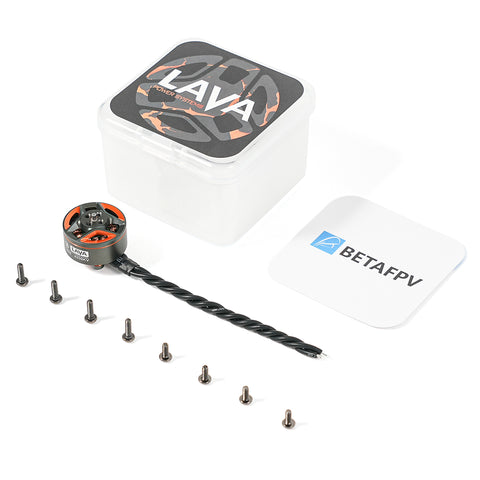

The package includes:
1 * LAVA 1506 4200KV series brushless motors
4 * M2 * 5 Hexagon flat head screw
4 * M2 * 7 Hex Flat Head Screw
