Warning! This model has been discontinued and will no longer be available. Please see the available alternatives:
https://www.hobbydrone.cz/en/motor-betafpv-0702se-ii-23000kv-brushless-4pcs/

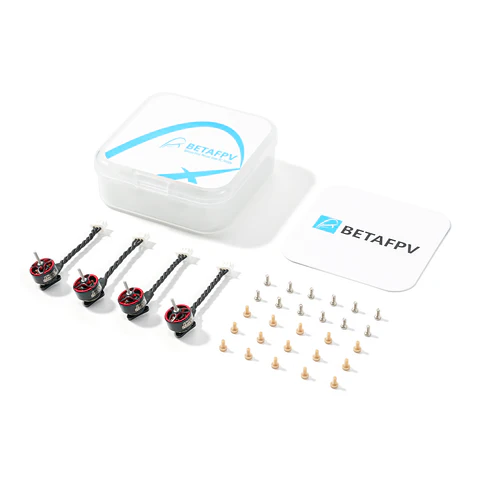

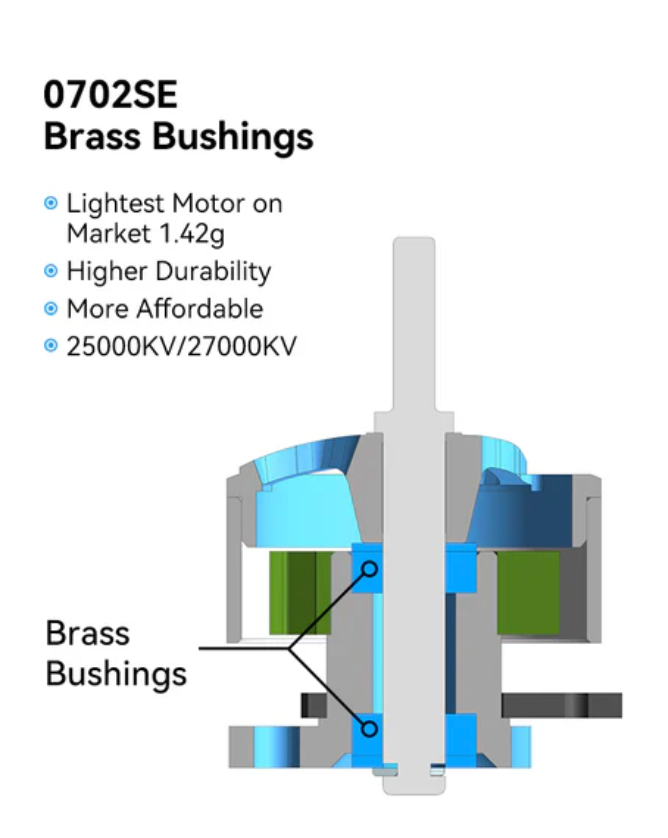

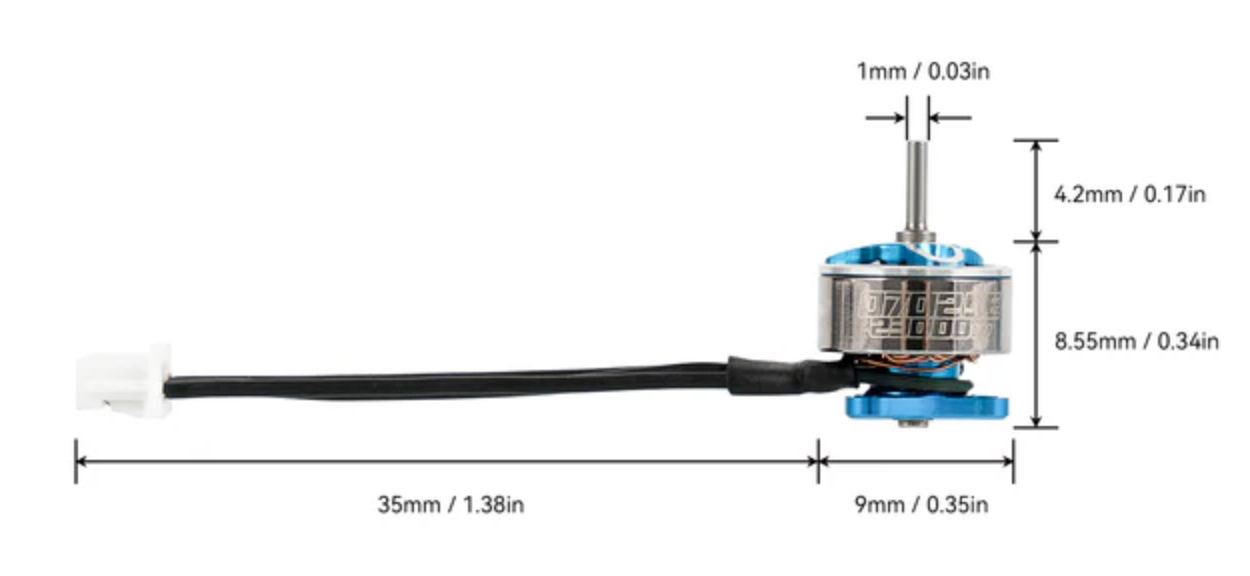

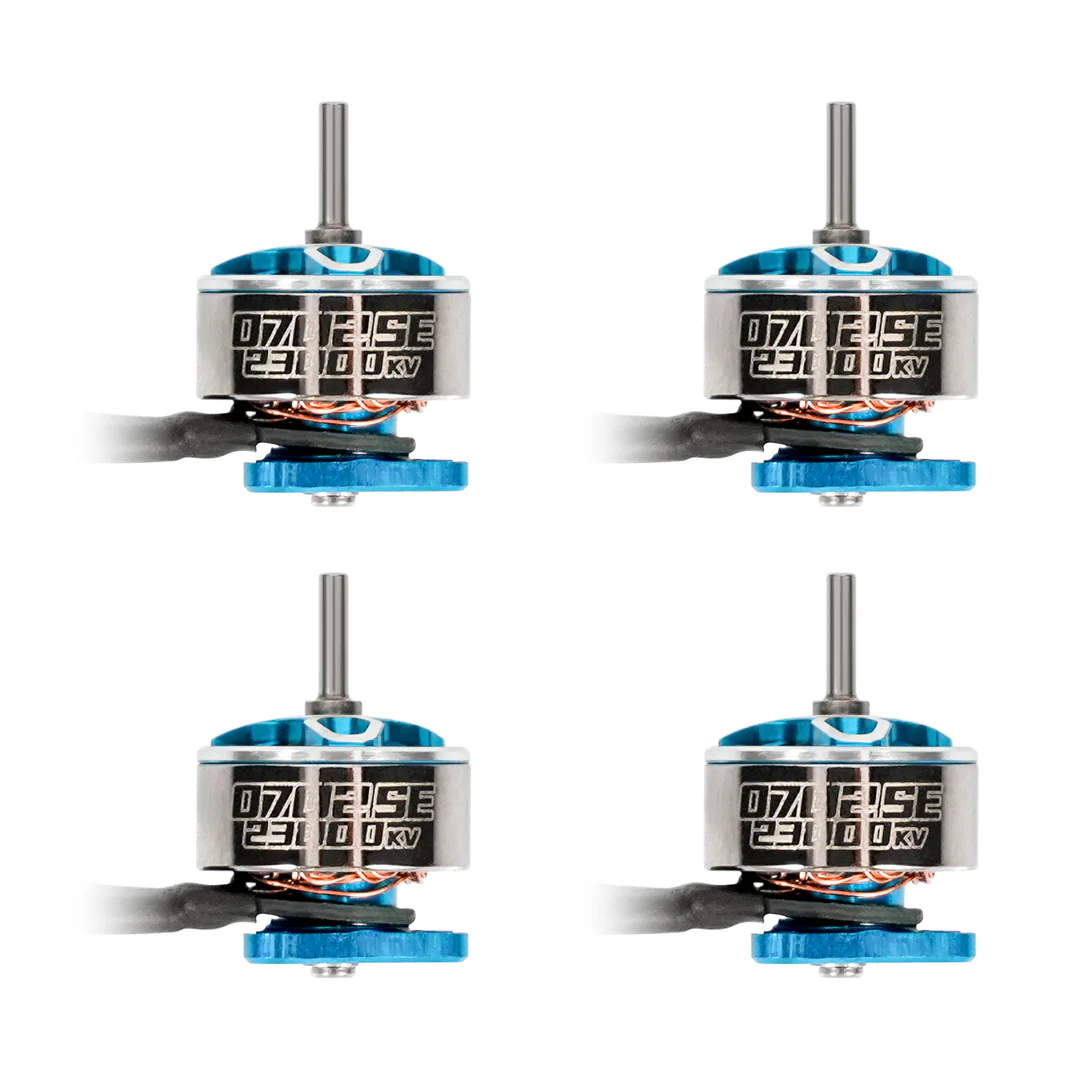

0702SE 23000KV brushless motors (4 pcs) Function - 0702SE motors are designed for lightweight 65mm drone drones - Weighs only 1.42g, making them the lightest motors available. - The 0702SE motor with brass bushings is more affordable and durable. - Despite the availability of larger engines achieving similar thrust, the 0702 engines are preferred for their ability to reduce off-center weight, thereby increasing agility. - Weighing only 0.10 grams/12pcs, PEEK screws contribute to weight saving and offer heat resistance, friction resistance, shock resistance and fatigue resistance. - Combined with Gemfan 1210 2-blade or 1208 3-blade propellers, these motors provide robust performance and responsiveness to meet the demands of light drone installations. Specifications Item: 0702SE AC motors Bearing: brass bushings KV: 23000KV Weight: 1.42g±0.03g Weight without connector: 1.35 g Color: Ice blue Shaft diameter: 1mm Shaft length: 4.2 mm Hole distance: 6.6 mm Motor mounting holes: M1.4 Input voltage: 1S Cables: 35mm including connector, 30AWG cables Dimensions: 12.75*φ9mm Recommended parts Propellers: GF 1210 2B Props, GF 1208 3B Props Frame: Meteor65 frame, Meteor65 Pro frame FC: F4 1S 5A AIO Brushless Flight Controller Battery: BT2.0 300mAh 1S 30C Battery (8PCS) Bolts: A set of bolts for fixing the Meteor series motor Package 4 * 0702SE brushless motor 23000KV 15 * M1.4*3 PEEK screws 12 * M1.4*3 metal screws
