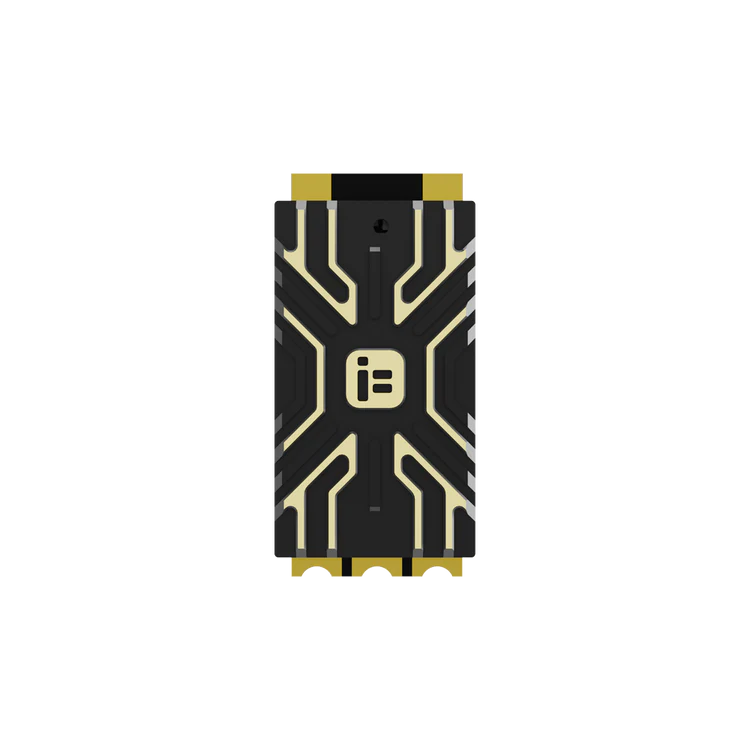

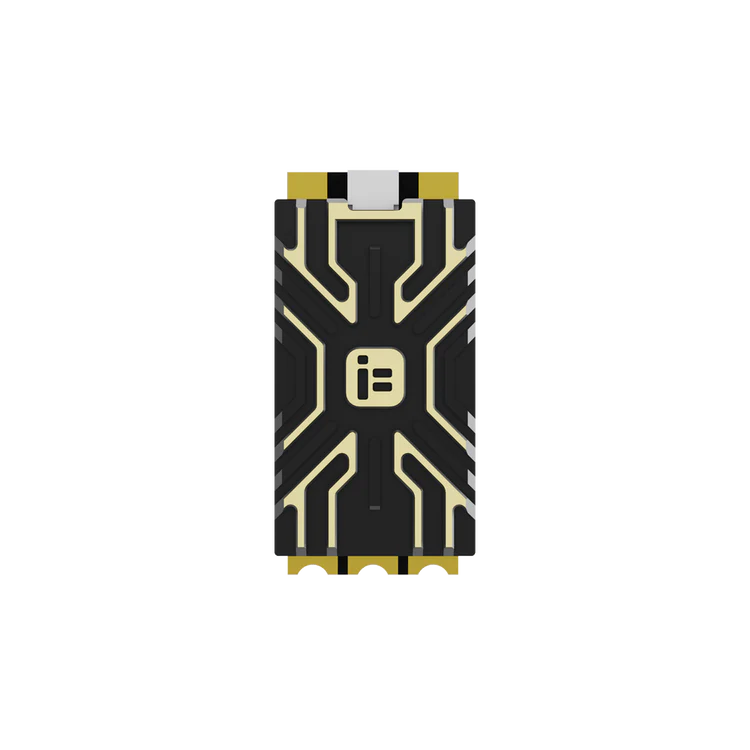

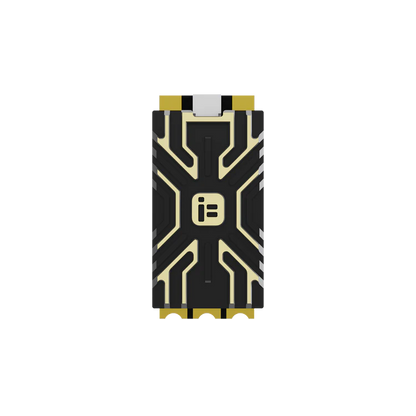

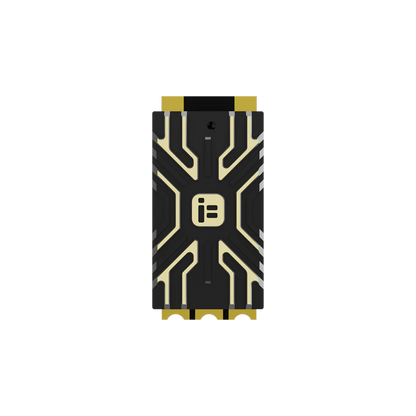

    iFlight BLITZ E80 Single ESC

    iFlight BLITZ E80 Single ESC

    Brand: iFlight

    €68,60
    €68,60 €68,60
    -0% View Product
    In stock
    We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

    BLITZ E80 BLHeli Dshot600 Single ESC has been designed to provide the motors with smooth performance with excellent stability and durability. The 32-bit 48MHz G071 MCU coupled with 11 TDK MLCC capacitors with a total capacity of 240UF Low ESR ensures faster response and a smoother flight experience.

    Main advantages:

    • 2-8S input (max 8S)
    • 80A, 8-layer 4OZ copper PCB for better load
    • 11 TDK MLCC capacitors with a total capacity of 420UF Low ESR to reduce ripple and increase stability
    • High-end NTMFS5C430NL MOSFET for stability and reliability
    • 1 * 3528 LED for power on display
    • Rational layout with large solder pads, countersunk holes and semi-circular holes to ensure power supply to each layer after power-up

    Specifications:

    • Product name: BLITZ E80 Single ESC
    • Input voltage: 2-8S
    • Max. continuous current: 80A
    • Max. peak current: 100A
    • MCU: G071
    • BEC: No
    • Firmware: BLHeli32
    • Current sensor: Yes
    • Telemetry: Supported
    • Target: IFLIGHT_BLITZ_G2
    • Dimensions: L40 x W17 x W10mm
    • Weight: 14.5g(±2)
    • Protocol: DShot DShot150/300/600/MultiShot/OneShot PWM Drive

    Support:

    • Current sensor
    • Telemetry output
    • Engine Timing
    • Stopping brake

    The package contains:

    • 1 x BLITZ E80 Single ESC
    • 1 x 50V 470UF capacitor
    • 1 x Power cables and ESC signal wires
