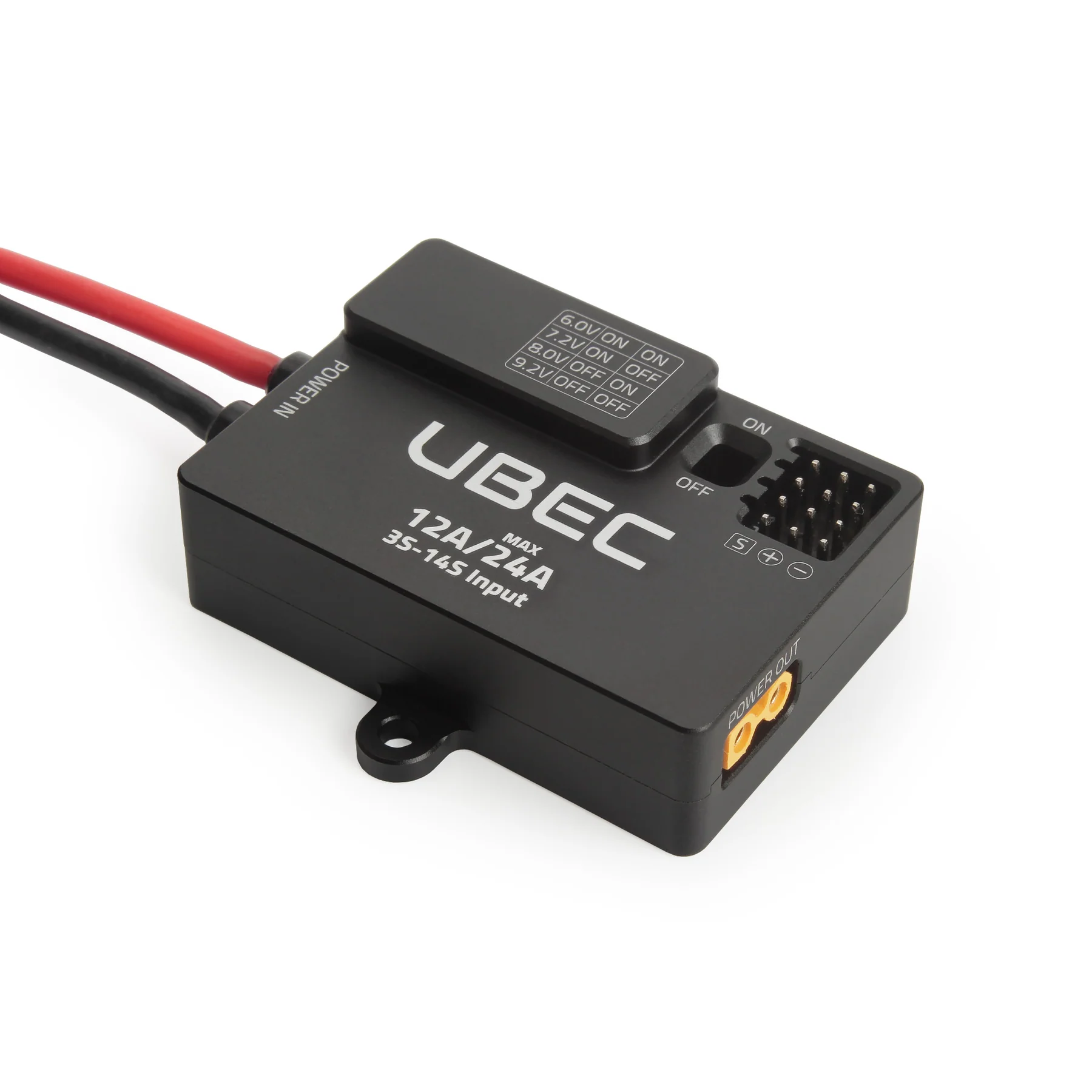

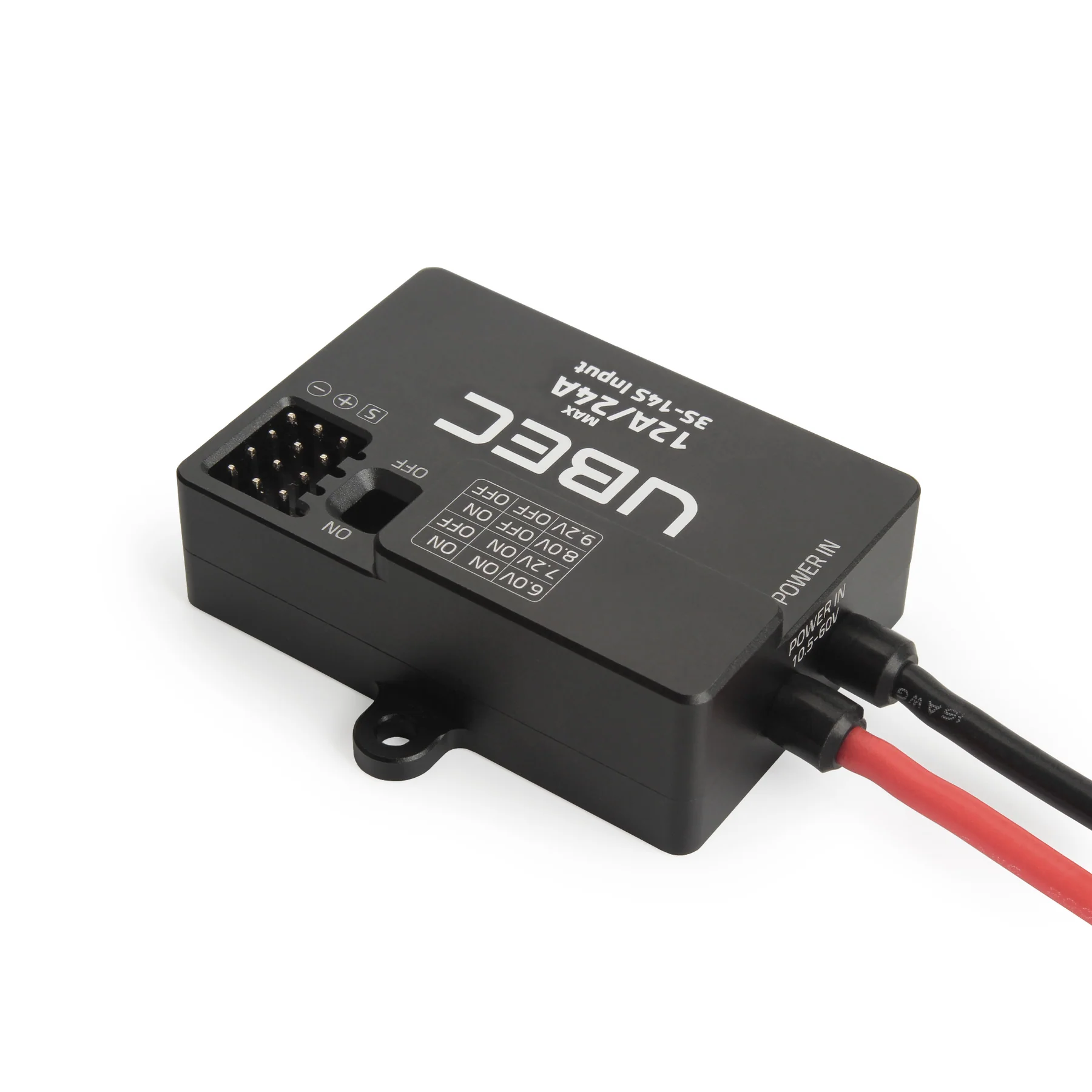

UBEC 12A (3-14S) is a synchronous step-down regulator from a high-voltage or wide-variable input source. It takes the DC voltage from a 3-14S LiPo battery and reduces the voltage to a level suitable for receivers and other electronic devices, while still providing a stable current output of up to 12A. The output voltage can be adjusted using the DIP switches on the board.
Function:
- Highly efficient DC-DC regulator with transfer efficiency over 90%
- Adjustable output voltage (6.0V/7.2V/8.0V/9.2V) for different devices
- 4-channel parallel output for servos
- XT30 output for high current devices
- Multiple protection functions, including overload (output end), short circuit, overheat and underdischarge protection
- Metal case for fast heat dissipation and less electromagnetic interference.
Specifications:

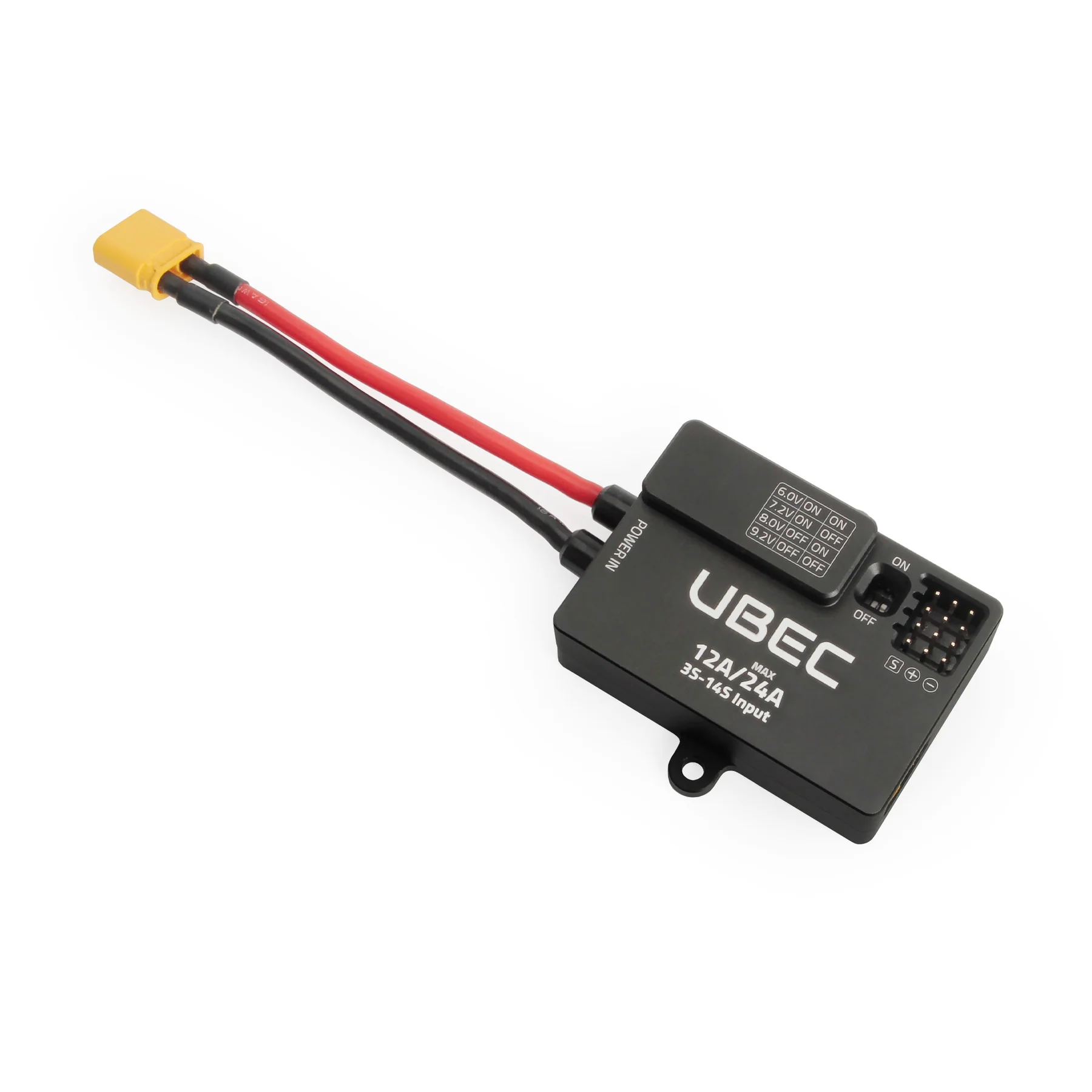

- Input Voltage: 3~14S (XT30)

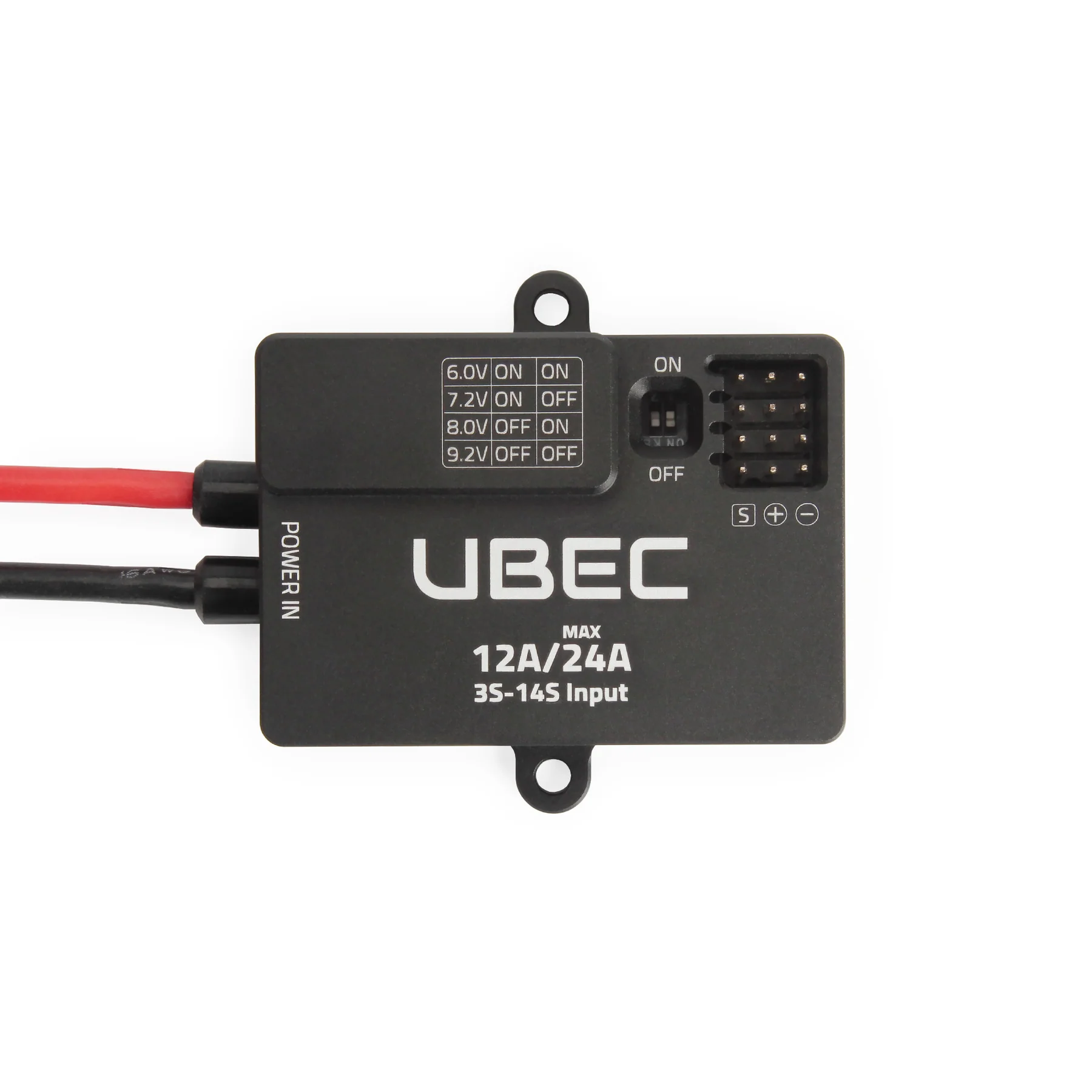

- Output voltage: 6.0V/7.2V/8.0V/9.2V (adjustable with DIP switches)
-
Output Current:
- Permanent: 12A
- Top: 24A

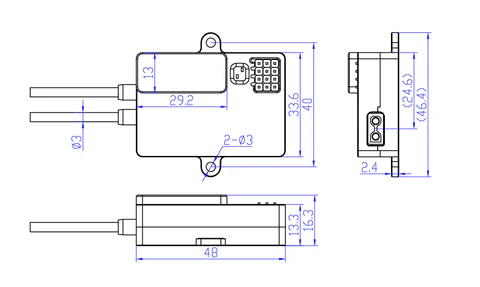

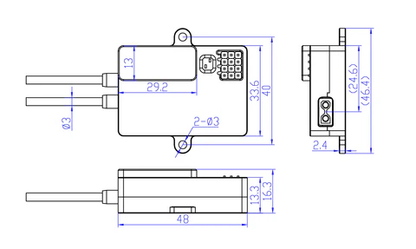

- Dimensions: 48x33.6x16.3 mm
- Weight: 47.8g
