GPS Module HGLRC M100 PRO
GPS Module HGLRC M100 PRO
Brand: HGLRC
Regular price
€18,50
Regular price
€18,50
Sale price
€18,50
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

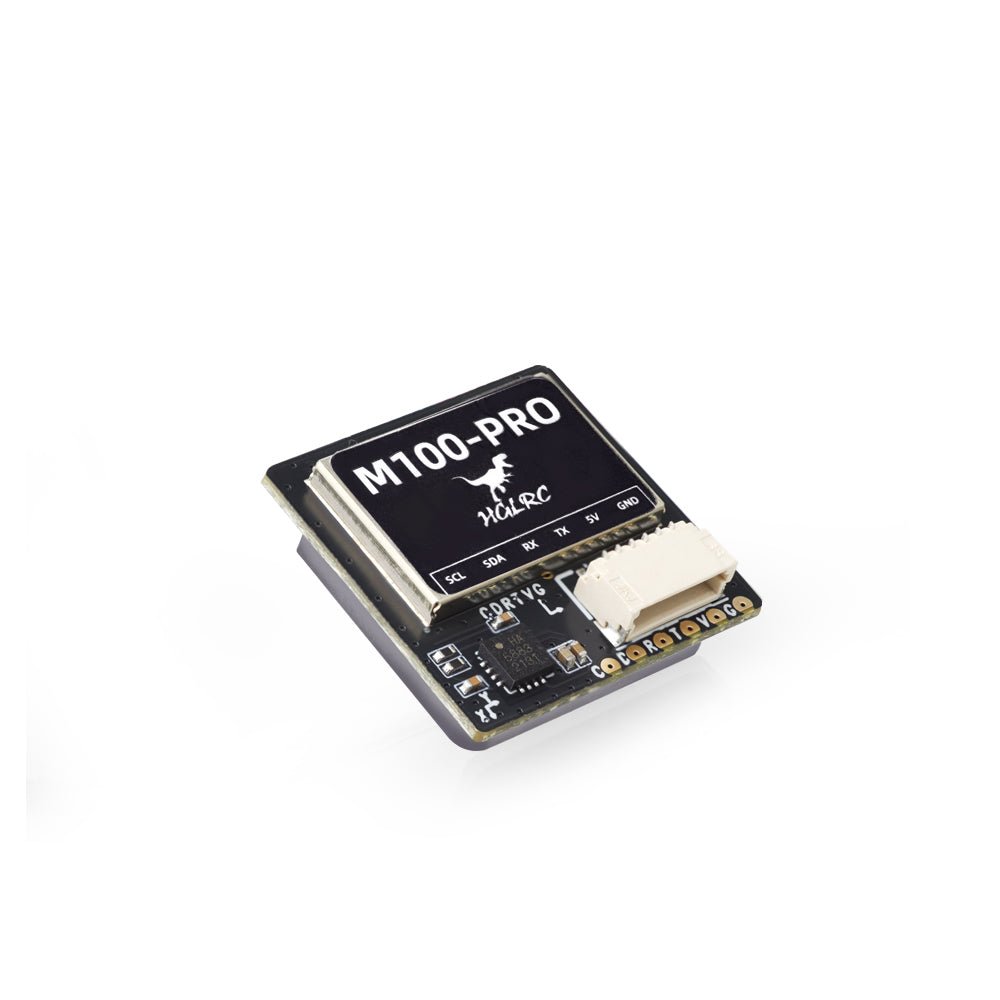

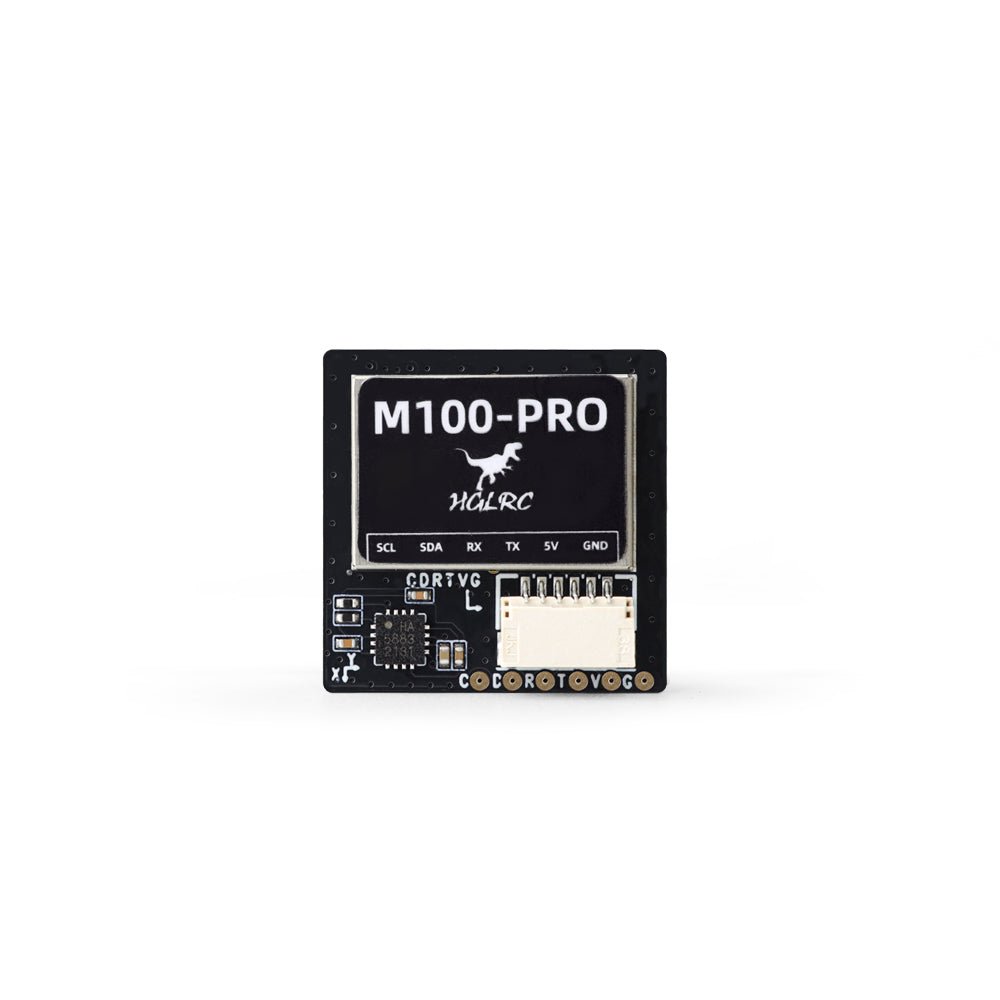

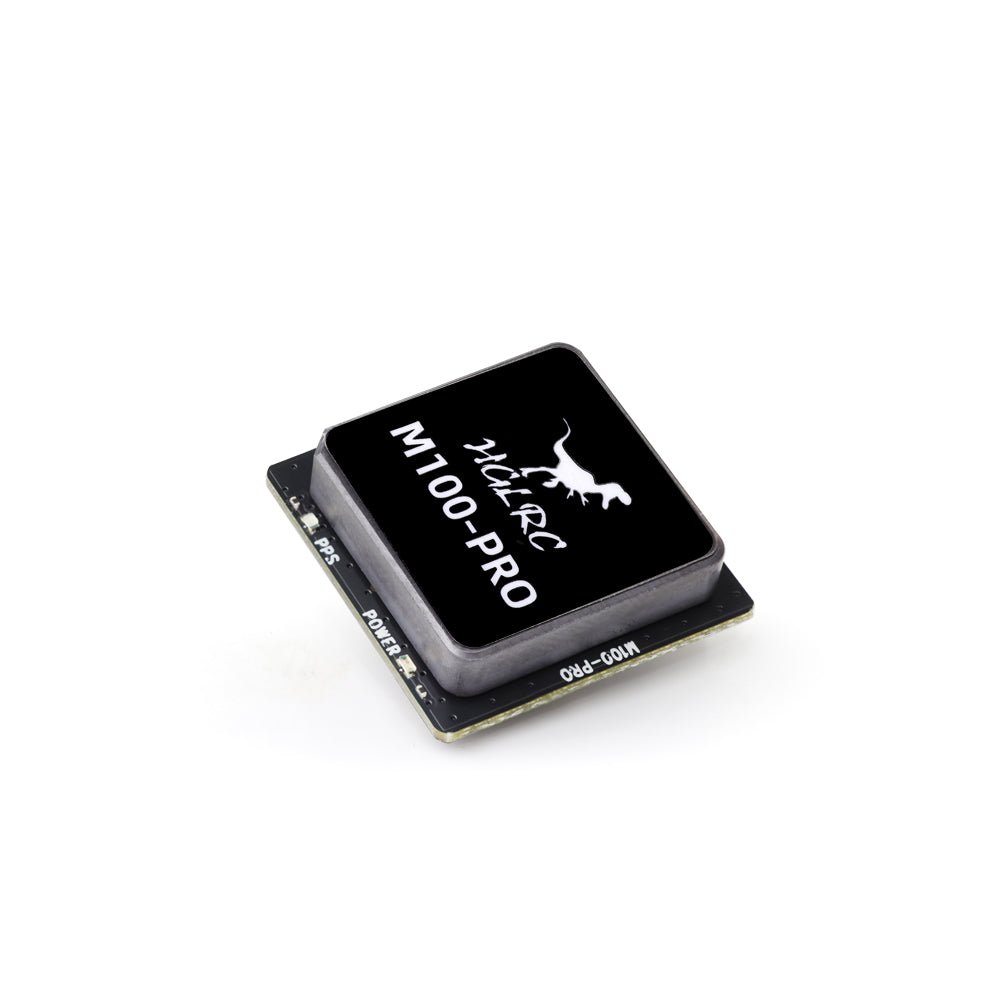

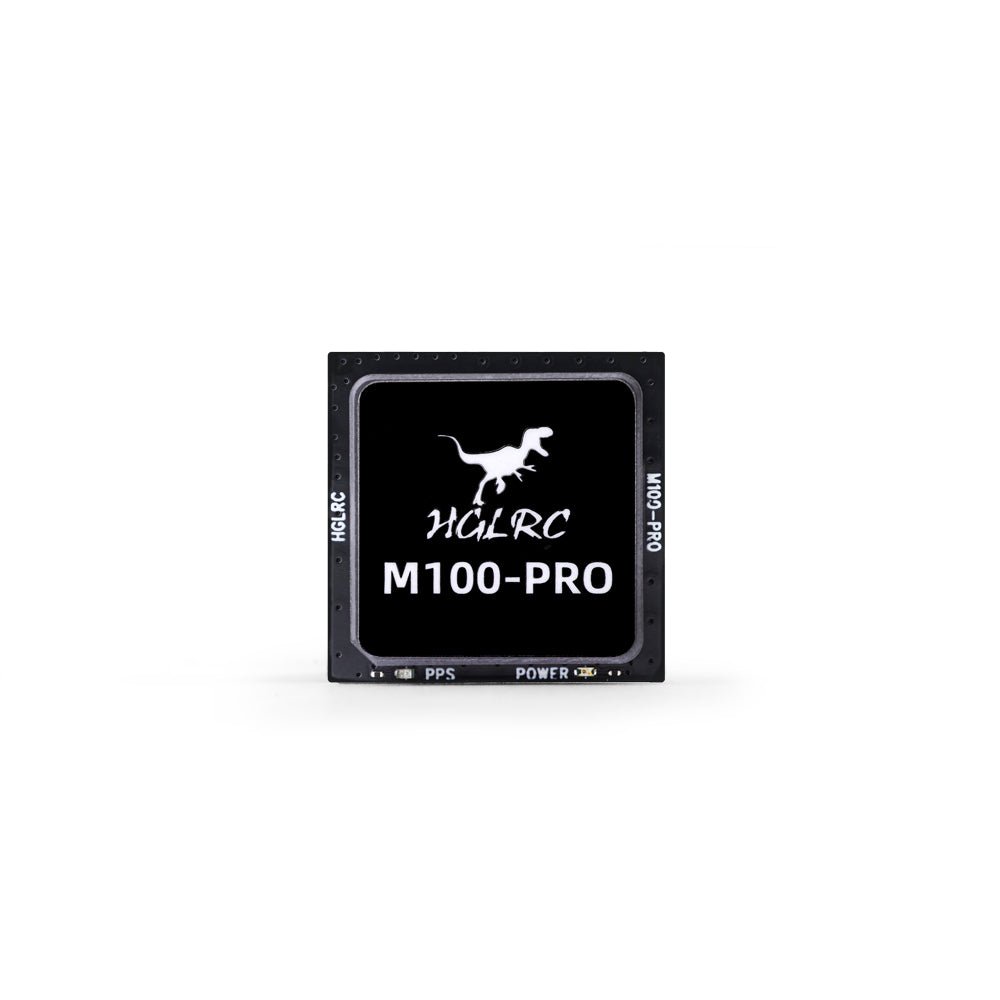

GPS module HGLRC M100 PRO The HGLRC M100 PRO GPS module is a high-performance positioning system equipped with a 10th generation chip capable of tracking more than 50 satellites for fast and reliable positioning. Equipped with a QMC5883L compass, it provides more accurate direction information, improving navigation accuracy. Thanks to the extended 120-channel receiver, the module can target satellites faster and more efficiently. Supporting five positioning modes, it ensures a strong and stable signal, making it an ideal choice for FPV drones and other applications requiring accurate and reliable GPS performance. Specifications: Chip: B101 (10th generation chip) Receive channel: 120 Baud rate: 115200 Protocol: UBX Antenna: ceramic antenna Output frequency: 10 Hz Frequency: GPS L1, GLONASS G1, BDS B1, GALILEO E1, QZSS L1, SBAS L1, IRNSS Power consumption: 3.6 - 5.5V Weight: 7.9 g Acceleration: 4G Speed: 500 m/s Size: 21.2 x 21.2 x 8.2 mm Operating temperature: -40℃ ~ +85℃ Storage temperature: -40℃ ~ +105℃ The package contains: 1 x HGLRC M100 FOR GPS 1 x shrink tube (φ18mm x 25mm) 1 x HGLRC sticker 1 x HGLRC manual 1 x SH1.0-6pin cable
