GPS module Flywoo GOKU GM10 Mini V3

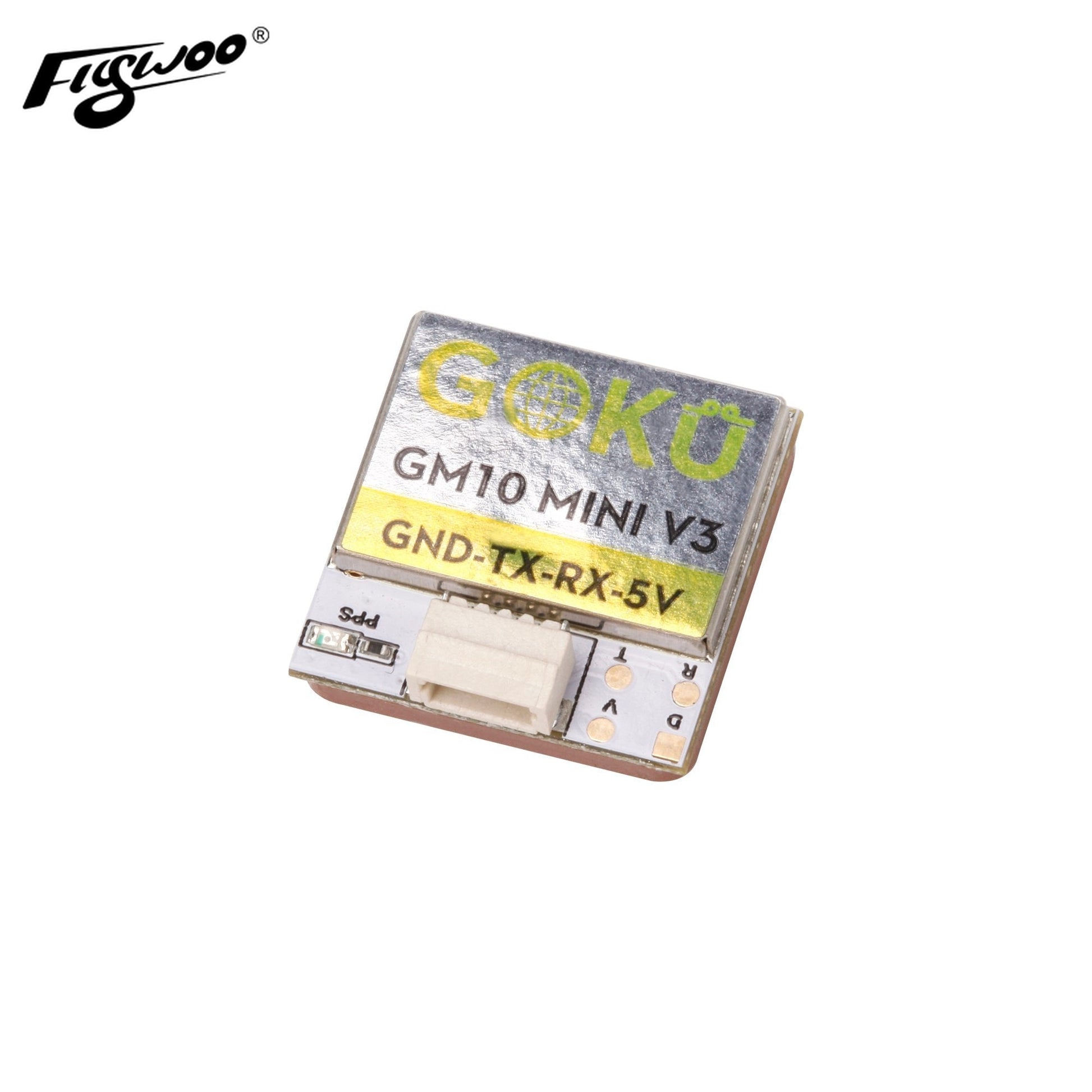

Flywoo GOKU GM10 Mini V3 is a compact and lightweight GPS module designed for FPV drones and other drone applications requiring accurate and reliable navigation. Equipped with the latest tenth-generation M10050 chipset, it supports multiple global satellite systems, including GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS, for better coverage and accuracy. With 72-channel tracking capability, fast signal recovery and high refresh rate up to 10Hz, the GM10 Mini V3 ensures fast and stable positioning. Its compact 18 x 18 mm dimensions, robust construction and extended operating temperature range make it ideal for demanding aviation and mobile environments.

Specifications:

Model: GM10 MINI V3 GPS

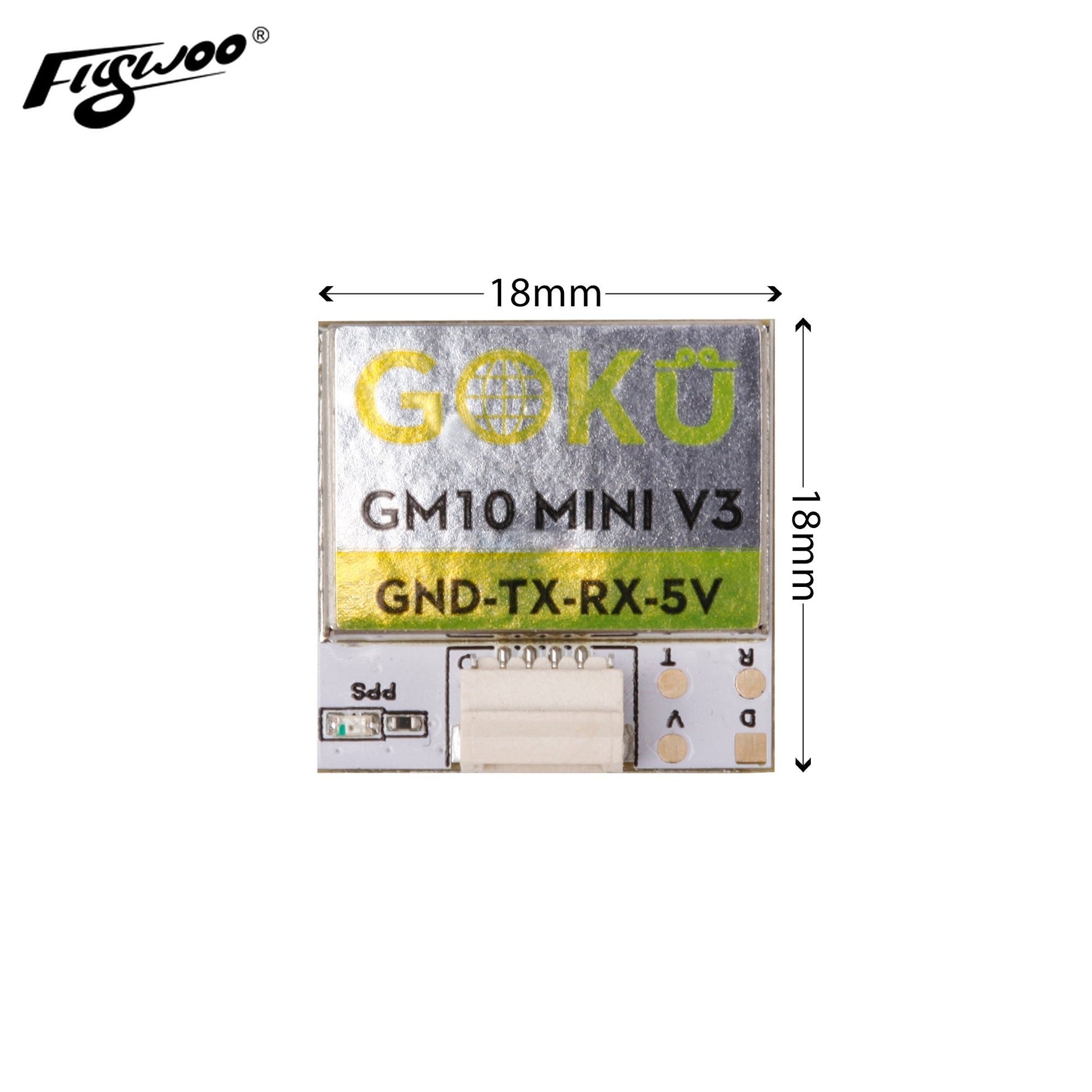

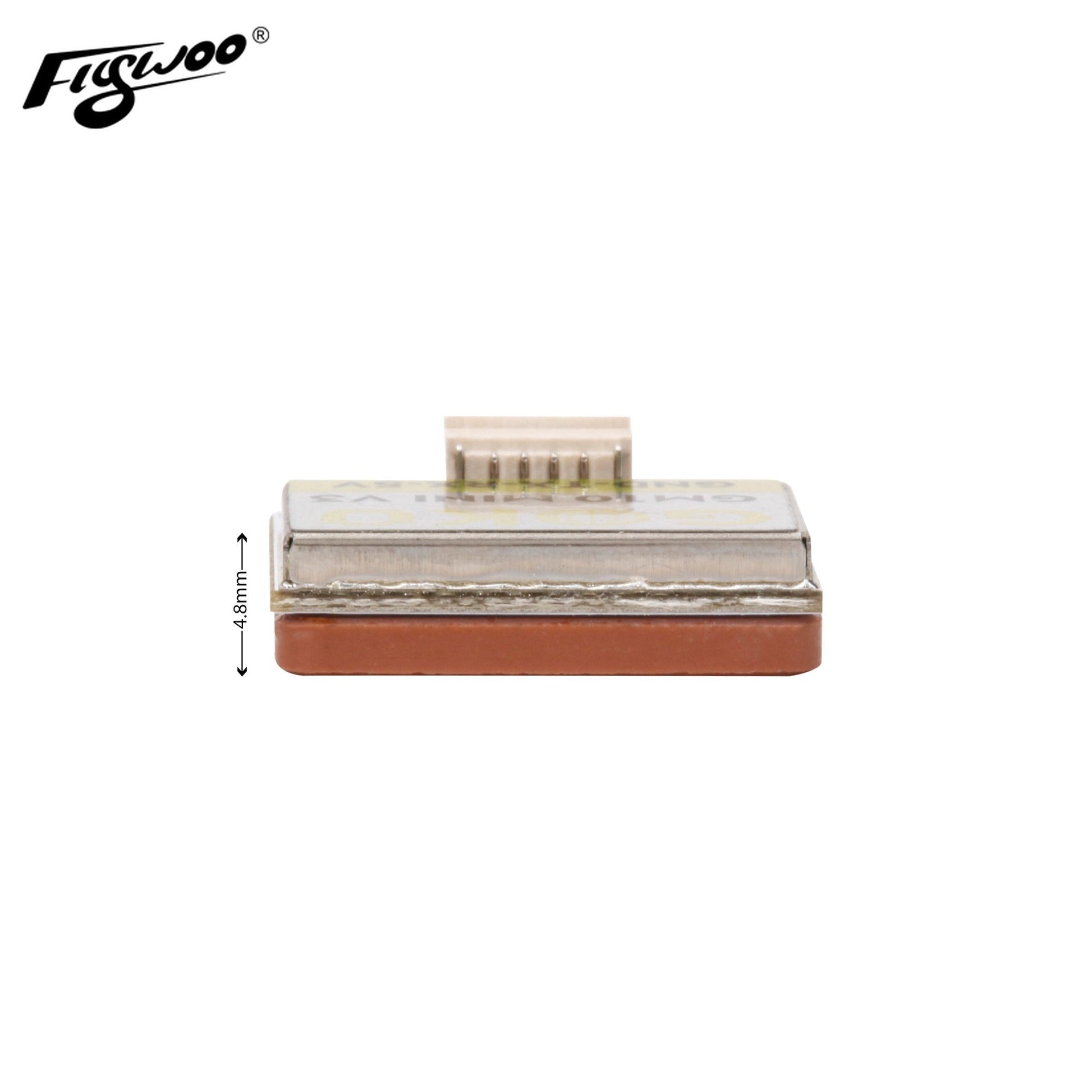

Dimensions: 18mm x 18mm x 4.8mm
Weight: 4.7 g
Connector: 1.00mm 4pin patch
Chipset: M10050 (10th generation)
Supported systems: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Default protocol: GPS, Galileo, BeiDou
Frequency: GPS L1, GLONASS L1, BeiDou B1, SBAS L1, Galileo E1
Channels: 72
Sensitivity: Tracking: -162 dBm, Recovery: -160 dBm
Baud rate: 4800 bps to 921600 bps (default 115200 bps)
Data level: TTL (default), RS-232
Data protocol: BF4.3.X (UBLOX), BF4.2.X (NMEA)
Output frequency: 1 Hz to 10 Hz (default 10 Hz)
Maximum altitude: 50,000 m
Maximum speed: 500 m/s
Maximum acceleration: <4g
Power supply: DC 5V
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +105 °C
PPS LED indicator: yellow (blinks when GPS position is reached)

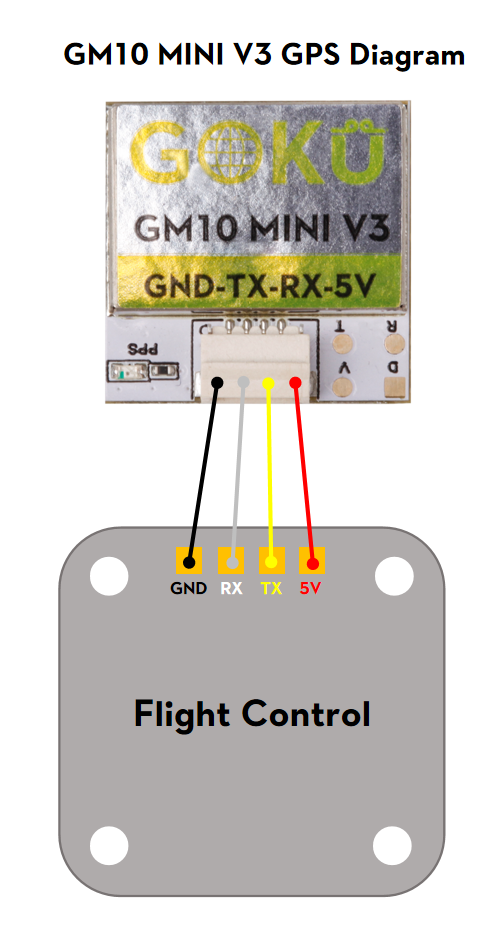

Pinout: GND, TX, RX, 5V

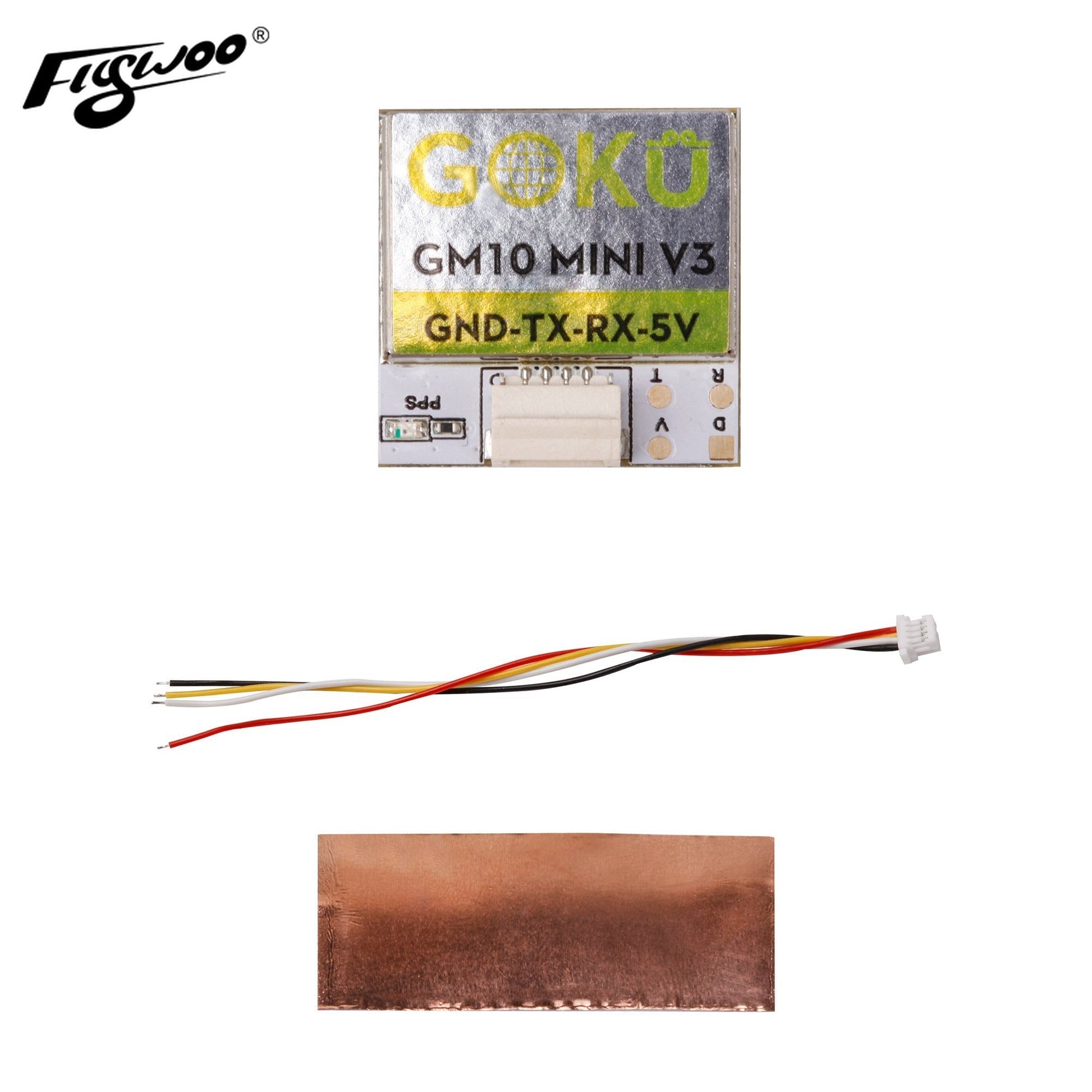

The package contains:

1 x GM10 MINI V3 GPS module
1 x 100mm connection cable
1 x copper shielding foil
