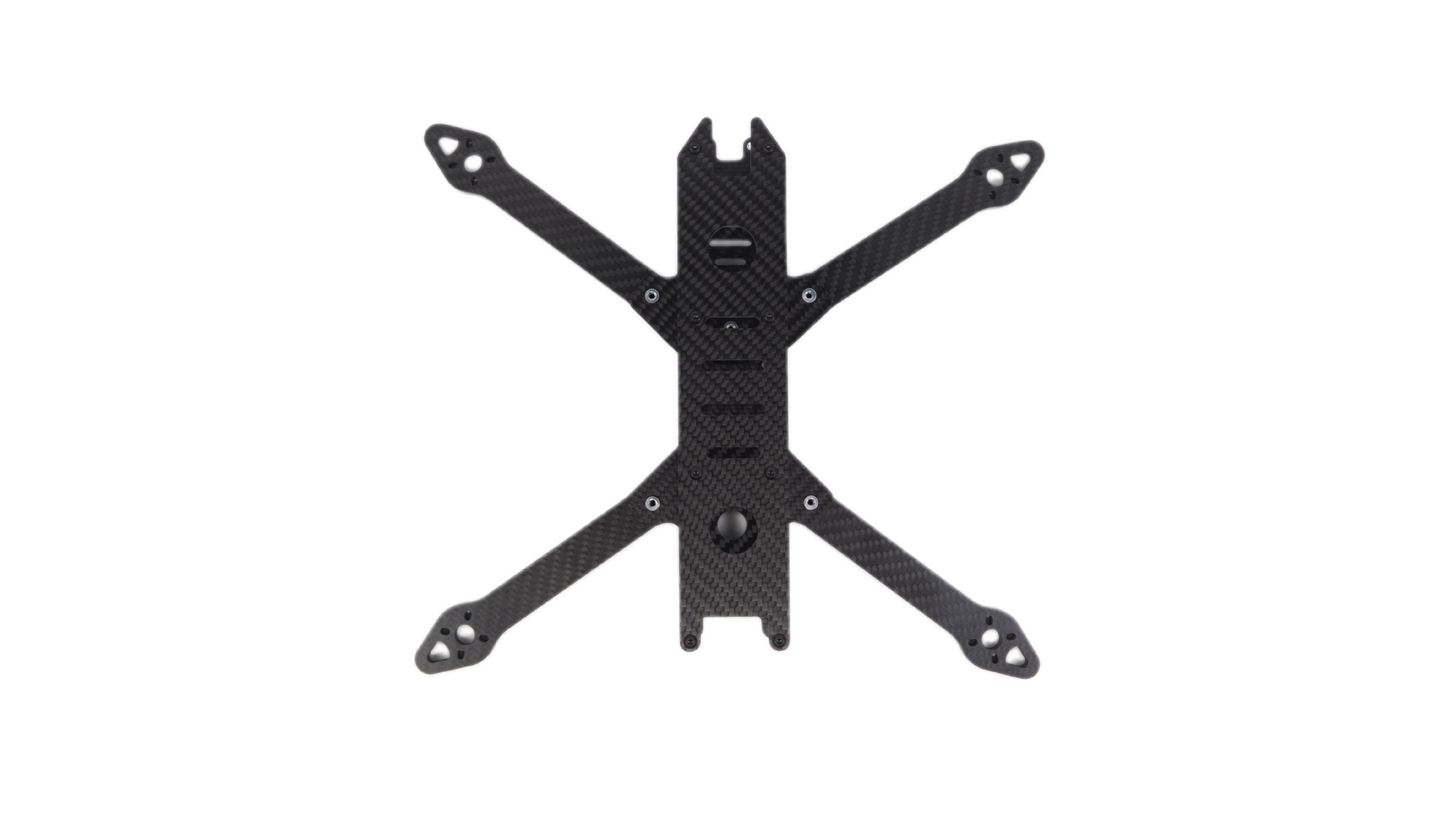

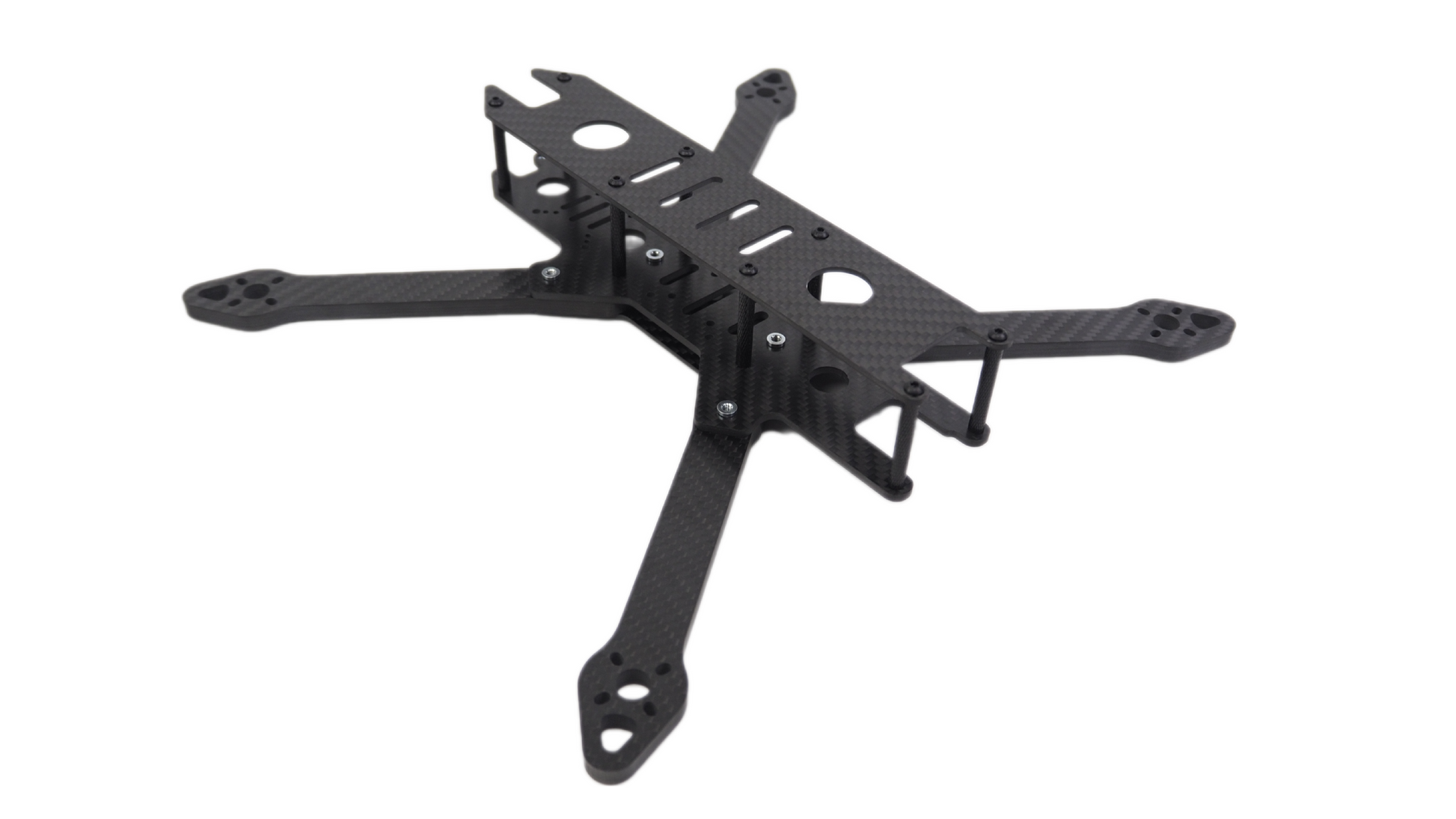

Partizan PT7 V2 frame
The Partizan PT7 V2 frame is a high-end carbon frame that is specially designed for building 7-inch long-range drones. With its superior carbon fiber construction, this frame offers exceptional durability and light weight, ensuring maximum performance during extended flights. The Partizan PT7 V2 provides robust structural integrity and stability, making it an ideal choice for hobbyists and professionals looking for a high-quality foundation for their long-range drone projects.
Specifications:
- Model: Partizan PT7 V2
Wheel wheelbase: 320 mm
Arm: 6 mm
Top plate width: 47 mm
Top plate length: 225 mm
Top plate thickness: 2 mm
Bottom plate width: 91 mm
Bottom plate length: 226 mm
Bottom plate thickness: 3 mm
Camera Mount: 19mm
FC Mounting Holes: 30.5mm/20mm
Propeller Size: 7 Inch
Compatible Motor Size: 2807
Width: 280mm
Length: 250mm
Weight: 226g

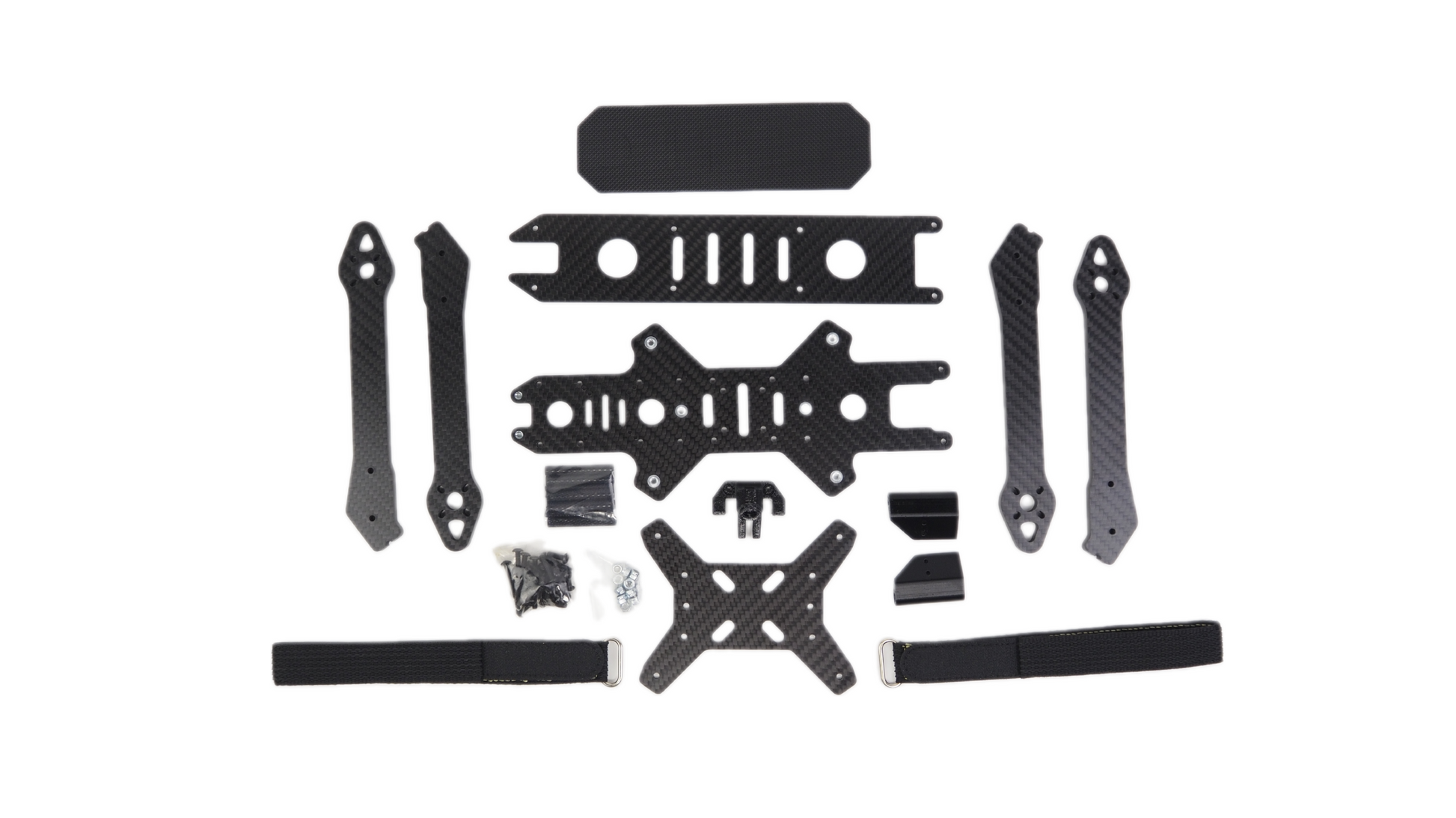

The package includes:
- 1 x Partizan PT7 V2 frame
