Frame Partizan Edition PT7 V3
Frame Partizan Edition PT7 V3
Brand: Partizan
Couldn't load pickup availability
- Description
- Related Files
- Discussion

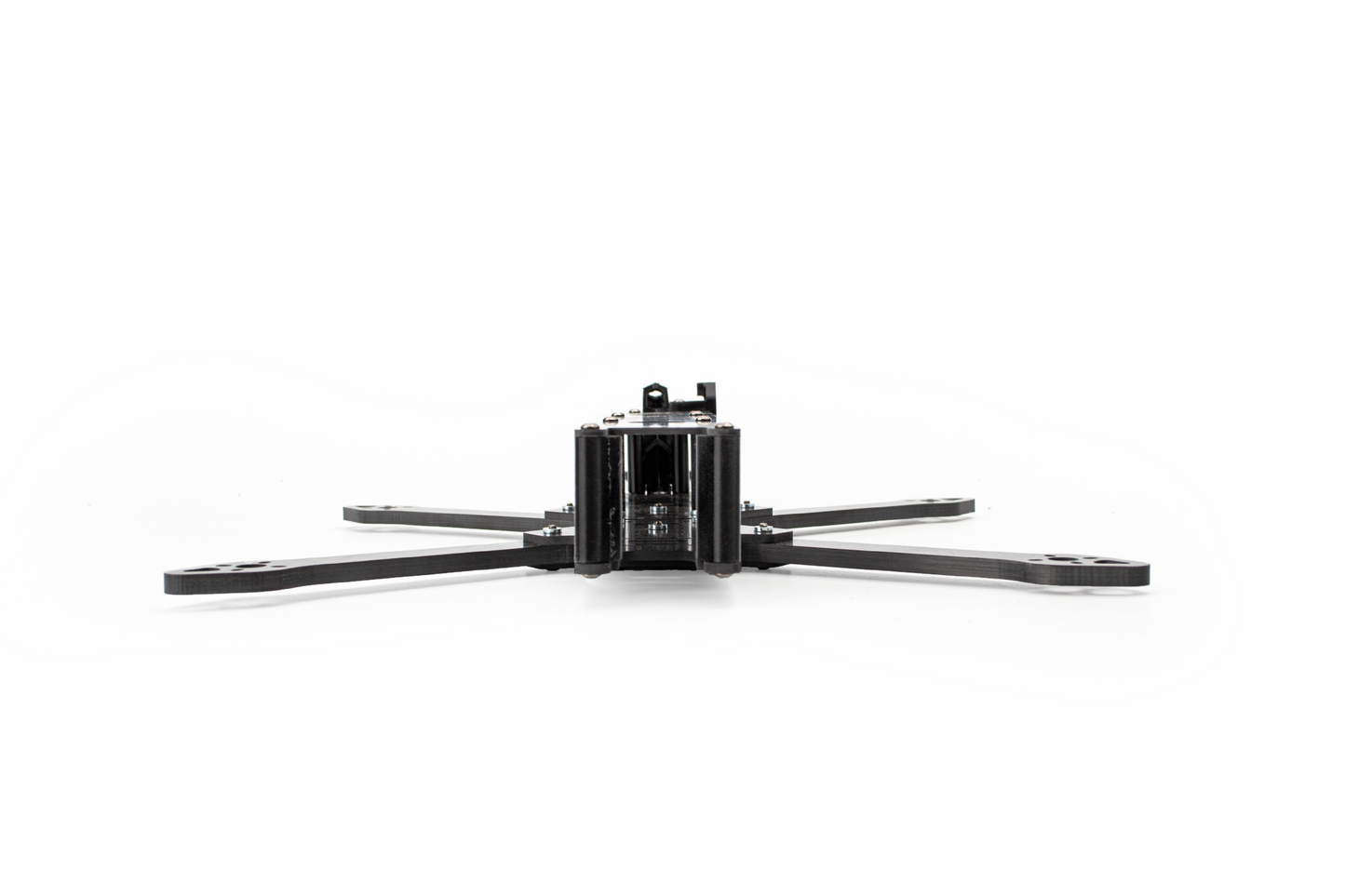

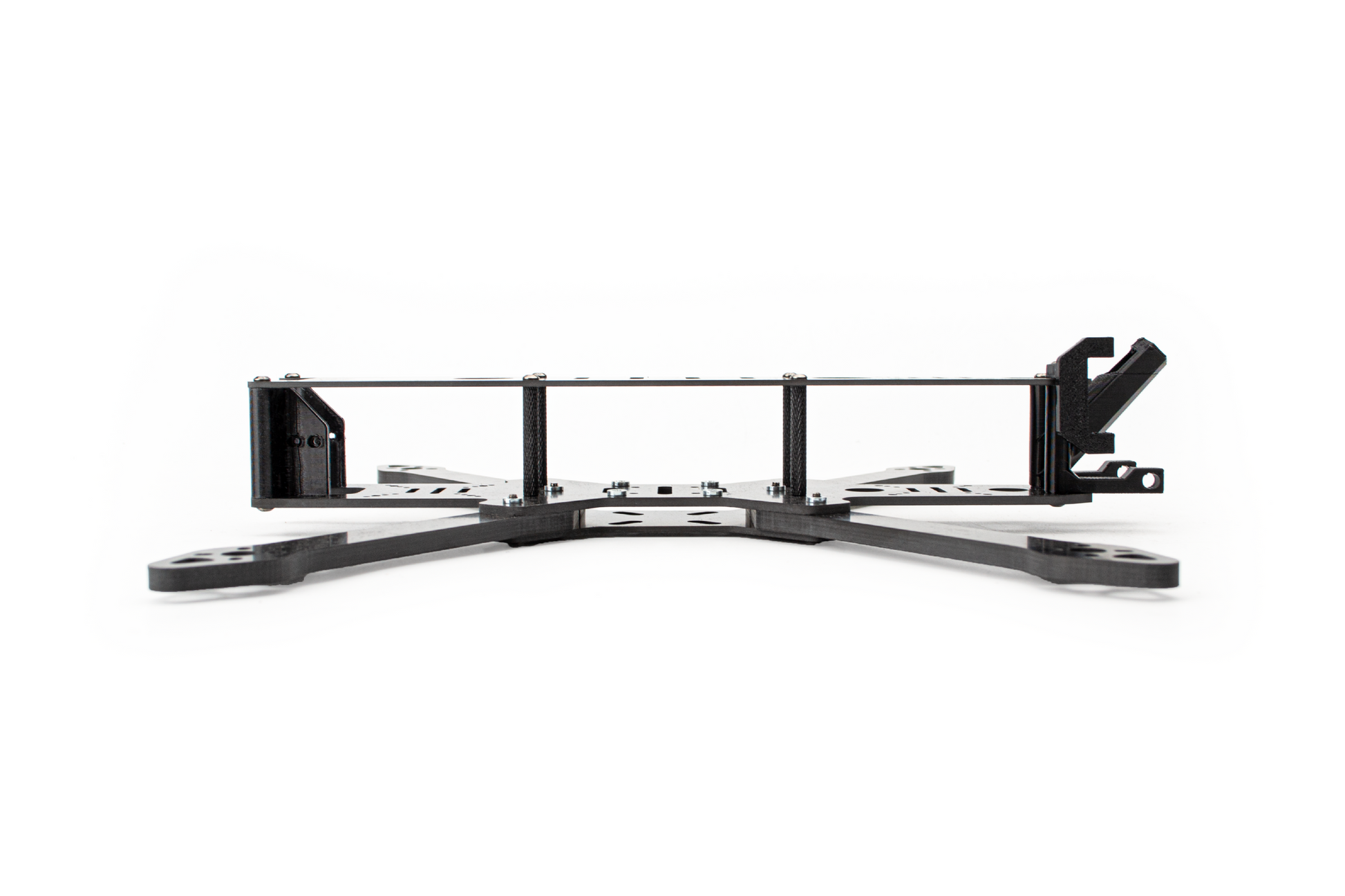

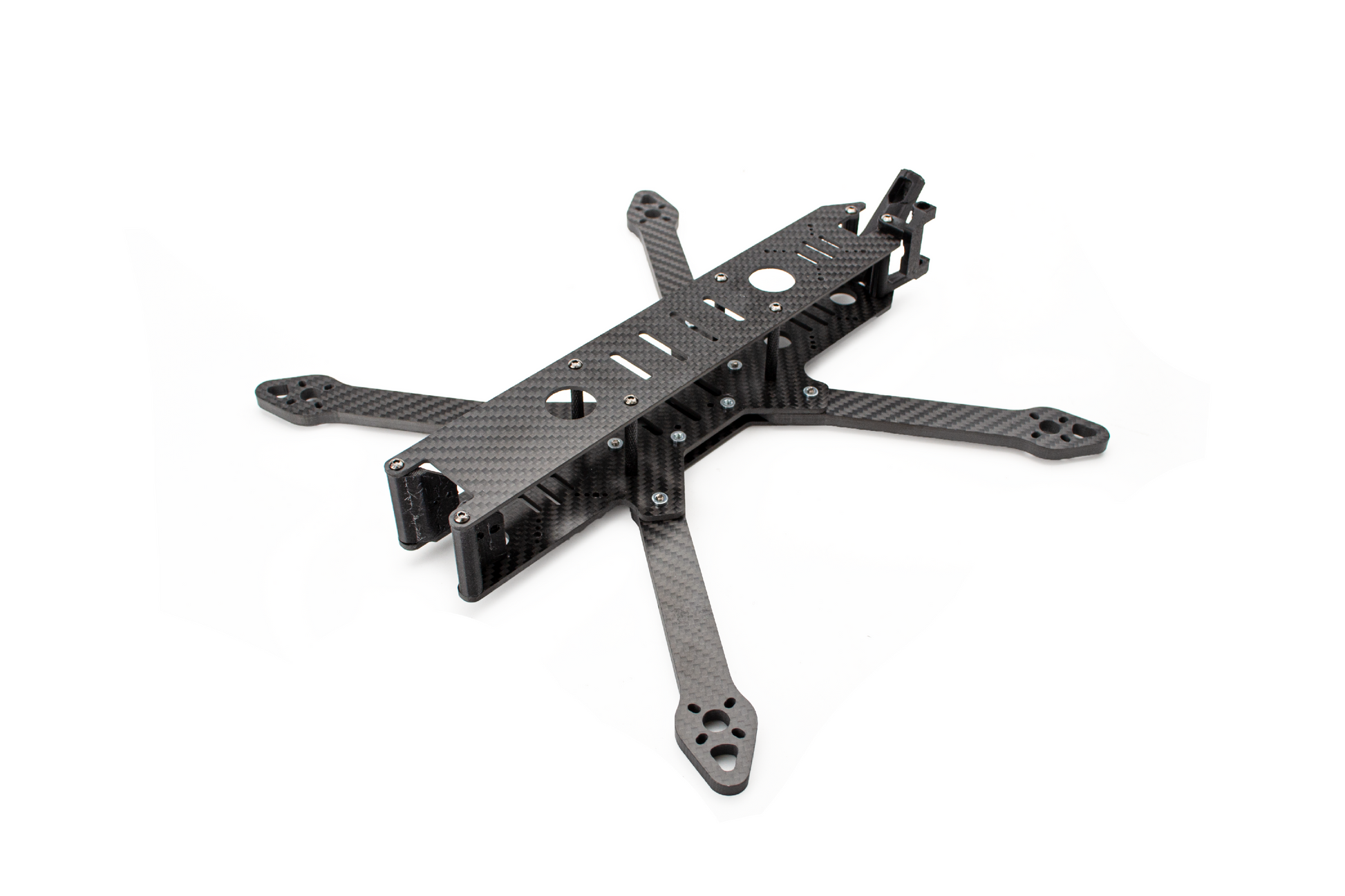

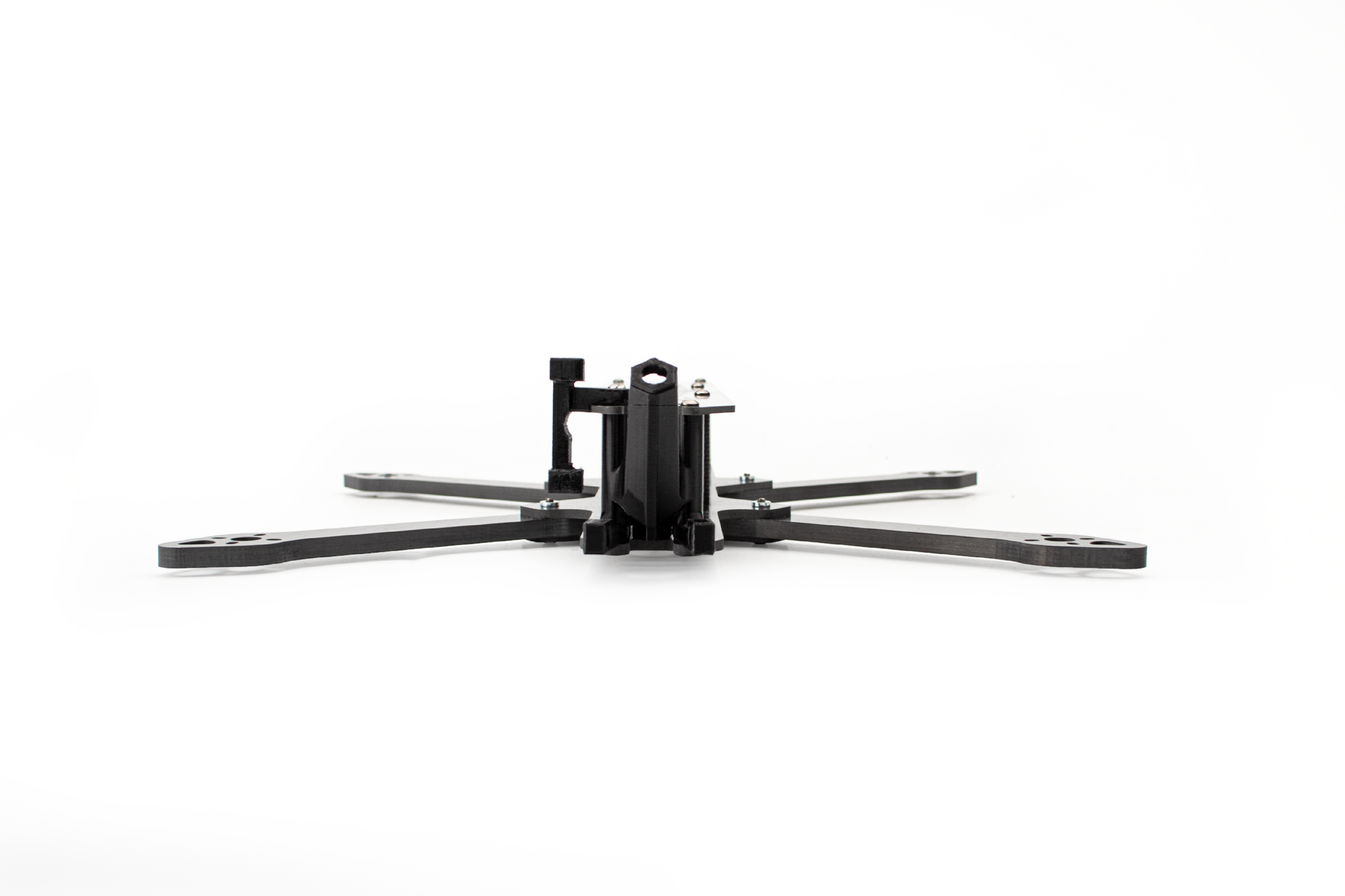

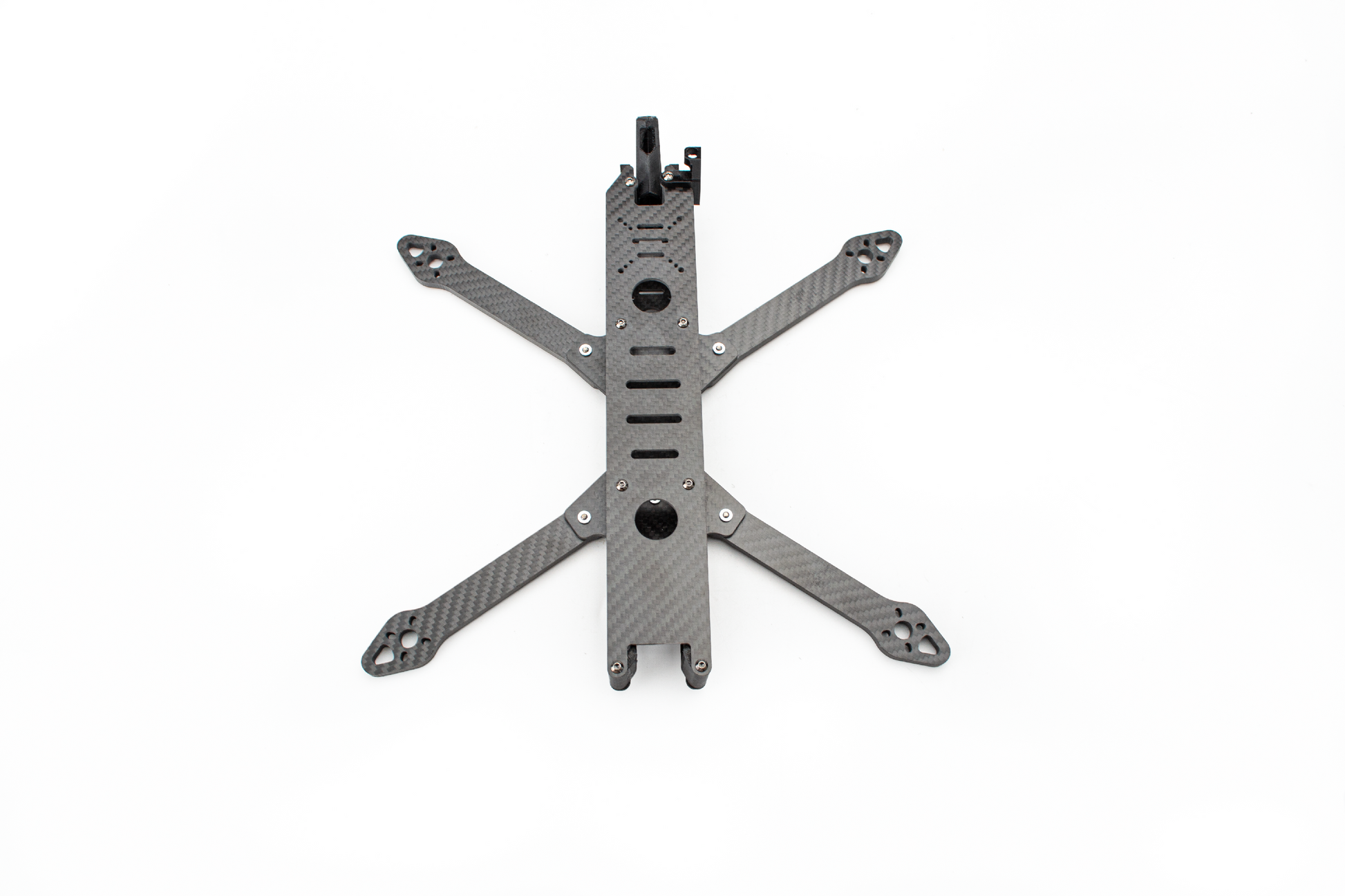

Partizan Edition PT7 V3 frame
The Partizan Edition PT7 V3 is a 7-inch carbon fiber FPV frame with sophisticated geometry. It features a standard 30.5x30.5mm flight controller mounting pattern, allowing compatibility with a range of existing FCs, and supports 19mm micro cameras. The design ensures stability and minimizes vibration with strong, well-balanced arms and rigid top and bottom plates. The kit includes all necessary mounting hardware for quick and hassle-free assembly. The frame is designed for use with 6S batteries, powerful motors and high performance video transmission systems.
Specifications:
Model: PT7 V3
Wheelbase: 320mm
Arm thickness: 6mm
Top plate width: 45mm
Top plate length: 270mm
Top plate thickness: 2mm
Bottom plate width: 45mm
Bottom plate length: 270mm
Bottom plate thickness: 3mm
Camera Mounting Size: 19mm
Propeller Size: 7040
FC Mounting Holes: 30.5x30.5mm
Compatible Motor Size: 2807
Material: Carbon Fiber
Recommended parts:
Flight Control: F405 V4 ICM42688P
ESC: AM32 60A 4v1 ESC
Motor: 2807-1300KV
Camera: Ratel2 Night Version/ Ratel Pro/H1
VTX: 5.8Ghz 2.5W
Receiver: ELRS 915Mhz
Antenna: RHCP SMA 160mm
Propeller: 7040-3 blades
Battery: 6S 8000mah lipo
The package contains:
1x Partizan Edition PT7 V3 Frame Kit
1x Aluminum Post Set
1x Screw Set
1x Nut Set
1x Printing Kit
1x PT Battery Pad
2x 7in Battery Strap
