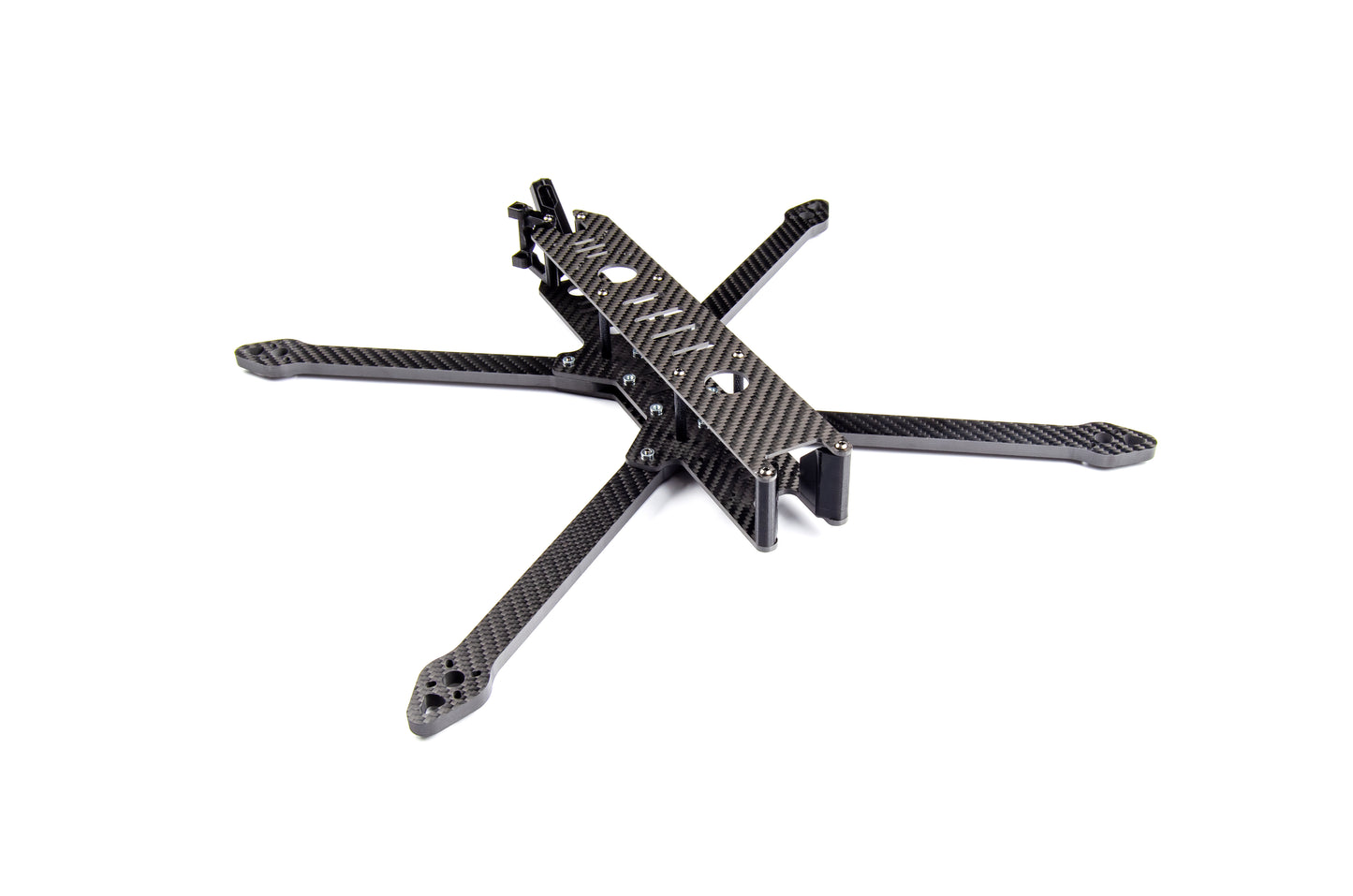

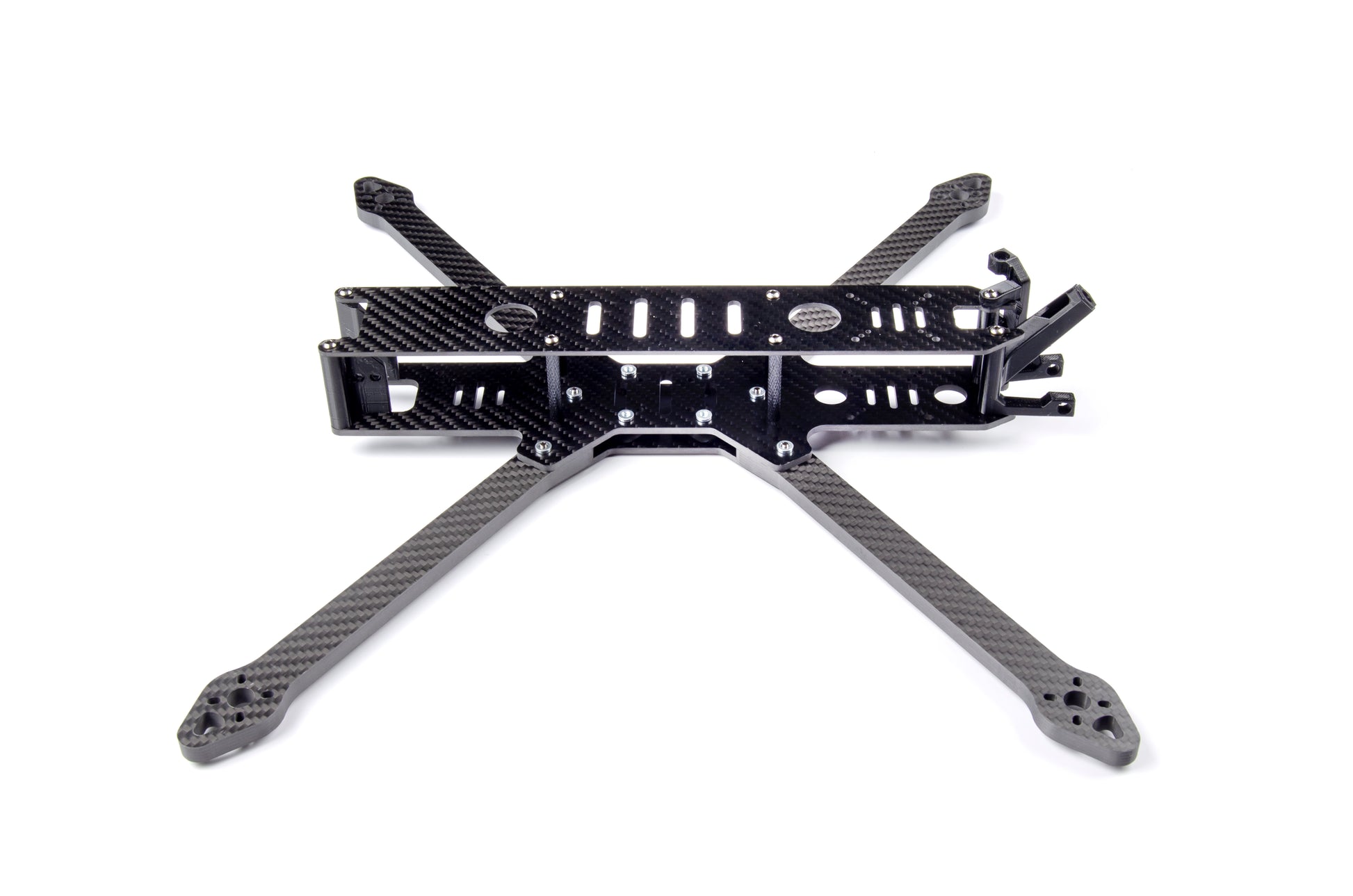

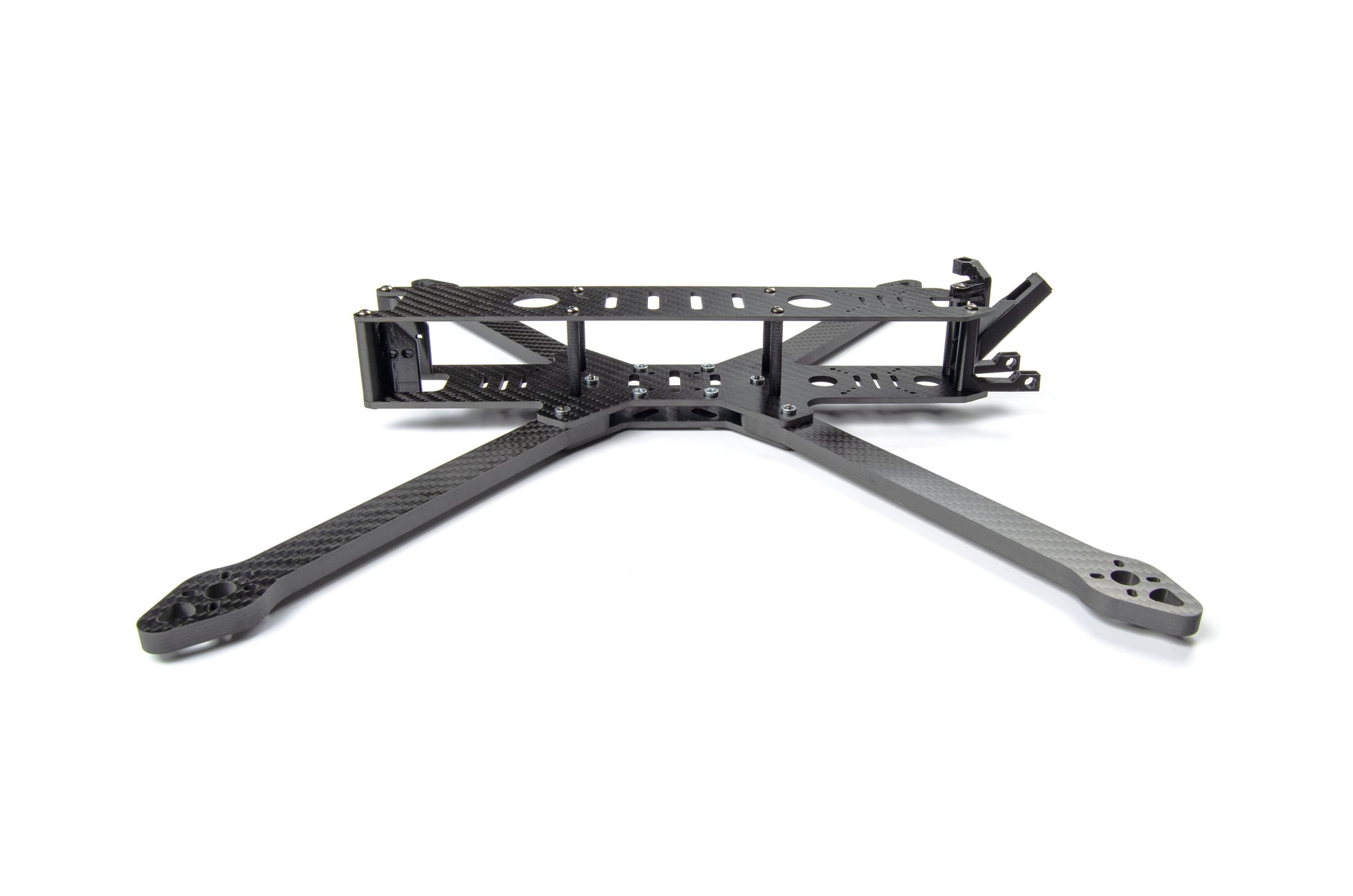

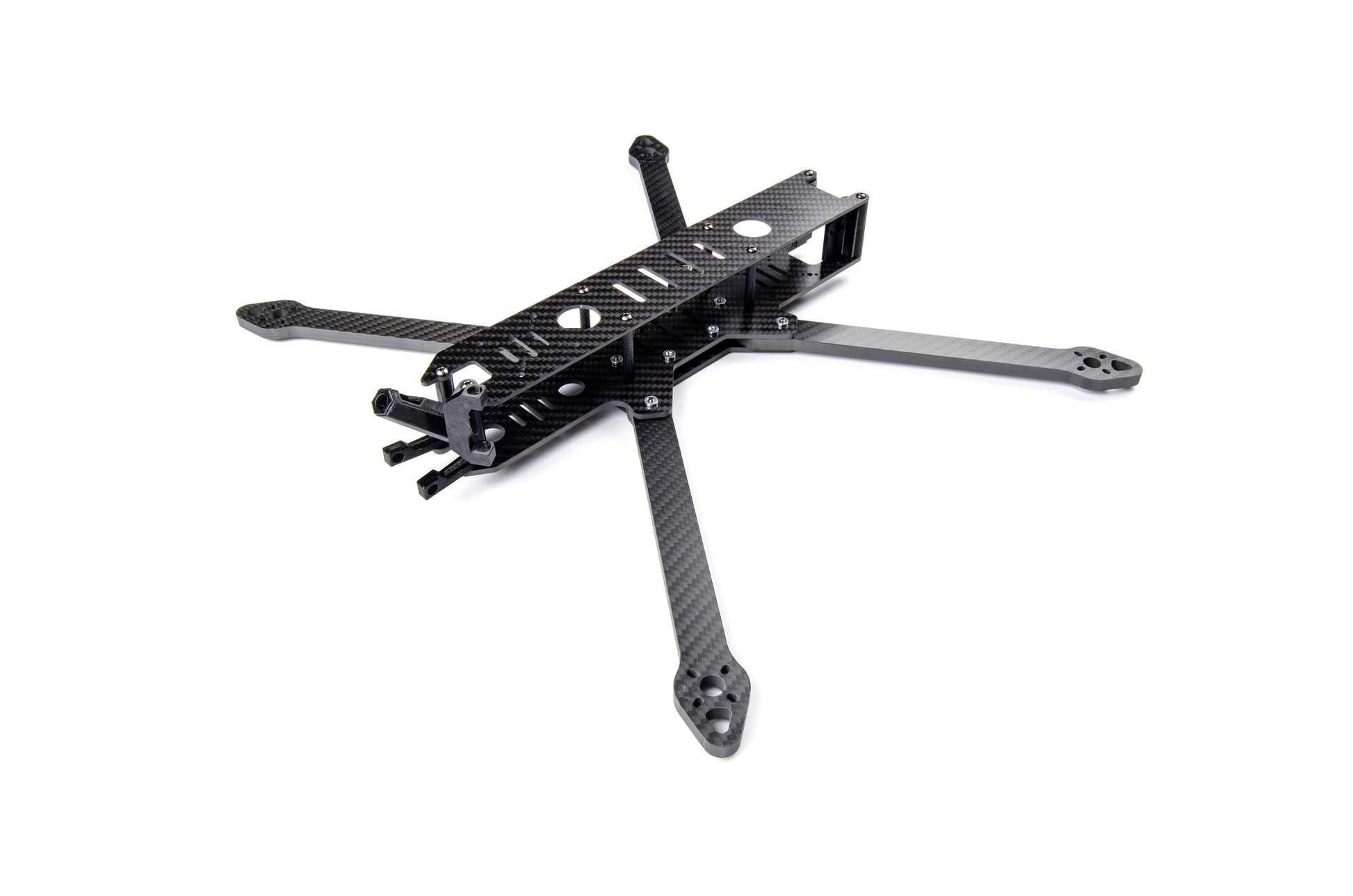

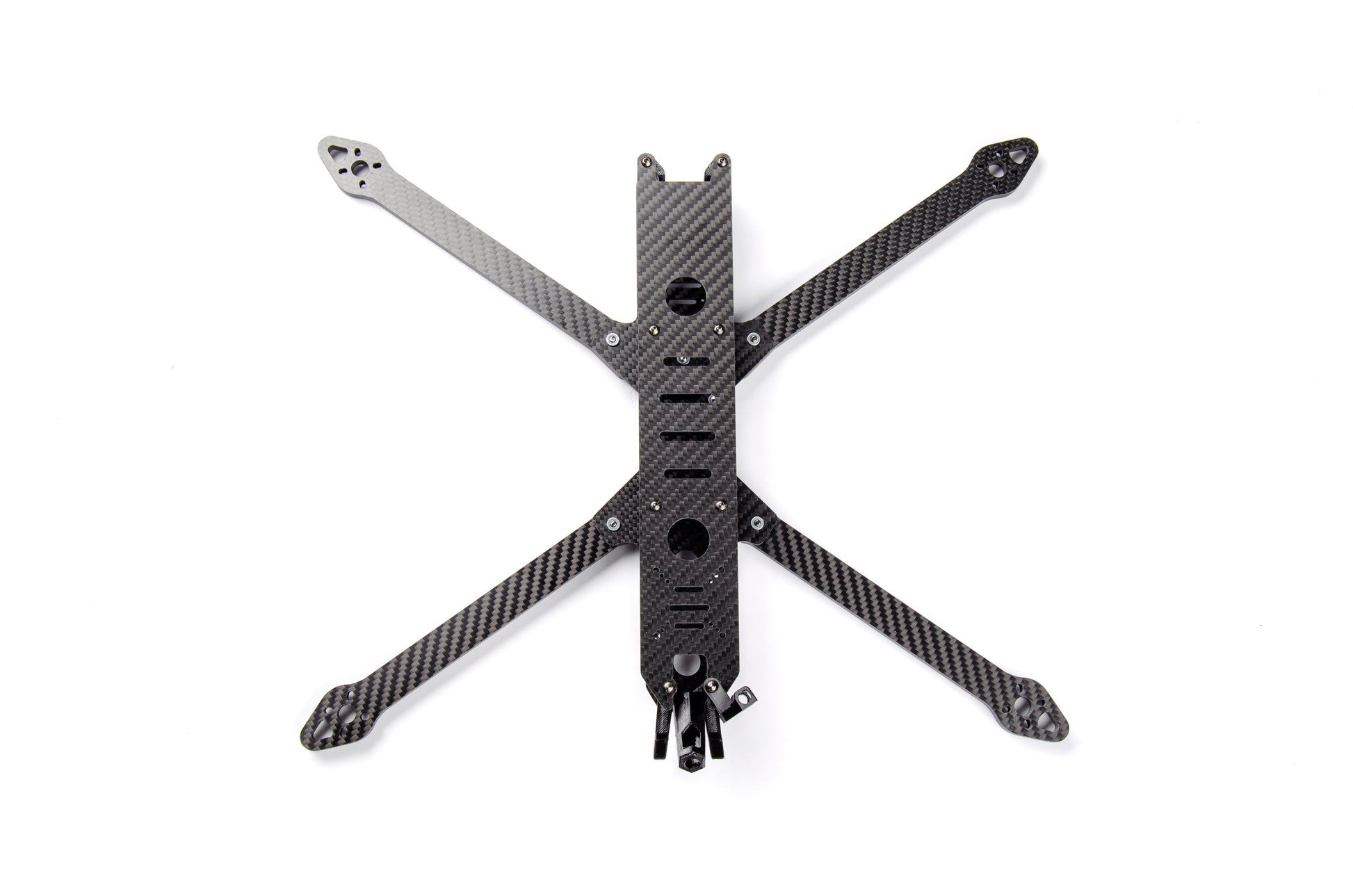

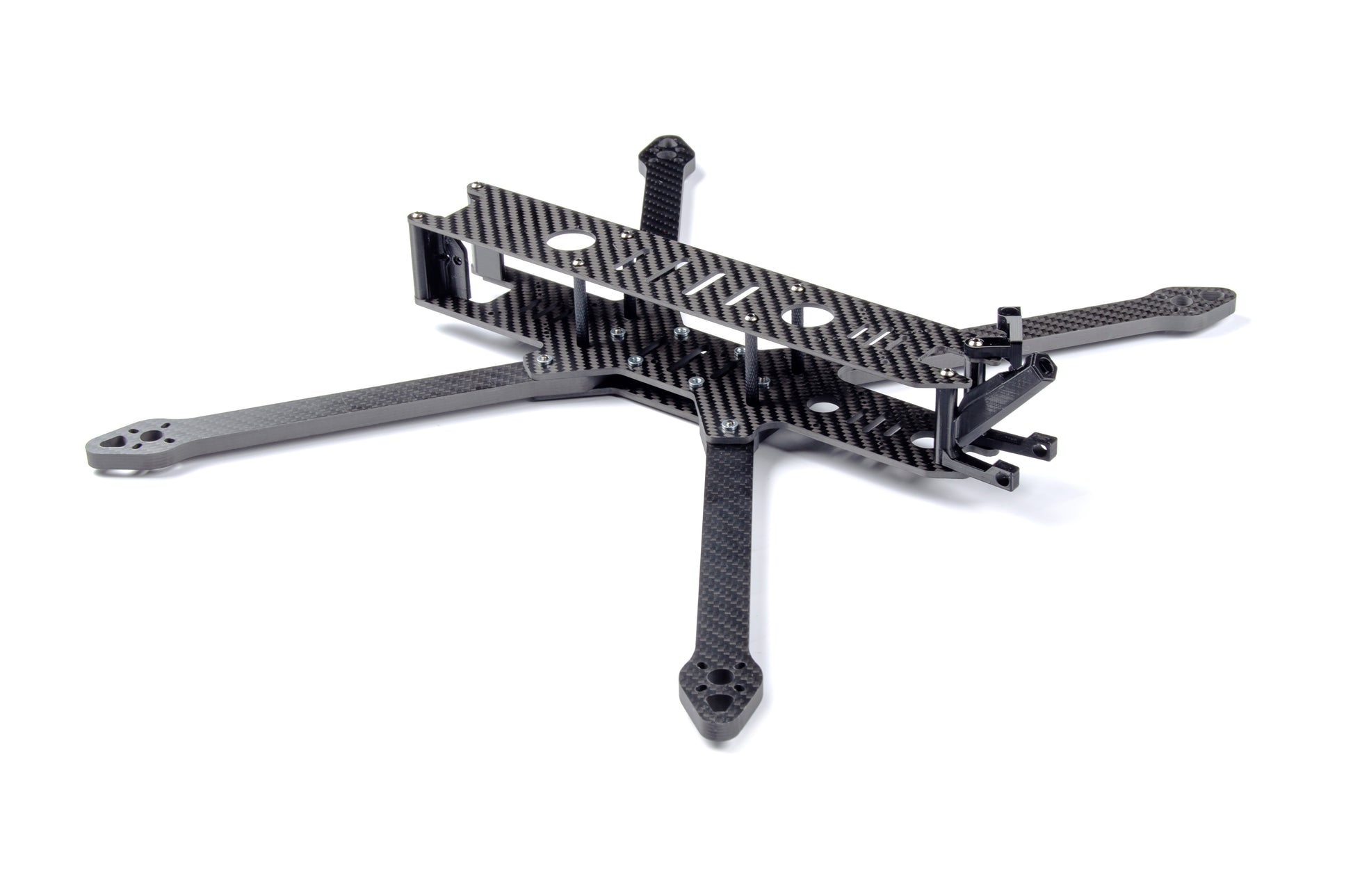

Partizan Edition PT10 V3 frame
The Partizan PT10 V3 frame is designed to accommodate all the necessary components. Each part of the structure is carefully thought out to accommodate key modules and ensure easy assembly of drones for various purposes.
The front of the frame has special mounts for the guidance module or other smart modules that will work with the camera. For example, installing a servo drive to control the direction of the camera makes it possible to dynamically change the angle of view during flight.
The middle part of the frame for the tray allows easy installation and simple maintenance of key electronic components.
The rear part of the frame provides mounts for two video transmitters (VTX), which opens up new possibilities for setting up and using different configurations of video transmission systems.
The construction of the PT10 V3 frame is symmetrical and perfectly balanced. All elements are securely fixed, which eliminates vibrations even under heavy loads and increases the stability of the drone in flight.
The main frame is suitable for 7', 8', 10' and even 13' mounts. The only difference is the length of the arms, which makes it possible to keep one assembly for different configurations without the need for significant changes.
The Partizan PT10 V3 is a solution for those who value reliability, versatility and adaptability. This frame will be the perfect base for your drone regardless of its size or purpose.
Specifications:
Model: Partizan PT10 V3
Wheelbase: 427mm
Arm thickness: 7mm
Top plate thickness: 2mm
Bottom plate thickness: 2mm 3mm Bottom thickness: 3mm
Dimensions: 373x321x63mm
FC mounting holes: 30.5mm/20mm
Camera Mount: 19mm
Propeller Size: 10 Inch
Compatible Motor Size: 3115
Weight: 373g

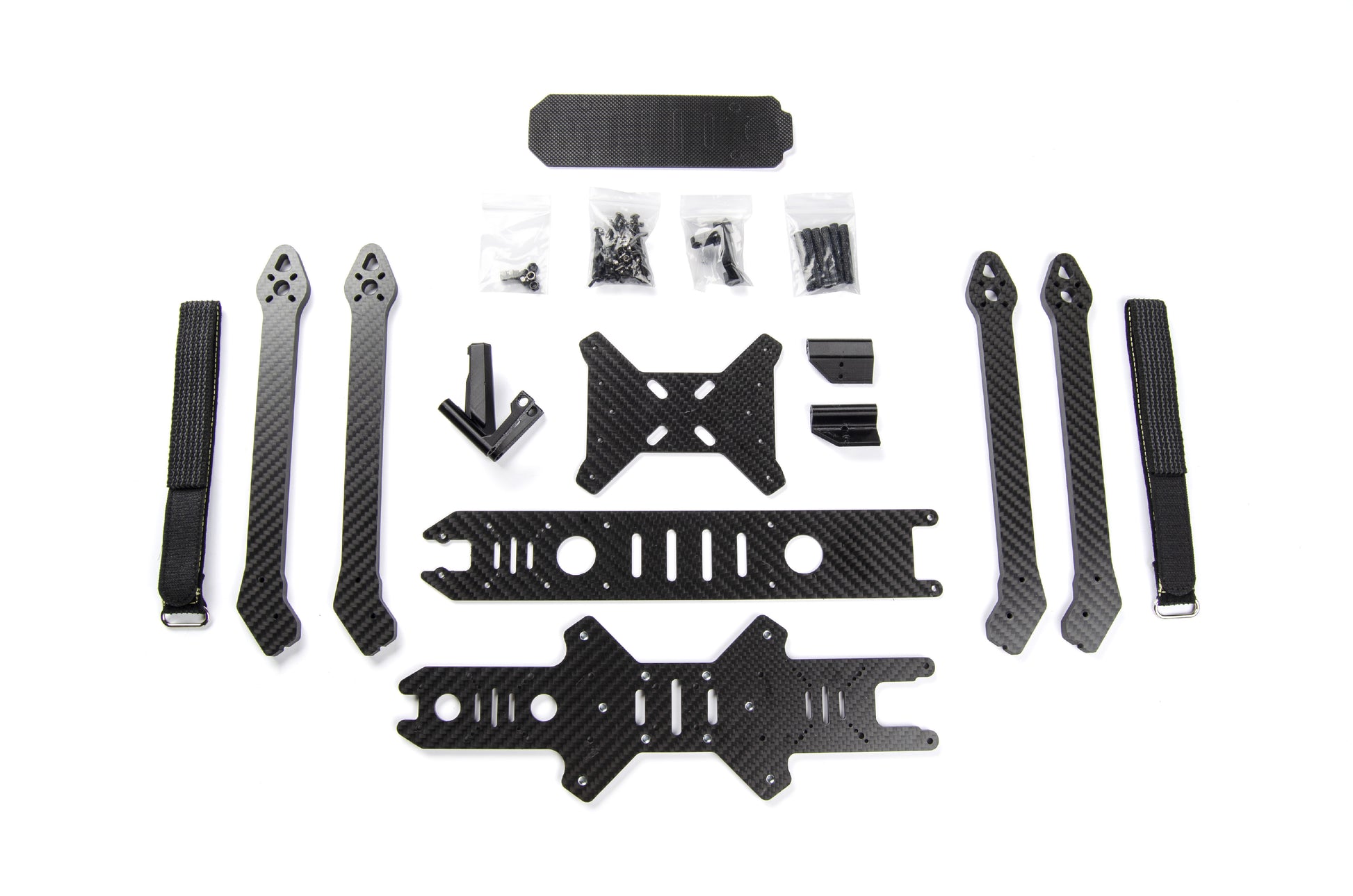

Package includes:
1x Partizan PT10 V3 frame
