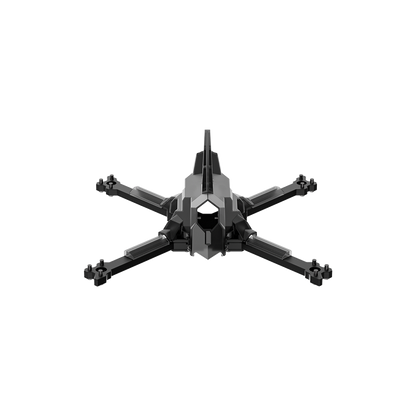

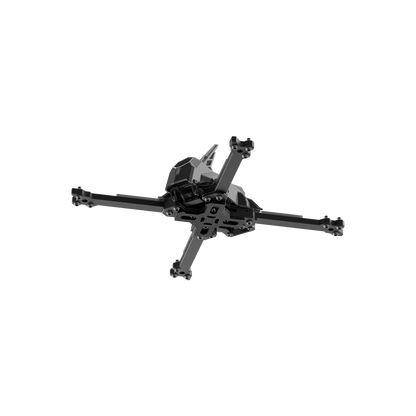

  • Frame iFlight Mach R5 Sport
    • 15288 9 frame iflight mach r5 sport
    • 15288 10 frame iflight mach r5 sport
    • 15288 11 frame iflight mach r5 sport
    • 15288 12 frame iflight mach r5 sport
    • 15288 13 frame iflight mach r5 sport
    • 15288 14 frame iflight mach r5 sport
    • 15288 15 frame iflight mach r5 sport
    • 15288 16 frame iflight mach r5 sport
    • 15288 17 frame iflight mach r5 sport
    1 9

    Code: R015838

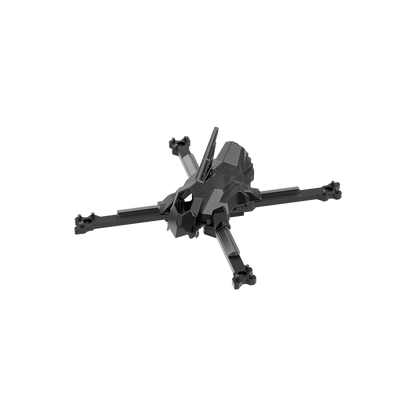

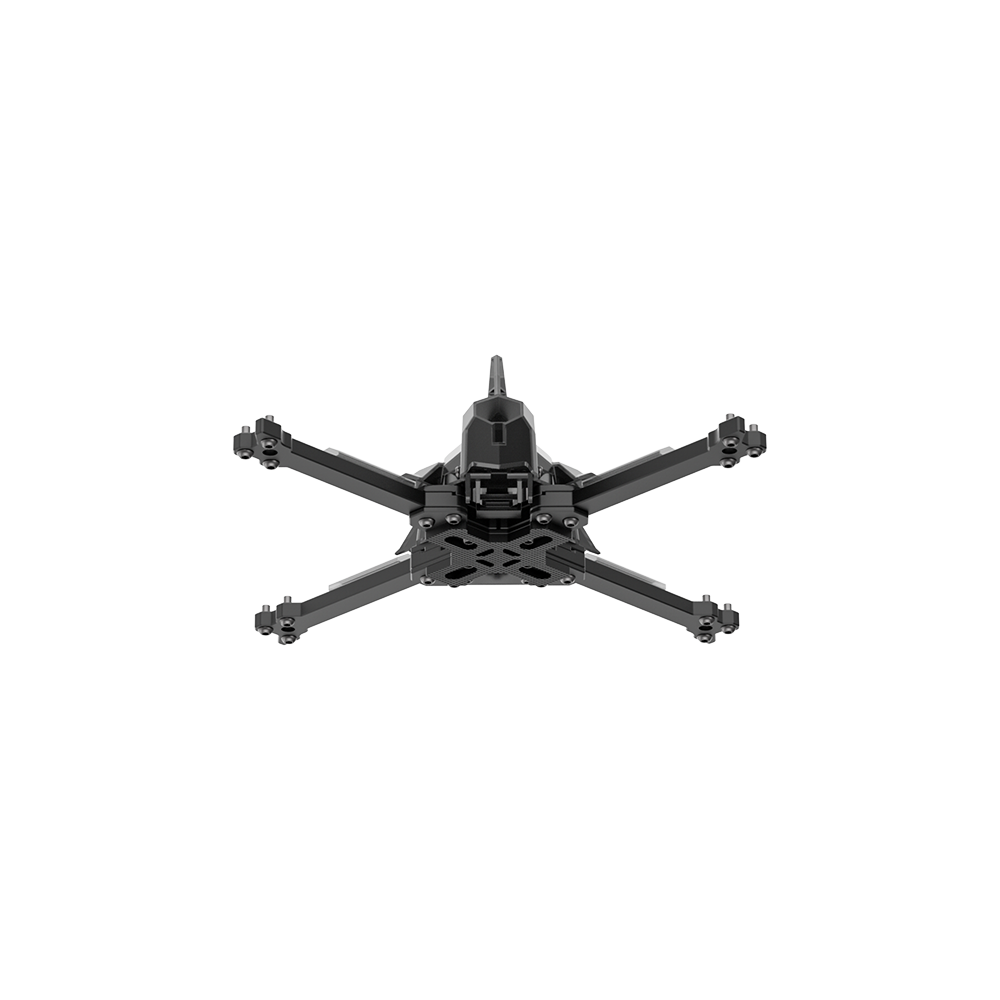

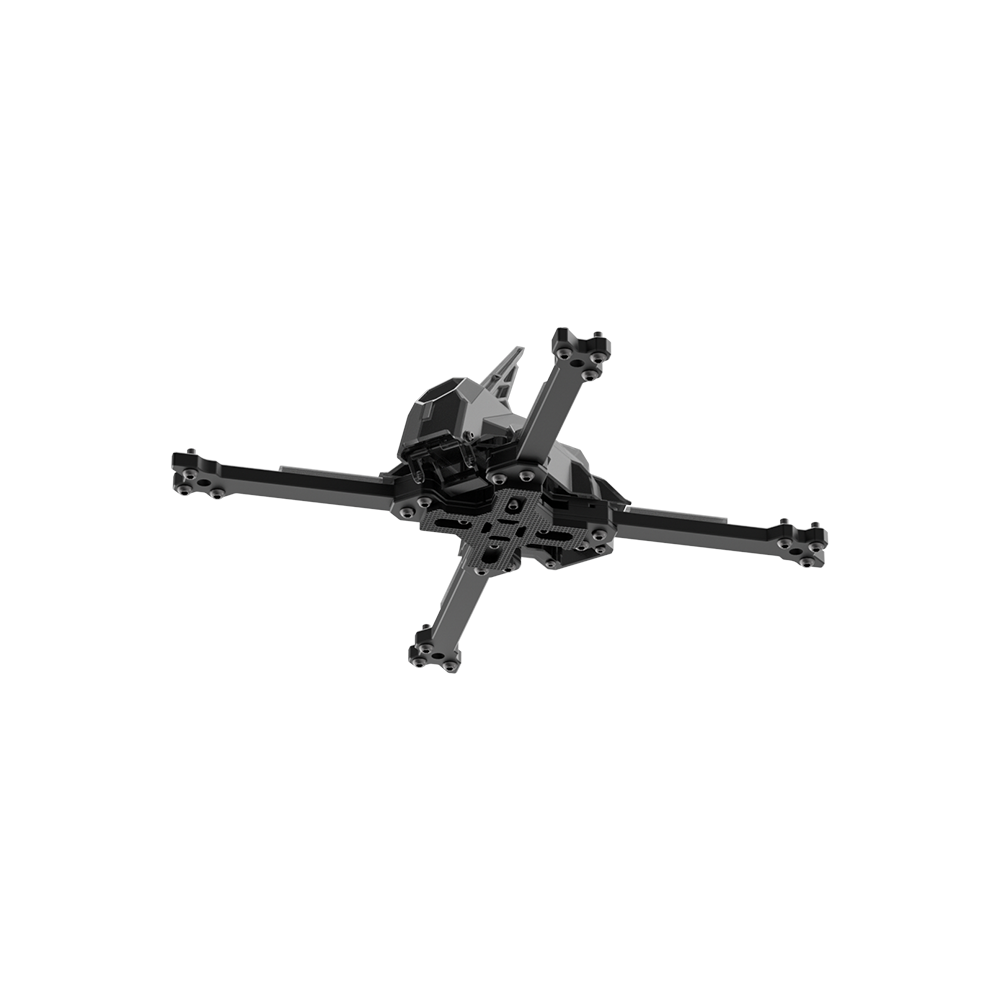

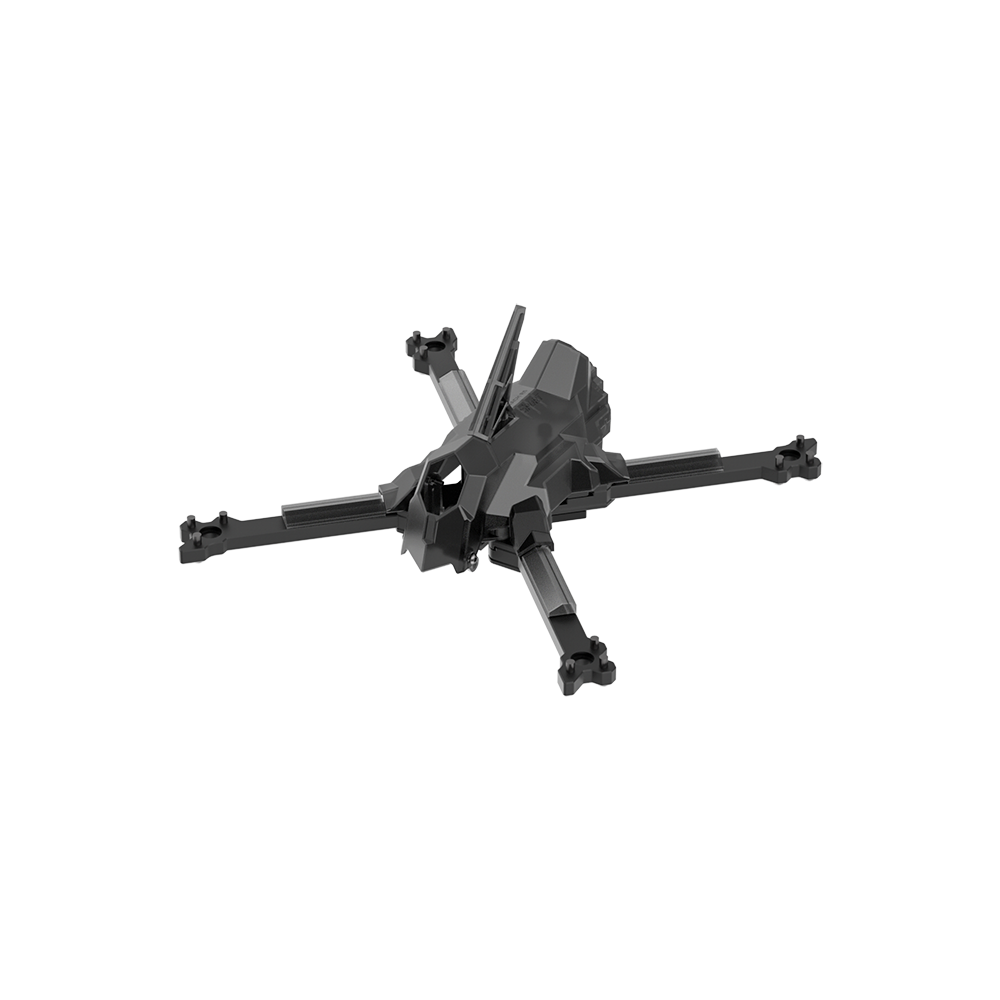

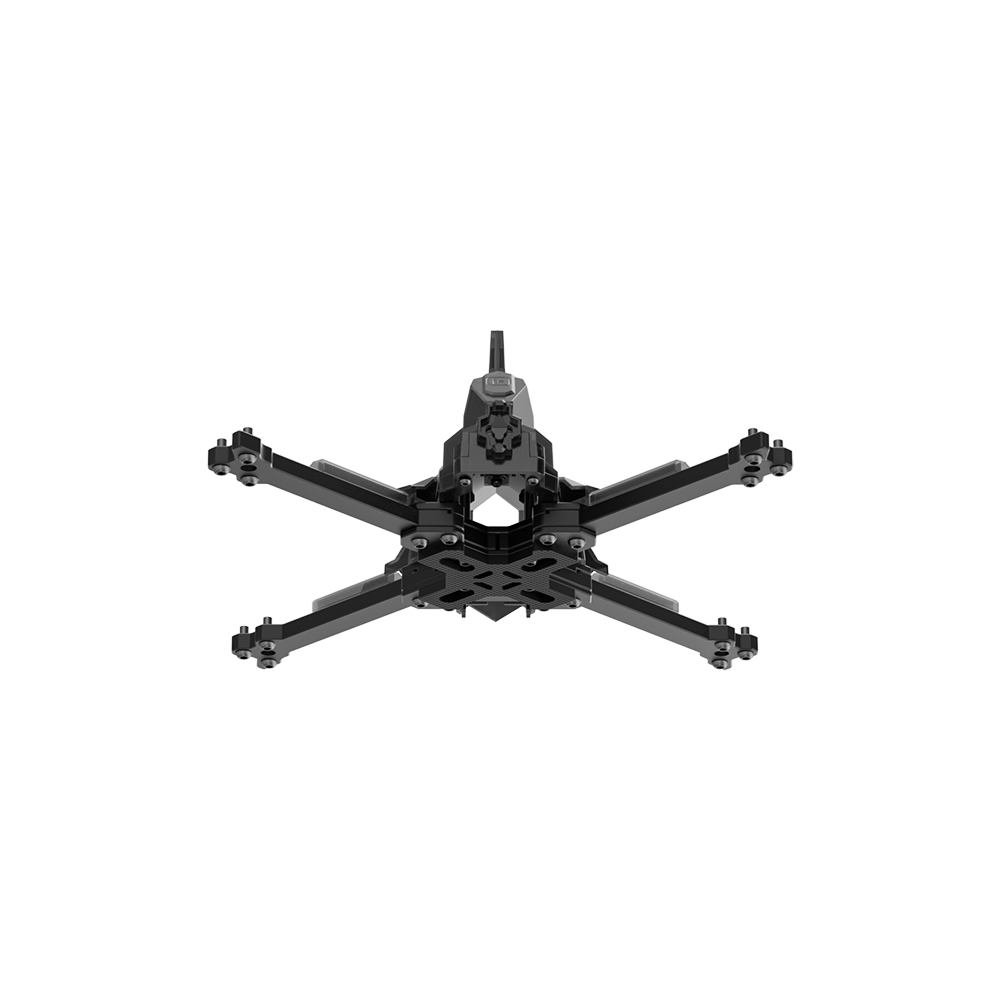

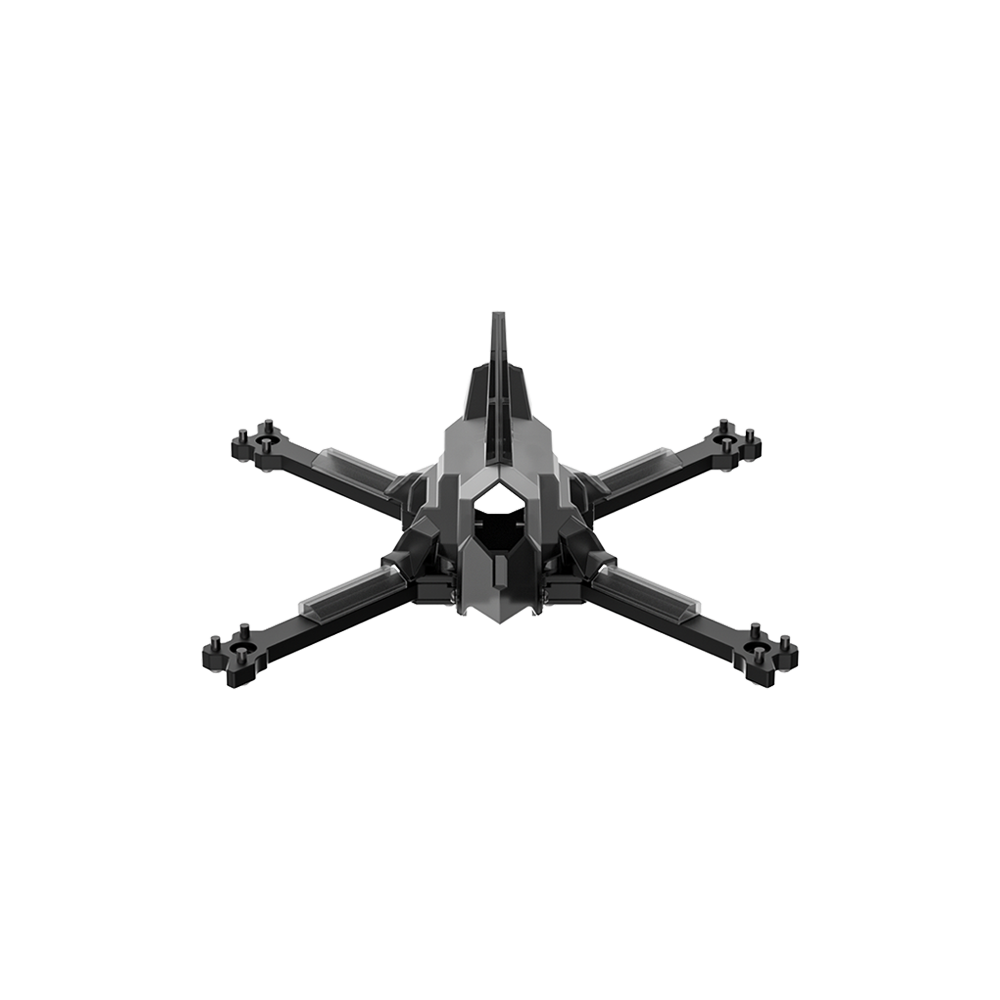

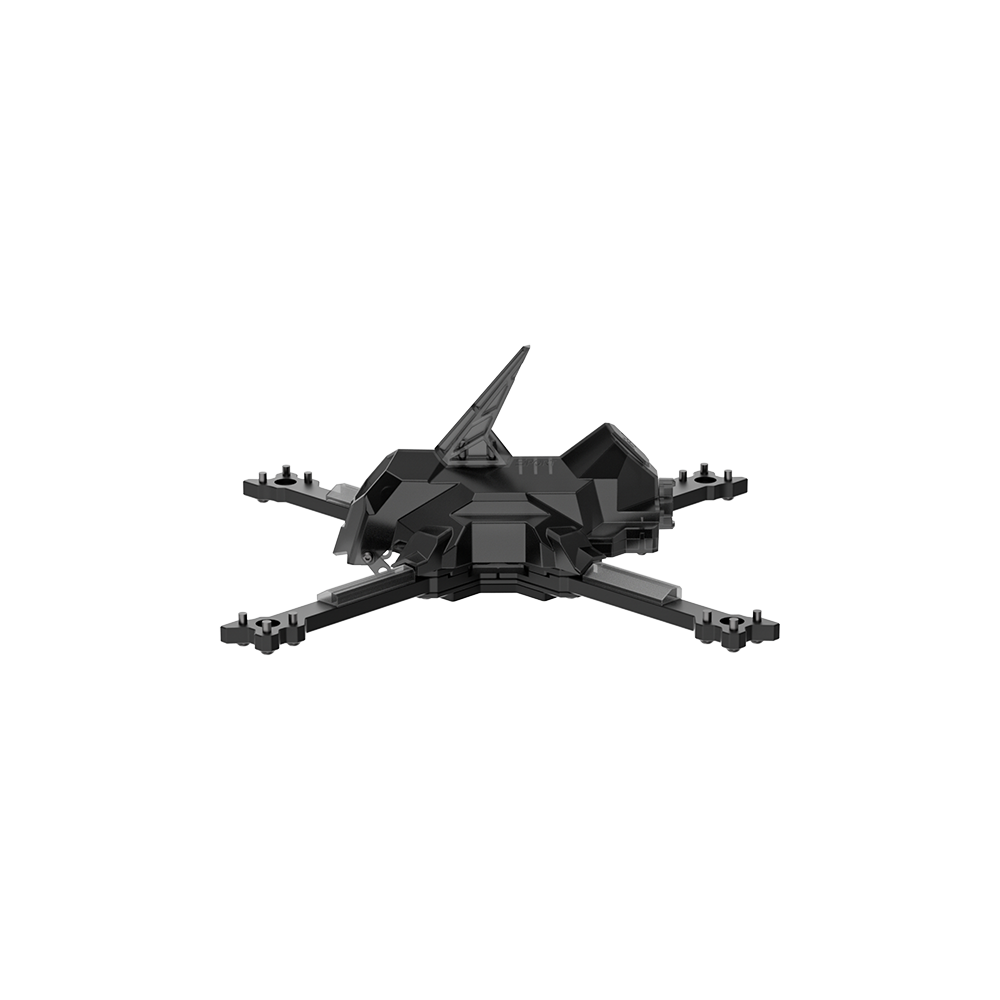

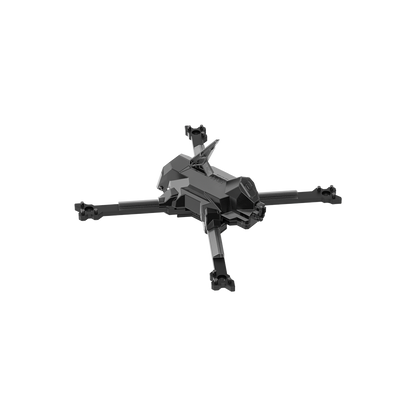

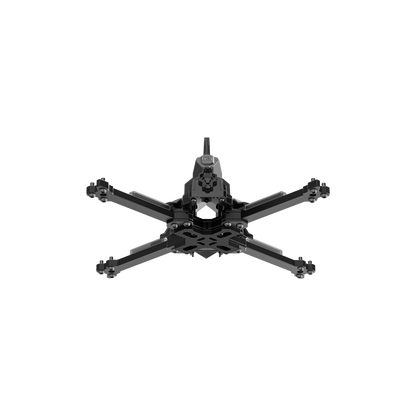

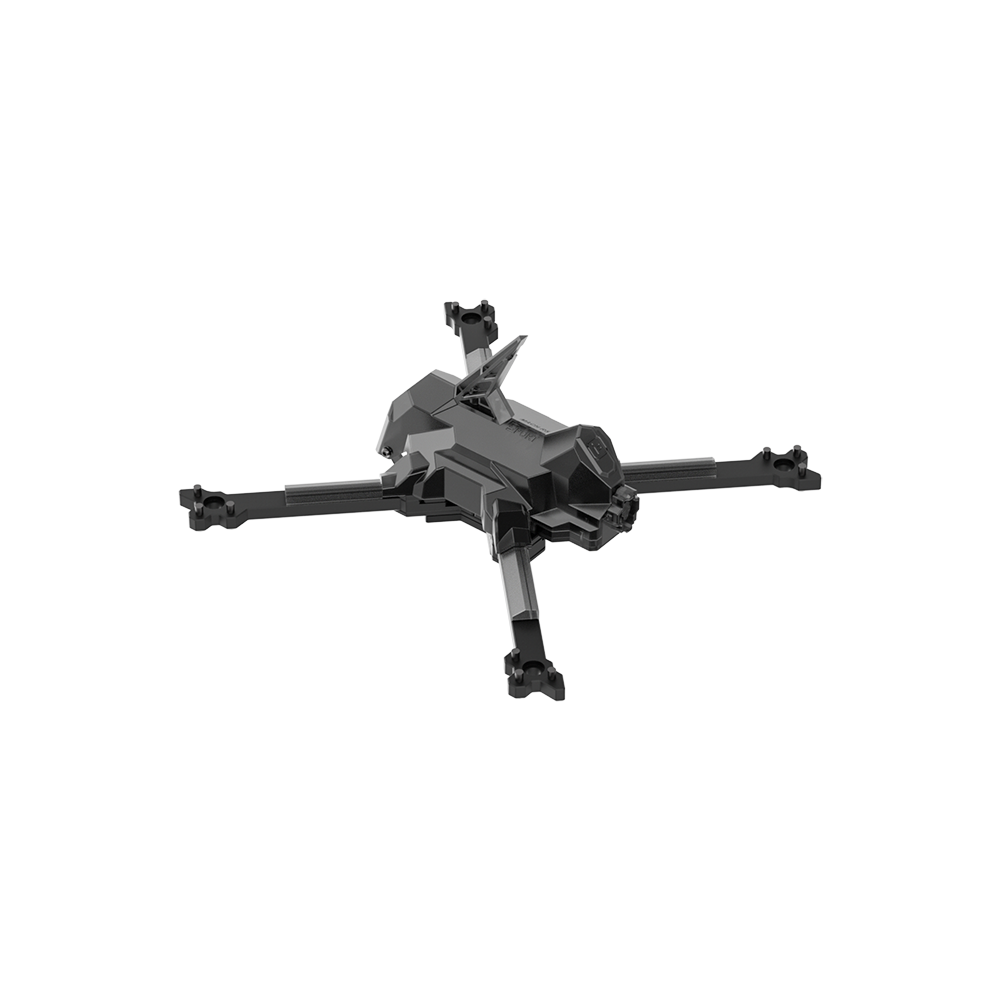

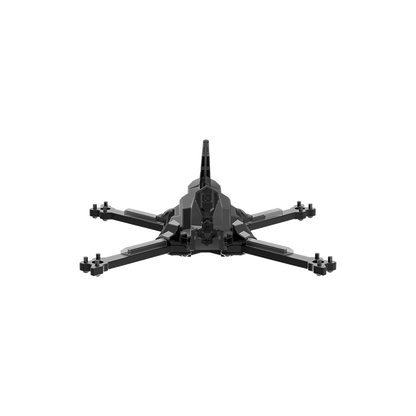

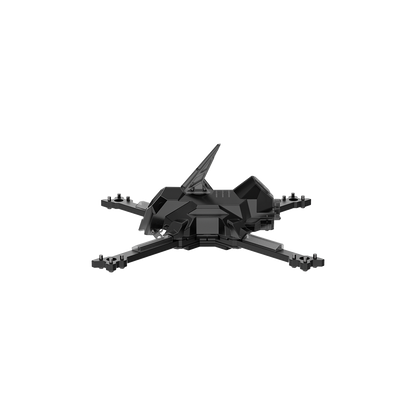

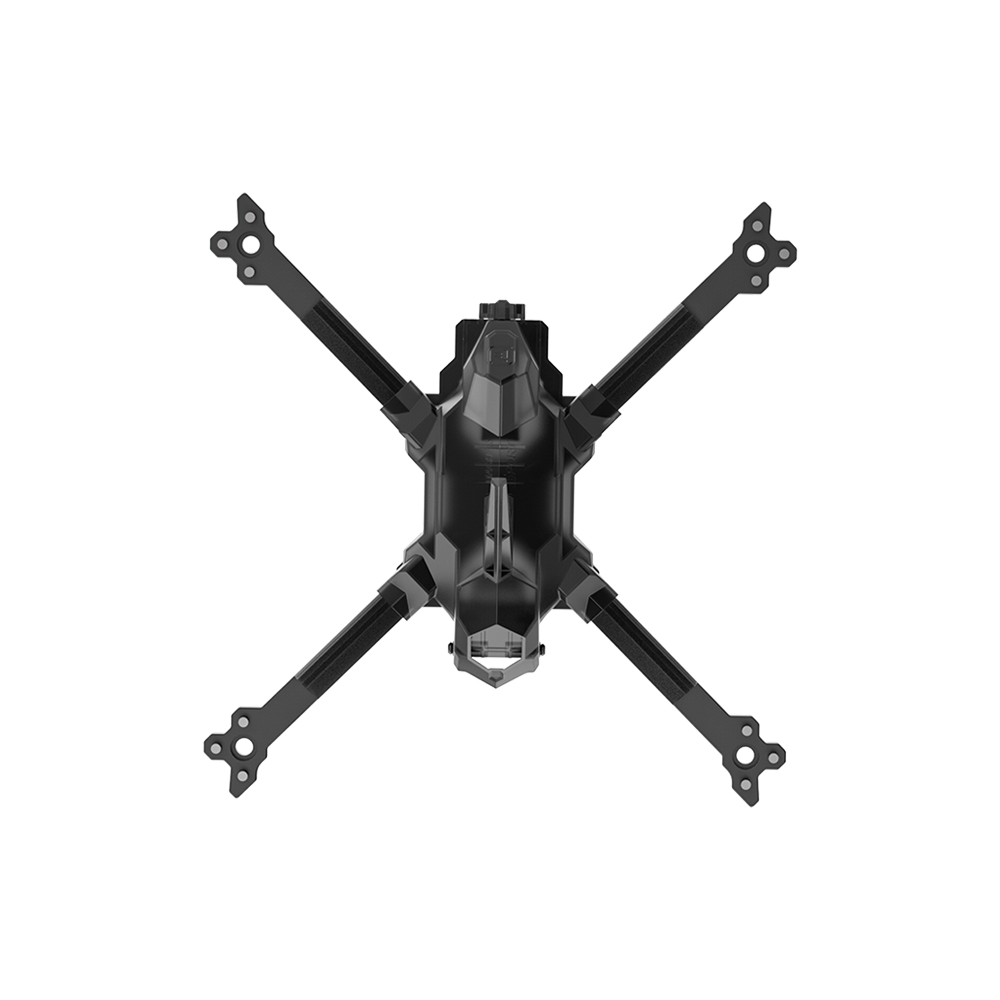

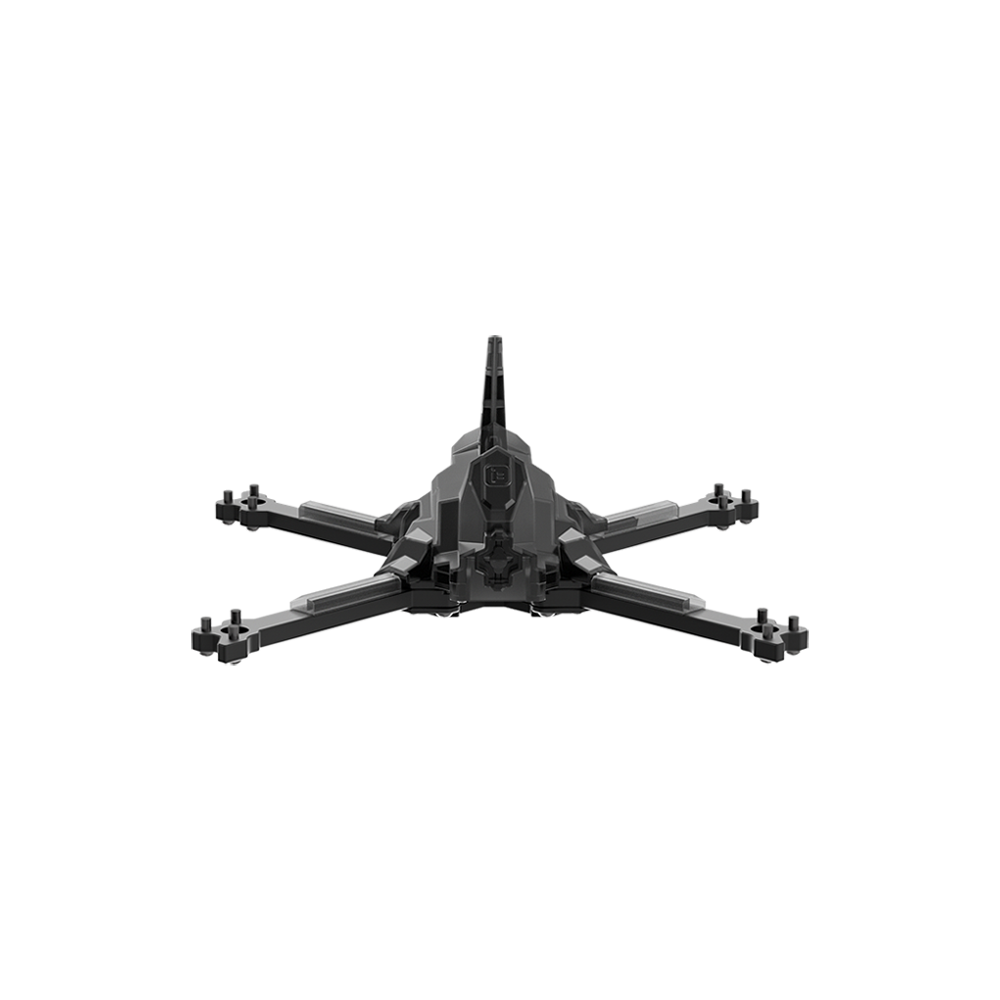

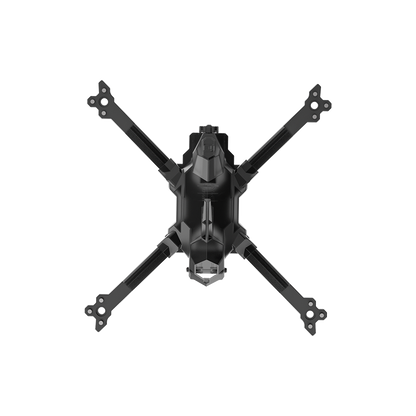

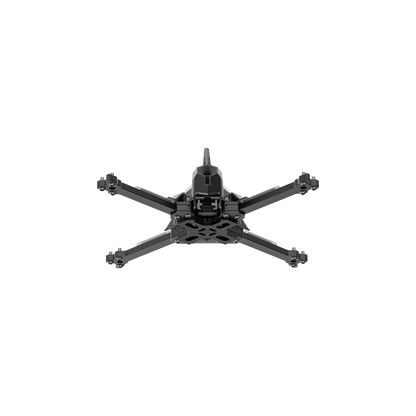

    Frame iFlight Mach R5 Sport

    Frame iFlight Mach R5 Sport

    Brand: iFlight

    €36,80
    €36,80 €36,80
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    Mach R5 Sport

The Mach R5 Sport aims to provide racing pilots with a high-quality FPV frame that allows for custom customization. The use of carbon plates and plastic components not only makes maintenance easier, but also reduces the weight of the drone while increasing overall stability.

Specifications:
Product Name: Mach R5 Sport Racing Frameset
Wheelbase: 210 mm
Frame size: 148*148*51mm
Arm thickness: 5.5 mm
Bottom plate thickness: 2 mm
Thickness of the top plate: 4 mm
Maximum magazine height: 25 mm
Maximum height of VTX: 25 mm
FC Mounting: 20*20/Φ3 mm
Motor mounting: 16*16/Φ3mm
VTX mounting: 20*20/Φ3 mm
Weight: grams (without TPU parts)
Recommended motor: stock motor 22**/23**/24**/25**

Recommended parts (not included)
BLITZ Mini F722 Flight Controller
BLITZ E55R 4-IN-1 2-6S 55A ESC
R5 2207 engines

The package includes:
1 x Mach R5 Sport Frameset (Unassembled)
2 x battery straps (20*250 mm)
1x TPU set
2 x non-slip battery pads
