Code: SKU:C015262

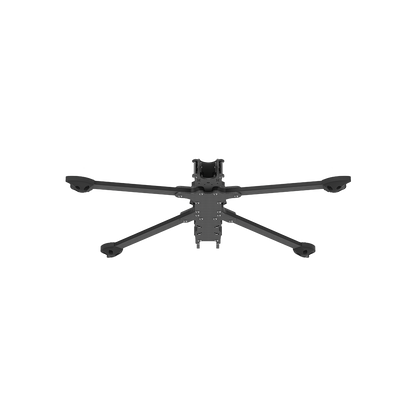

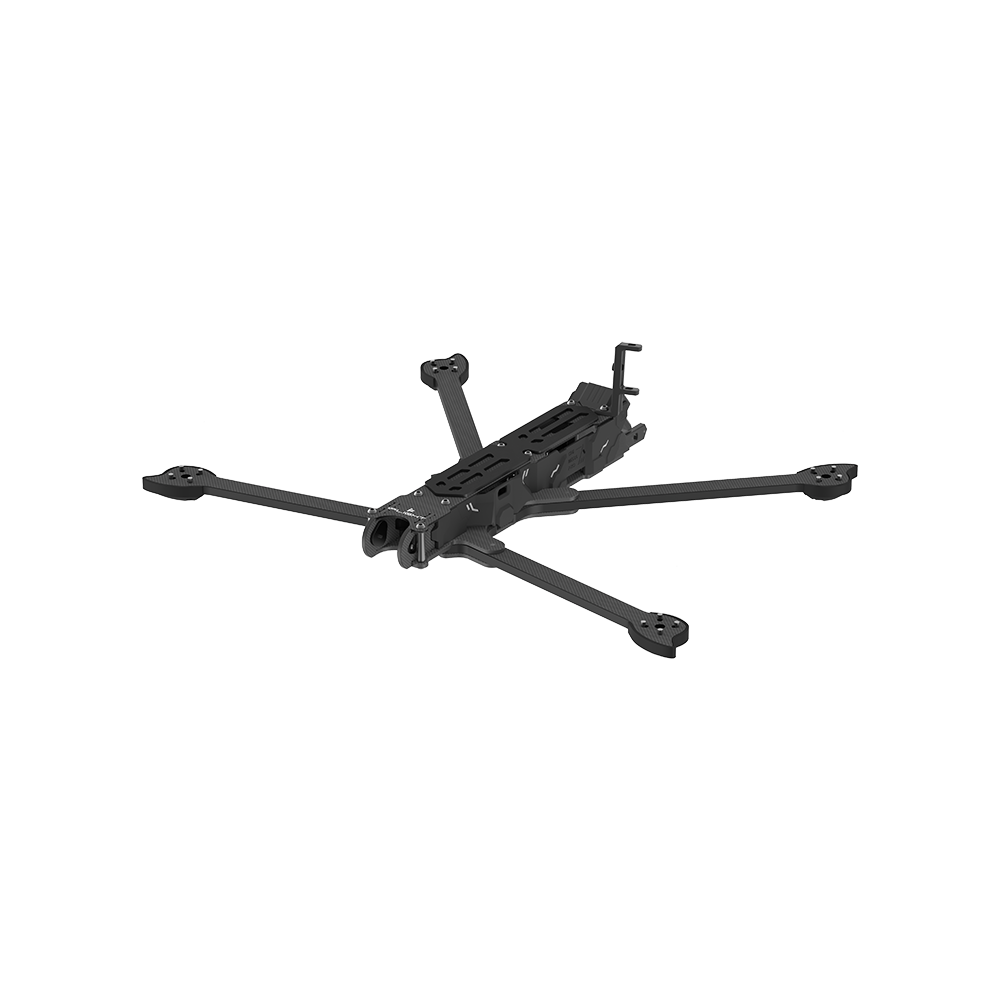

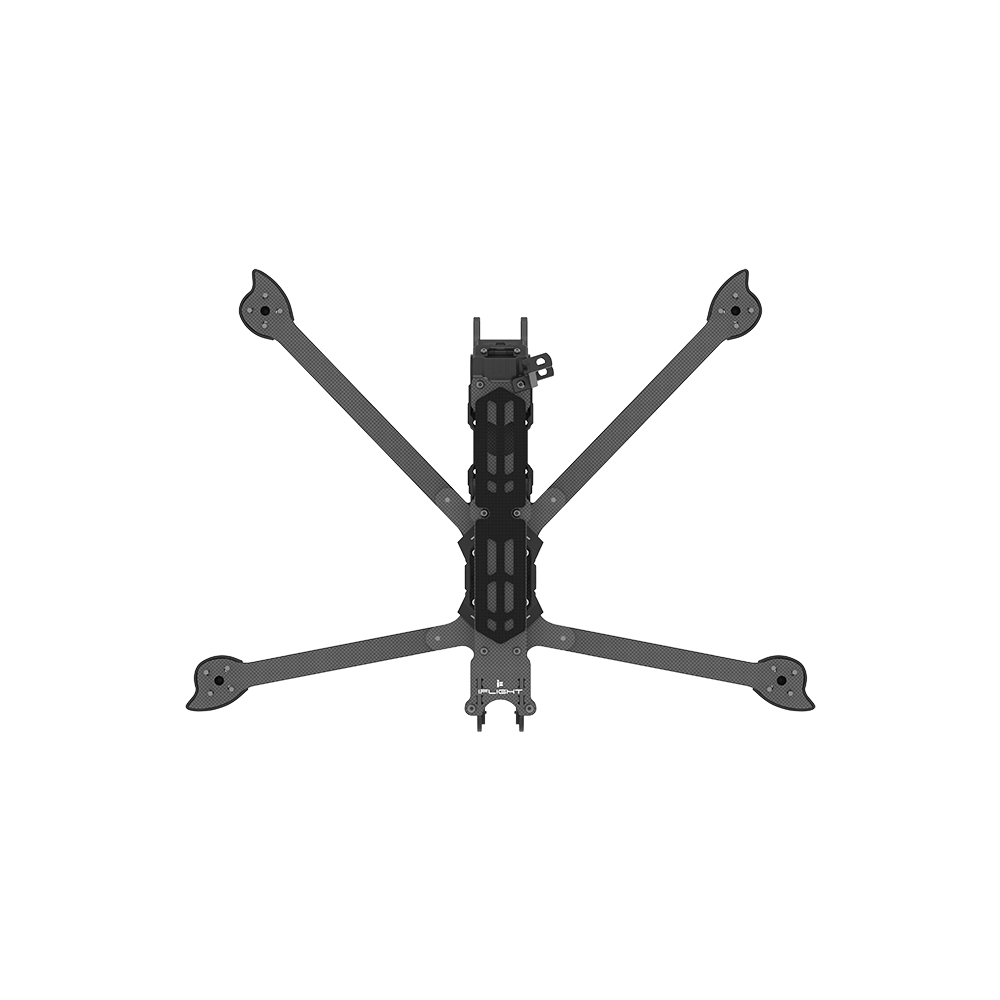

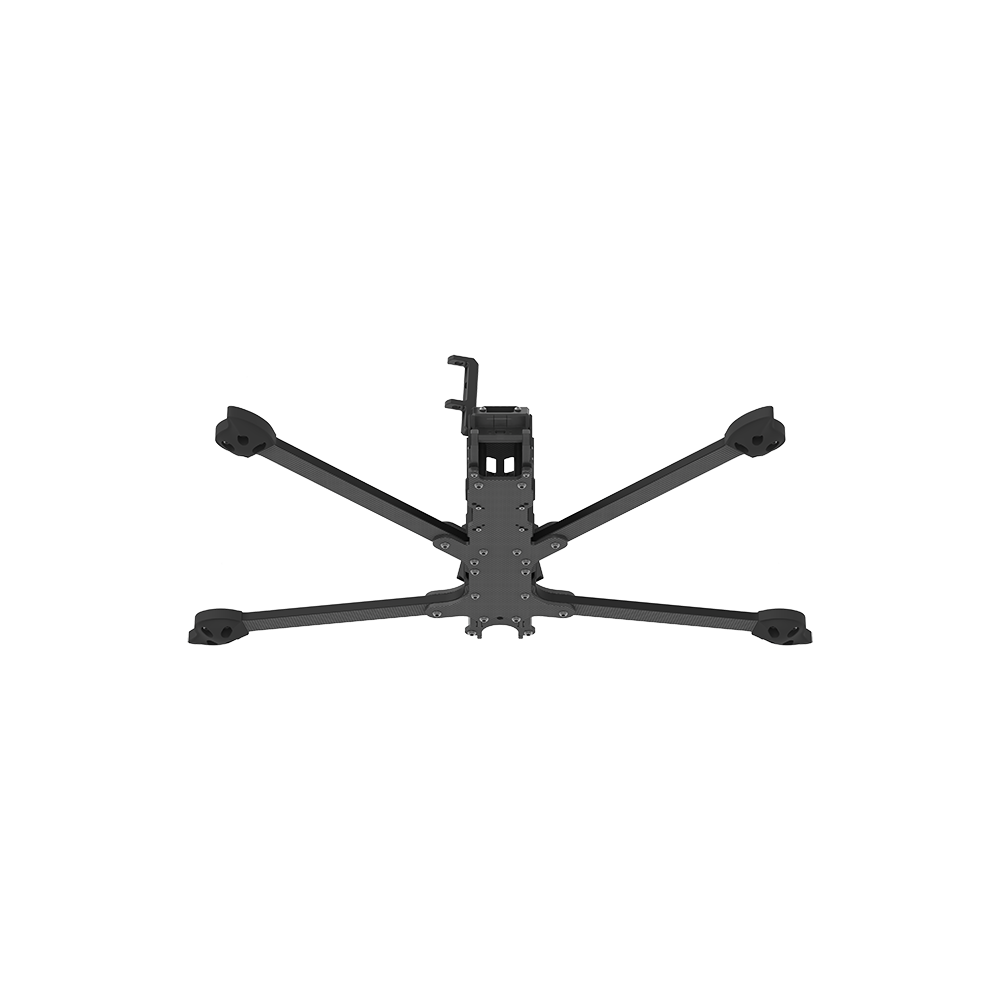

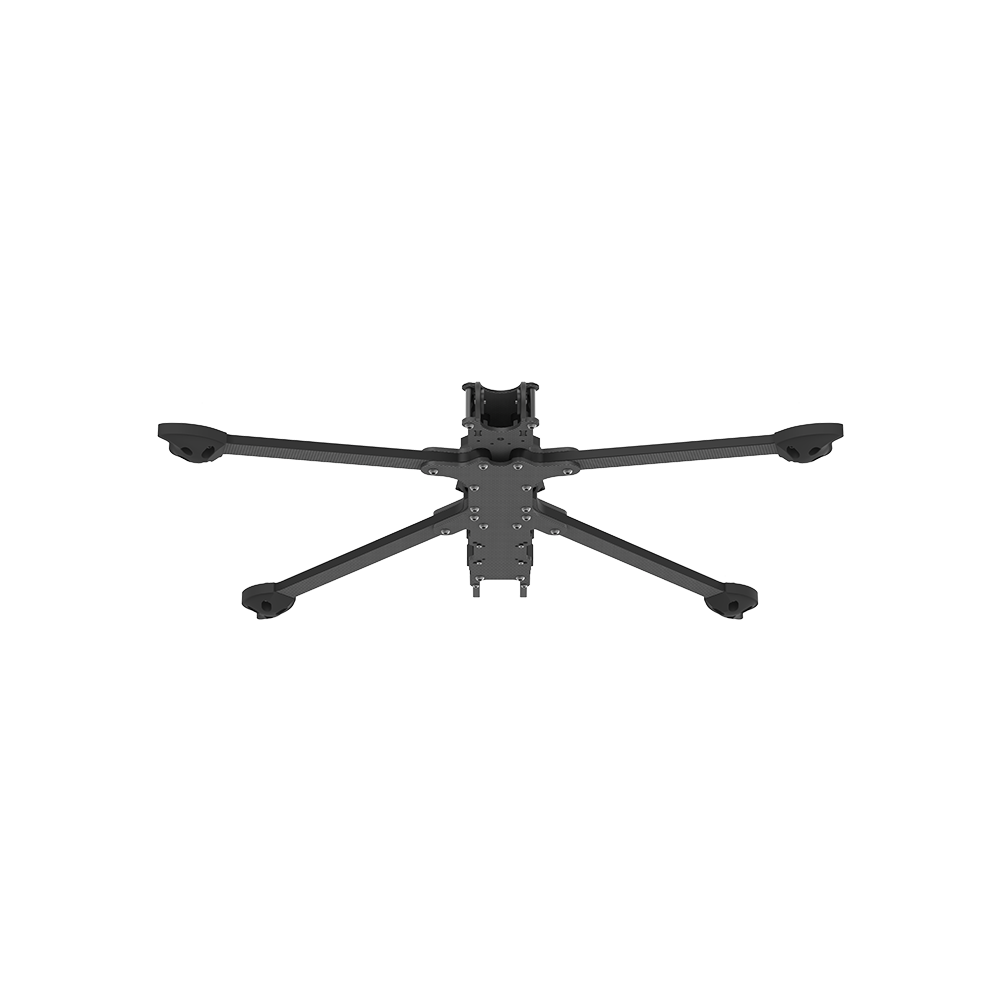

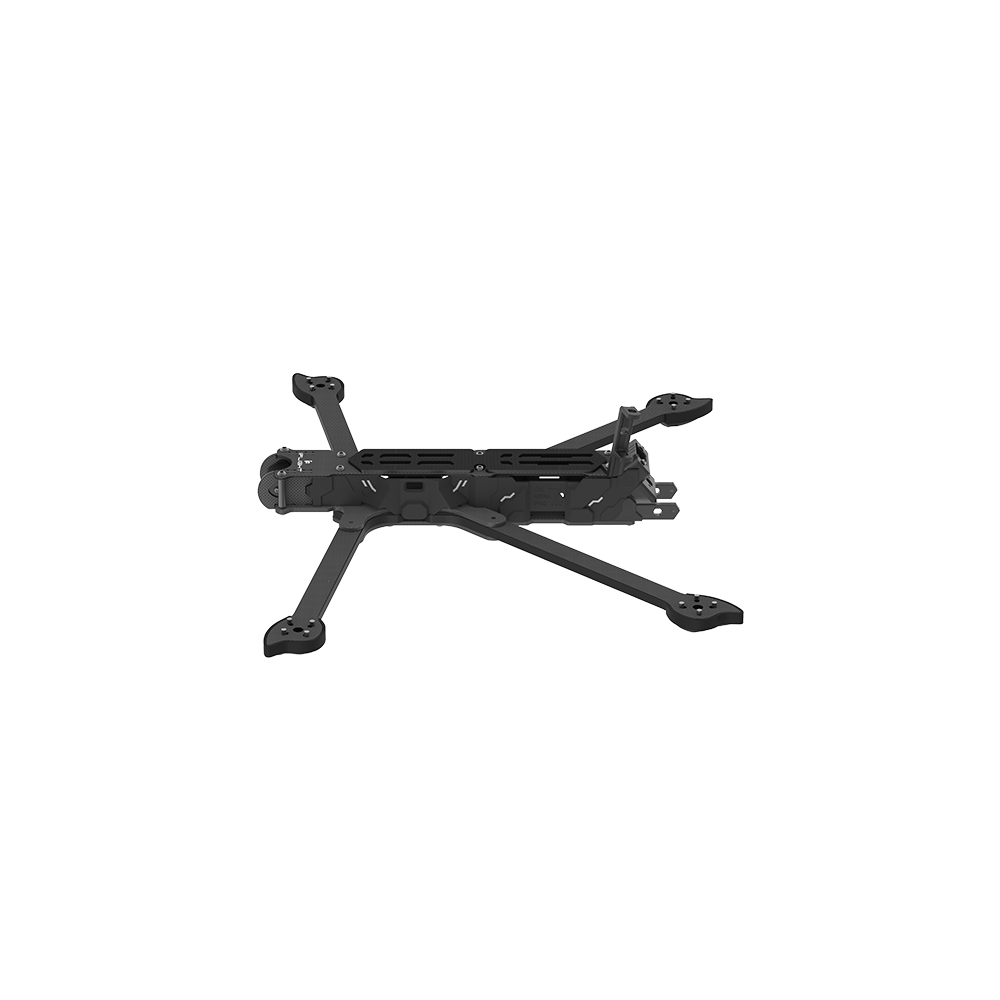

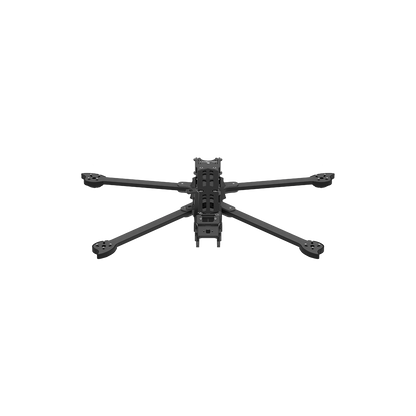

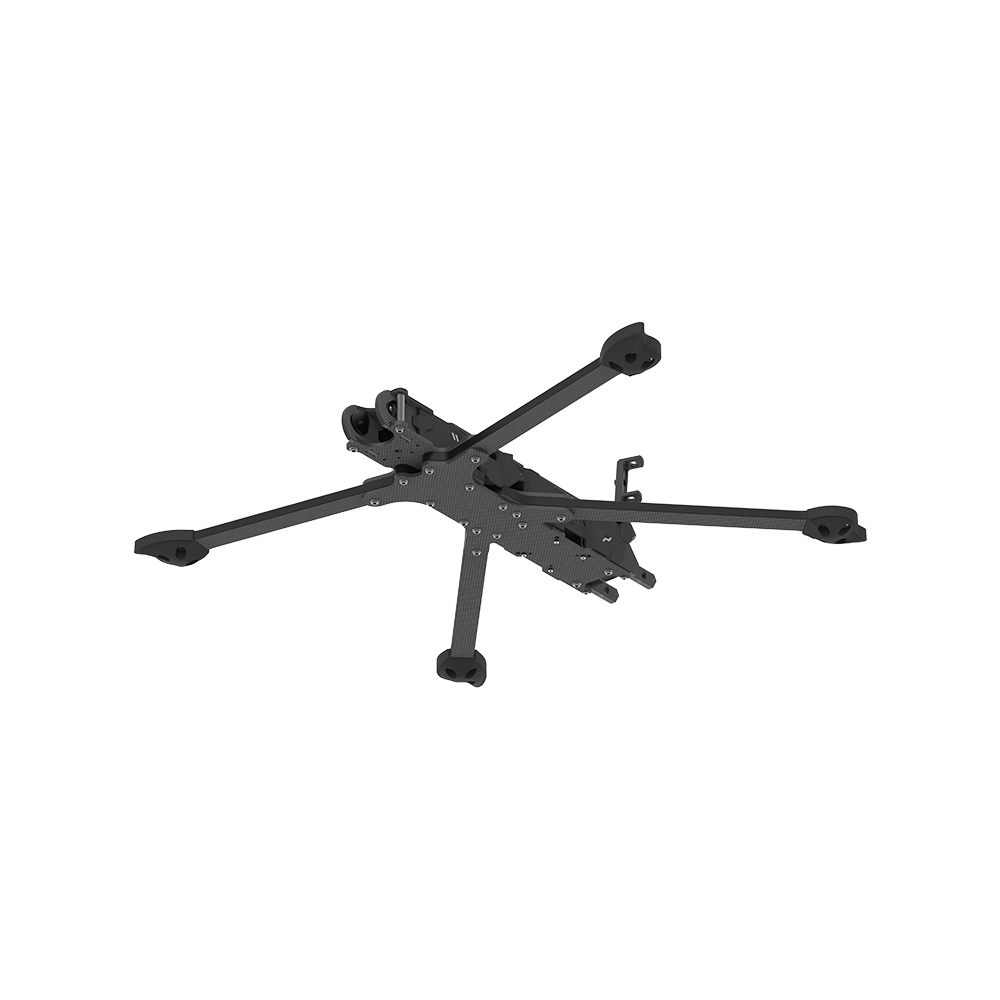

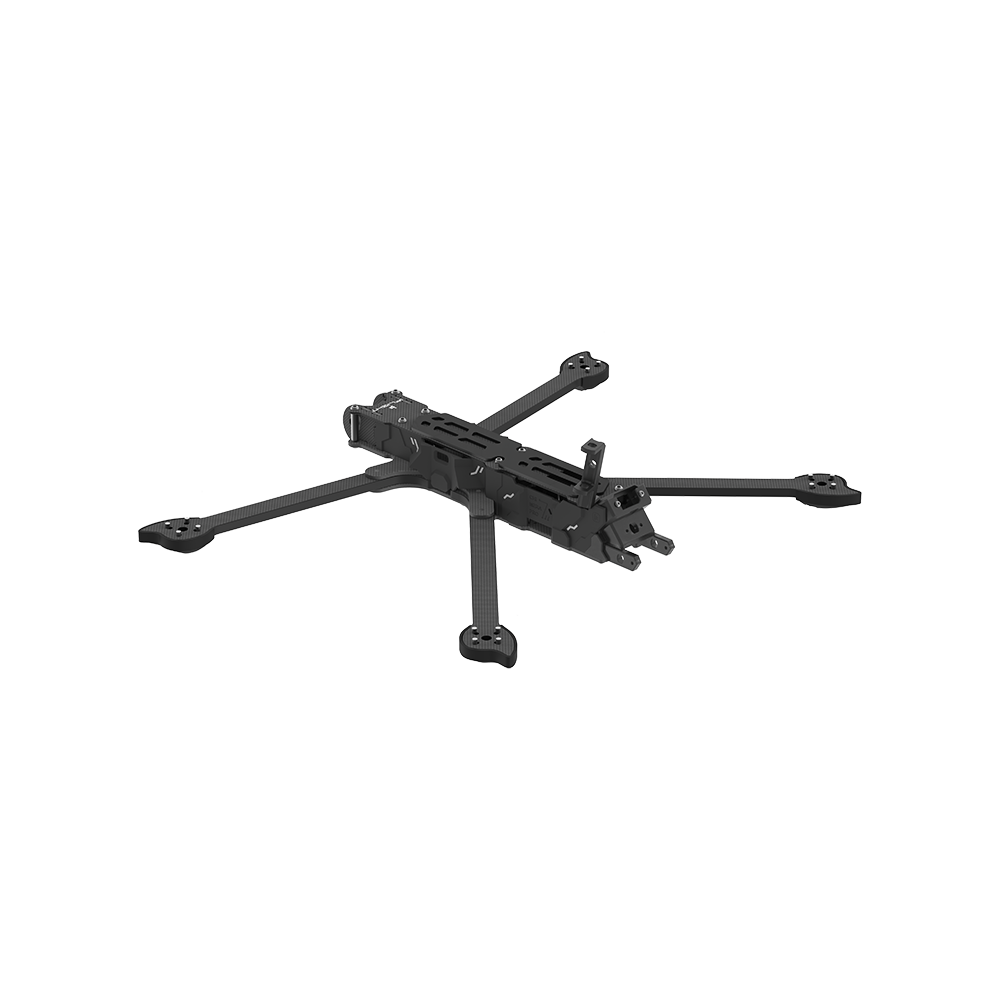

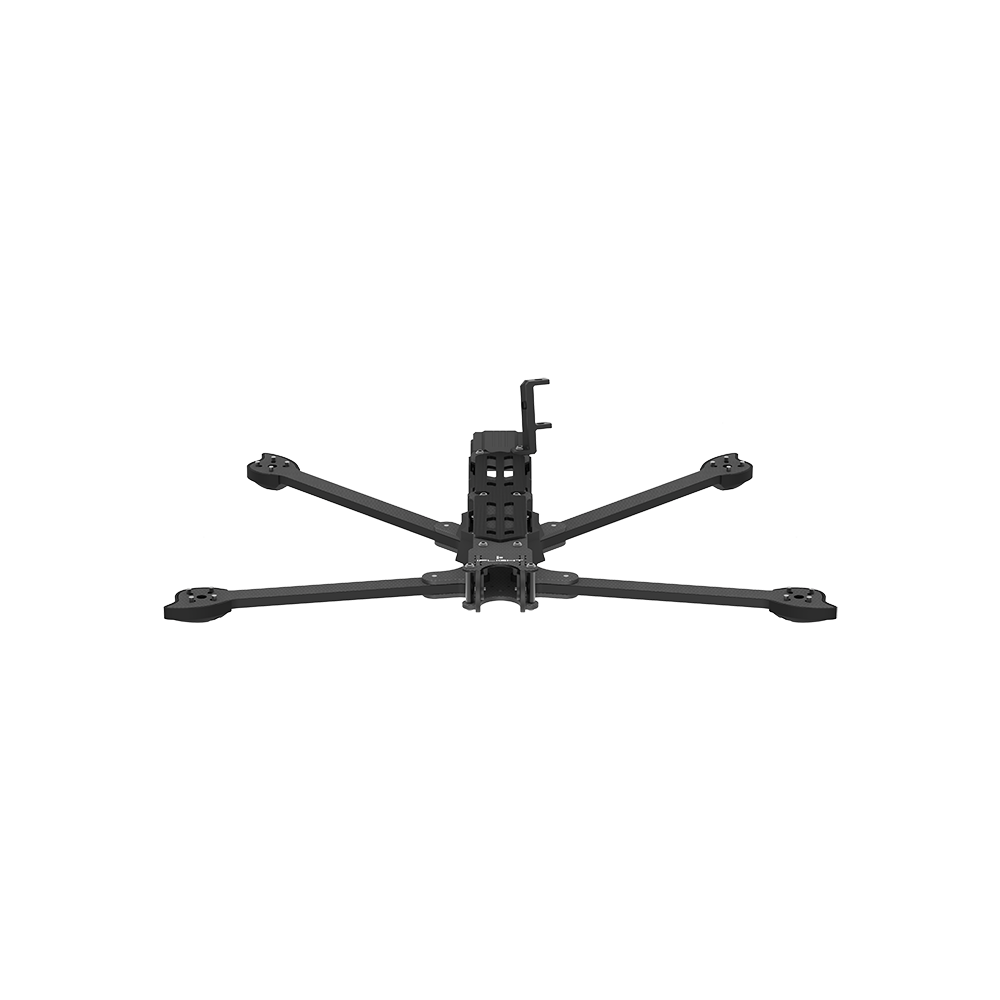

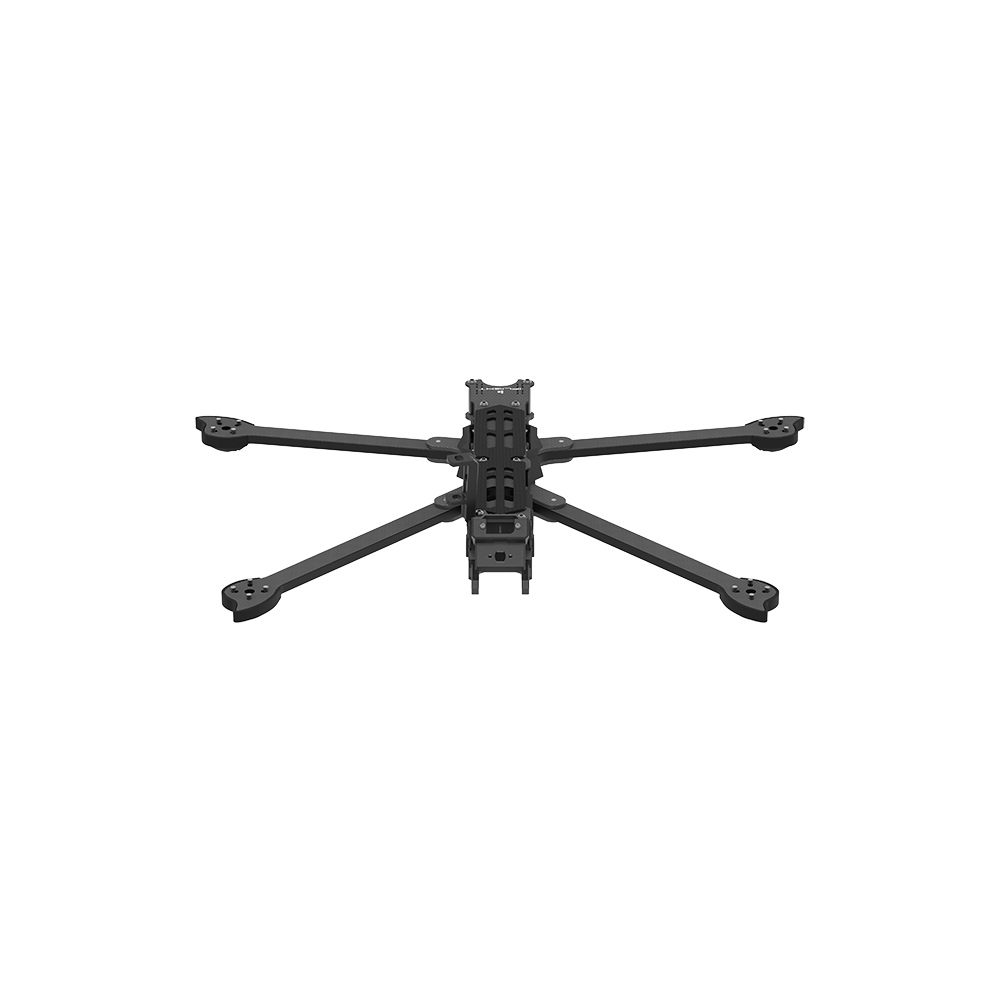

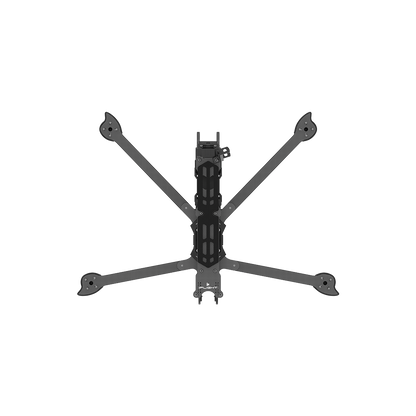

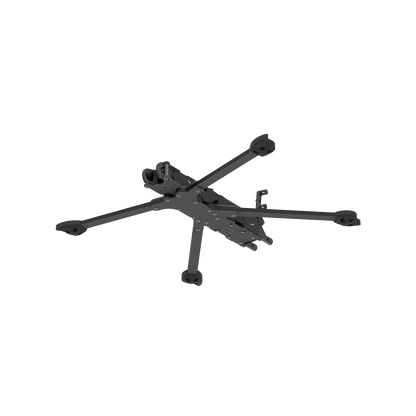

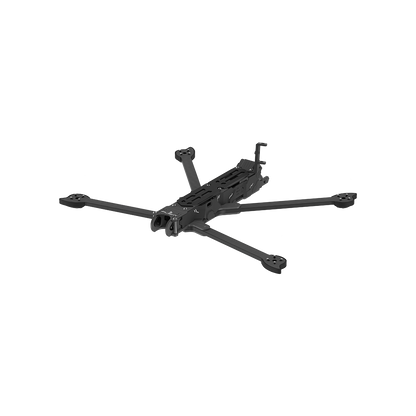

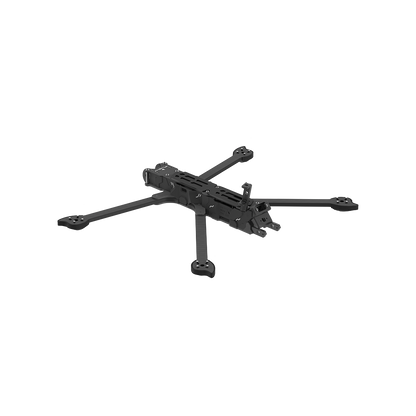

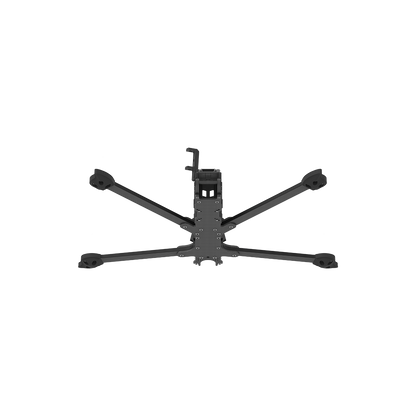

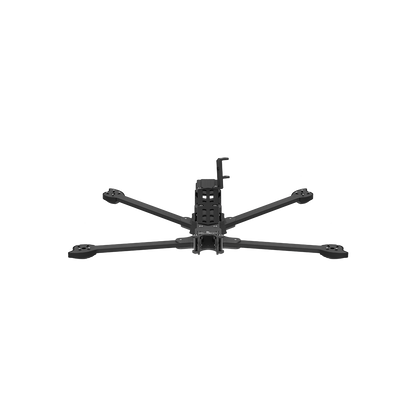

Frame iFlight Chimera9 ECO
Frame iFlight Chimera9 ECO
Brand: iFlight
Regular price
€94,08
Regular price
€94,08
Sale price
€94,08
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion
Chimera9 ECO frame kit The Chimera9 ECO Frame Kit is a versatile and durable frame designed for FPV racing and freestyle drones. Thanks to its lightweight construction and robust materials, it offers excellent agility and durability during high-speed maneuvers and impacts. The frame has a user-friendly design that allows for easy assembly and maintenance. The Chimera9 ECO Frame Kit is compatible with large batteries that can be mounted either top or bottom for optimal balance and flight performance. Specifications: Product name: Chimera9 ECO Frame Kit Geometry: DeadCat (DC) Wheelbase: 405 mm Frame size: L360*W235*H34 mm Frame body size: 34mm Arm thickness: 6 mm Bottom plate thickness: 3 mm Thickness of the top plate: 2 mm Thickness of the top plate: 3 mm Maximum magazine height: 21 mm Maximum height of VTX: 30 mm Flight Stack Assembly: 30.5*30.5mm φ3mm VTX mounting: 30.5*30.5 φ3mm / 25*25 φ1.6mm / 20*20 φ2mm Motor mounting: 16x16mm / 19*19mm φ3mm Weight: 377g The package includes: 1 x Chimera9 ECO Frame Kit 1 x O3 Single Antenna TPU 1 x bag of screws 1x TPU set 1 x non-slip battery pad 2 x battery strap 4 x AMASS MR30 plug
