    Code: C013872

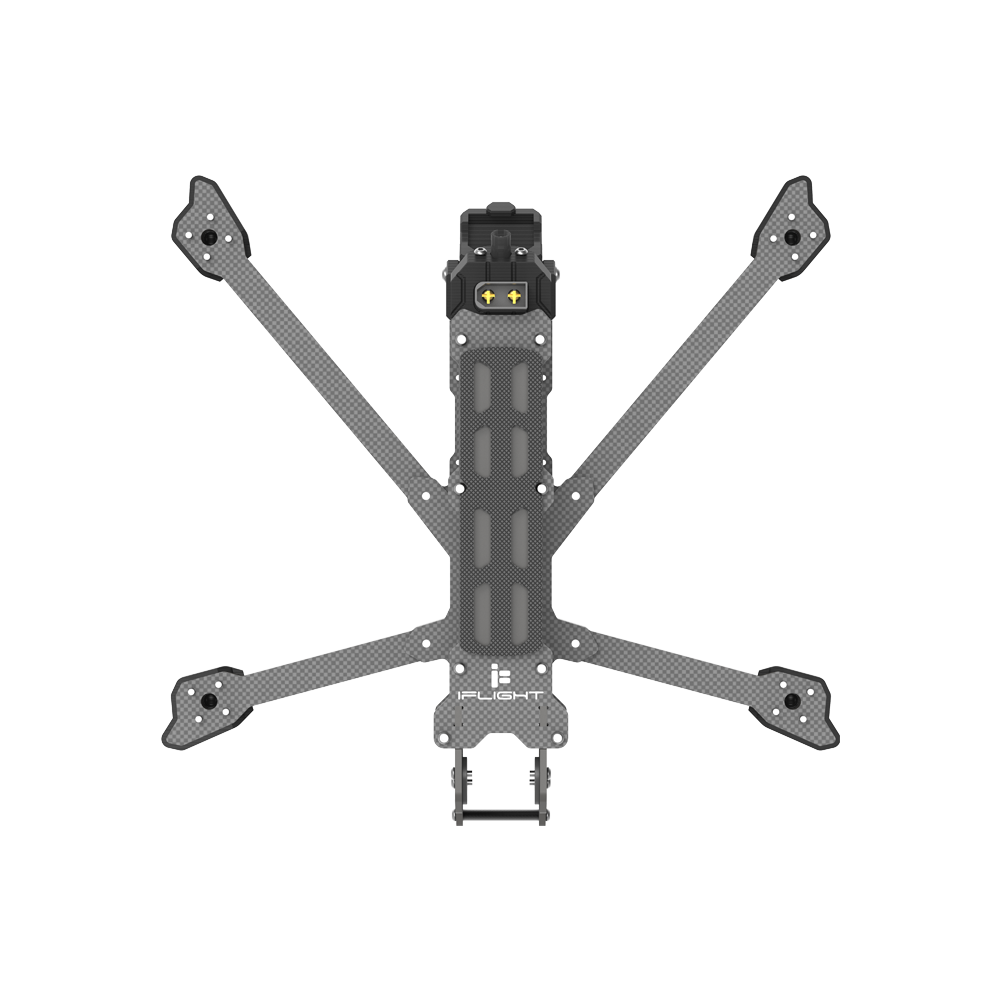

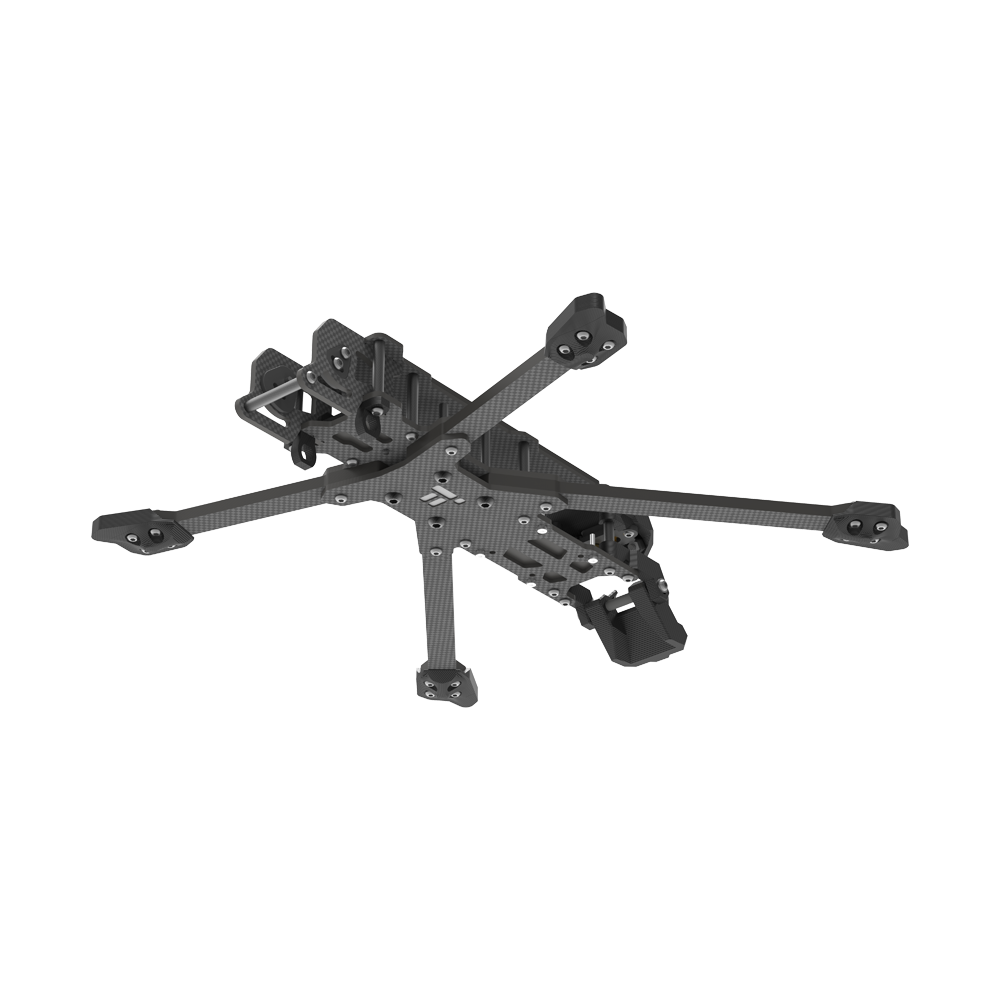

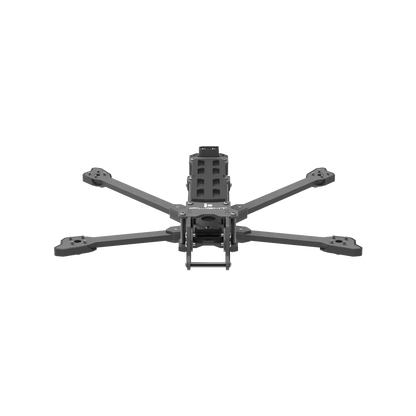

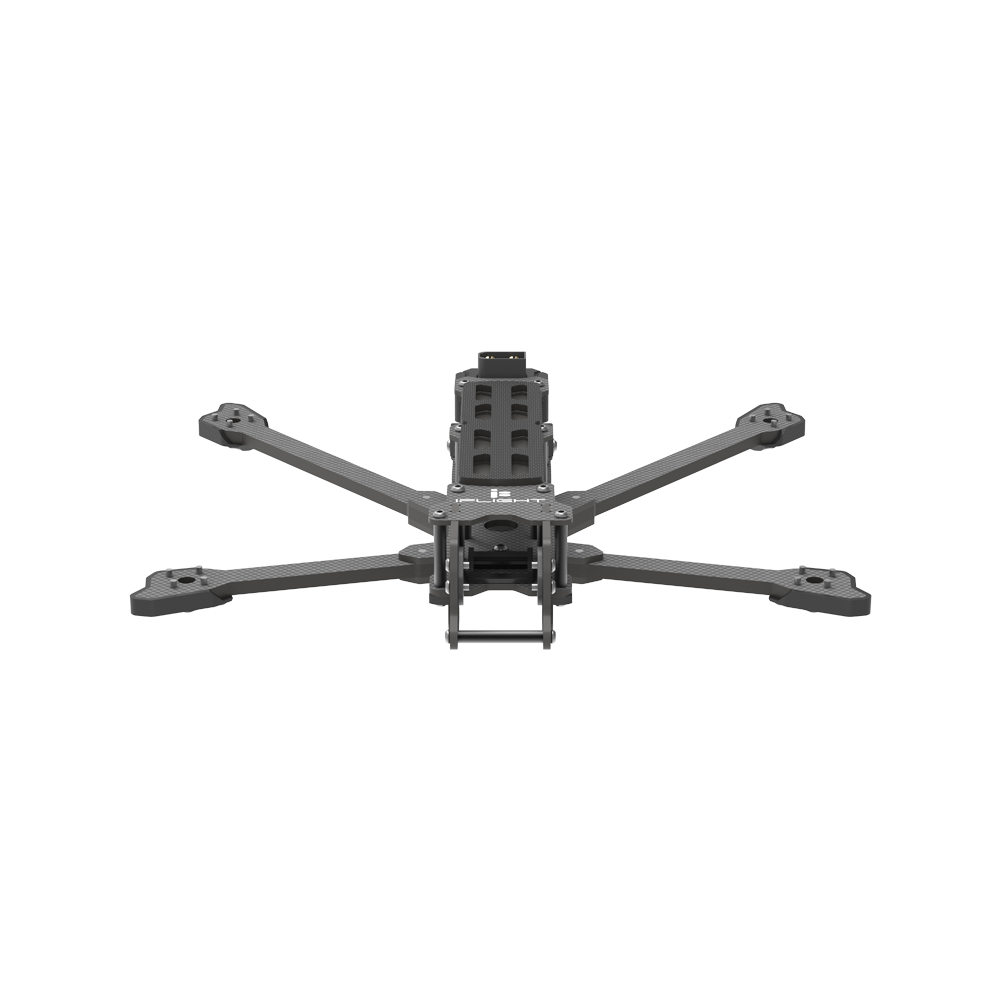

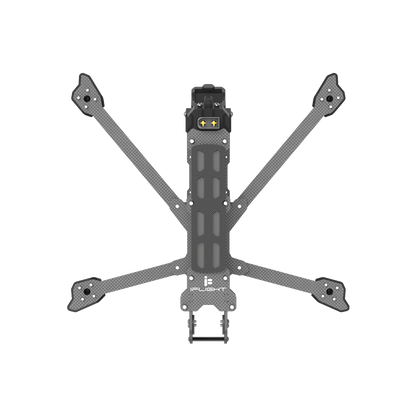

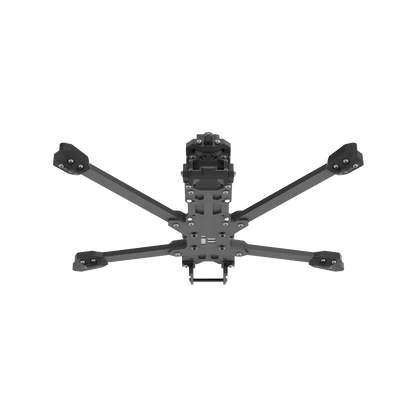

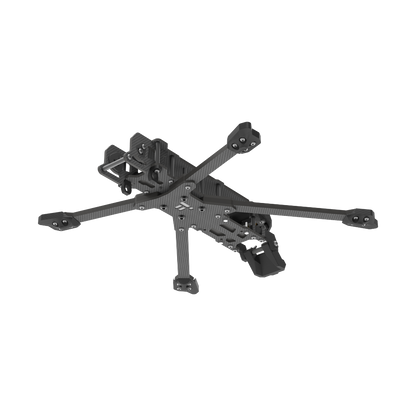

    Frame iFlight Chimera5 Pro V2

    Frame iFlight Chimera5 Pro V2

    Brand: iFlight

    €52,30
    €52,30 €52,30
    -0% View Product
    In stock
    Limited stock available. Order soon!
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion

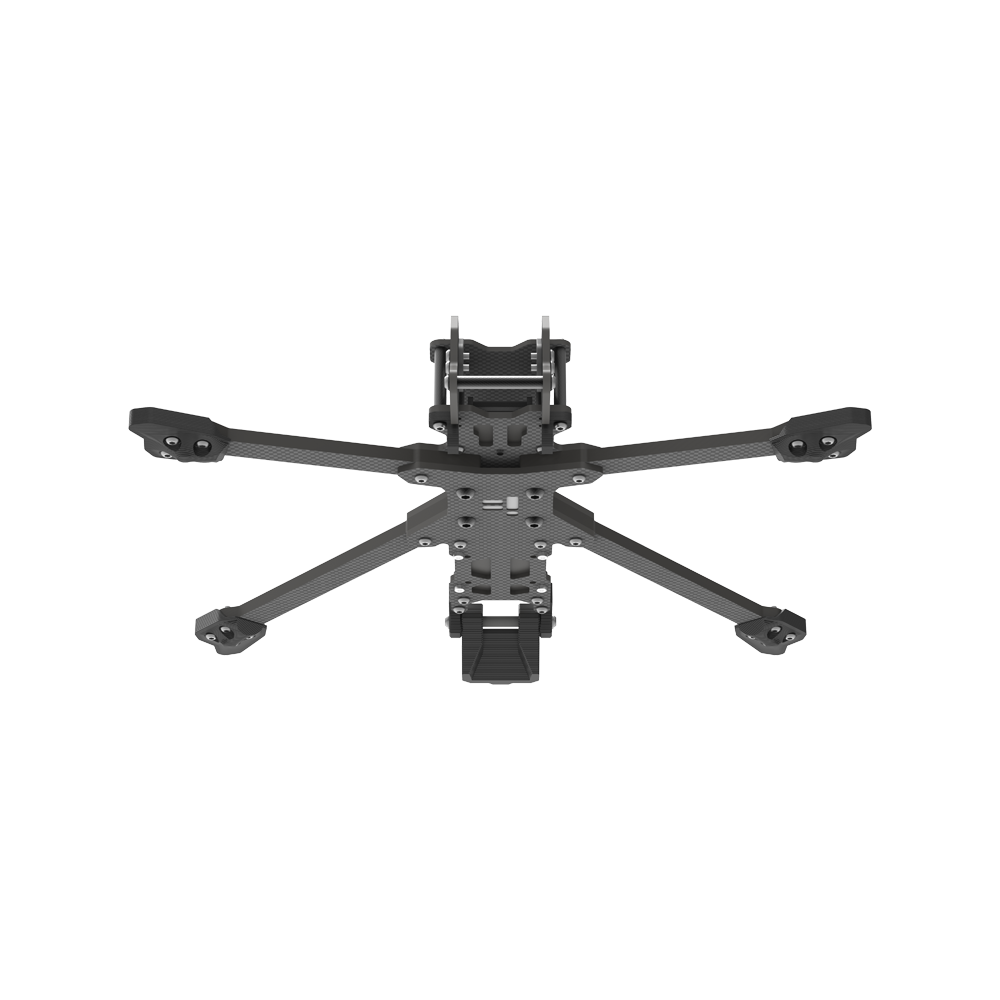

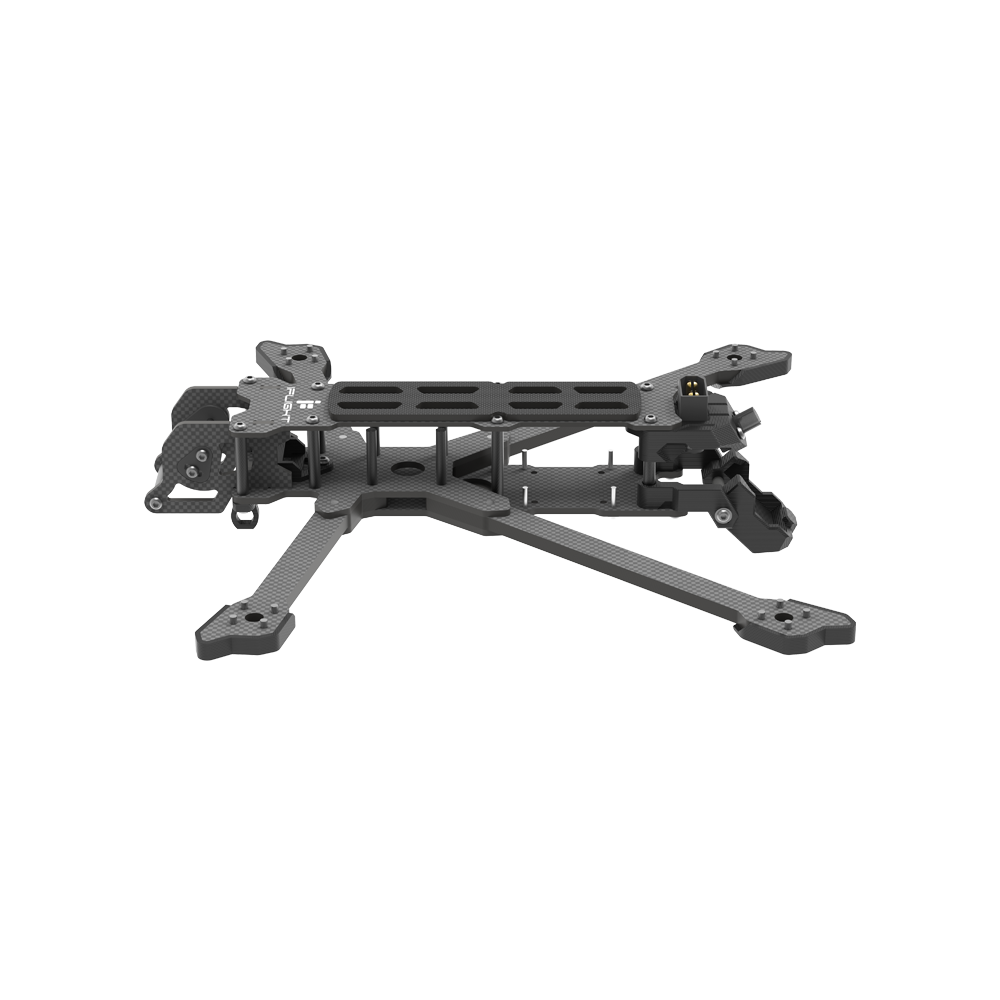

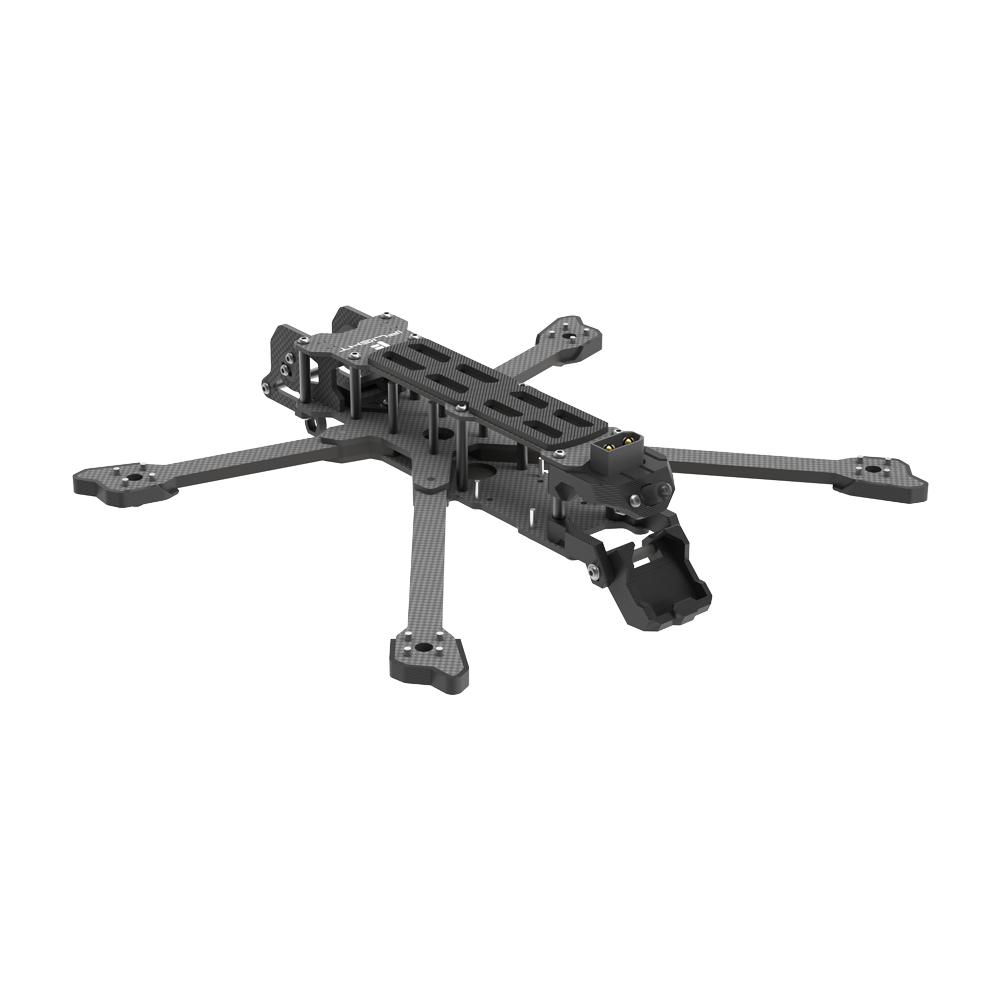

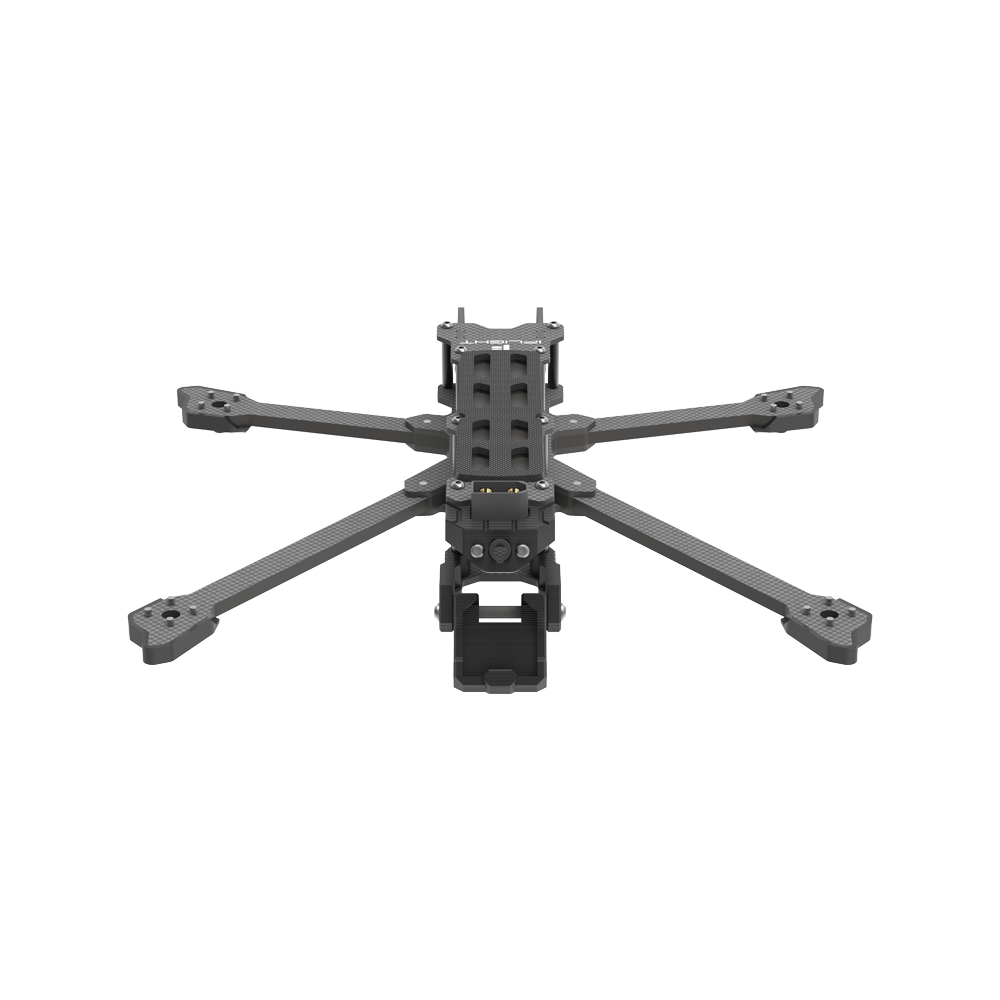

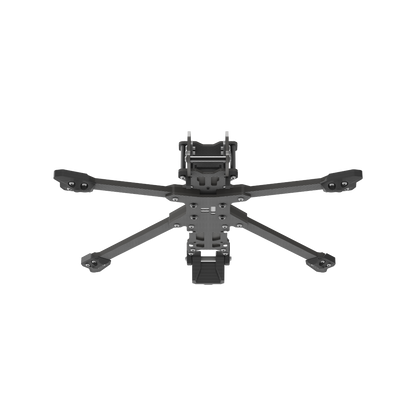

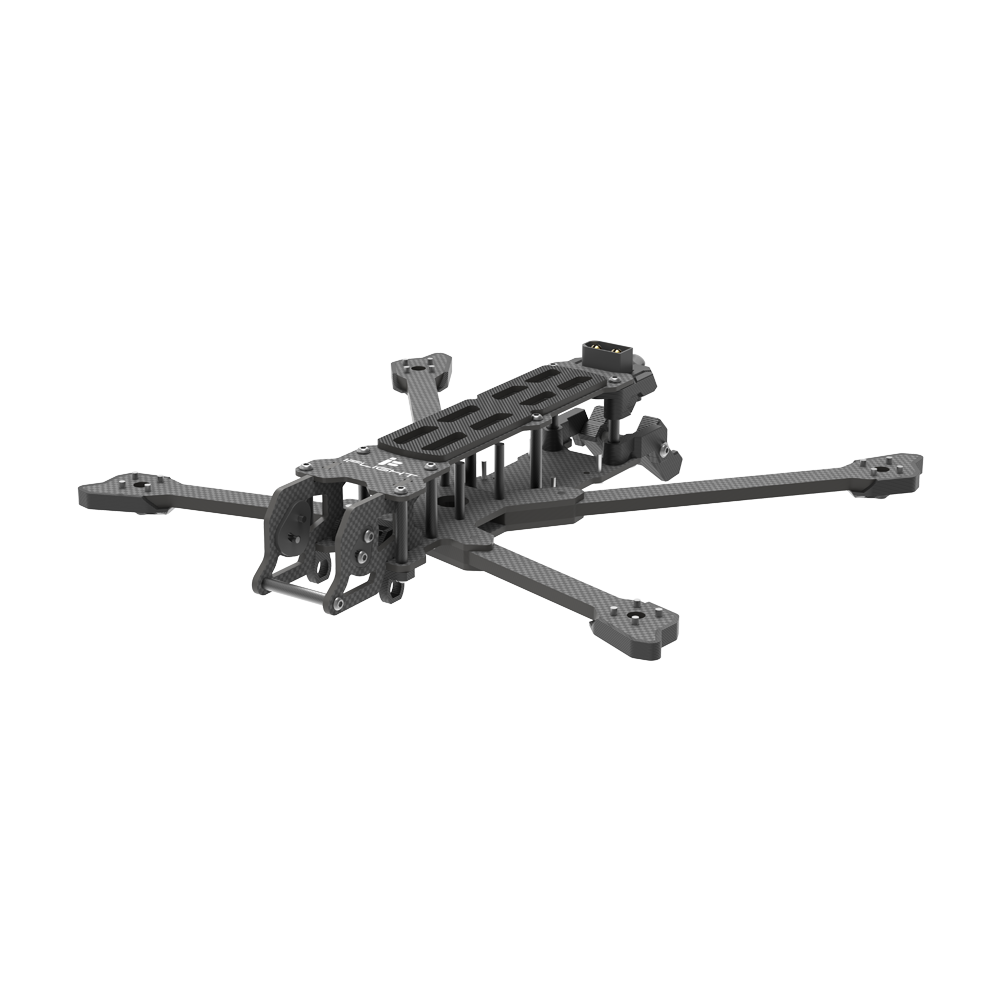

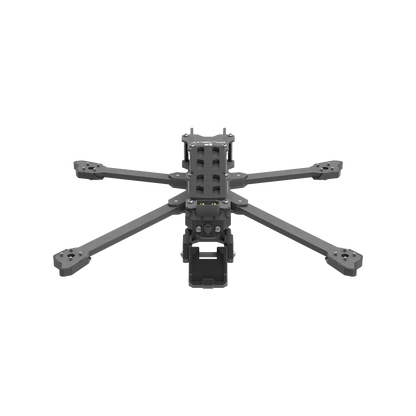

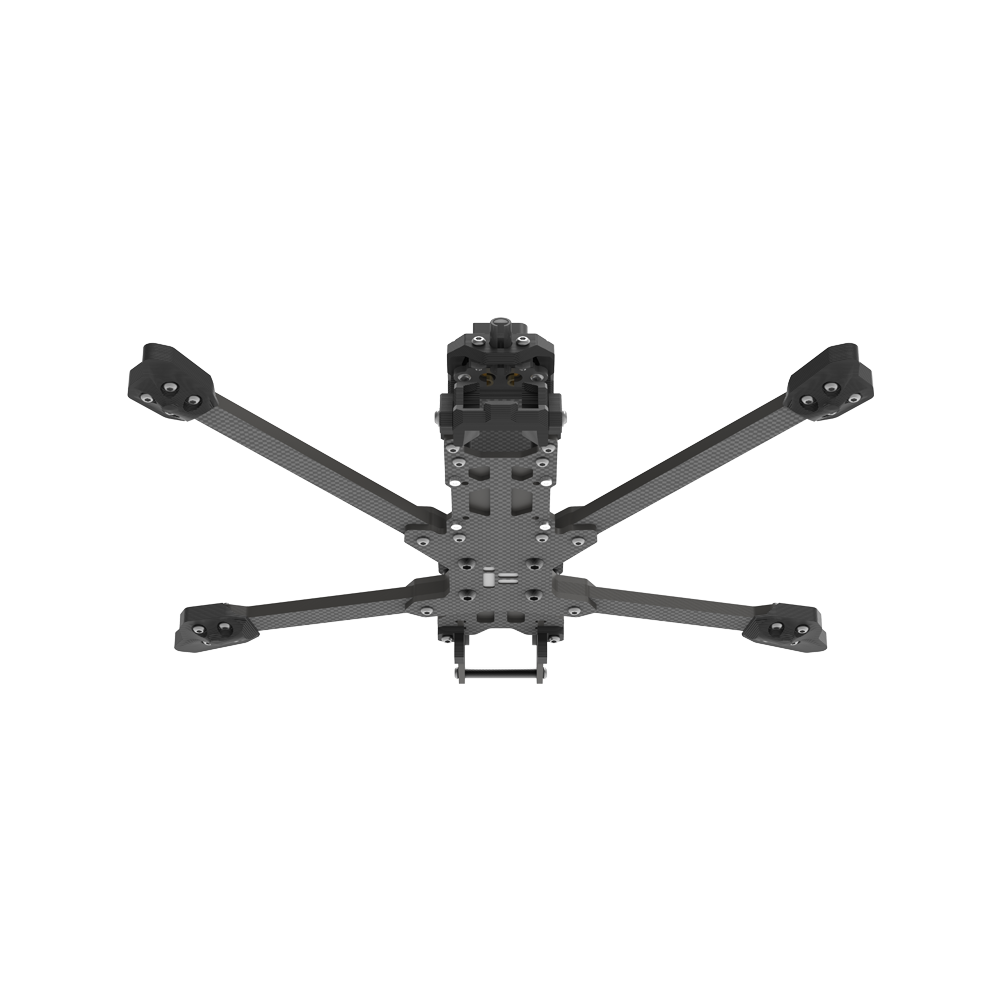

    Chimera5 Pro V2 Frame Kit

Ultralight 5" long reach frameset for all terrain and beyond. The latest version of this frame has updated camera side plates to support the DJI O3 air unit and other 19-20mm FPV cameras.

Function
- New camera side plate that perfectly fits the O3 air unit
- Secure integrated XT60 battery connector
- New GPS holder, easy to disassemble

Specifications
Product Name: Chimera5 Pro V2 Frame Kit
Wheelbase: 225 mm
Frame size: L140*W176*H28.5 mm
Frame body size: 28.5mm
Arm thickness: 4 mm
Bottom plate thickness: 2 mm
Thickness of the top plate: 1.5 mm
Thickness of the top plate: 2 mm
Motor mounting: 12x12mm/φ2mm
Maximum magazine height: 19 mm
Maximum height of VTX: 25 mm
Flight Stack assembly: 20*20/φ3mm
VTX mounting: 25*25 φ1.6mm / 20*20 φ2mm
Weight: 135 grams

Packing List:
1 x Chimera5 Pro V2 Frame Kit
1x TPU set
1 x bag of screws
1 x non-slip battery pad
2 x battery strap
