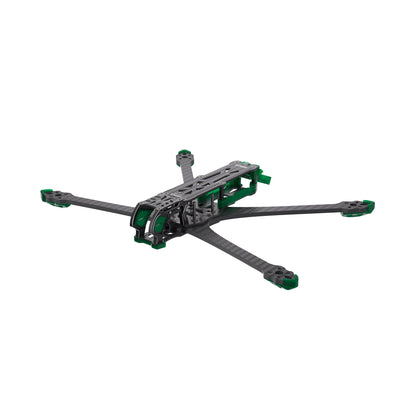

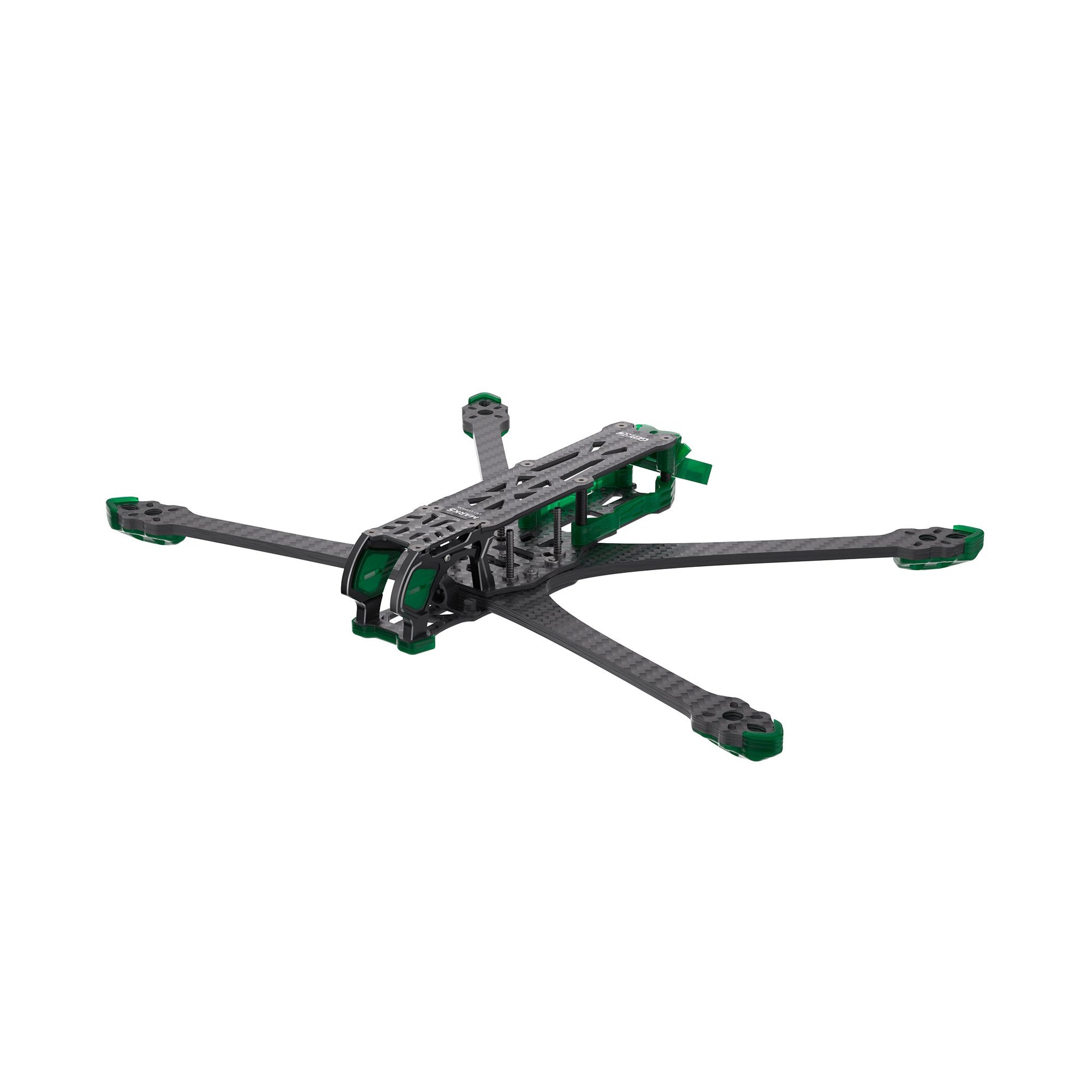

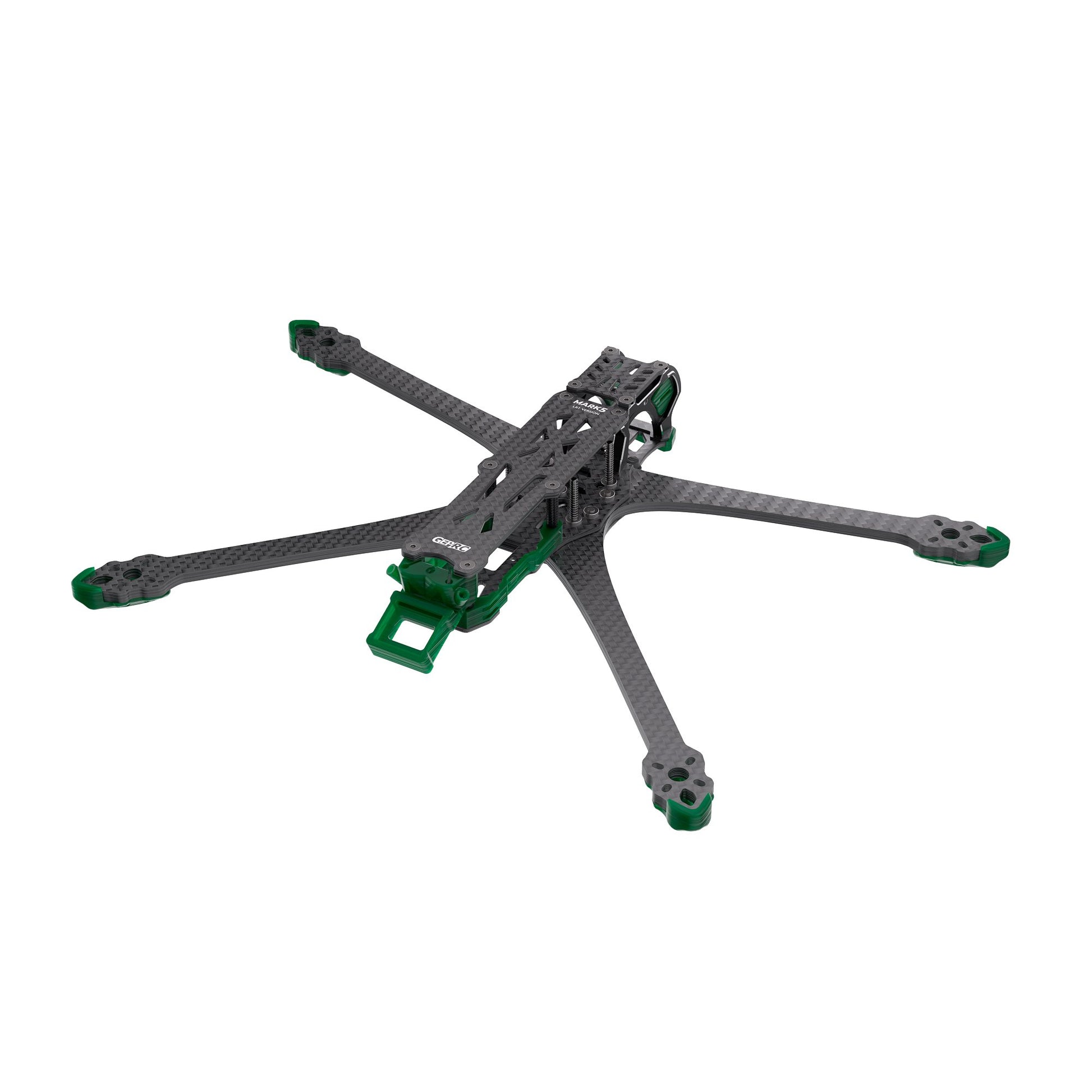

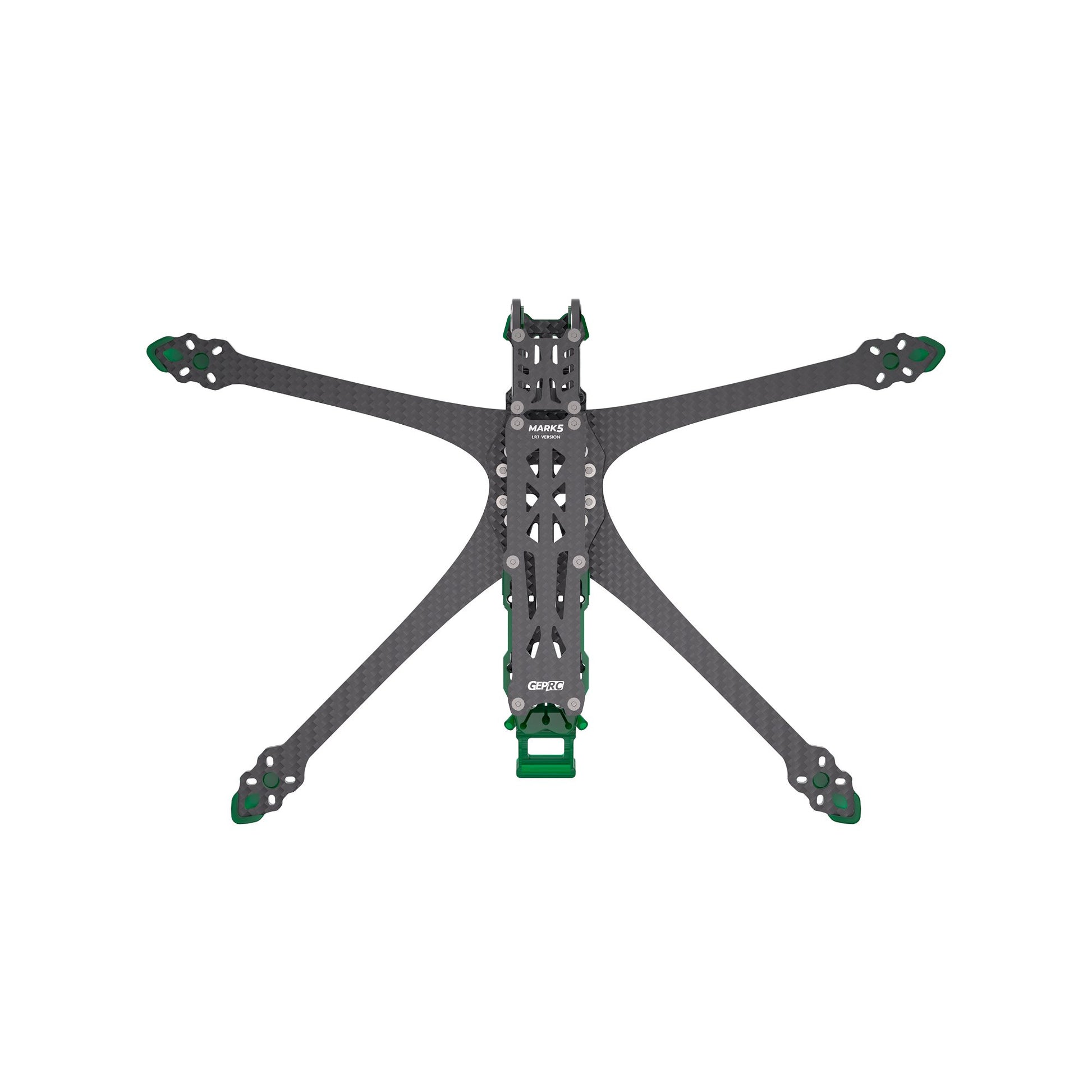

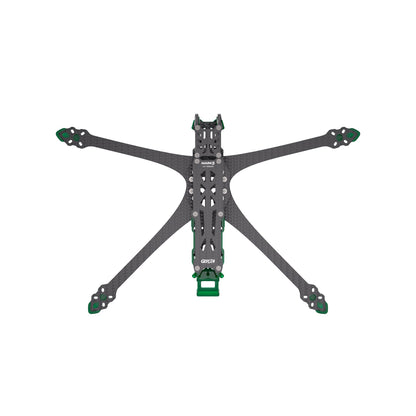

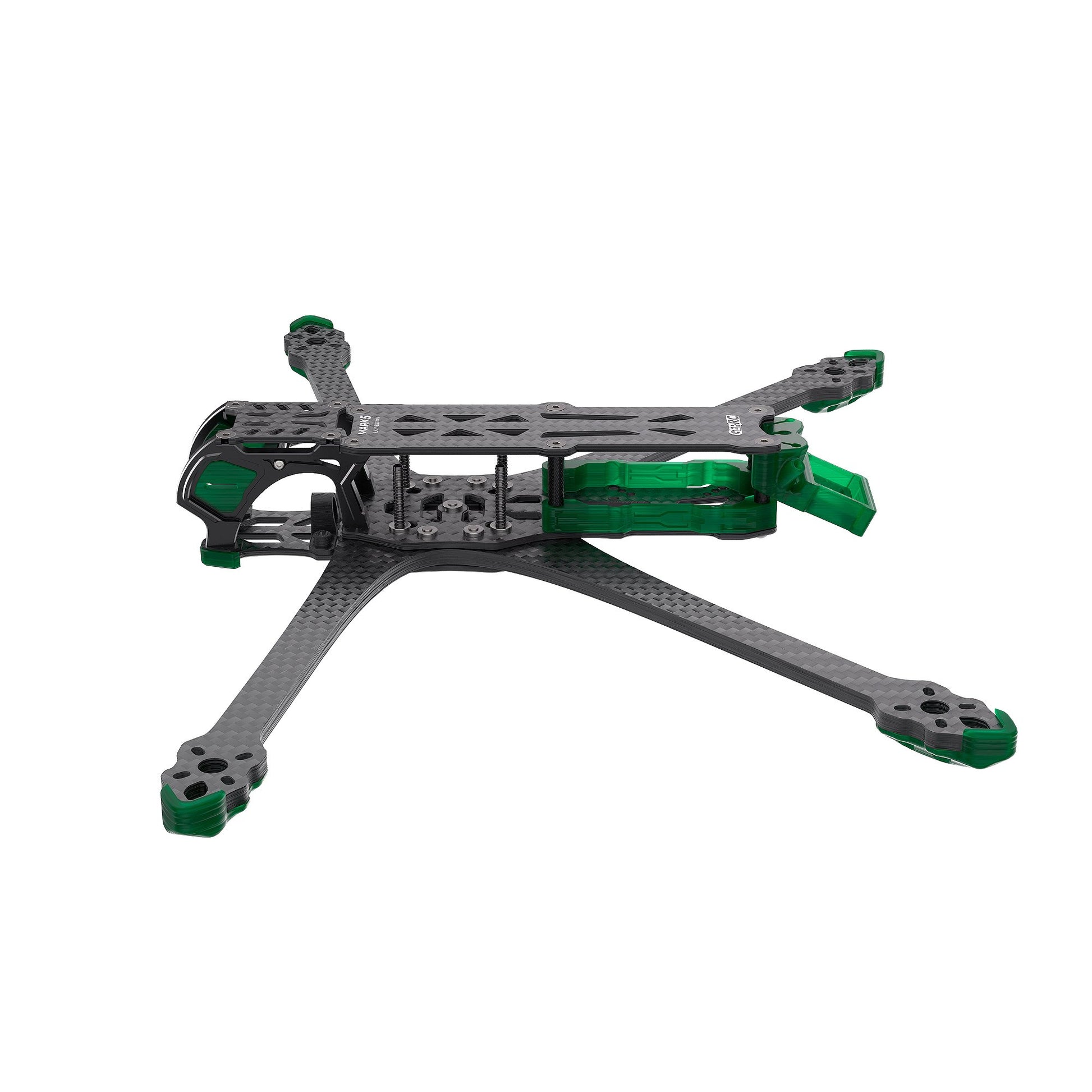

    Frame GEPRC GEP-MK5D-LR7 for MK5D-LR7 Drone

    Frame GEPRC GEP-MK5D-LR7 for MK5D-LR7 Drone

    Brand: GEPRC

    €88,48
    €88,48 €88,48
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    GEP-MK5D-LR7

The MK5D-LR7 is a 7-inch model upgraded from the MARK5. The strength of the arm structure is optimized without losing the original design style, but with higher strength. It has TPU mounting parts for O3 video transfer and provides air intake and heat dissipation holes.

Function:
- Uses a durable aluminum alloy side plate.
- Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
- Can install the full range of GoPro cameras, as well as Naked Camera 8, Insta 360 GO2 and Caddx Peanut cameras.
- Supports installation motor with 16x16mm and 19x19mm mounting holes.

Specifications:

Frame: GEP-MK5D-LR7
Dimensions: 230x350x43mm
Wheelbase: 335 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Shoulder plate: 6.0 mm
FC mounting hole: 30.5x30.5mm / 25.5x25.5mm
VTX mounting hole: 30.5x30.5mm / 25.5x25.5mm / 20.5x20.5mm
Camera mounting hole: 19-20mm
Propeller: 7 inches
Weight: 230.0g
