    Code: GP102624

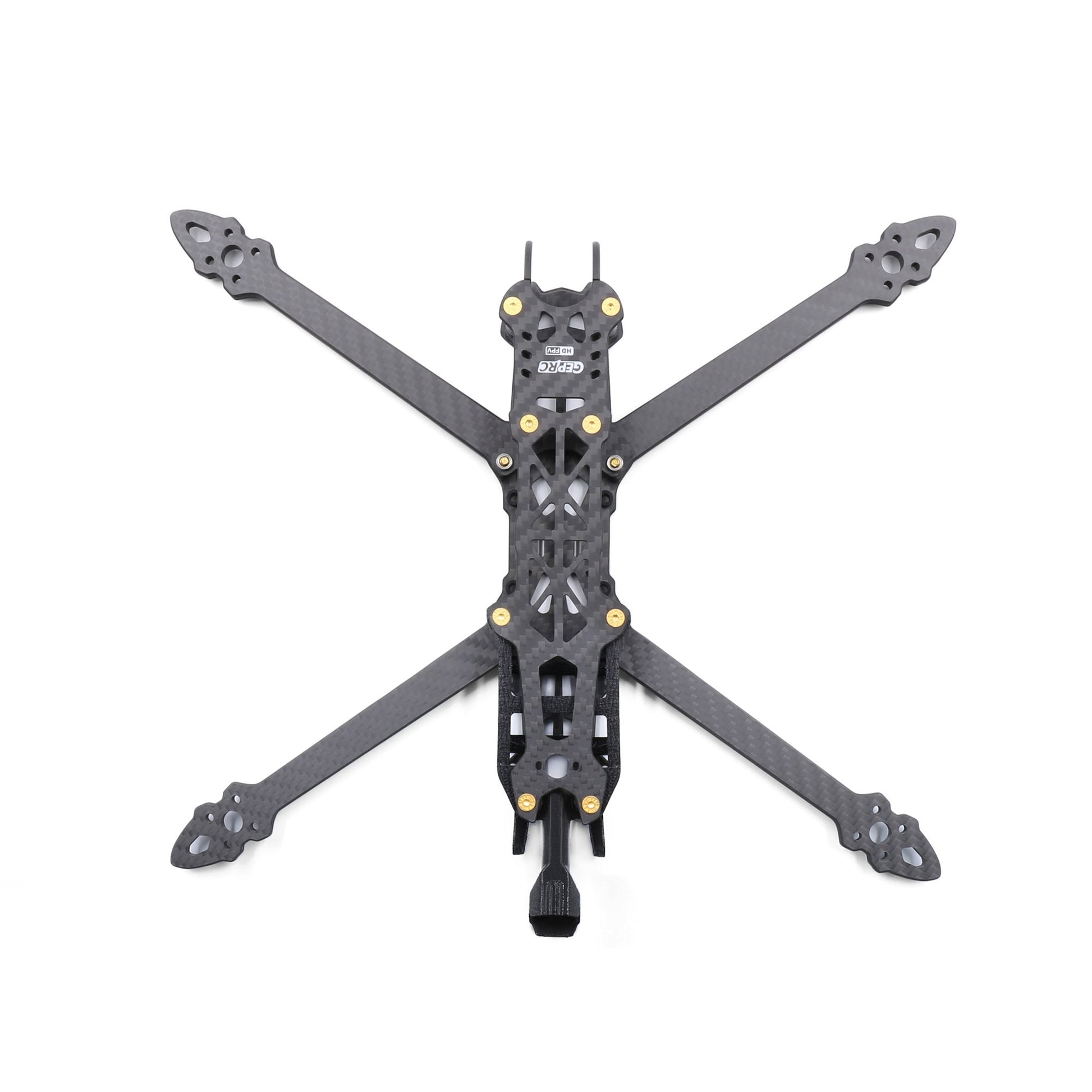

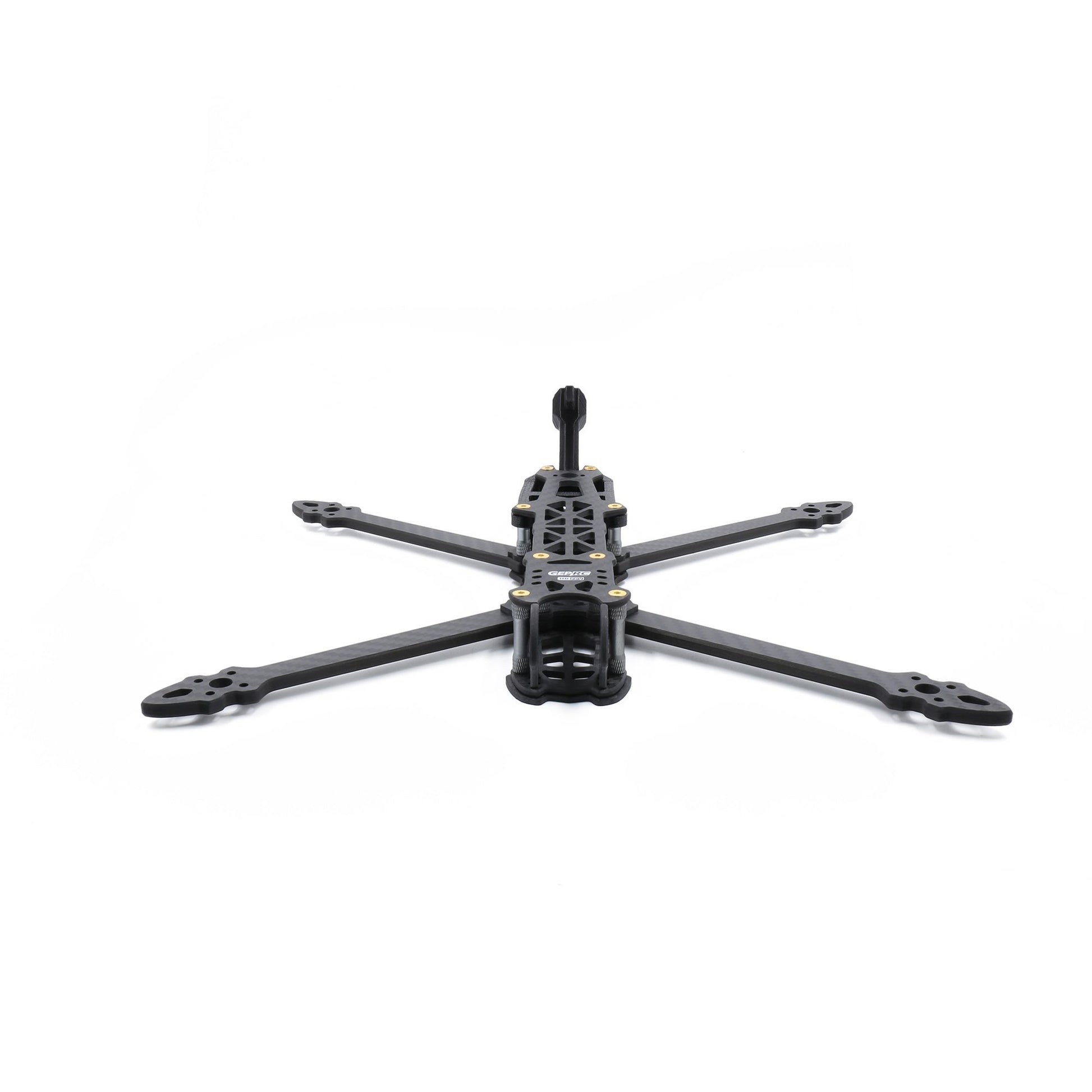

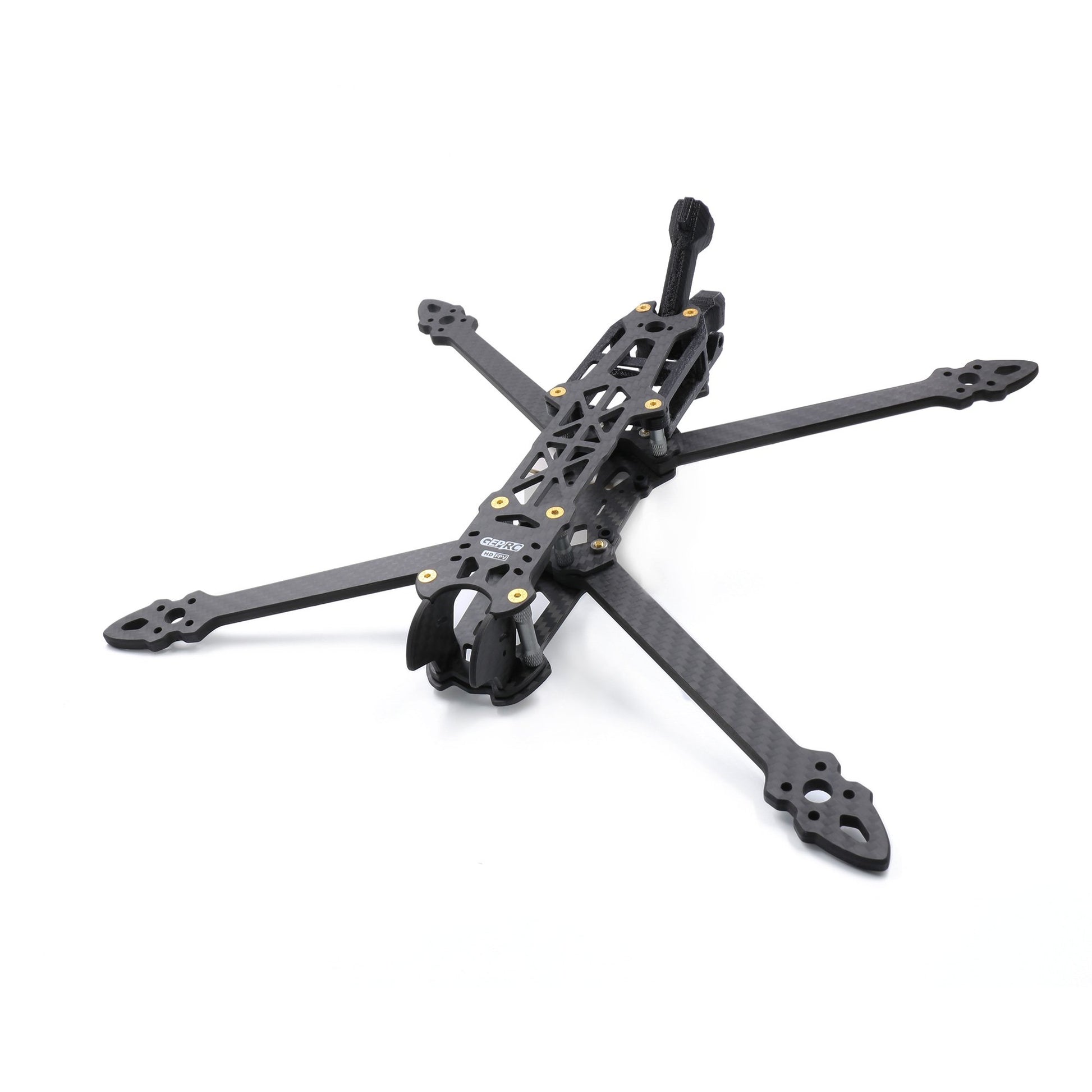

    Frame GEPRC GEP-MARK4 HD7

    Frame GEPRC GEP-MARK4 HD7

    Brand: GEPRC

    €51,31
    €51,31 €51,31
    -0% View Product
    Upon request
    We need to check the product availability with our supplier. Please contact us for details.
    Detailed information
    • American Express
    • Apple Pay
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    View full details
    • Description
    • Related Files
    • Discussion
    GEP-MARK4 HD7

GEP-MARK4 HD7 - the perfect fit DJI FPV air unit. Improved hole size, 16mm x 16mm and 19mm x 19mm, both doable. 3D printed parts are solid and protected. Full 3K Carbon Fiber Frame. Super light freestyle frame. Beautiful appearance design, impact resistant. Quick weapon maintenance and equipment replacement. 25 mm distance posts for a better ratio of height and center of gravity, enough space for electronic installation. ALU6061 Srandoff New, Strengthening hardness. There are 30.5*30.5mm and 20*20mm flight control holes, Stack can fit in the middle or back. High quality 3K carbon fiber twill plate, high precision CNC processing. YFS screw, strength 12.9, non-slip teeth, anti-corrosion, durable steel fittings.

Specifications:
Item Name: GEP-Mark4 HD7 Frame
Frame type: H-TYPE
Propeller: 7 inches
Engine to engine: 295mm
Size: 193*223mm
Mounting holes: 30.5*30.5mm/20*20mm
Weight: 140g
Shoulder plate: 5 mm
Side plate: 2.5 mm
Top plate: 2.5mm
Bottom plate: 2.5 mm
Protective plate: 2 mm

Recommended:
Flight controller: RF/Kiss/F3/F4/F7
Engine: 2205/2206/2207/2207.5/2305/2306/2306.5
ESC: 30A-50A
Propeller: 7 inches
Lipo: 6S 2200mAh
FPV: DJI FPV Air Unit
