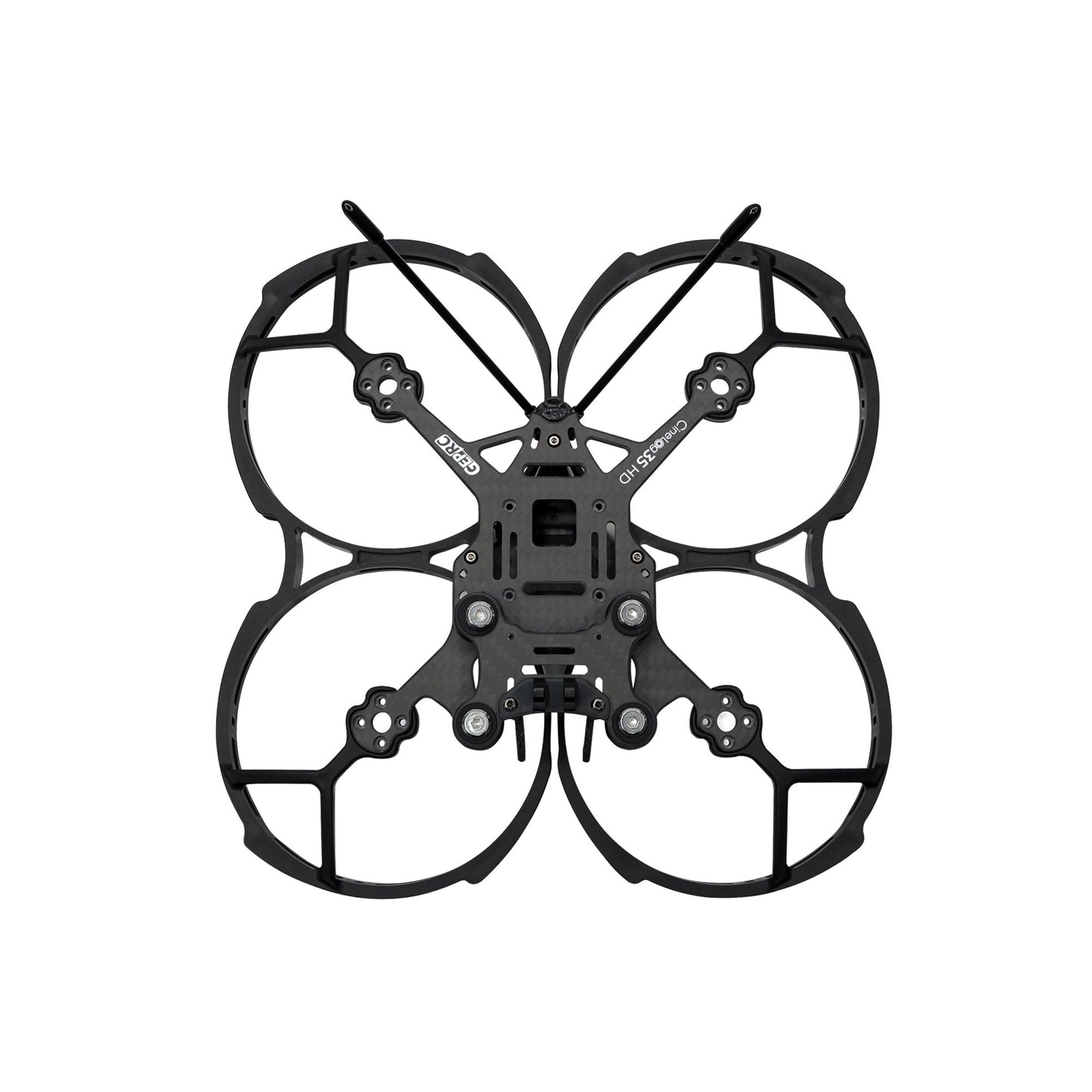

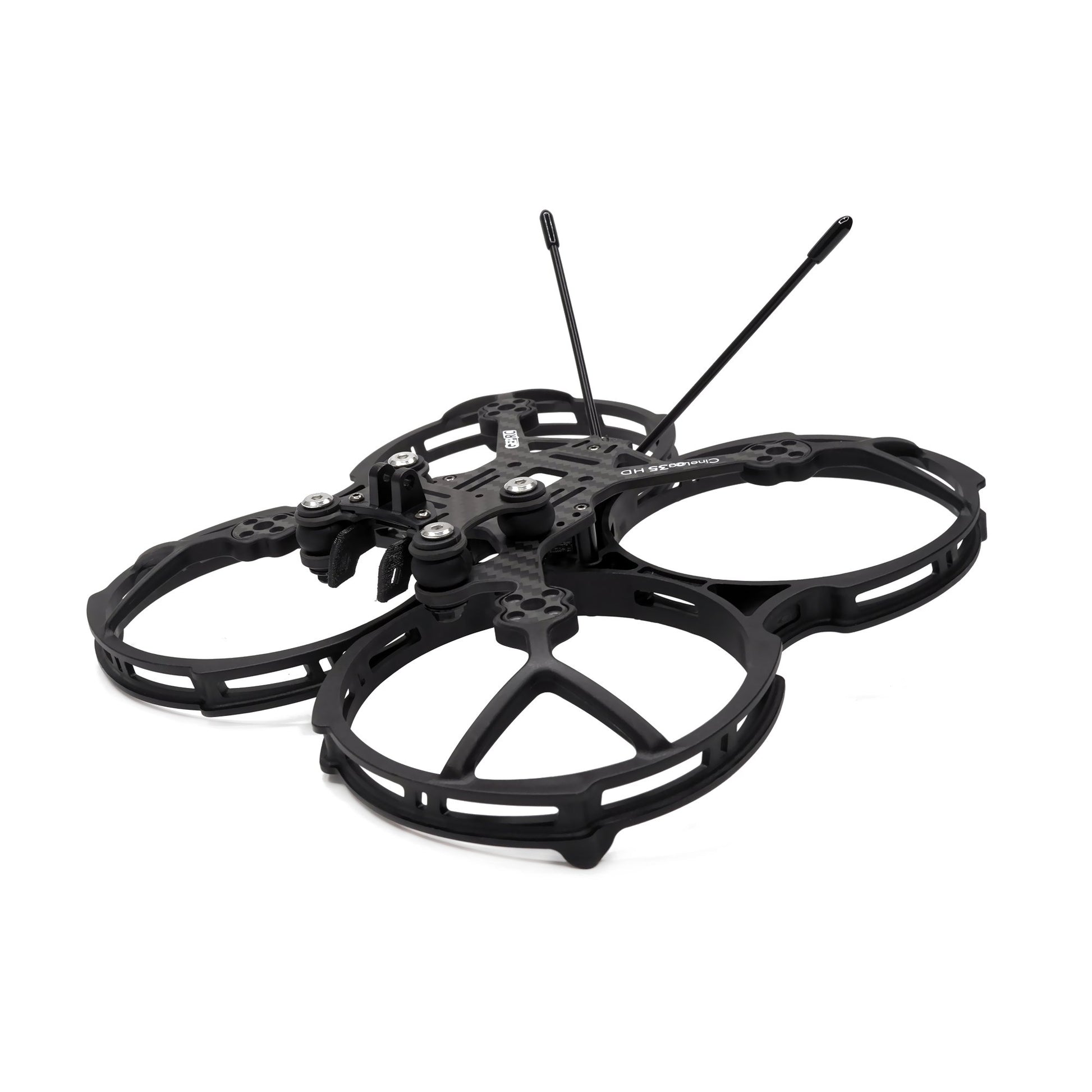

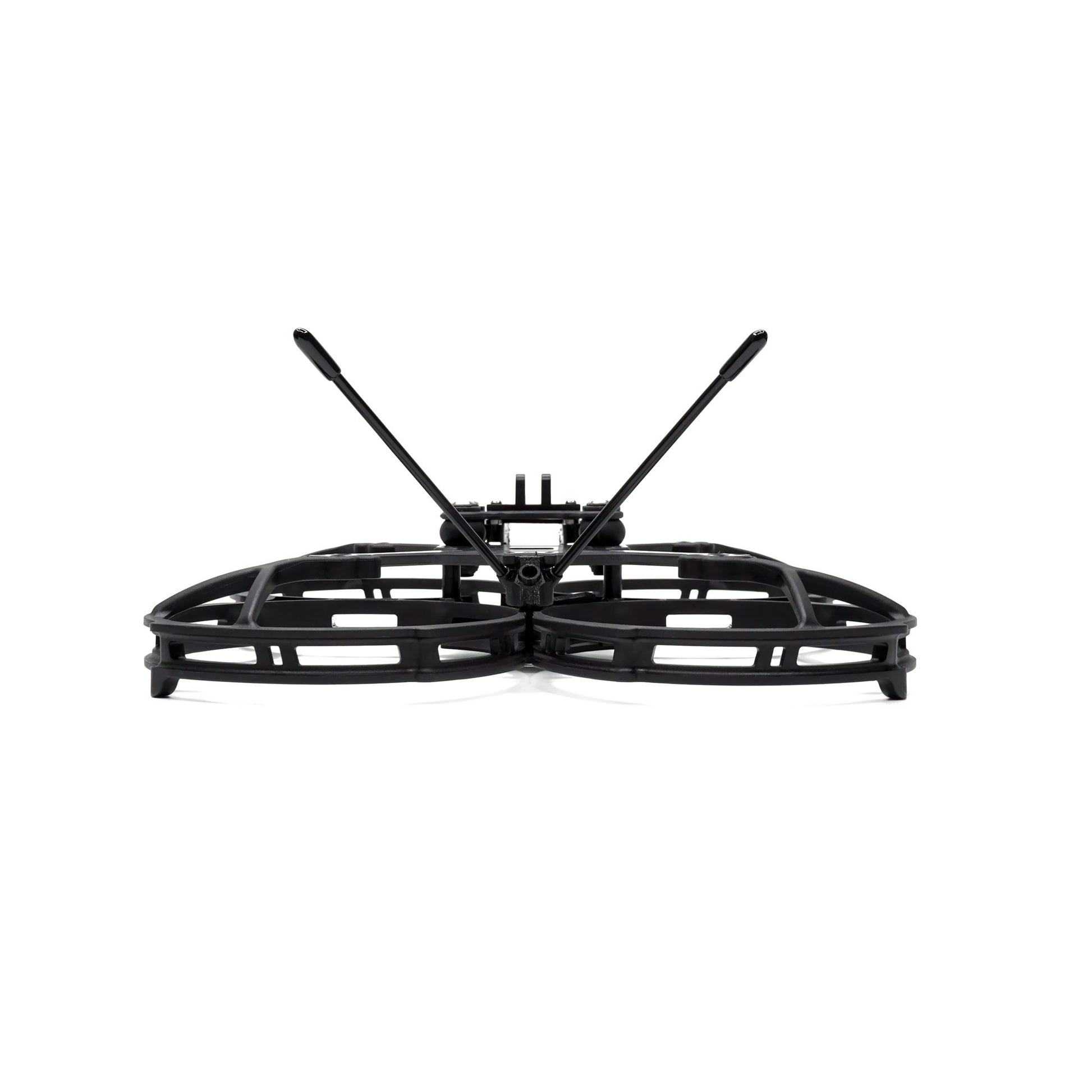

GEP-CL35
CineLog35 Frame is improved and developed based on CL30. Supports installation of common AIO FCs with 26.5mm x 26.5mm holes. The VTX installation hole is 20mm x 20mm, which can be installed directly with the VISTA HD image transmission. The propeller cover has an integrated design and the overall structure is stronger. Upgrade the power system, choose the motor hole position of 12mm x 12mm, compared to CL30, larger 15-18-20 series motor with 3.5 inch propeller can be installed, it has stronger power. Improve the damping rings, the shooting effect is more stable and clear. It has stronger mounting compatibility, you can use 3D prints to install GP8, GP9, GP10 full size cameras or use the base to install GP8, Insta 360 GO2 and Caddx Peanut cameras.
We strive for lower body weight, a better feeling of flying and more expanded functions.
Specifications:
Model: GEP-CL35
Engine to engine: 142 mm
Top plate: 2.5mm
Bottom plate: 2.0mm
Shoulder plate: 3.5 mm
FC mounting hole: 25.5mm x 25.5mm
VTX Hole Location: 20mm x 20mm
Engine hole location: 12mm x 12mm
Camera installation space: 14-19 mm
Inner diameter of the propeller cover: 95 mm
Suitable propeller size: 3.5 inch propeller
Dimensions: 203 mm x 203 mm x 42 mm (including propeller cover)
Weight: 130.7g (including propeller cover, GP camera mount and 3D prints)
Features:
- Integrated protective cover, the overall structure is stronger and more durable.
- Improve the damping rings, the shooting effect is more stable and clear.
- CineLog35 has great mount compatibility, you can install GP10, GP9, GP8 or GP8 naked camera, Insta 360 GO2 camera and Caddx Peanut camera.
- 12mm x 12mm motor holes can be installed with 15-18-20 motors and the power is strong with 3.5 inch propellers.
- The design of open holes on the side of the propeller cover significantly reduces noise during flight.
- Independent receiver cabin and binding is convenient and fast.
