X-Knight 360 Frame Kit

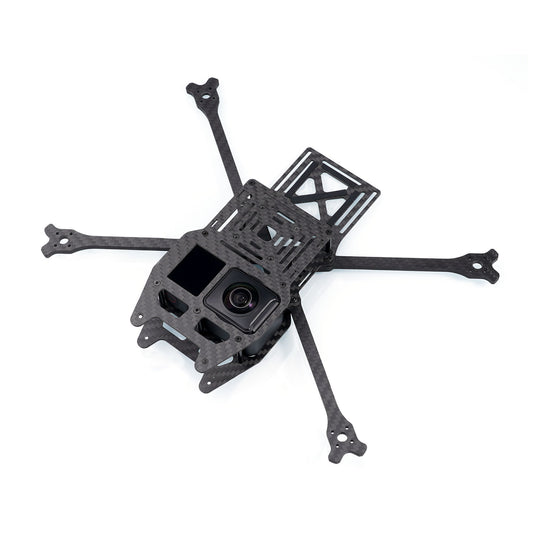

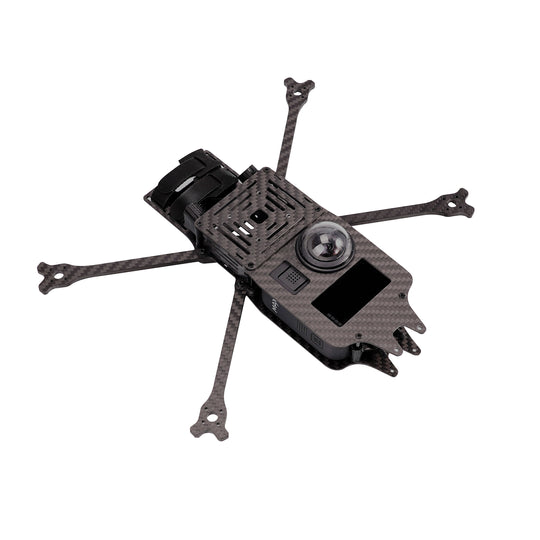

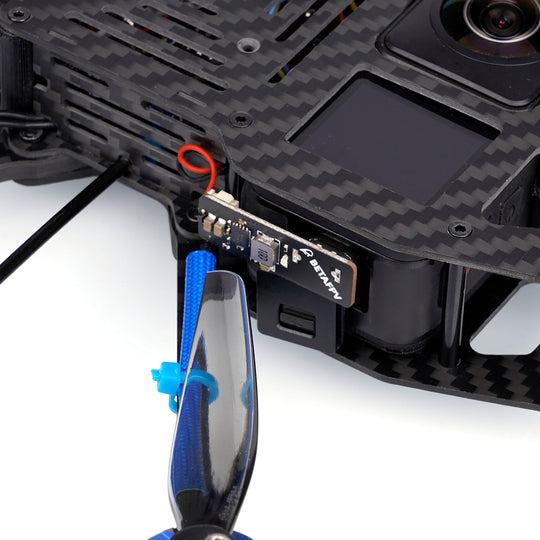

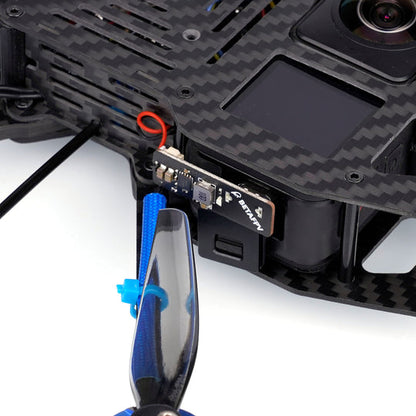

The X-Knight 360 Carbon Frame Kit is a versatile and innovative design created for seamless compatibility with the Insta ONE R and GoPro MAX cameras. This set allows pilots to capture immersive 360° views in the air. The lightweight yet durable carbon fiber construction ensures optimal performance and the flat design accommodates the 360° camera, battery and Dji digital VTX for a balanced and precise flying experience. In addition, it includes a specially designed BEC board for the direct charging system, reducing weight and improving the FPV flying experience. With this kit, pilots can build their own invisible drones like X-knight 360 FPV Quadcopter and X-knight 360 FPV Quadcopter (HD Digital VTX).
X-Knight 360 Carbon Frame Kit can be compatible with F4 AIO 35A FC toothpick, 1000mAh 4S battery and 2004 brushless motors, giving pilots the ability to go faster when flying with 360 cams.
Specifications:
Item: X-Knight360 Frame Kit
Material: Carbon Fiber
Wheelbase: 250 mm

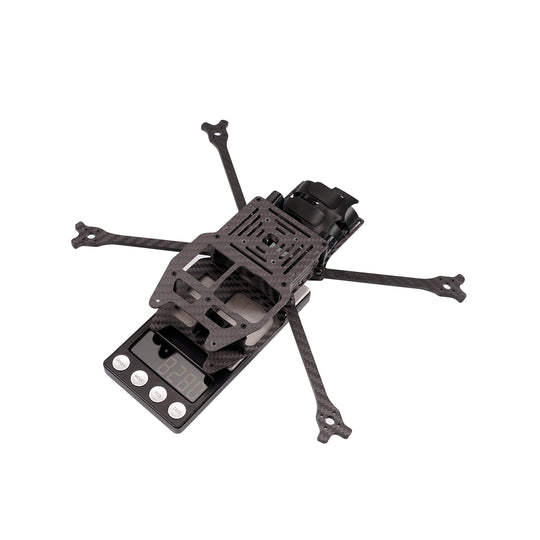

Weight: 82.8g
Frame height: 30 mm
Thickness of the top plate: 1.5 mm
Bottom plate thickness: 2 mm
Arm thickness: 4 mm
Thickness of the plate protected by the battery: 1.5 mm
Motor mounting hole: 12x12mm
FC mounting hole: 26.5mm x 26.5mm
Recommended parts:
Camera: Insta360 ONE R / GoPro Max
Flight controller: F4 35A AIO Brushless FC / F722 2-6S AIO Brushless FC
Compatible propellers: Gemfan 5125 3-blade props /
