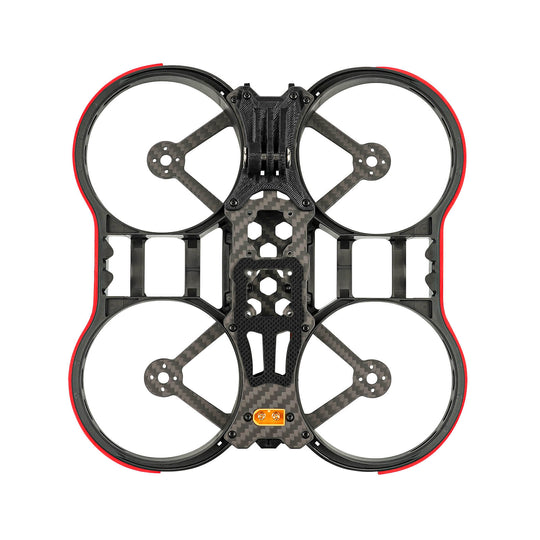

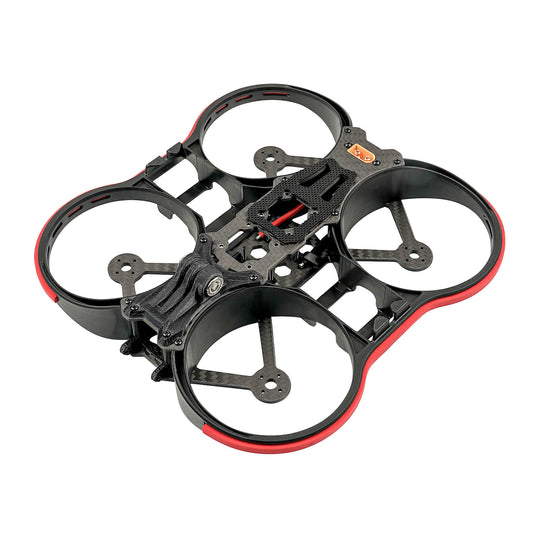

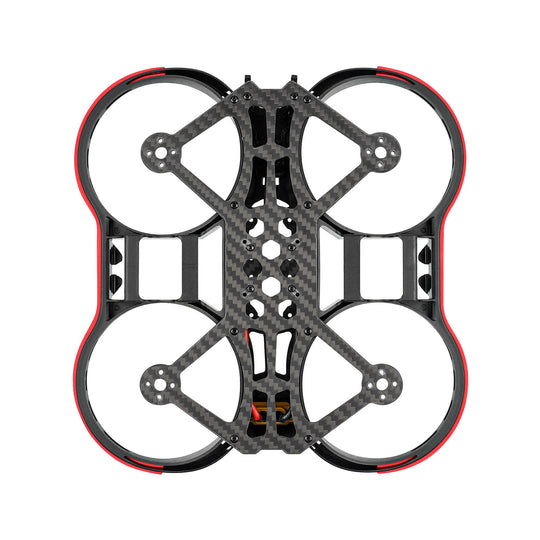

    Pavo30 Pro Frame Kit

This is a frame kit for the Pavo30 Pro. It is made of carbon fiber and designed with protective rings, which makes the whole drone strong enough. With the XT60 fixed port, it is more convenient to connect to the battery.

Both the Pavo30 Pro and Pavo360 framesets use the same injection molded propeller guard. However, the design of the carbon fiber plate is different. So Pavo360 drone is for 360 video viewing with SMO 360 camera and Pavo30 Pro drone is for normal FPV video recording with SMO 4K camera.

Note: For the Pavo30 Pro drone, it is recommended to install the battery on top of the carbon fiber board for perfect balance.

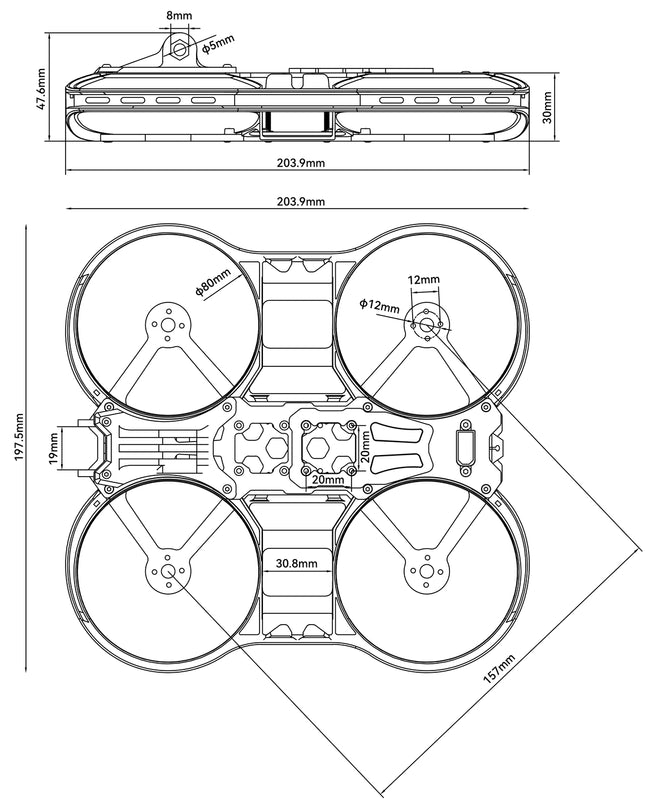

Specifications:
Item: Pavo30 Pro Frame Kit
Wheelbase: 157 mm
Black color
Material: PA12
Weight: 146g
Lens: 19mm
Recommended props: 3 inches
Recommended motor: 1506-3000KV motor / 2004-1700KV 3000KV motor / 2204-2400KV motor
Recommend FC: F722 AIO 35A Brushless Flight Controller
Recommended camera: SMO 4K, GoPro

Package:
1 x Pavo30 Pro frame
1 x top plate
1 x bottom plate
1 x mounting plate
2 x aluminum posts
4x engine pads
4 x 3D printing parts
1 x battery strap
1 x Set of wires
1 x Set of screws
