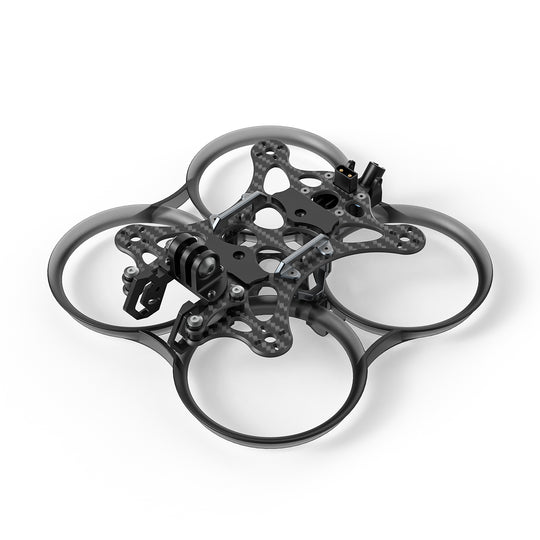

BETAFPV Pavo25 V2 Brushless Whoop frame
The BETAFPV Pavo25 V2 Brushless Whoop frame is designed with advanced performance enhancing features:
- DJI O3 Air Unit Compatibility: The Pavo25 V2 seamlessly integrates with the DJI O3 Air Unit, addressing the limitations of the previous model that failed to meet O3 compatibility.
- CNC Y-shaped metal support: This innovative structure improves the overall structural strength, torsion resistance and vibration characteristics compared to traditional aluminum columns, resulting in a faster and smoother response.
- Duct Design: Improves lateral stability and increases thrust by 200g compared to frames without propeller cover, providing stronger performance and a better flying experience.
- Whoop Duct Riveted Assembly: New design concept and riveted assembly make it easier to install and build stronger, which contributes to the durability of the drone.
- COB Light Strip: The frame supports the installation of a remote switchable COB light strip, which allows pilots to enjoy flying in different scenes and conditions.

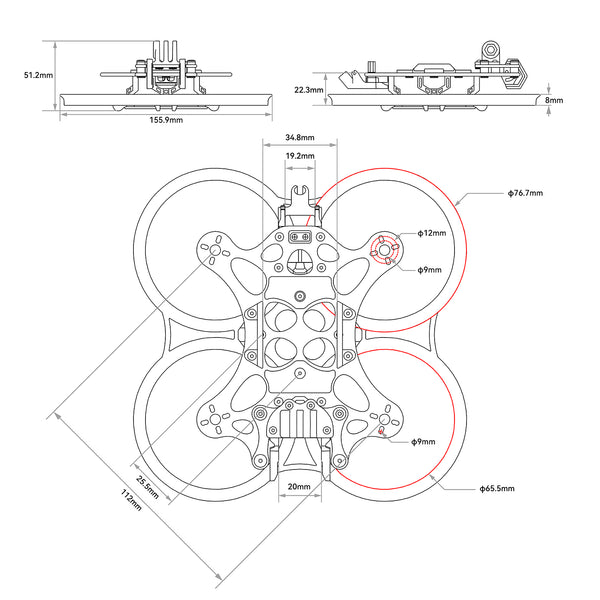

Specifications:
Item: Pavo25 V2 Brushless Whoop Frame
Wheelbase: 112 mm
Top plate: 2.5mm T700 carbon fiber
Base plate: 1.5mm T700 carbon fiber
Carbon plate: 2mm T700 carbon fiber
Column: CNC aluminum alloy 7075
Battery holder: CNC 7075 aluminum alloy
Whoop Duct: PC Injected Translucent Grey
Pipe diameter: 65.5 mm
Battery Connector: Fixed XT30
Camera installation size: 20mm (compatible with 19mm)
HD VTX Installation Size: 25.5*25.5mm M1.6/20*20mm M2
HD VTX antenna mounting hole size: 4mm
Flight controller mounting hole size: 25.5 x 25.5mm
Motor mounting hole size: 4*M2 EQS ø9mm/ø12mm

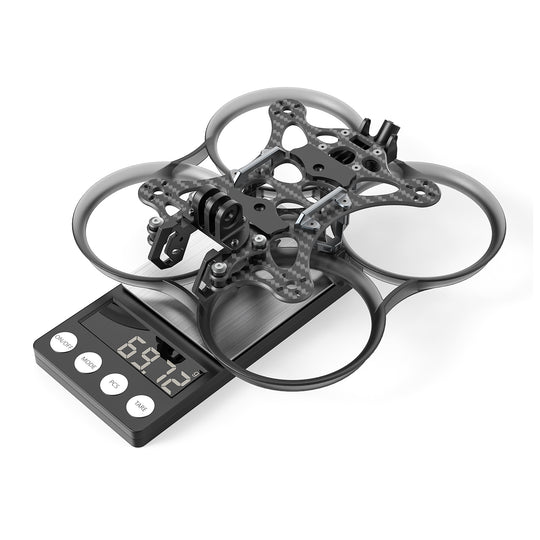

Weight: 70g:

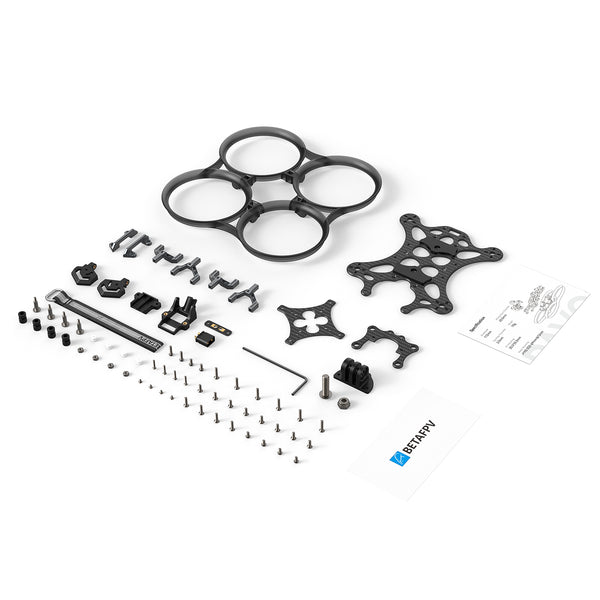

The package includes:
1x Top plate
1x Gimbal Carbon Plate
1x Motherboard
2x battery holder
4x Y-shaped aluminum alloy bracket
1x Hoop channel
1x Receiver holder
1x socket holder
1x Amass XT30U-M socket (black)
1x XT30 Socket Adapter Board
2x Battery Anti-slip mat
1x Battery box 180 mm
4x Flight Controller Amping Ball M2
4x Pan/Tilt ball for vibration reduction M3
4x Pan/Tilt screws
8x M2*6 flat head hexagon socket head screw
4x M2*8 flat head hexagon socket head screw
6x M2*10 flat head hexagon socket head screw
4x Nylon nut M2
1x Accessory pack
1x Service card
1x Frame manual
