Pavo25 frame kit
The Pavo25 frame is made of high quality durable and strong PA12 material and 2.5mm carbon fiber. It features a copper nut design on the main screw holes, which simplifies the assembly process. With only 6 screws needed to assemble the tube and drone, the construction of the Pavo25 is convenient and user-friendly. The frame also includes a vibration dampening design for the camera mount that improves the overall flying experience by reducing vibration. The Pavo25 frame, equipped with a CNC Vista adapter, effectively provides the Caddx Vista HD Digital VTX with efficient cooling.
Specifications:
Item: Pavo25 Frameset

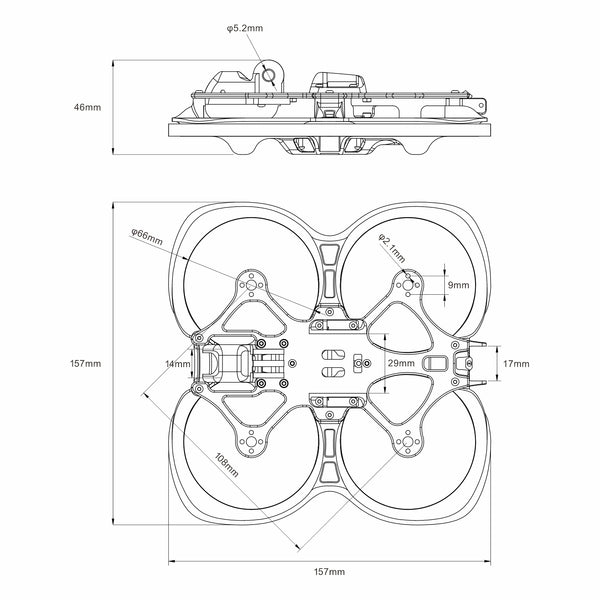

Wheelbase: 108 mm
Black color
Material: PA12
Frame color: Black

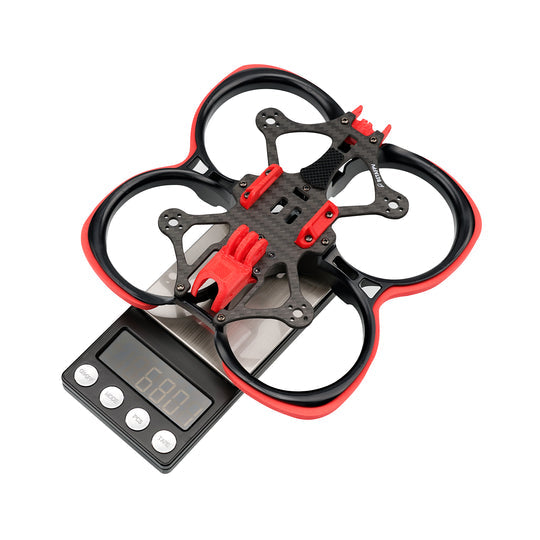

Weight: 68g (frame set)
Body size: 153.2 x 153.7mm (without EVA adhesive foam)
Thickness of the top plate: 2.5 mm
Propeller Size: 2.5 inches
FC pattern: 25.5x25.5mm
FPV cam pitch: 14mm
Recommended Motor: 1404 4500KV Brushless Motor
Recommended props: Gemfan D63-3B (grey)
Recommended battery: 4S 750mAh/4S 850mAh
Recommend FC: F405 AIO 20A Toothpick V4 BMI270
Recommended camera: SMO 4K, DJI Action 2
Recommend VTX: Caddx Nebula Pro Nano Vista Kit/Caddx Baby Ratel2+A03 400mW 5.8G
Package:
1 x Pavo25 frame set
1 x SMO 4K Power Cable
1 x Pavo25 Frame Assembly Guide
1 x CNC Vista adapter
2 x spare EVA foam tape (black)
2 x spare EVA foam tape (red)
2x 180mm battery strap
1 x Set of screws
1 x pack of 3D printed parts
1x rear LED light
4 x 3M double-sided tapes
