Frame BETAFPV Pavo20 Pro Whoop O4 Pro Black
Frame BETAFPV Pavo20 Pro Whoop O4 Pro Black
Brand: BETAFPV
Regular price
€11,90
Regular price
€11,90
Sale price
€11,90
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

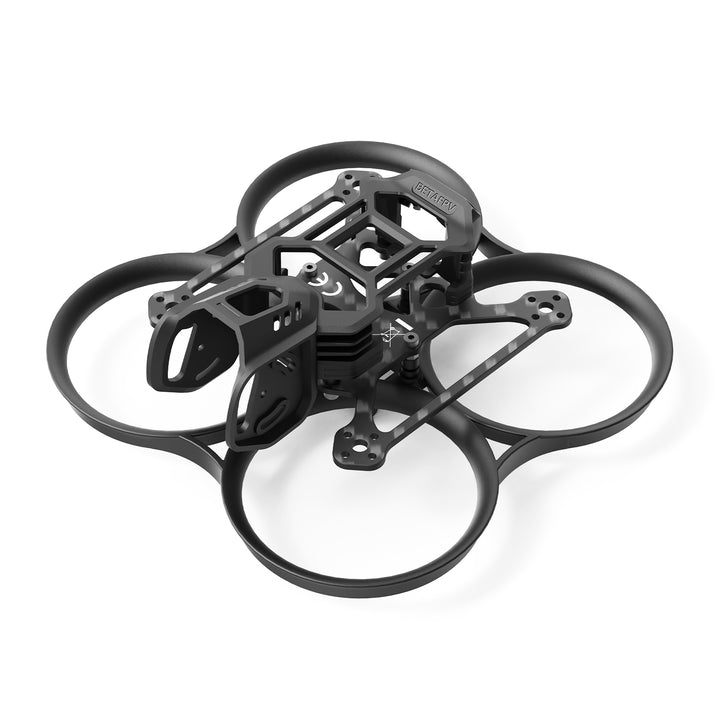

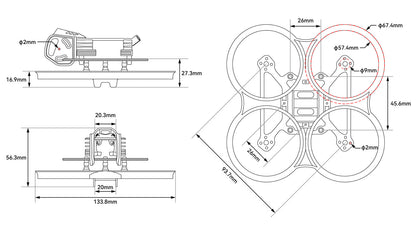

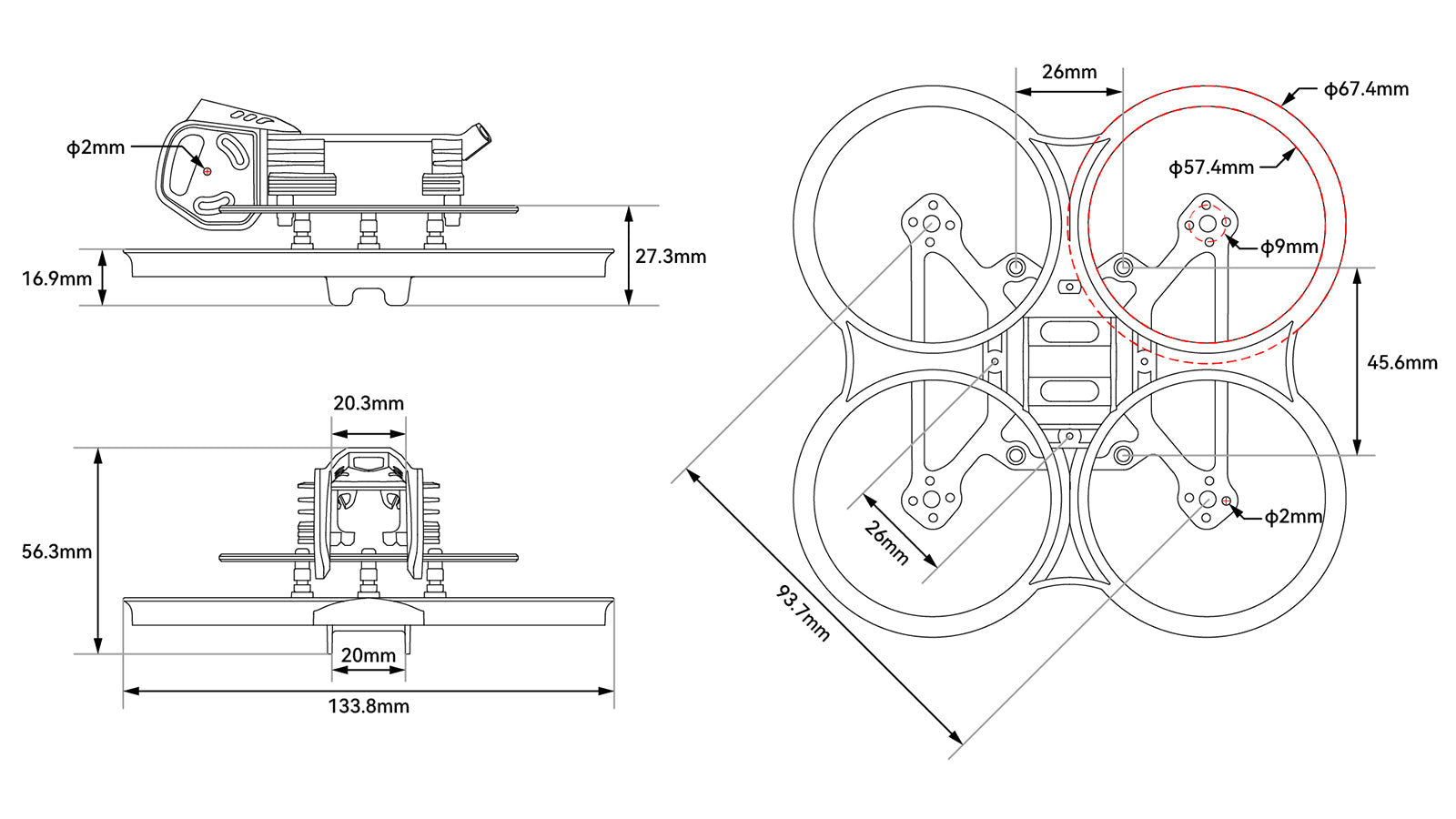

Frame BETAFPV Pavo20 Pro Brushless Whoop O4 Pro Black The Pavo20 Pro Brushless Whoop frame is designed specifically for the Pavo20 Pro cinewhoop with 2.2″ propellers. It now offers extended compatibility with the DJI O3 Air Unit, Caddx Vista, RunCam Link and the latest DJI O4 Air Unit Pro — seamlessly combined with the O4 Pro mount for greater stability and versatility. With a 93.7mm wheelbase and durable PA12 construction with reinforced whoop channels, the frame ensures high strength and aerodynamic efficiency, delivering an 8-11% increase in drag. In combination with the powerful 3S drive, it generates extraordinary performance for freestyle and film flights. The frame is equipped with a pair of mounting holes for DJI O3 and O4 Pro cameras for wide-angle shooting and a proven rubber shock absorber system, which ensures smooth HD shots without vibrations. Specifications: Wheelbase: 93.7 mm Material: PA12/PP Thickness of the top plate: 2 mm Frame weight: 35.7g (with O4 Air Unit Pro mount) Weight of Whoop Channels: 17.8g Bracket weight: 7.2g (O4 Air Unit Pro bracket) Color: Black Camera mounting pitch: 19 mm / 20 mm FC mounting holes size: 26x26 mm Motor mounting hole size: 4-M2-φ9mm Battery slot width: 20mm Camera Filter: Supported The package contains: 1 x Pavo20 Pro Brushless Whoop frame 1 x Bracket for O4 Air Unit Pro 6 x rubber damper 6 x M2*10 screws 6 x M2*4 screws
