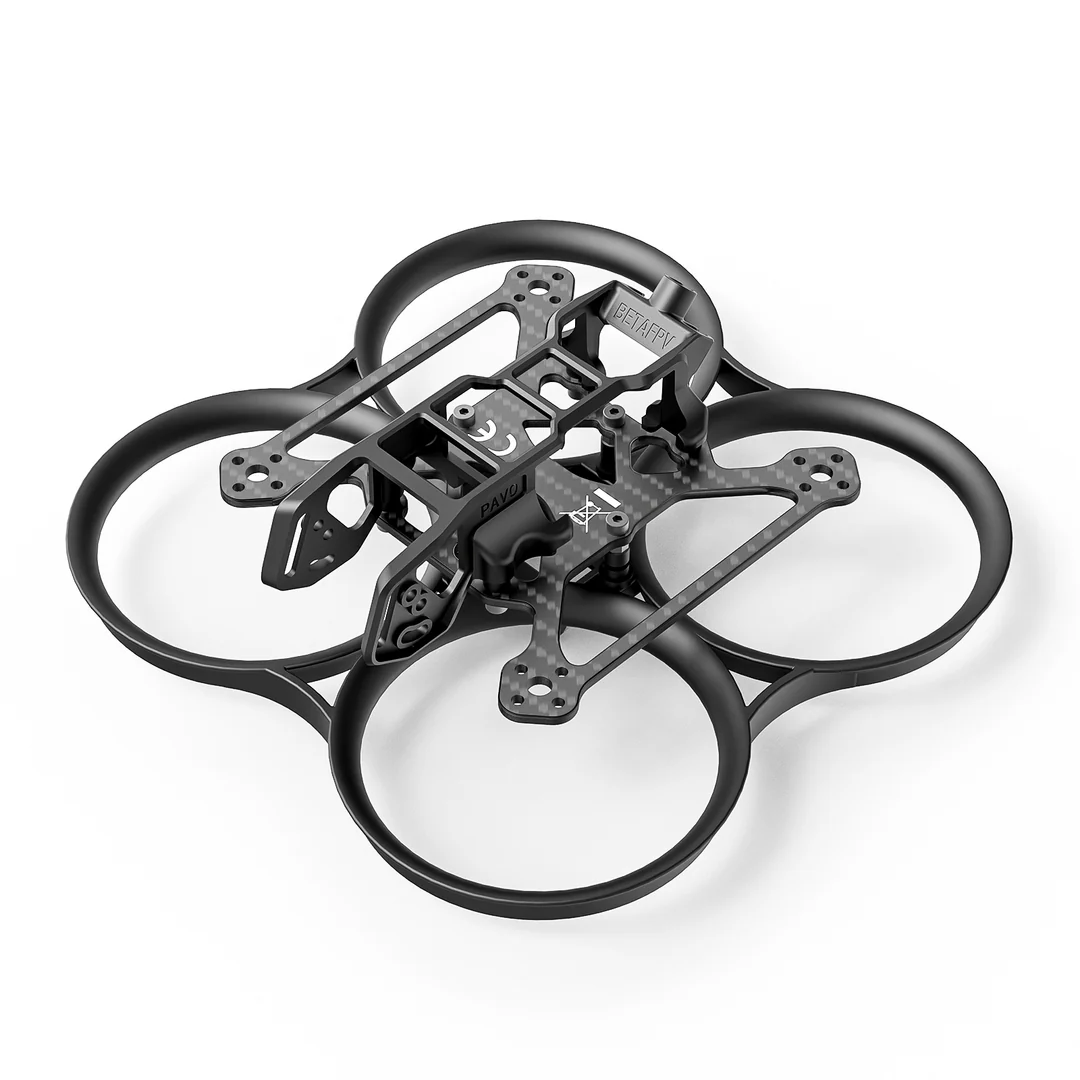

Frame BETAFPV Pavo20 Pro Brushless Whoop Frame
Compatibility with popular HD VTX
Pavo20 Pro supports various types of HD VTX. The DJI O3 Air unit supports up to 1080P using dual-band transmission technology for better signal stability. Caddx Vista supports up to 720P with low latency and excellent image quality performance. RunCam Link is compatible with popular FPV systems as before, providing pilots with a universal solution. The custom HD VTX mount has a split design, allowing easy installation for DIY pilots and exploring more options while maintaining HD image quality.
Exclusively designed for HD VTX
6 holes for fixed camera mounting, including 2 new holes for wide-angle shooting mode, which minimize shadows on the side panel of the camera for a wide-angle view. The side panel of the camera protects the lens from damage and at the same time allows for easy vertical installation of ND filters. No more worrying about angle deviations after exciting years. The antenna holder is adapted to the shape of the antenna for more convenient installation and stable fixing. Experience the classic Pavo series rubber damper design that eliminates the "jello" effect in your recording and always ensures a smooth, HD image. The Pavo20 Pro's anti-vibration tips are consistent with the Pavo Pico.

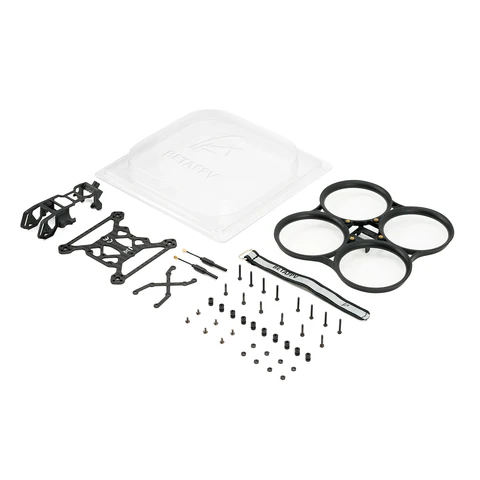

Package Contents:
Item: Pavo20 Pro Brushless Whoop Frame | With HD VTX Mount
1x Pavo20 Pro Top Plate
1x 2020mm VTX Mounting Plate
1x Pavo20 Whoop Protective Cover
1x Pavo20 VTX Mount
1x 130mm Battery Strap
2x Anti-slip Battery Pad
2x 5.8g Antenna
8x M2 Nuts
10x rubber damper
6x screw M210
6x screw M24
4x screw M214
4x screw M2*15
