Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Clear
Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Clear
Brand: BETAFPV
Regular price
€8,99
Regular price
€8,99
Sale price
€8,99
Unit price
/
per
In stock
We have the goods in stock. We usually send the shipment to you within 24 hours of payment. Delivery time usually within two working days.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

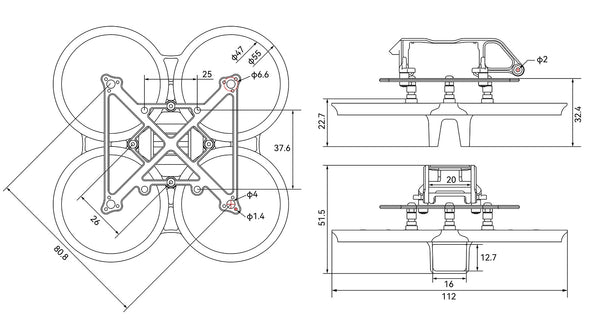

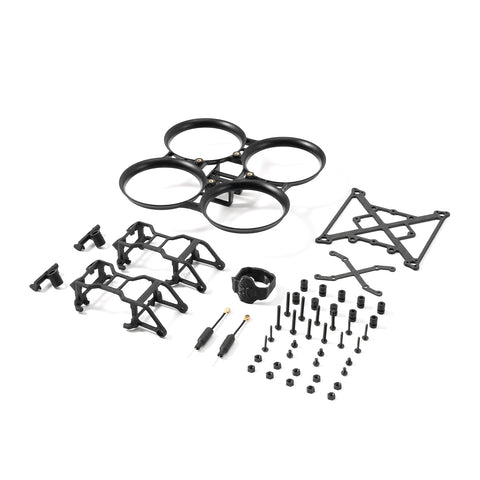

BETAFPV Pavo Pico Brushless Whoop Frame (HD Digital Version) - HD digital VTX holder made of lightweight and strong injection-molded PP material with a modified structure to prevent the HD VTX from being moved or lost after a crash. - Rubber Damper vibration dampening design reduces low-frequency vibrations - To accommodate a wider range of battery sizes, the main body of the frame can be trimmed by custom methods. Additionally, larger batteries can be installed using battery straps or printed components. - DJI O3 can be installed directly, while Avatar and Vista require a 20*20 mounting plate and screws (supplied) for fixing. The bare frame is suitable for users who remount and assemble the HD VTX themselves Specifications: Item: Pavo Pico Brushless Frame with HD VTX Mount Wheelbase: 80.8 mm Battery slot size: 16mm * 12.7mm Camera installation distance: 19mm/20mm Color: Transparent Weight: 13.80g/11.62g Motor mounting hole position: 3-M1.4-φ6.6mm FC pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3 The package includes: 1x Pavo Pico Top Palte 1x channel Pavo Pico Whoop 1x Frame FC Screw Package 1x HD VTX screw holder 1x 20*20 HD VTX mounting plate 2x O3 HD VTX mounting bracket 2x O3 HD VTX antenna mounting base 2x 5.8g copper tube antenna
