Code: SKU:01090016_7

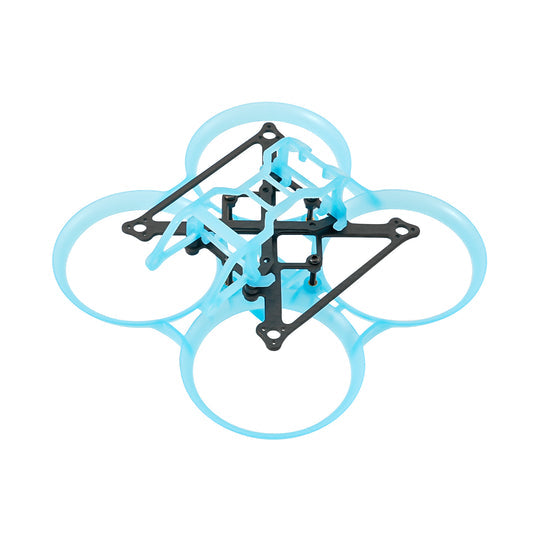

Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Blue
Frame BETAFPV Pavo Pico Brushless Whoop (HD Digital Version) Blue
Brand: BETAFPV
Regular price
€8,99
Regular price
€8,99
Sale price
€8,99
Unit price
/
per
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

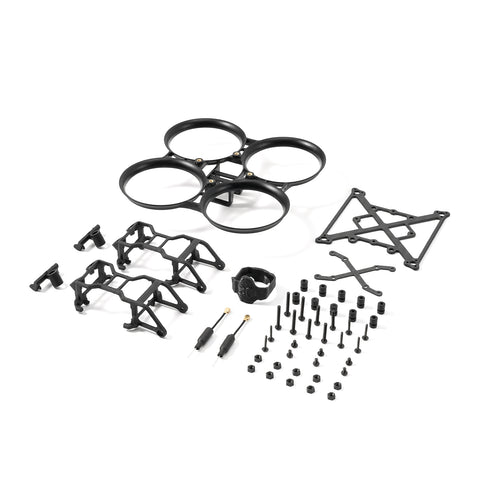

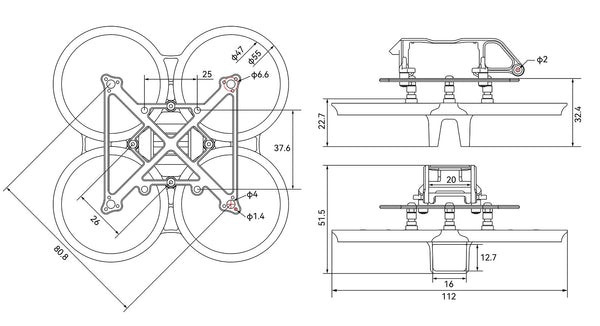

BETAFPV Pavo Pico Brushless Whoop Frame (HD Digital Version) - HD digital VTX holder made of lightweight and strong injection-molded PP material with a modified structure to prevent the HD VTX from being moved or lost after a crash. - Rubber Damper vibration dampening design reduces low-frequency vibrations - To accommodate a wider range of battery sizes, the main body of the frame can be trimmed by custom methods. Additionally, larger batteries can be installed using battery straps or printed components. - DJI O3 can be installed directly, while Avatar and Vista require a 20*20 mounting plate and screws (supplied) for fixing. The bare frame is suitable for users who remount and assemble the HD VTX themselves Specifications: Item: Pavo Pico Brushless Frame with HD VTX Mount Wheelbase: 80.8 mm Battery slot size: 16mm * 12.7mm Camera installation distance: 19mm/20mm Color: Blue Weight: 13.80g/11.62g Motor mounting hole position: 3-M1.4-φ6.6mm FC pattern: 26×26mm, suitable for F4 1S 12A AIO Brushless FC V3 The package includes: 1x Pavo Pico Top Palte 1x channel Pavo Pico Whoop 1x Frame FC Screw Package 1x HD VTX screw holder 1x 20*20 HD VTX mounting plate 2x O3 HD VTX mounting bracket 2x O3 HD VTX antenna mounting base 2x 5.8g copper tube antenna
