Code: SKU:IRC-006CA
FPV Thermal camera CADDXFPV IRC-006CA
FPV Thermal camera CADDXFPV IRC-006CA
Brand: CaddxFPV
Regular price
€1.489,39
Regular price
€1.489,39
Sale price
€1.489,39
Unit price
/
per
Taxes included.
Upon request
We need to check the product availability with our supplier. Please contact us for details.
Couldn't load pickup availability
Payment methods
- Description
- Related Files
- Discussion

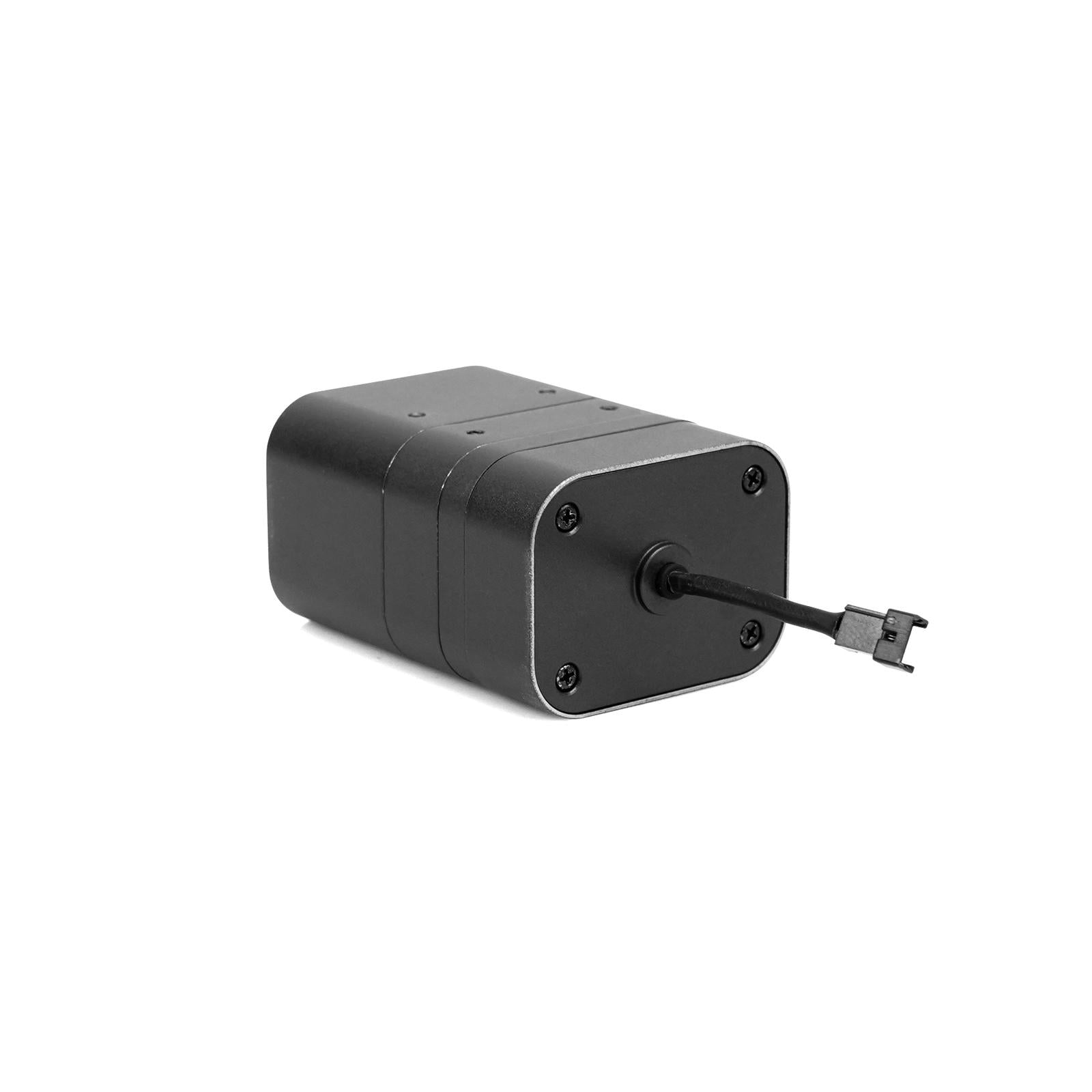

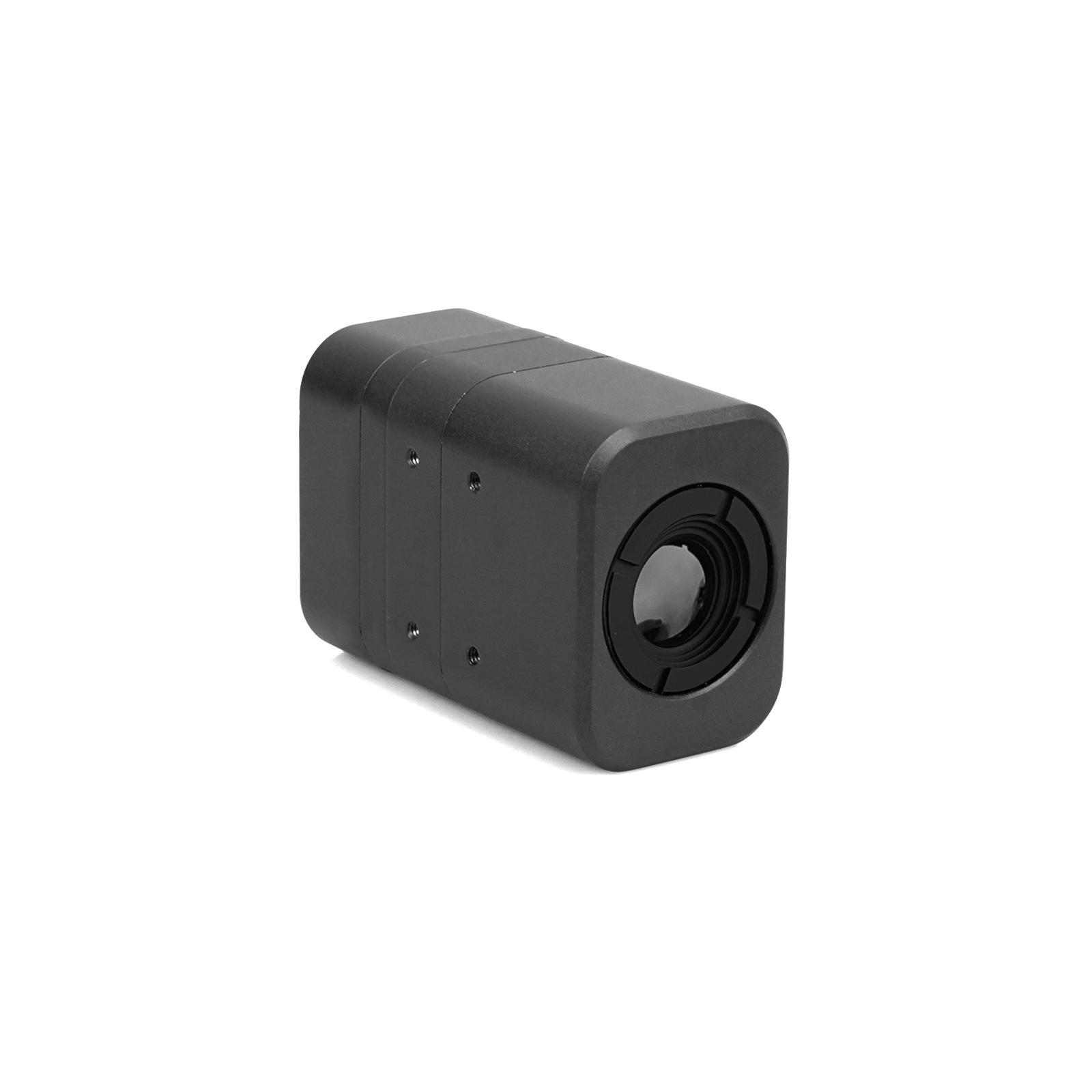

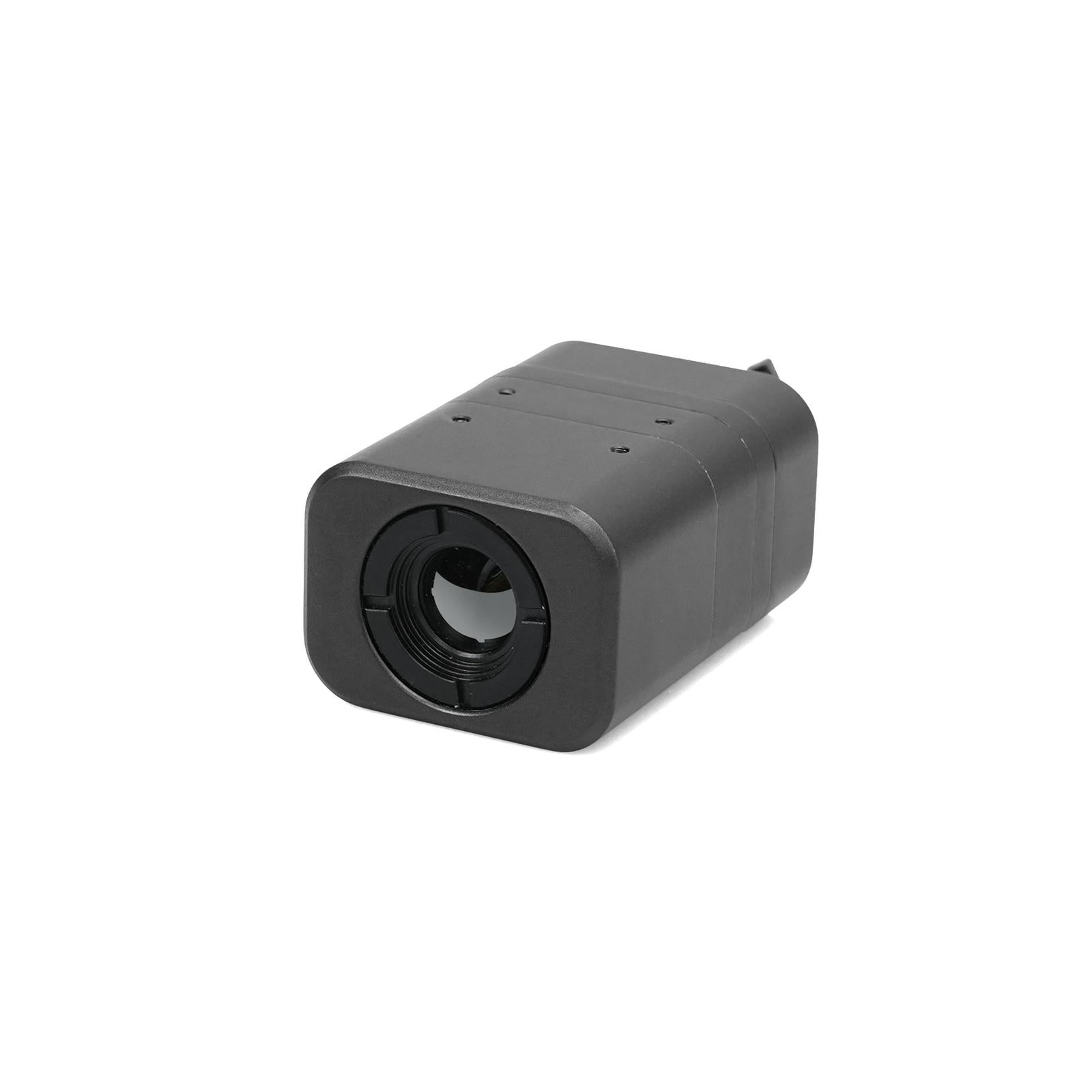

FPV camera CADDXFPV Thermal IRC-006CA
Thermal analog camera Caddx model IRC-006CA with a resolution of 640×512
In a compact case with a minimalist design.
Specifications:
- Detection Type: Uncooled Vanadium Oxide
- Resolution: 006CA: 640×512 12μm
- Wave range: 8~14μm
- NETD (Noise Equivalent Temperature Difference): ≤40mK F1 25°C
- Frame rate: 50Hz
- Power consumption: Up to 1.5W
- Output: PAL
- Supply voltage: 5 to 16V
- Lens: 006CA: F1.0 / 9.1mm
- Operating temperature range: -20°C to 60°C
- Dimensions: 27×37×40mm
- Weight (without cables): 640CA: 60.5g
The package contains:
- 1x camera 006CA
- 1x 3-pin JST-SH1.25 cable
