Code: SKU:IRC-002SL
FPV Thermal Camera CADDXFPV IRC-002SL
FPV Thermal Camera CADDXFPV IRC-002SL
Brand: CaddxFPV
Couldn't load pickup availability
- Description
- Related Files
- Discussion

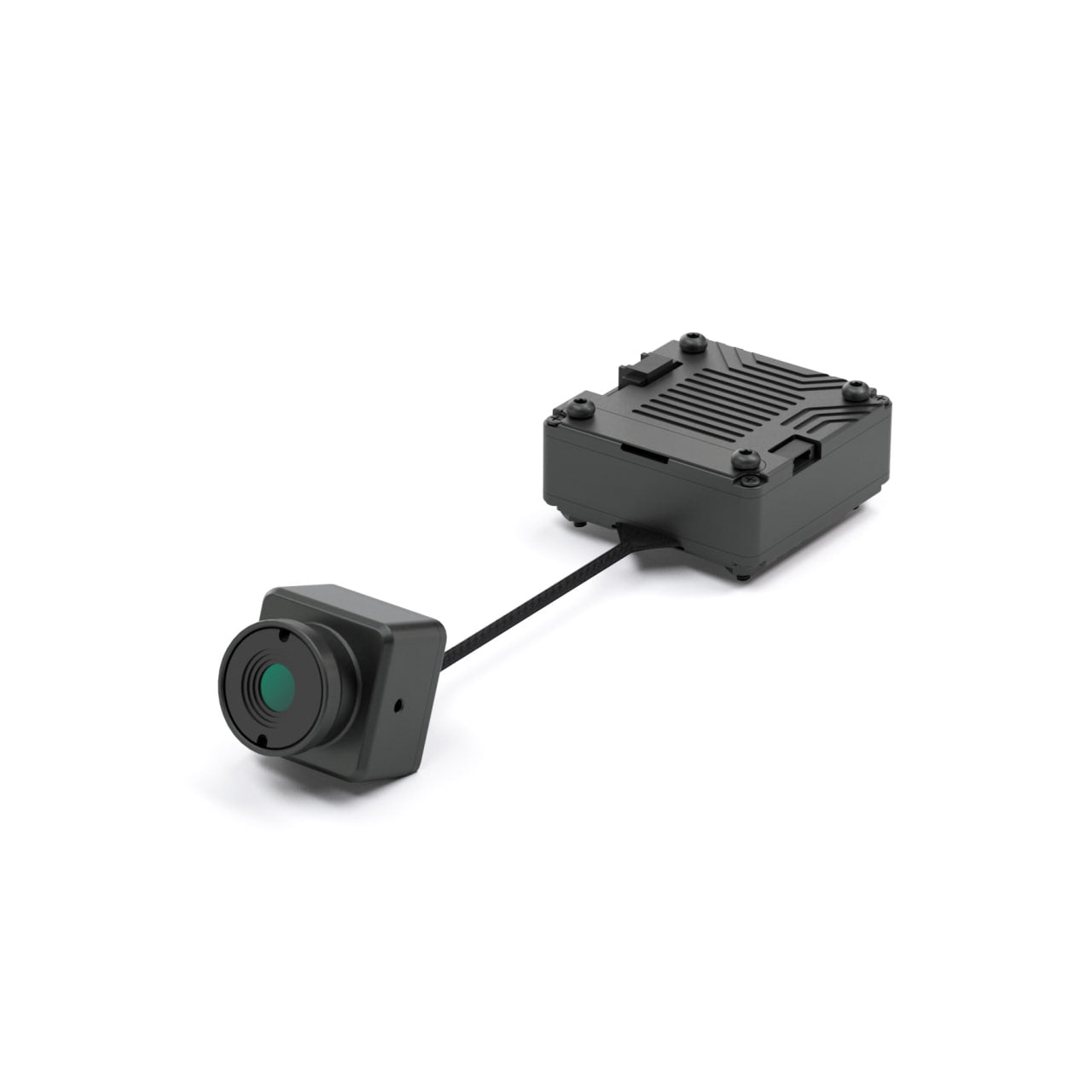

CADDXFPV Thermal IRC-002SL
CADDXFPV Thermal IRC-002SL is a new version thermal camera from CADDXFPV that offers advanced thermal imaging technology. Enables you to capture clear visuals in low-light conditions and challenging environments. Its compact design and rugged construction make it ideal for professional drone pilots who require accurate thermal data. Suitable for tasks such as search and rescue, surveillance and inspection, the camera ensures accurate performance and reliability in critical situations.
Specifications:
- Model Name: CADDXFPV IRC-002SL
- Detector type: Uncooled VoX
- Resolution: 256*192 @ 12μm
- Wavelength range: 8 ~ 14μm
- NETD (Noise Equivalent Temperature Difference): ≤40mk @ F1 25℃
- Frame rate: 50Hz
- Video interface: 1x PAL
- Power supply voltage: 5v~20v
- Typical power consumption: <1.5W
- Focal length: 4mm
- Aperture: 1.0
- Field of View (FOV): 50°(H)x37.2°(V)x62.3°(D)
- Operating temperature: -20℃~60℃
- Camera size: 19.5x19.5x20.23mm
- Motherboard size: 33.5x33.5x16.56mm
The package contains:
- 1x CADDXFPV IRC-002SL FPV thermal camera
