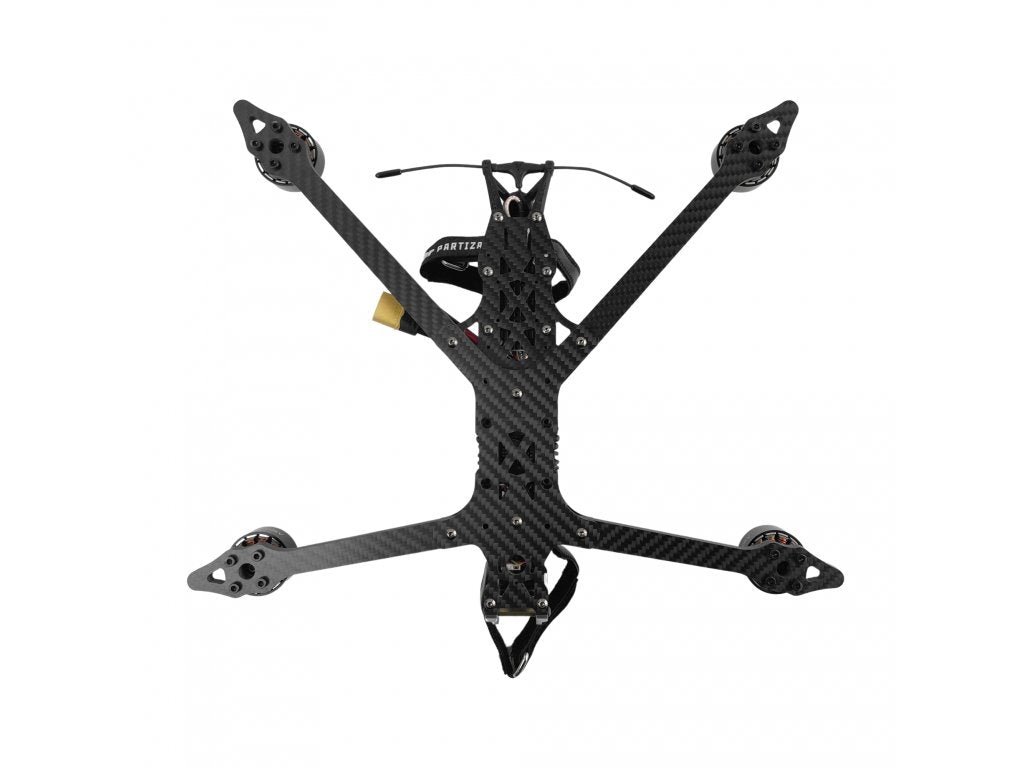

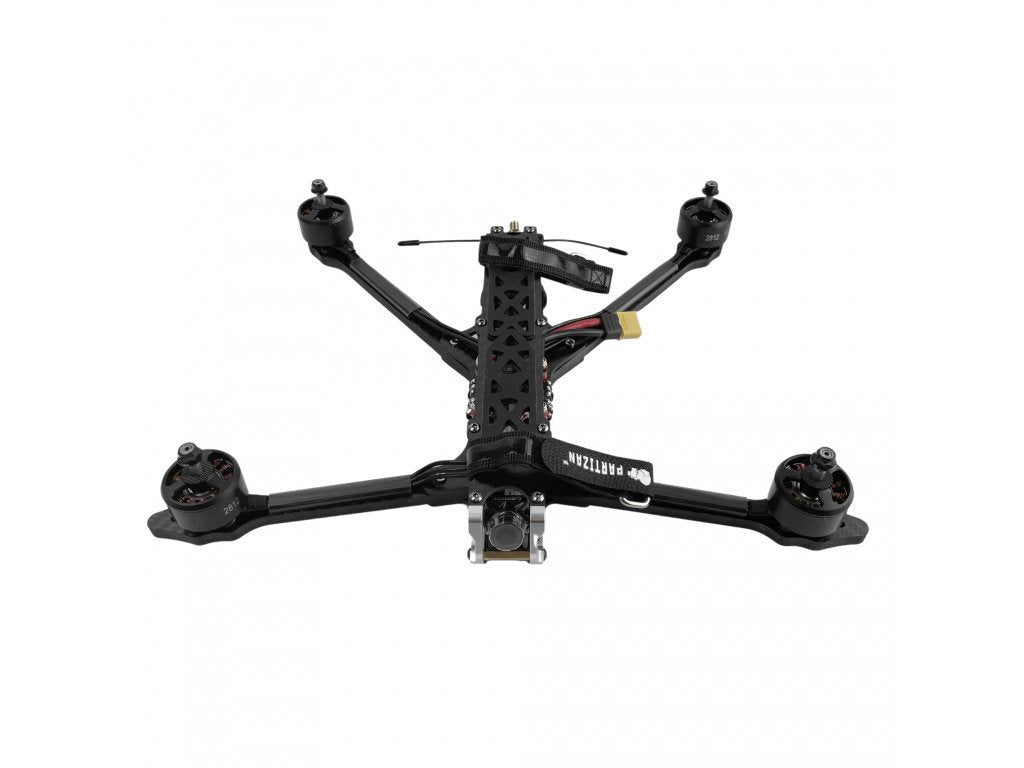

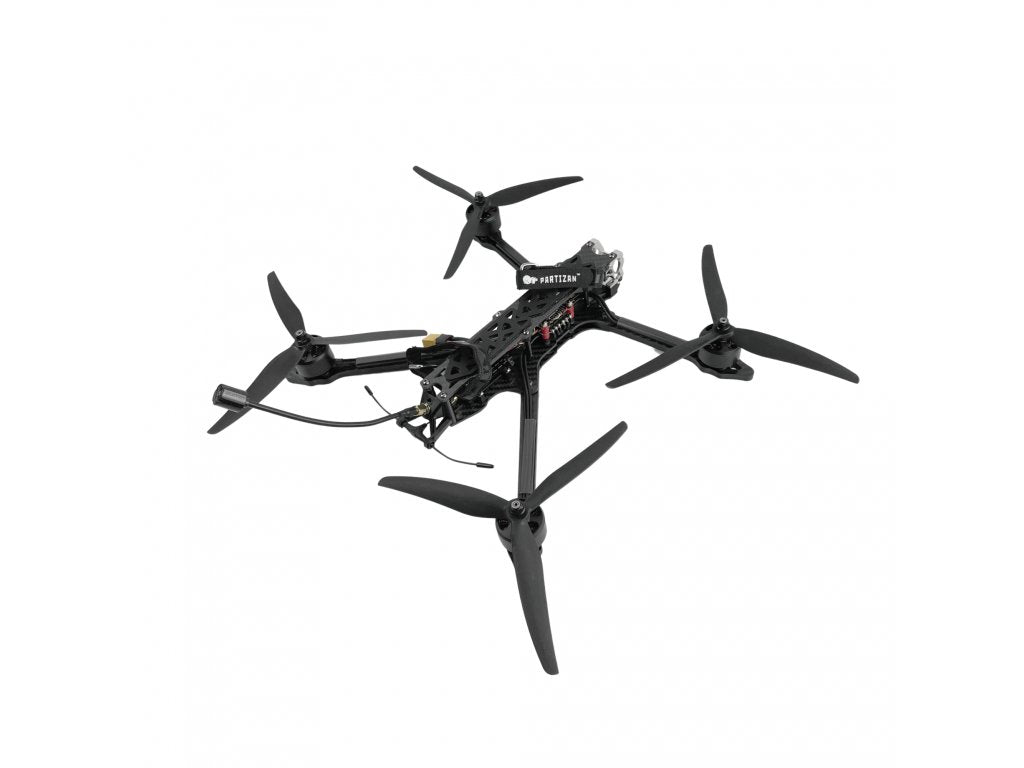

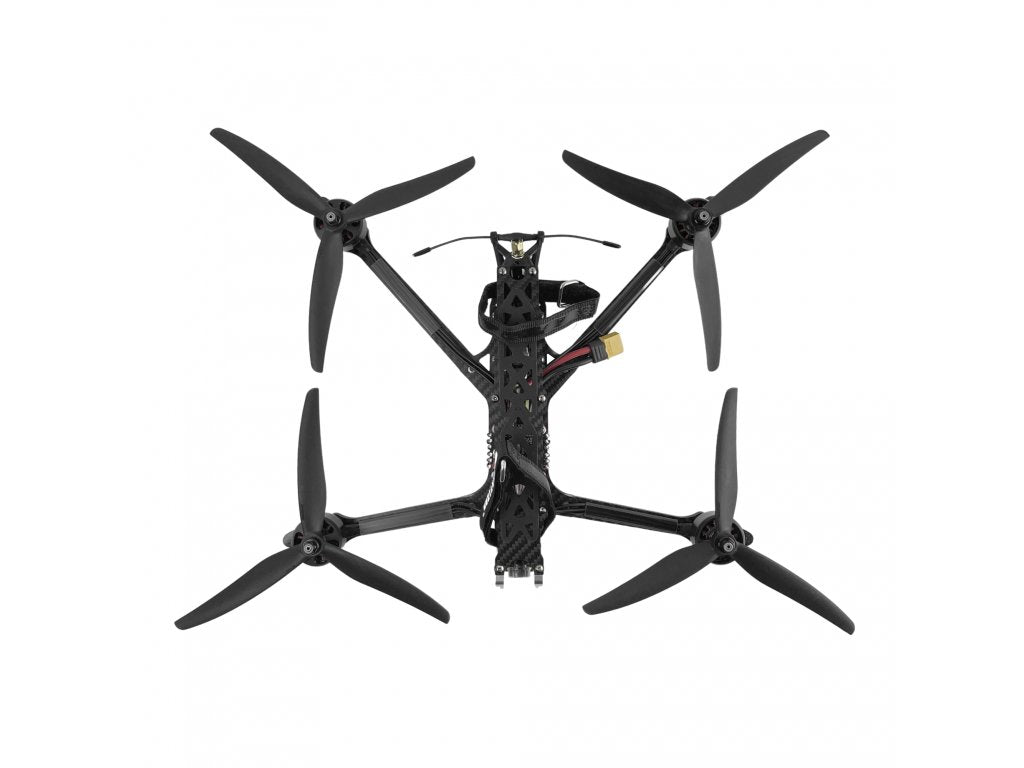

Partizan Rocky 8 ELRS 3W Ratel Pro
The Partizan Rocky8 ELRS is an 8-inch FPV drone specially designed for long-distance flights. It has a 5.8G video transmitter with a power of 3W, which ensures robust signal transmission. This version includes a Caddx Ratel 2 Pro camera for high-quality in-flight filming.
Specifications:
Model: Rocky8 ELRS
Frame: 8” Partizan DC Folding Frame
Dimensions: 370x265x60mm
Weight: 740g
Wheelbase: 334mm
Arm Thickness: 8mm
Bottom/Top Plate Thickness: 2.5mm
Stack: F405 (F4 FC + 60A ESC 4in1)
Firmware: Betaflight 4.4.2
VTX: 5.8G 3W
VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
Motor: Partizan 2812 1000kv
Propeller: Gemfan 8060-3
Camera: Caddx Ratel 2 Pro
Gimbal System: None
Receiver: ELRS 915Mhz RX
Recommended battery: 6S 4000mAh Lipo
Flight time with 4000mAh battery:
- 34 minutes (without load)
- 18 minutes (with 1.2kg load)
- 11 minutes (with 2kg load)
- 6-8 minutes (with 2.5kg load)
Maximum speed: 140km/h
Stable working temperature range: -10° to 40° C (14° to 104° F)
Load: up to 2kg
Package contents:
1x Partizan Rocky 8 ELRS 3W Ratel Pro
