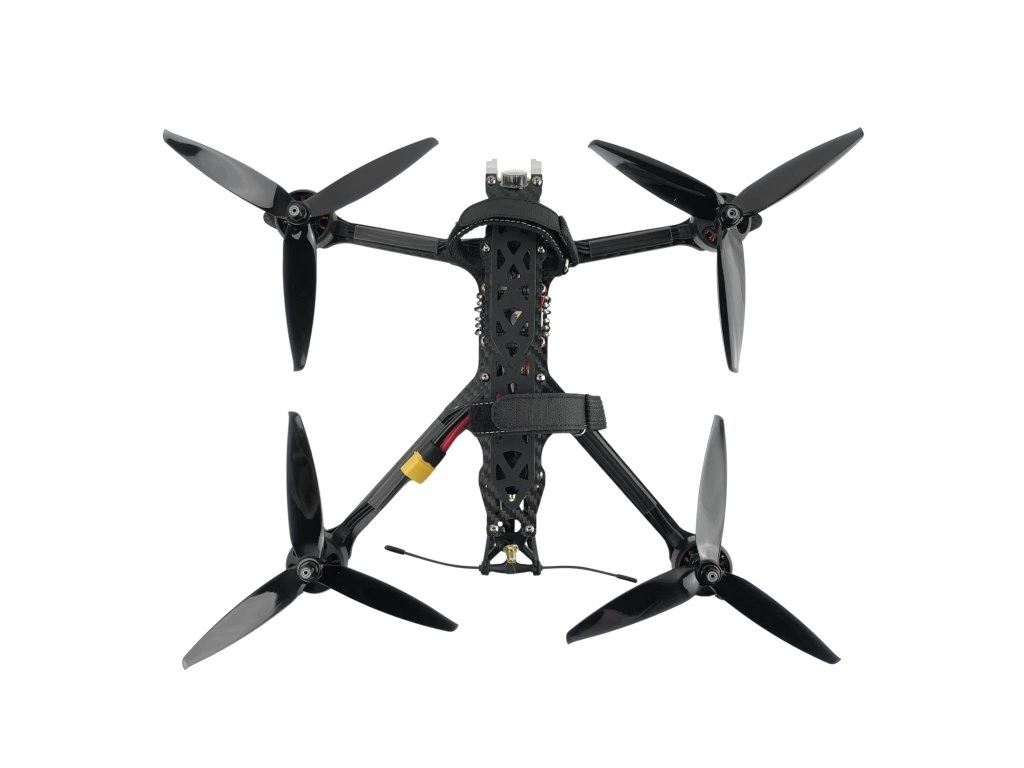

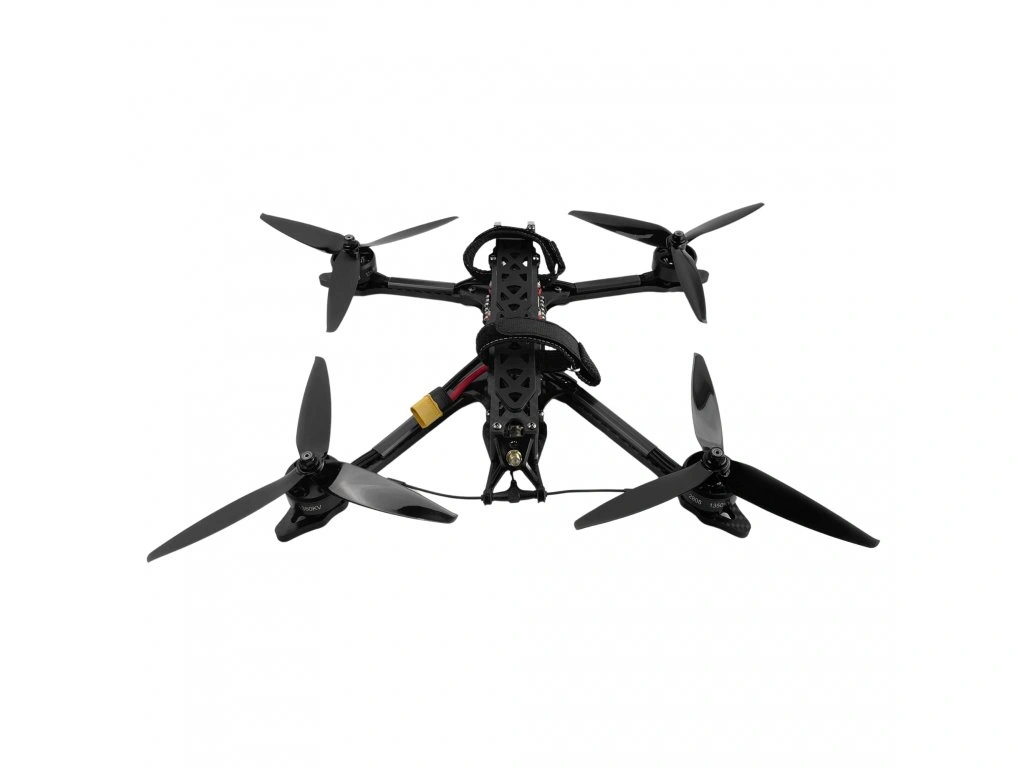

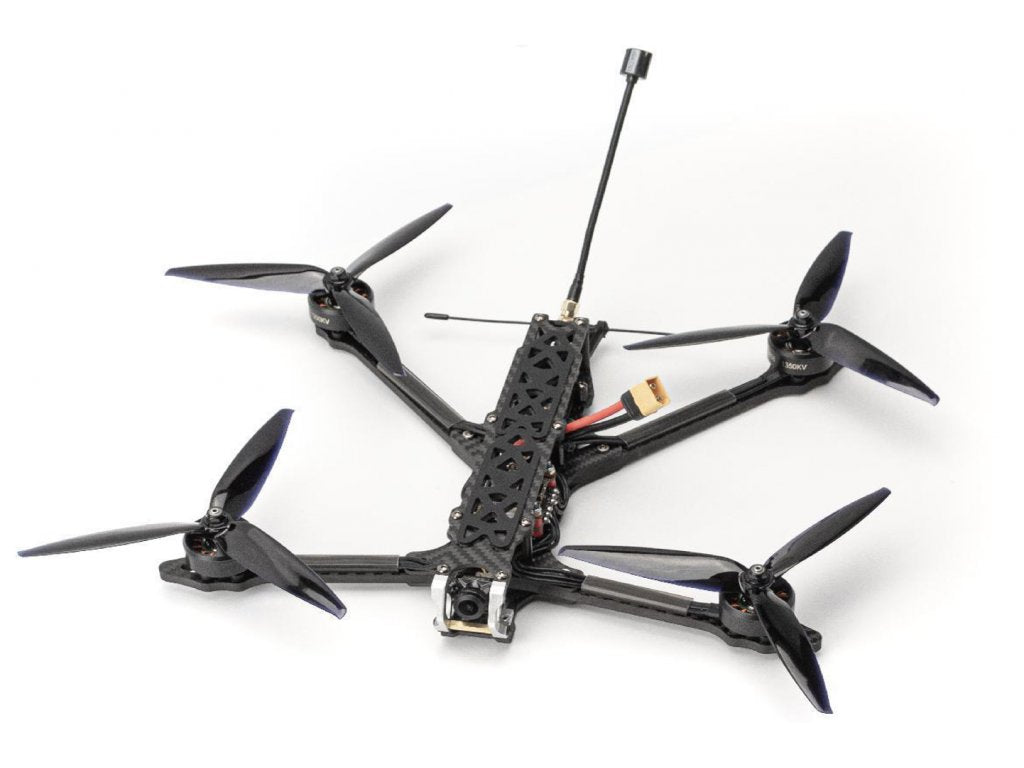

Partizan Rocky 7 ELRS T256 5.8G 2.5W The Partizan Rocky 7 ELRS is a 7-inch FPV drone specially designed for long-distance flights. It is equipped with a 5.8G video transmitter with a power of 2.5 W, which ensures robust signal transmission. This version includes a high-quality 256T thermal camera that expands the drone's capabilities. Specifications
Model: Rocky 7 ELRS T256 5.8G 2.5W

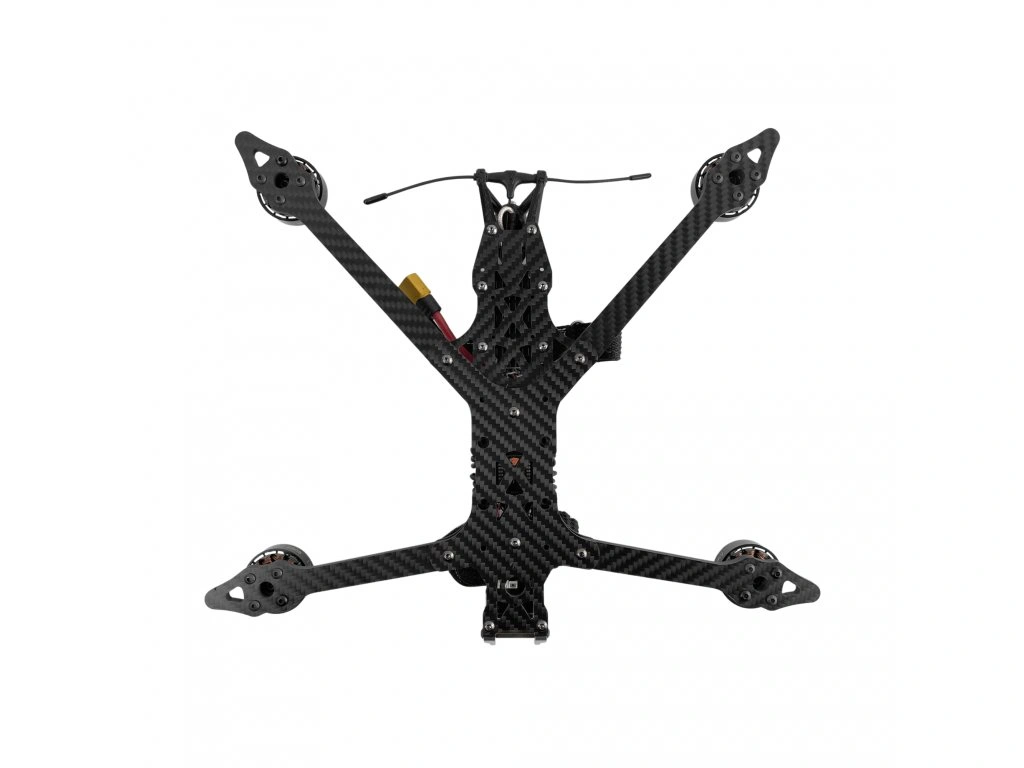

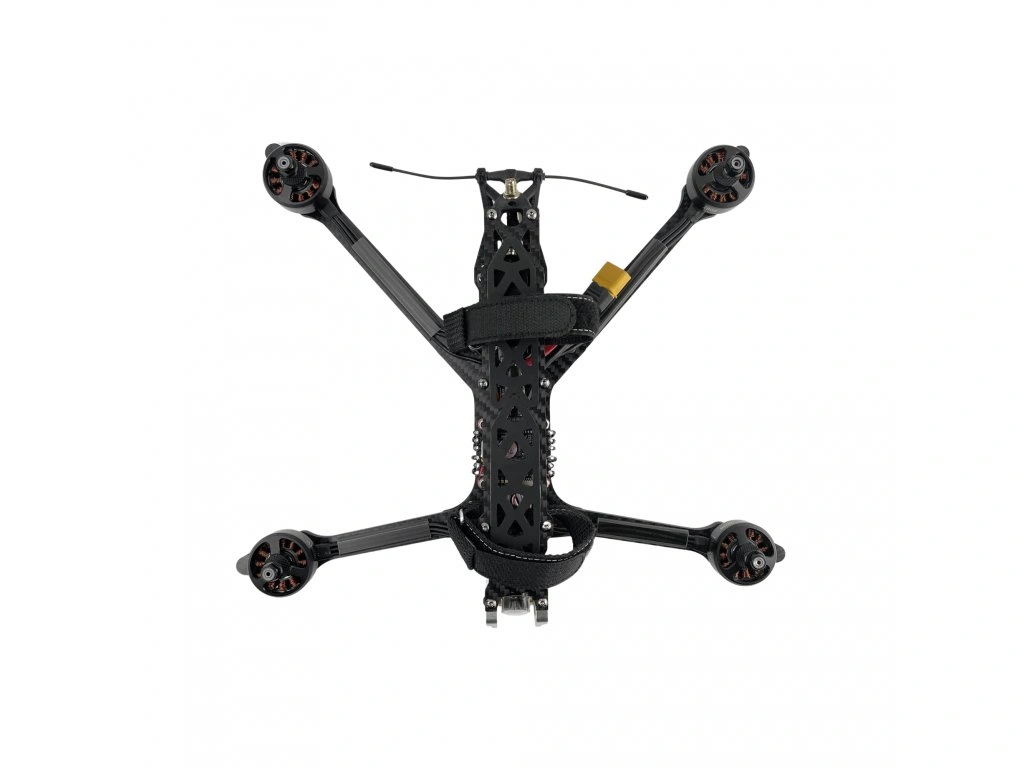

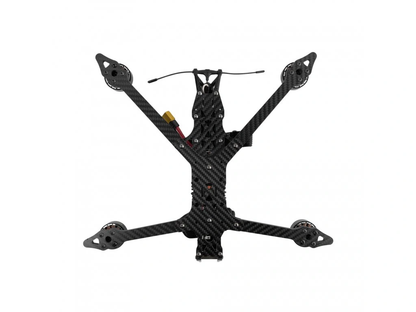

Frame: Partizan Rocky 7 DC folding
Dimensions: 302x242x60mm
Weight: 450g
Wheelbase: 309mm
Arm thickness: 6mm
Bottom/top plate thickness: 2.5mm
Stack: F405 (F4 FC + 60A ESC 4in1)
Firmware: Betaflight 4.4.2
VTX: 5.8G 2.5W
VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
Motor: Partizan 2807 1300KV(6S)
Propeller: Gemfan 7040-3

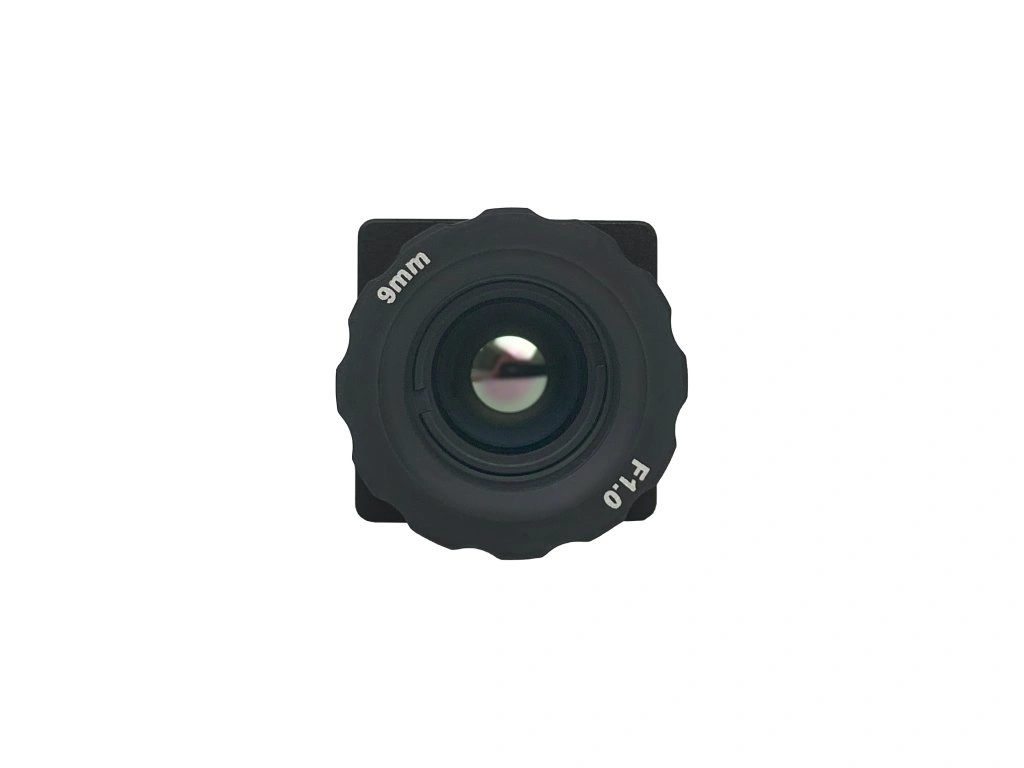

Camera: Thermal 256T
Gimbal system: None
RX: ELRS 915Mhz
GPS: None
Recommended battery: 6S 4000mAh Lipo
Flight time with 4000mah battery:
- 30 minutes (without load)
- 15 minutes (with 1.2kg load)
- 8 minutes (with load 2kg)
Maximum speed: 150km/h
Stable working temperature range: -10° to 40° C (14° to 104° F)
Load: up to 1.5kg
Package contents:
1x Partizan Rocky 7 ELRS T256 5.8G 2.5W
