Rocky 10 TBS 3W Ratel Pro

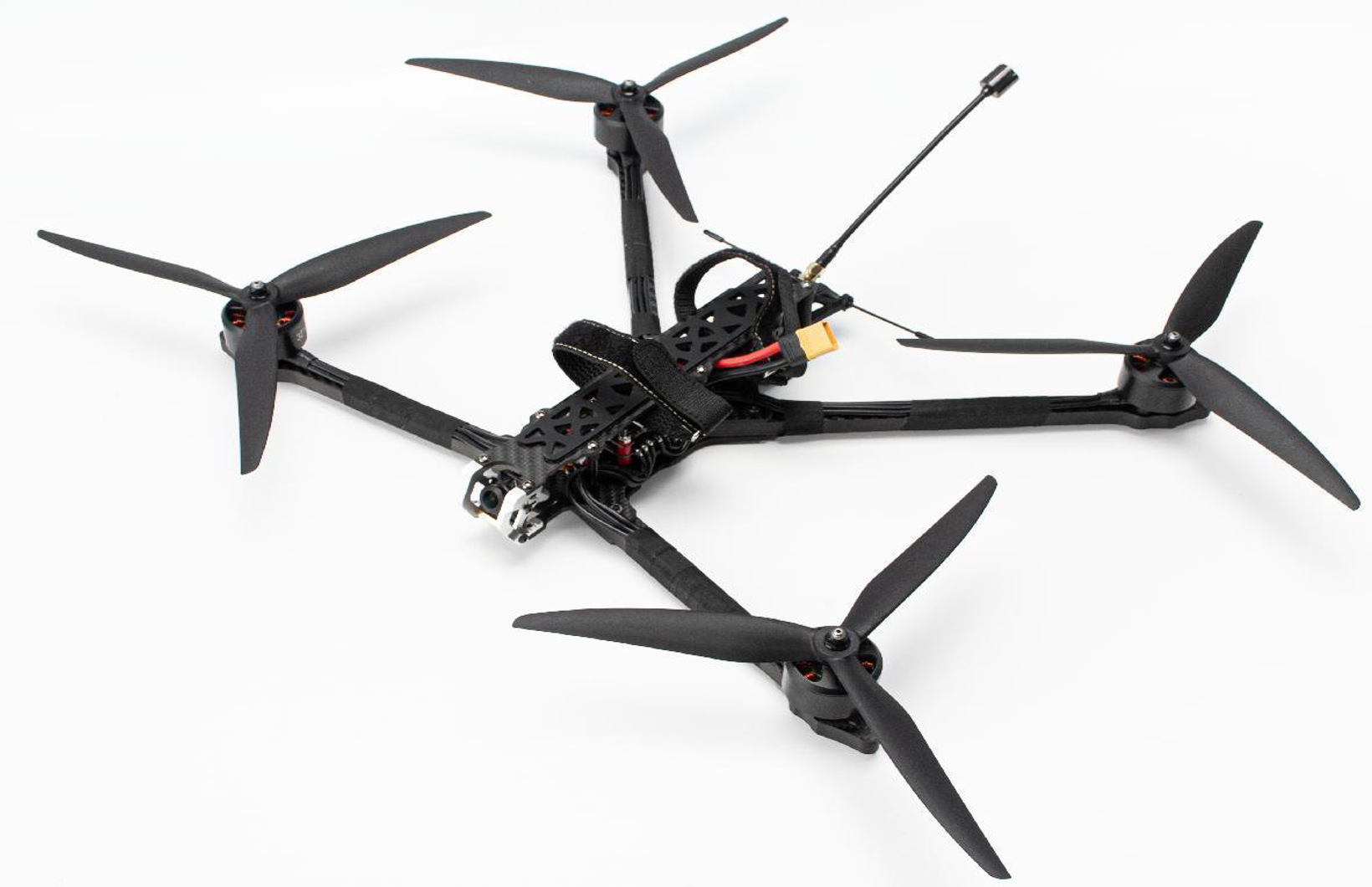

The Partizan Rocky10 Pro TBS is a 10-inch long-range drone equipped with high-performance Partizan 3214 720kv motors and Gemfan 1050-3 propellers. This model also includes a Caddx Ratel PRO 1500tvl night camera that allows for high-quality shooting in low light.
Specifications:
Model: ROCKY 10 TBS 3W Ratel Pro
Frame: 10” Partizan DC Folding Frame
Dimensions: 400x315x60mm
Weight: 840g
Wheelbase: 426mm
Arm Thickness: 10mm
Bottom/Top Plate Thickness: 3mm
FC: Partizan F405 V2 MPU6500 Gyro. />Camera: Caddx Ratel PRO 1500tvl
Receiver: TBS Crossfire
Recommended battery: 6S 8000mAh Lipo, 21700 6S 8000mAh
Flight time with 8000mAh battery:
- 40 minutes (without load)
- 22 minutes (with 1.2kg load)
- 16 minutes (with with a load of 2kg)
- 10 minutes (with a load of 3kg)
Maximum speed: 140km/h
Stable working temperature range: -10° to 40° C (14° to 104° F)
Load: up to 3.0kg
Package contents:
1x Partizan Rocky 10 Pro TBS
