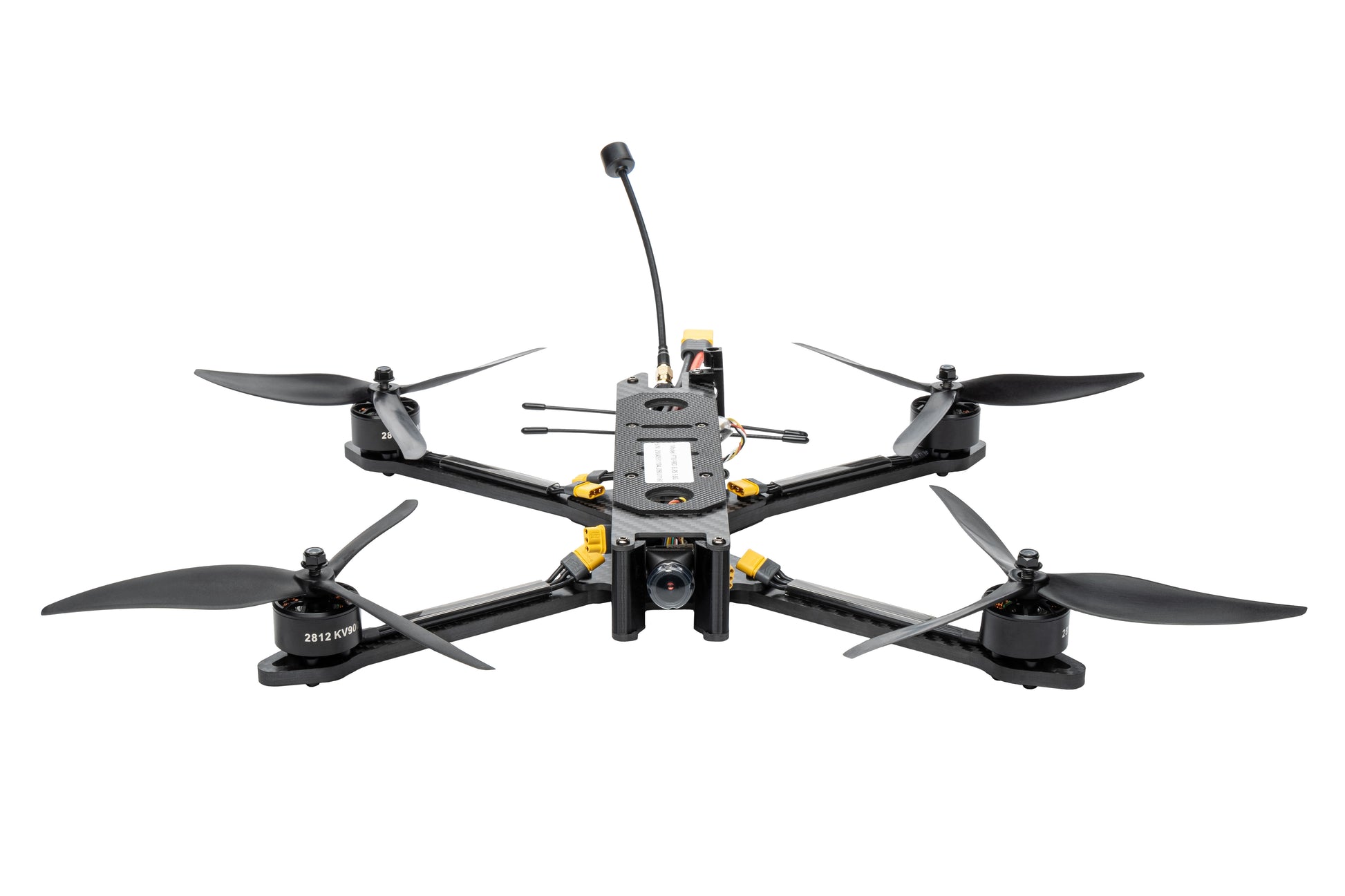

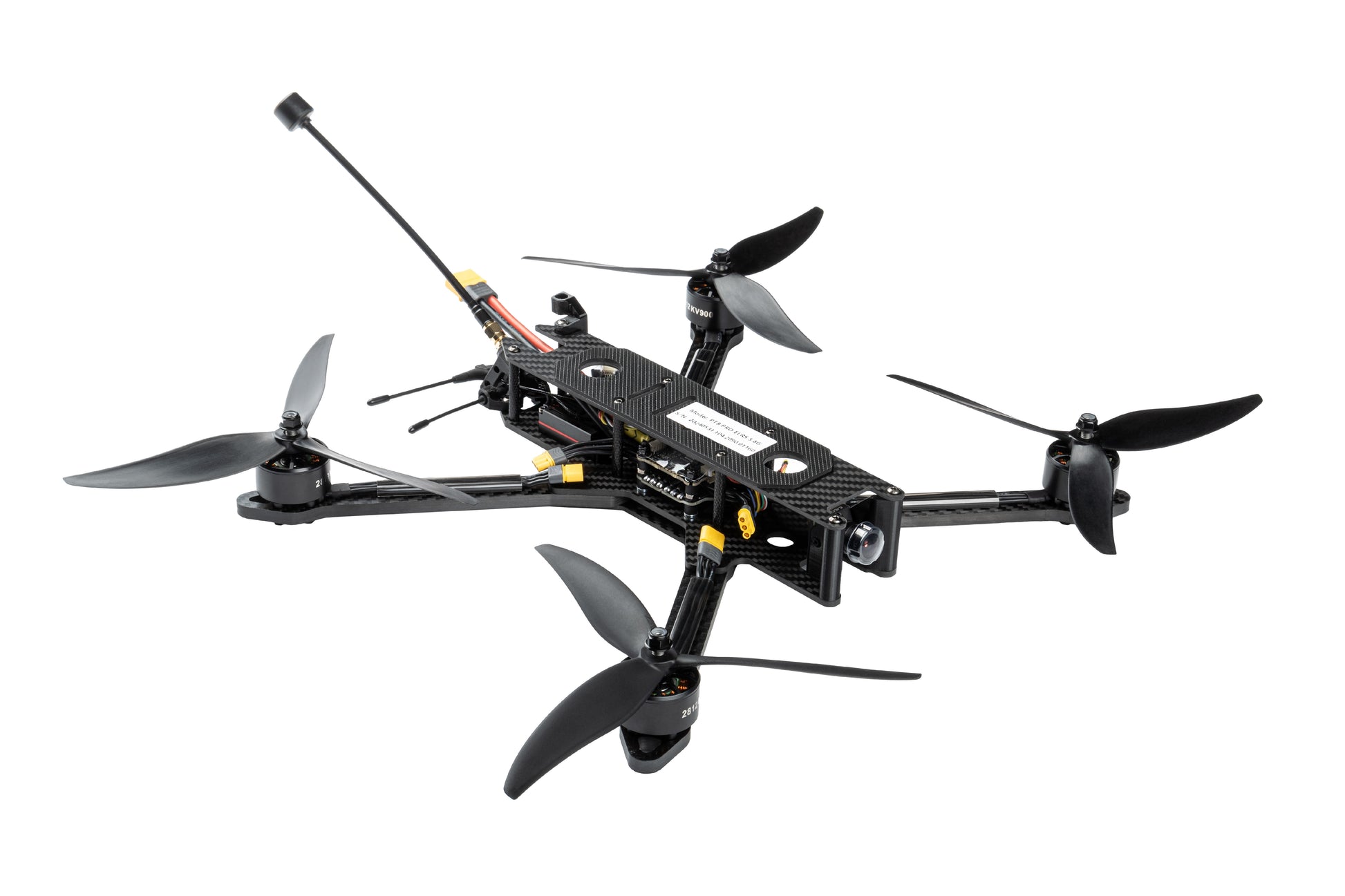

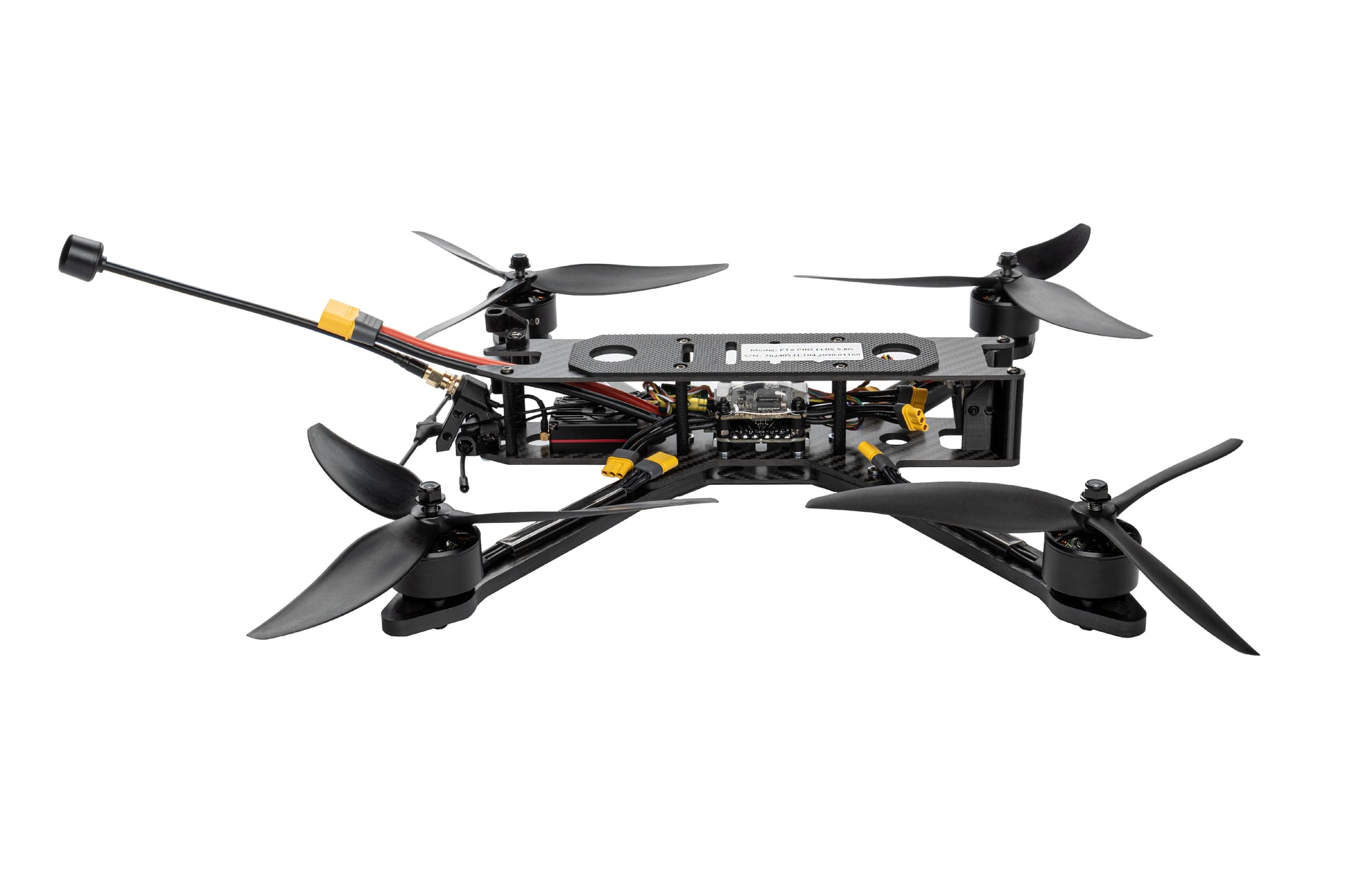

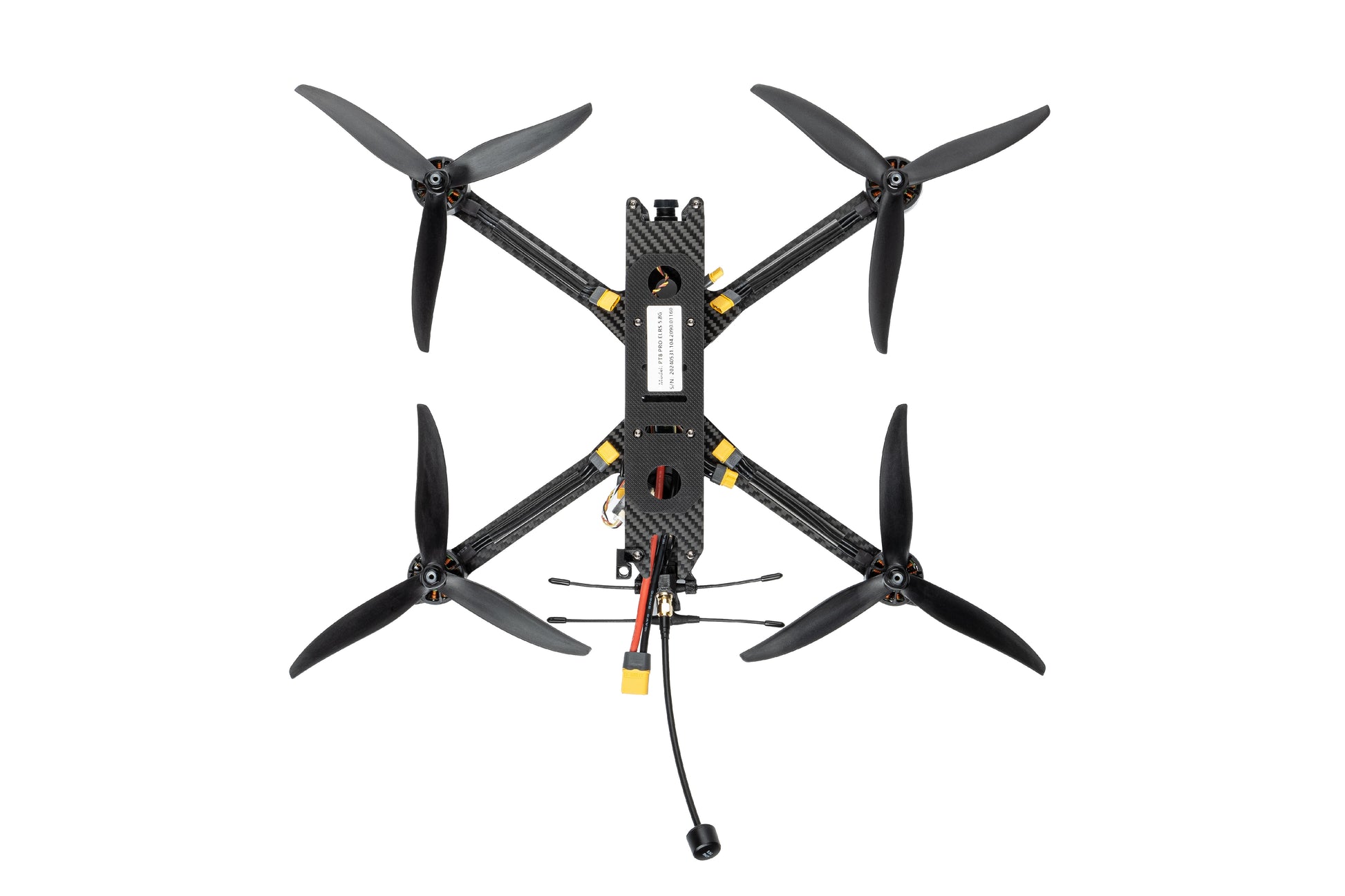

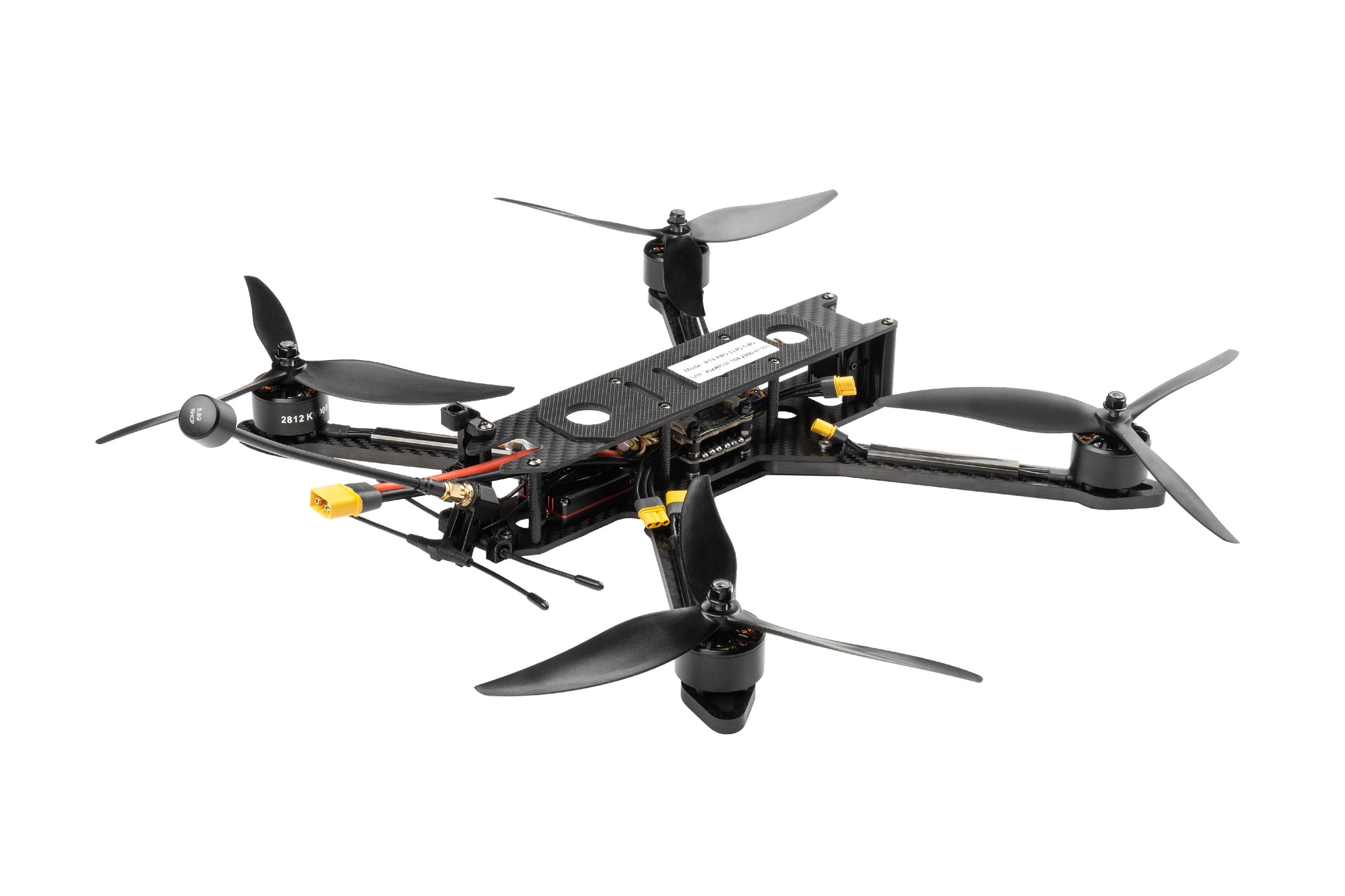

FPV drone Partizan PT8 PRO ELRS 5.8G 2.5W
PT8 PRO ELRS is a new version of the Partizan 8-inch drone. Equipped with an ELRS 868/915 MHz receiver, it ensures a reliable and stable connection. The Pilotix 5.8G 2.5W VTX provides strong and clear video signals over a wide range, increasing the comfort of flight. This new FPV drone combines premium components and cutting-edge technology for superior flight performance.
Specifications:
- Model: PT8 PRO ELRS 5.8G 2.5W
- Frame: Partizan PT8 new version
- Dimensions: 317x270x50 mm
- Weight: 700 g
- Wheelbase: 358 mm
- Thickness of arms: 6 mm
- Bottom/top plate thickness: 2 mm
- FC: Partizan F405 ICM42688P gyro
- Firmware: Betaflight 4.4.3
- ESC: Partizan BLS 60A 4IN1 ESC
- VTX: 5.8G 2.5W
- VTX antenna: Partizan 160mm RHCP SMA
- Engine: Partizan 2812 900kv(6S)
- Propeller: GEMFAN 8060-3
- Camera: Caddx Ratel 2 Pro
- Gimbal system: none
- Receiver: ELRS 915 MHz Diversity RX
- GPS: none
- Recommended battery: 6S 8000mAh Lipo
- Flight time with 8000mAh battery:
- 35 minutes (without load)
- 16 minutes (load 2.5 kg)
- 22 minutes (load 2 kg)
- Maximum speed: 150 km/h
- Maximum flight altitude (MSL): 6000 m
- Maximum climb speed: 15 m/s
- Stable working temperature range: -20℃ - 50℃
- Load: 2000-2500 g

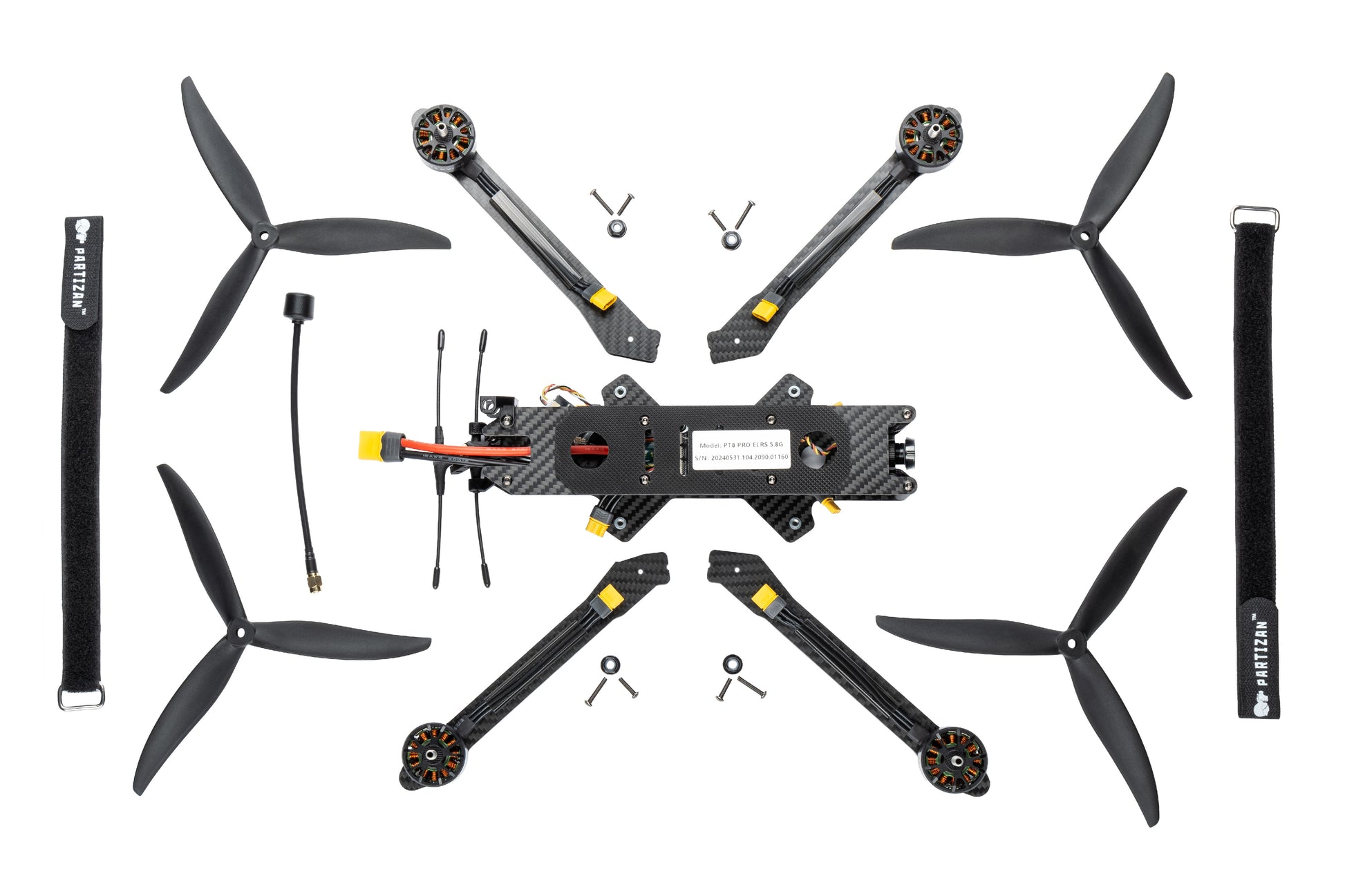

Package includes: 1x Partizan PT8 PRO ELRS 5.8G 2.5W
