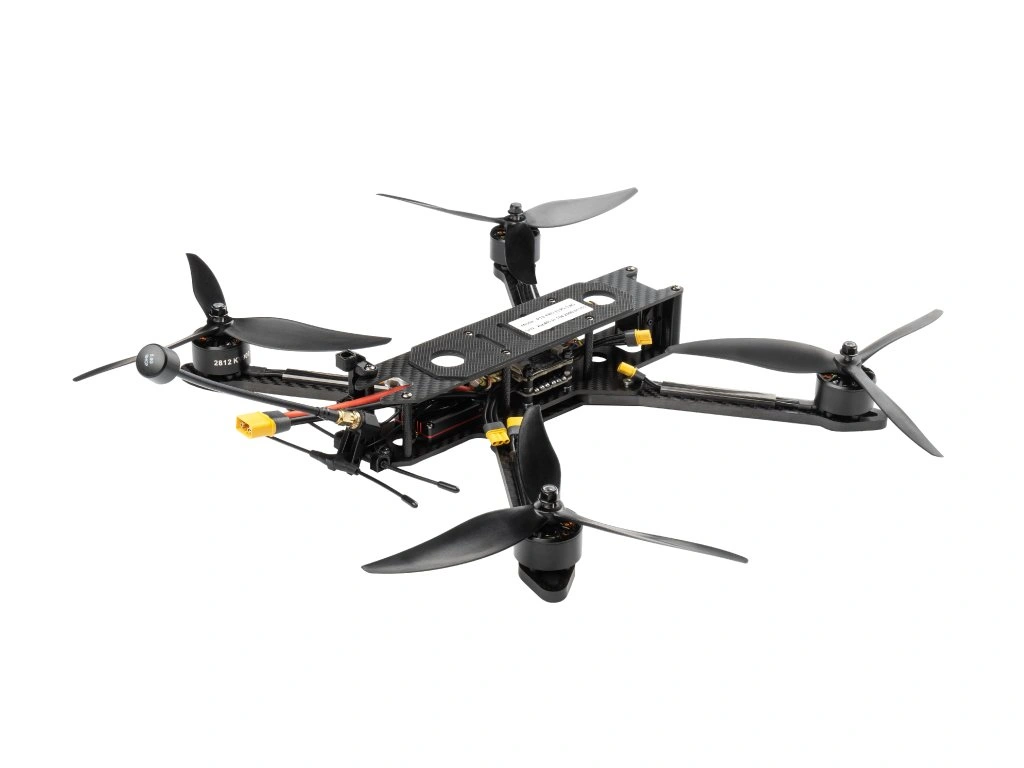

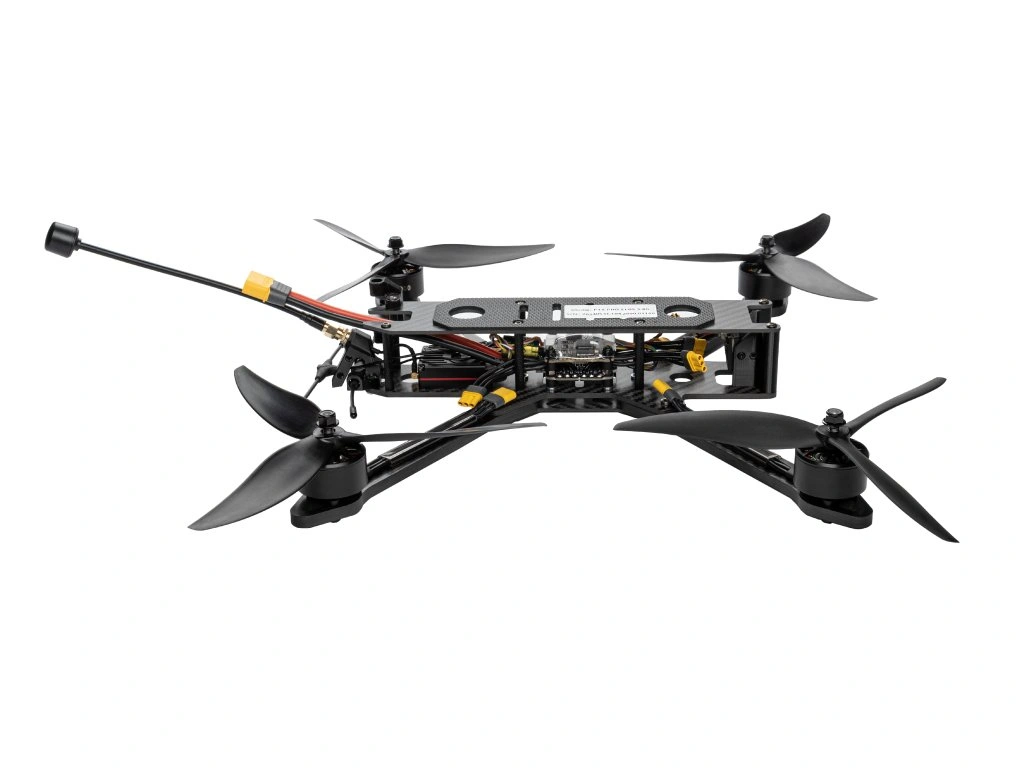

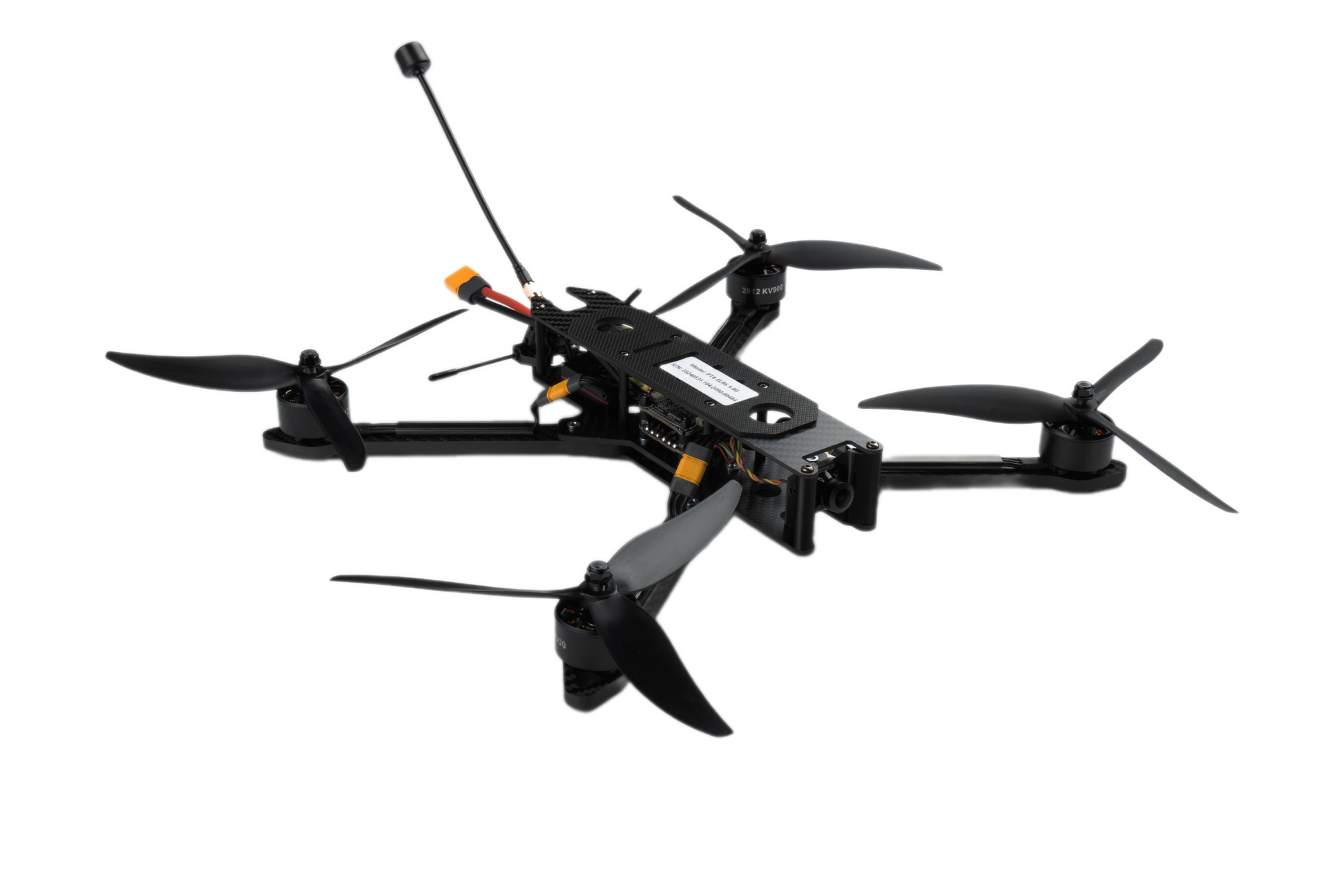

FPV Drone Partizan PT8 ELRS 5.8G 2.5W Basic
PT8 ELRS is a new version of the Partizan 8-inch drone. It is equipped with an ELRS 868/915MHz receiver, which ensures a reliable and stable connection. Partizan 5.8G 2.5W VTX provides strong and clear video signals over a long distance, making flights more comfortable. This new FPV drone combines premium components and cutting-edge technology for superior flight performance.
Specifications:
- Model: PT8 ELRS 5.8G Basic
- Frame: Partizan PT8 new version
- Dimensions: 317x270x50mm
- Weight: 700g
- Wheelbase: 358mm
- Thickness of arms: 6mm
- Bottom/top plate thickness: 2mm
- FC: F405 V2 ICM42688P
- Firmware: Betaflight 4.4.3
- ESC: 60A (burst 70A)
- VTX: 5.8G 2.5W
- Antenna: Long 5.8G RHCP SMA
- Motors: 2812-900KV/1300KV
- Propeller: Gemfan 8060-3

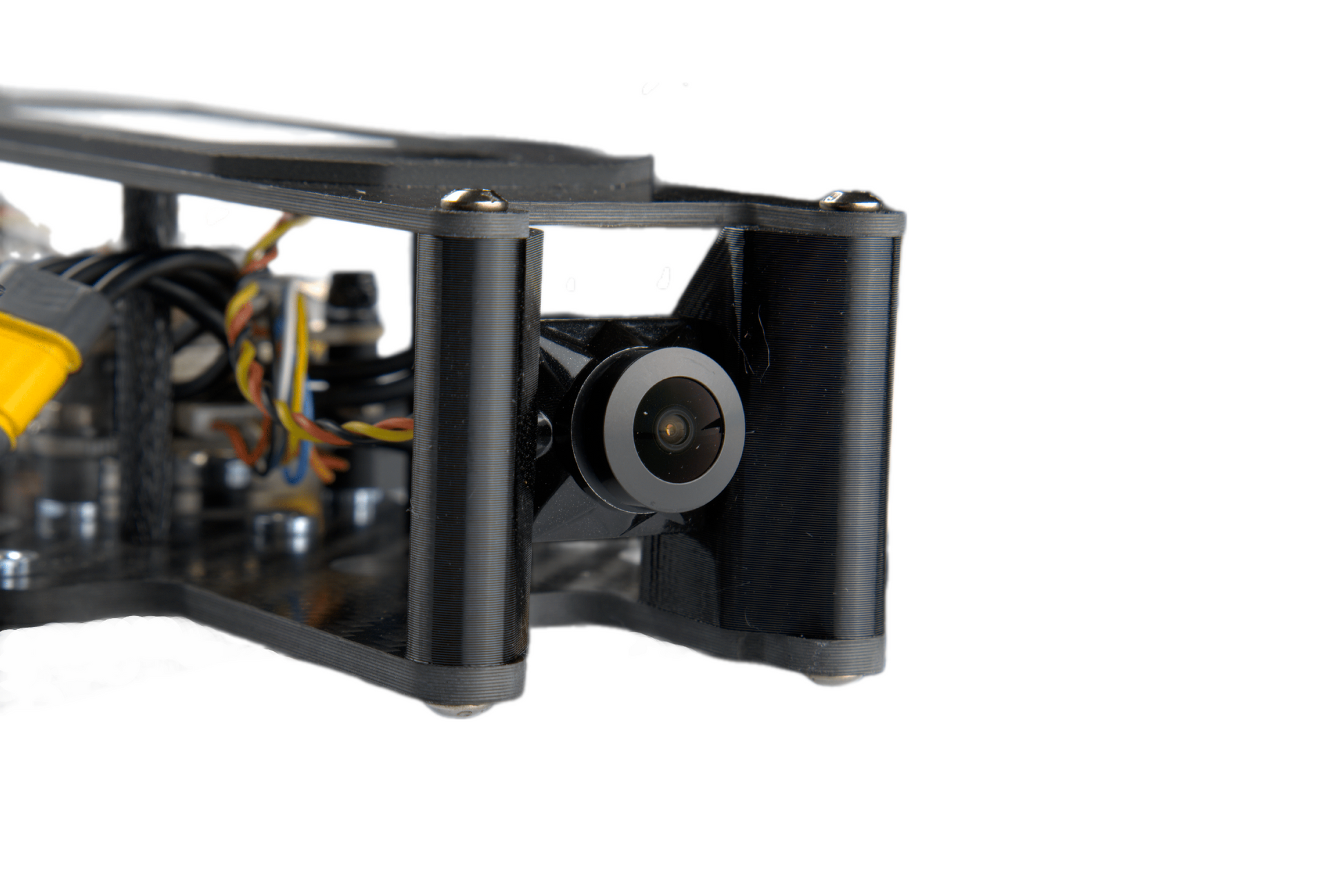

- Camera: H1
- Gimbal System: None
- Receiver: ELRS 868/915 Cyclone
- GPS: None
- Recommended battery: 6S 8000mAh Lipo
-
Flight time with 8000mAh battery:
- 35 minutes (without load)
- 16 minutes (2.5kg load)
- 22 minutes (2kg load)
- Maximum speed: 150km/h
- Maximum flight altitude (MSL): 6000m
- Maximum climbing speed: 15m/s
- Stable working temperature range: -20℃ - 50℃
- Load capacity: 2000-2500g

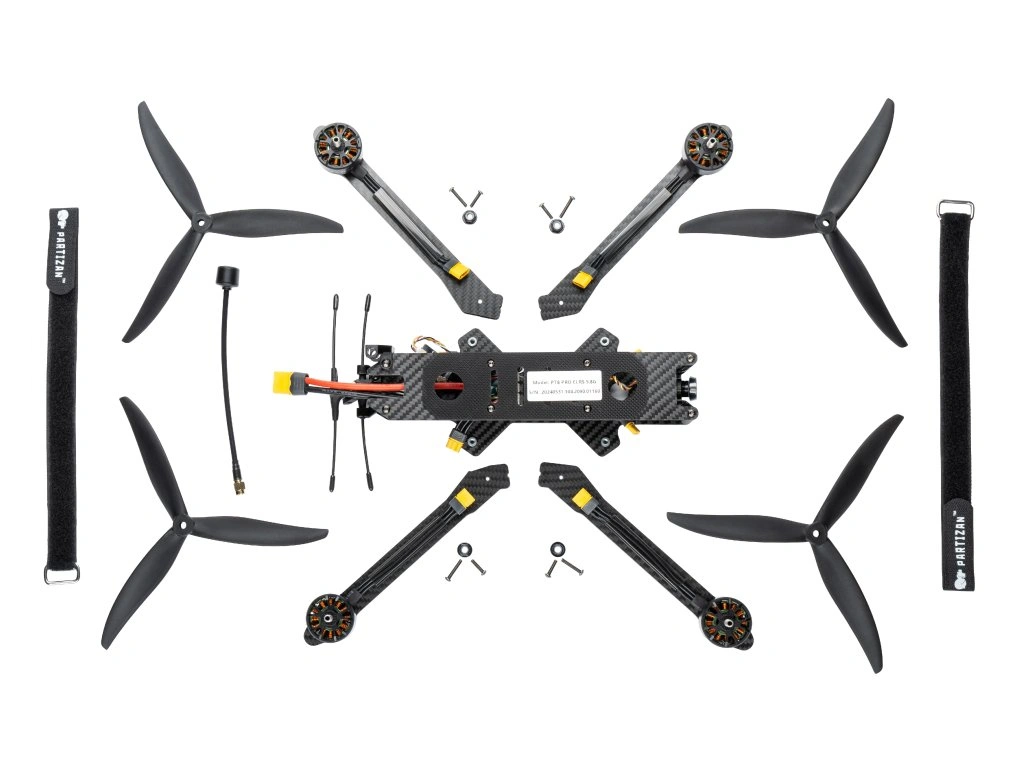

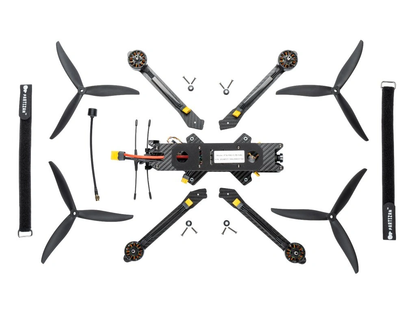

The package contains:
- 1x Partizan PT8 ELRS 5.8G 2.5W Basic
