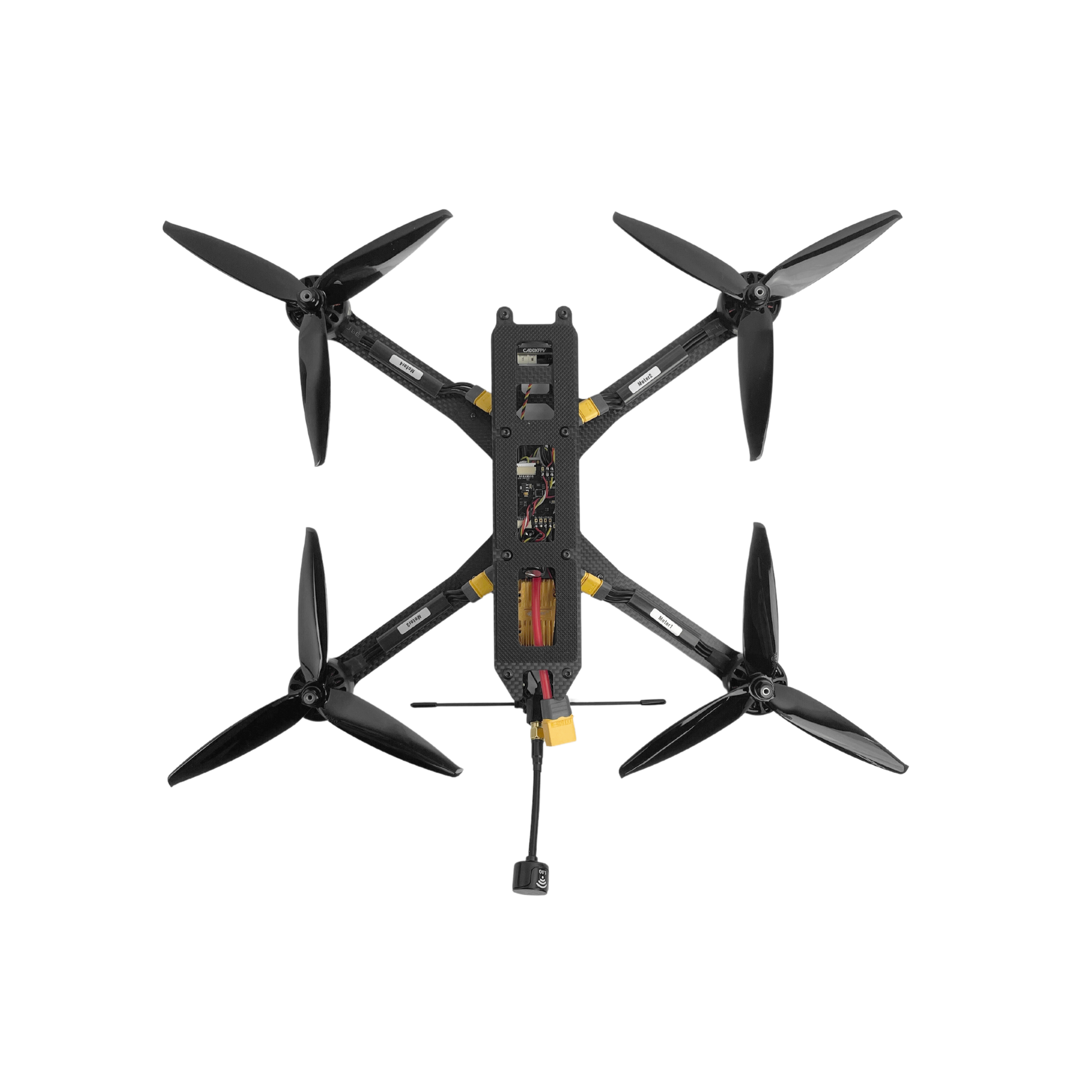

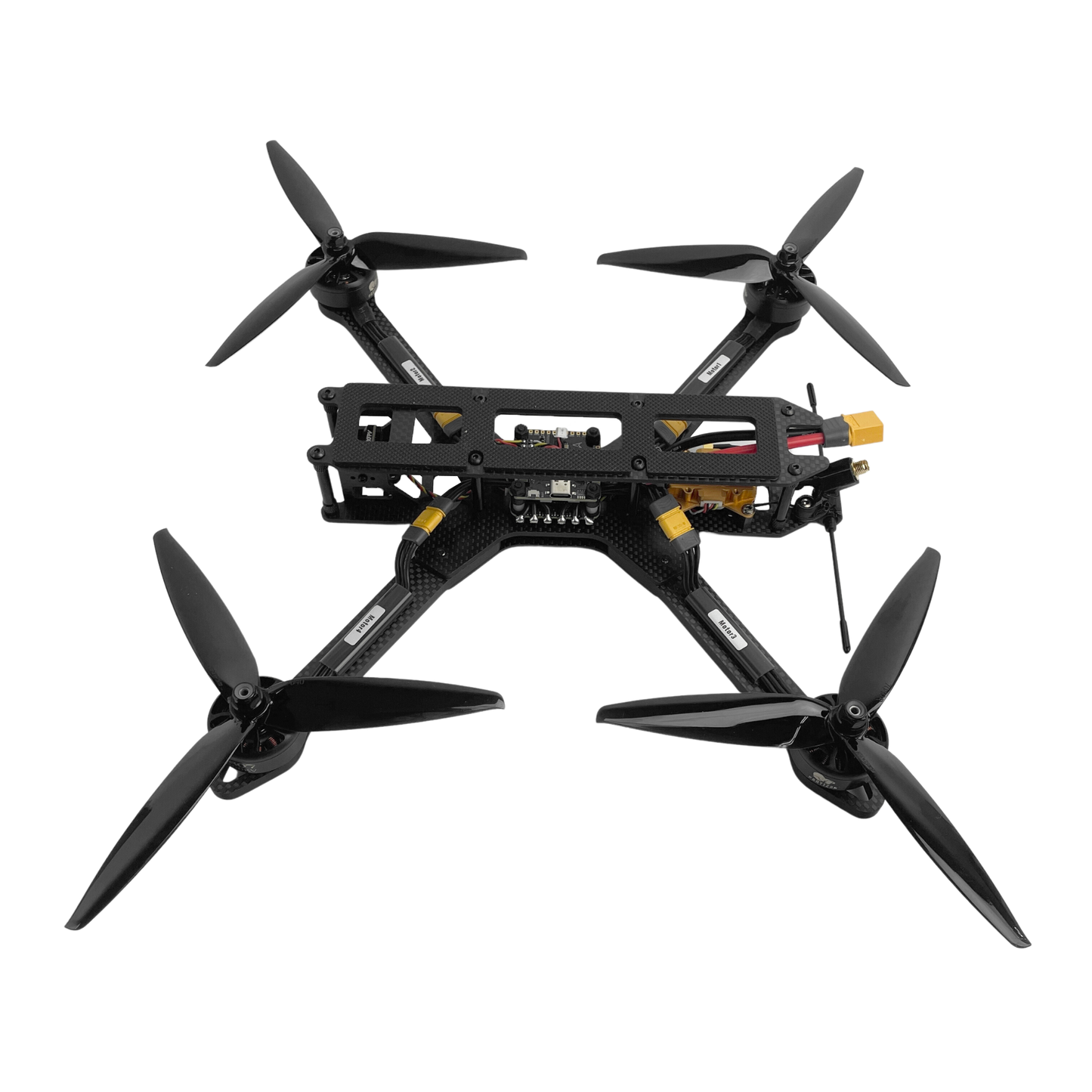

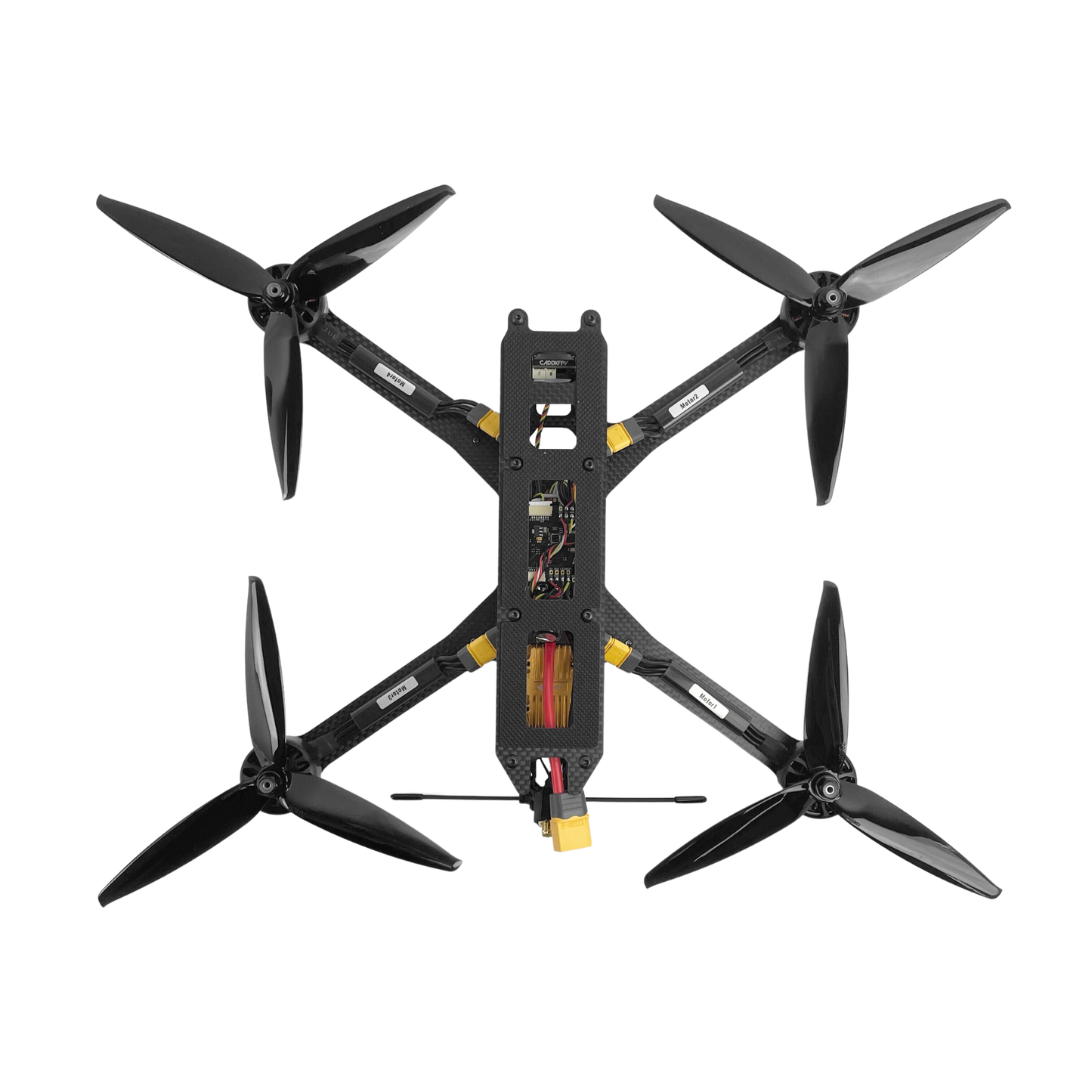

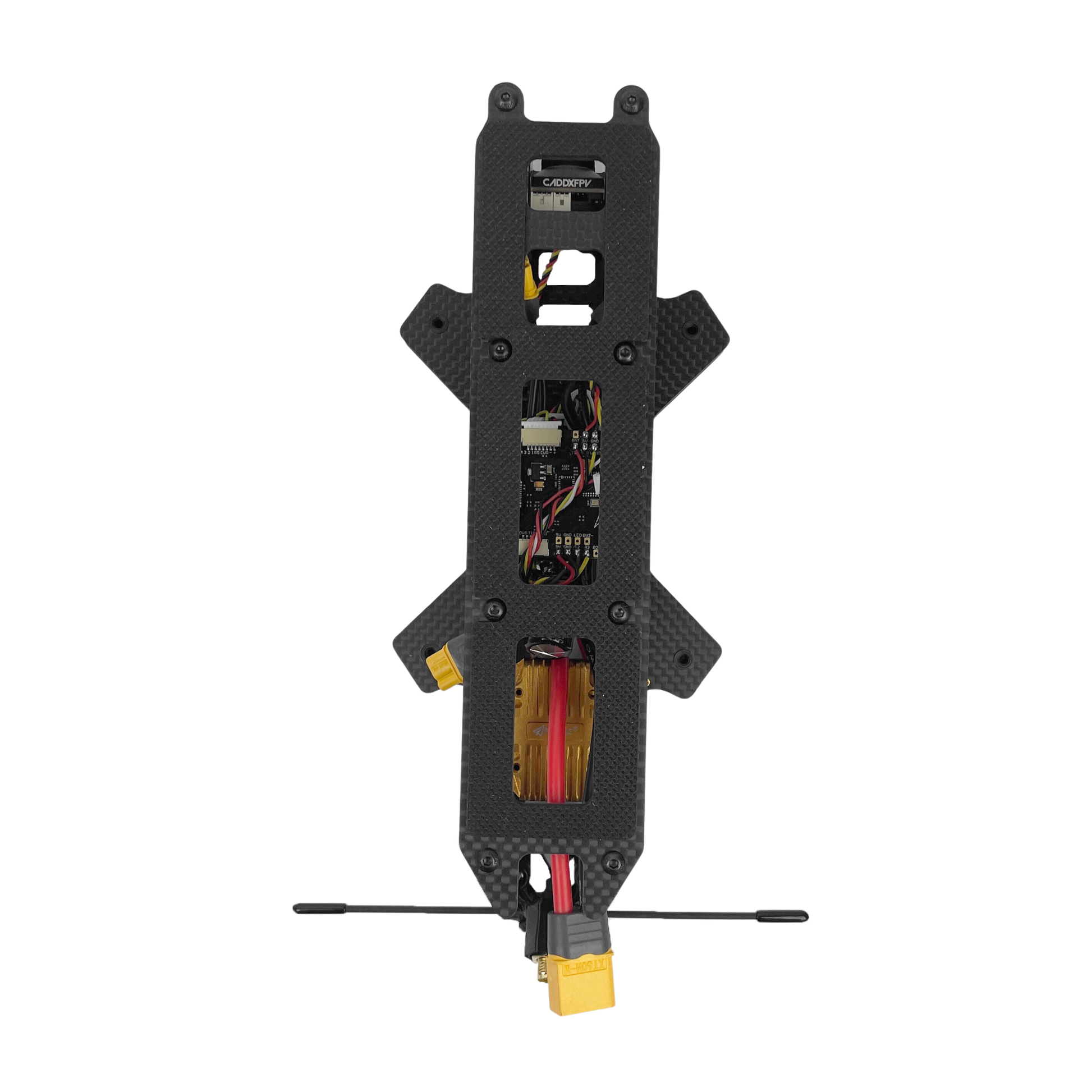

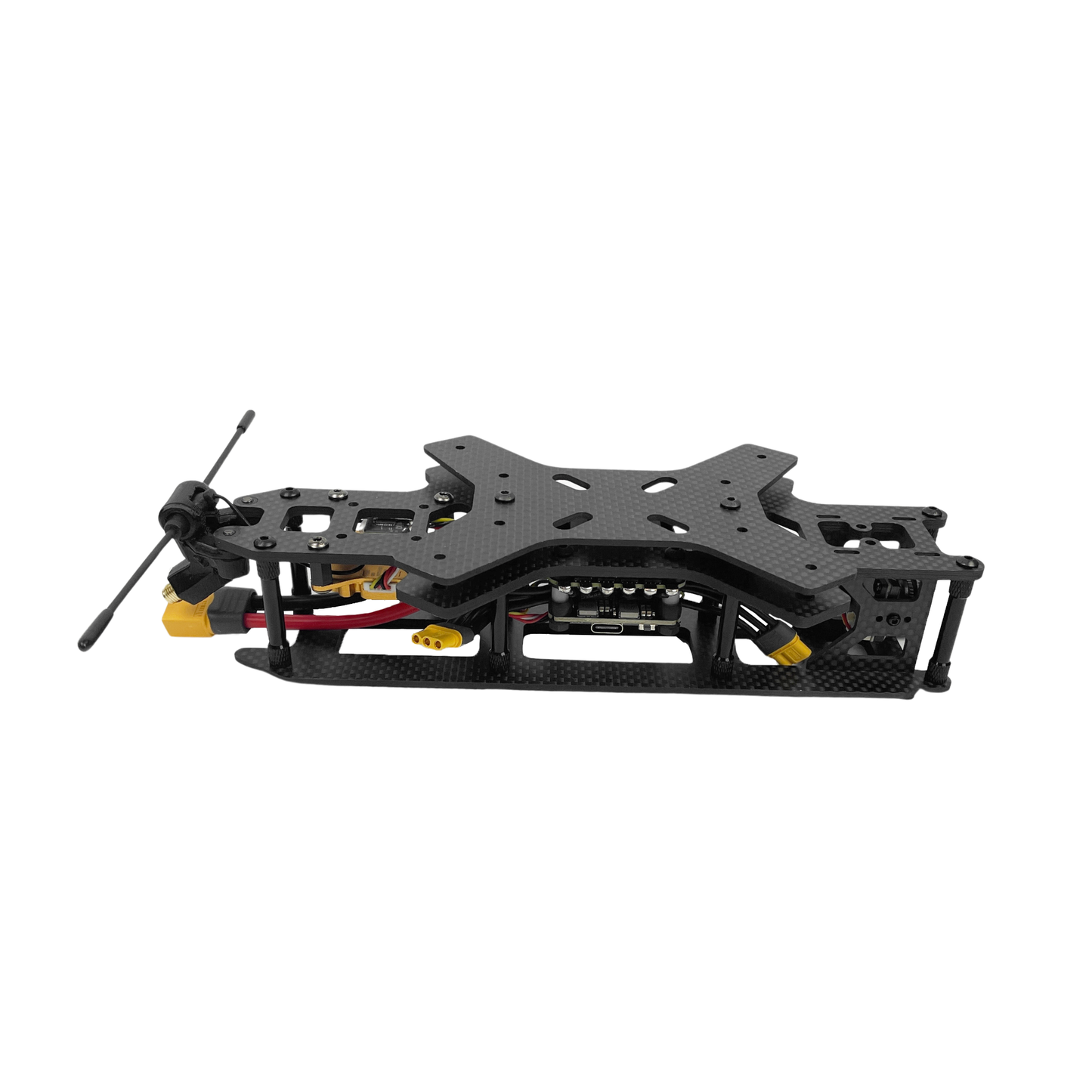

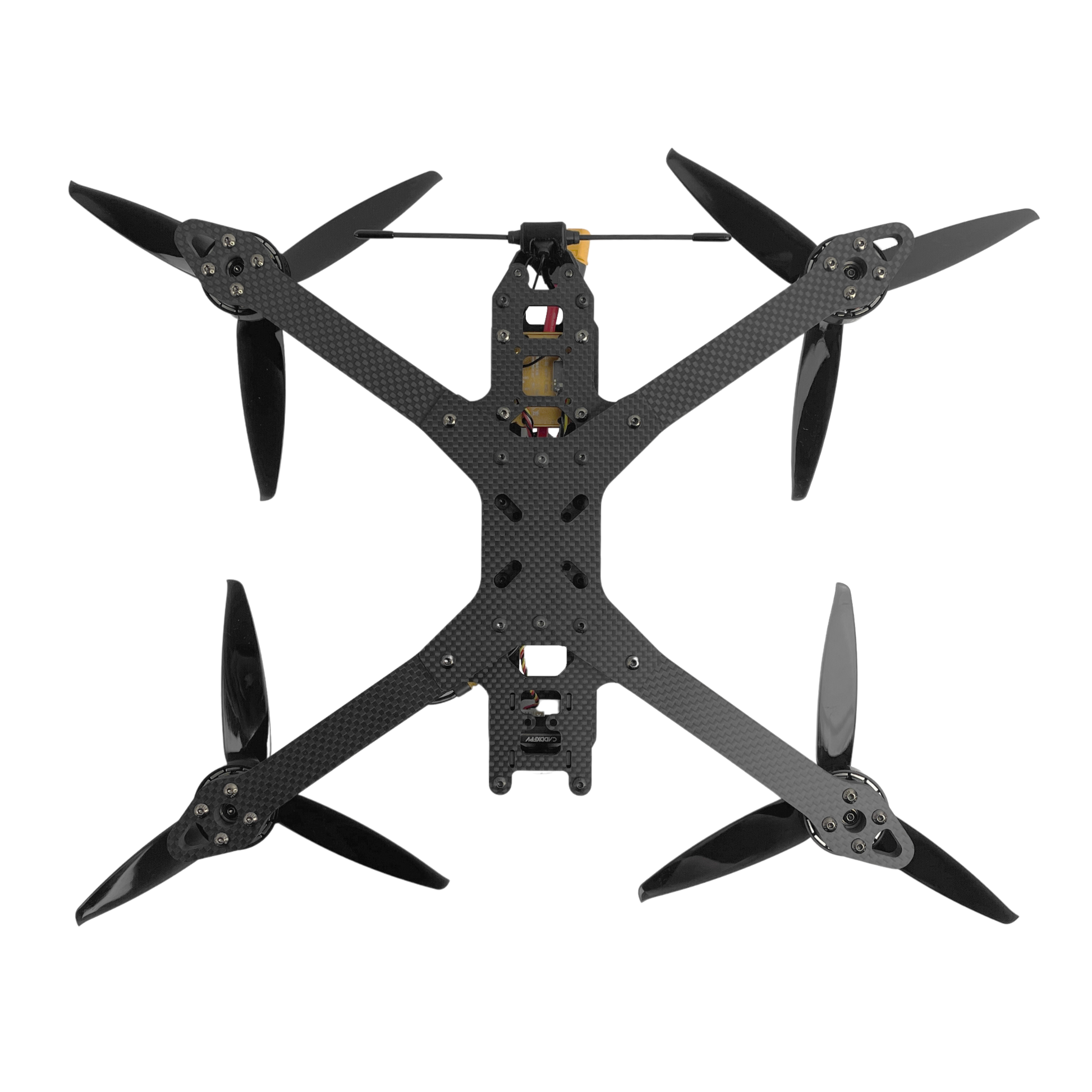

FPV Drone Partizan PT7 TBS
The Partizan PT7 TBS FPV Drone is a high-performance 7-inch FPV drone. Equipped with a 5.8G video transmitter with a power of 2.5W, it ensures robust signal transmission over long distances. This drone has a Caddx Ratel 2 analog camera, F405 flight controller and powerful Partizan 2807 1300kv motors that ensure reliability, stability and maneuverability during flights.
Specifications:
Model: Partizan PT7 TBS

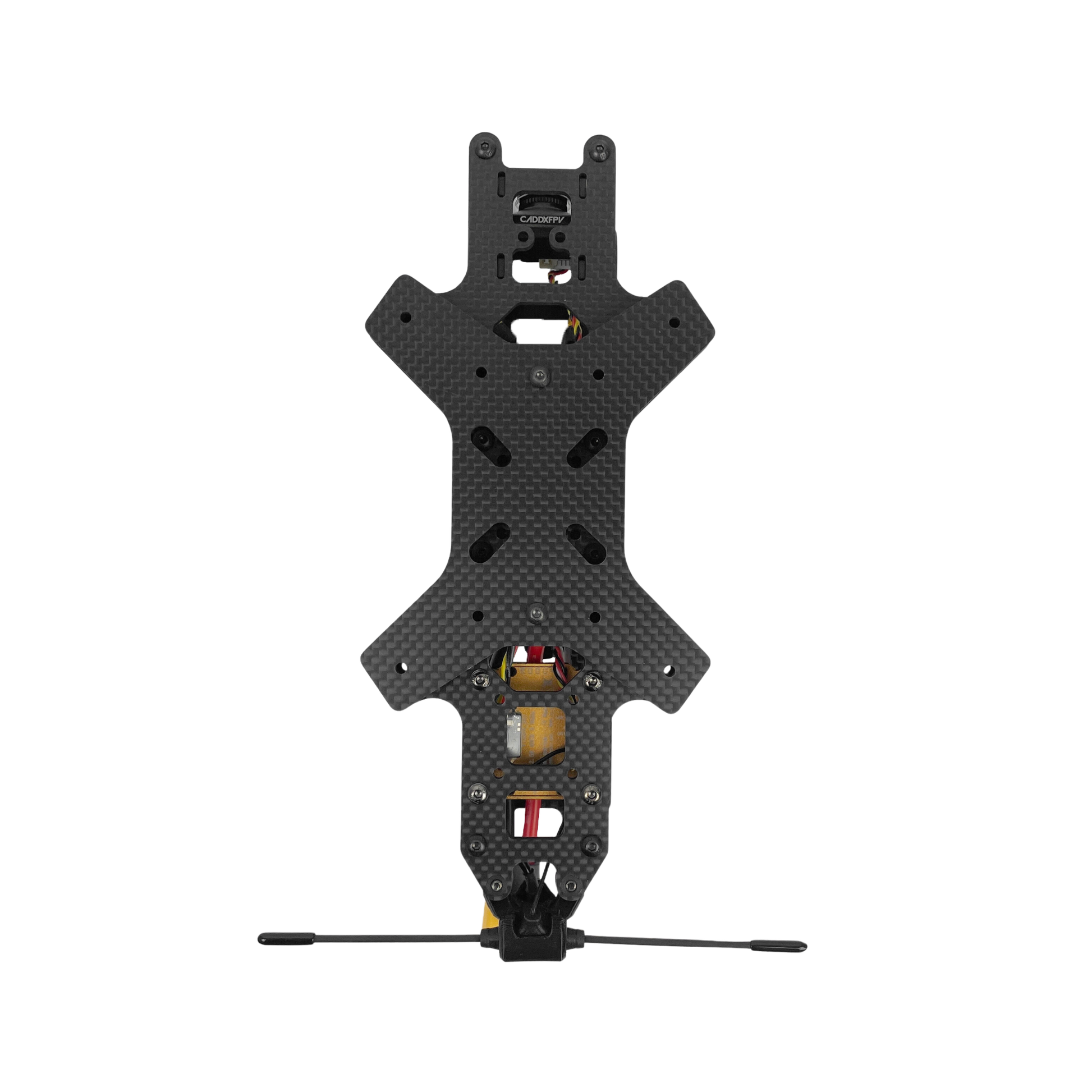

Frame: 7" premium frame
Dimensions: 265x230mm
Weight: 196g
Arm thickness: 6mm
Top plate: 2.0mm
Bottom plate: 3.0mm
Stack: F405 (F4 FC + 60A ESC 4in1)
VTX: 5.8G 2.5W VTX

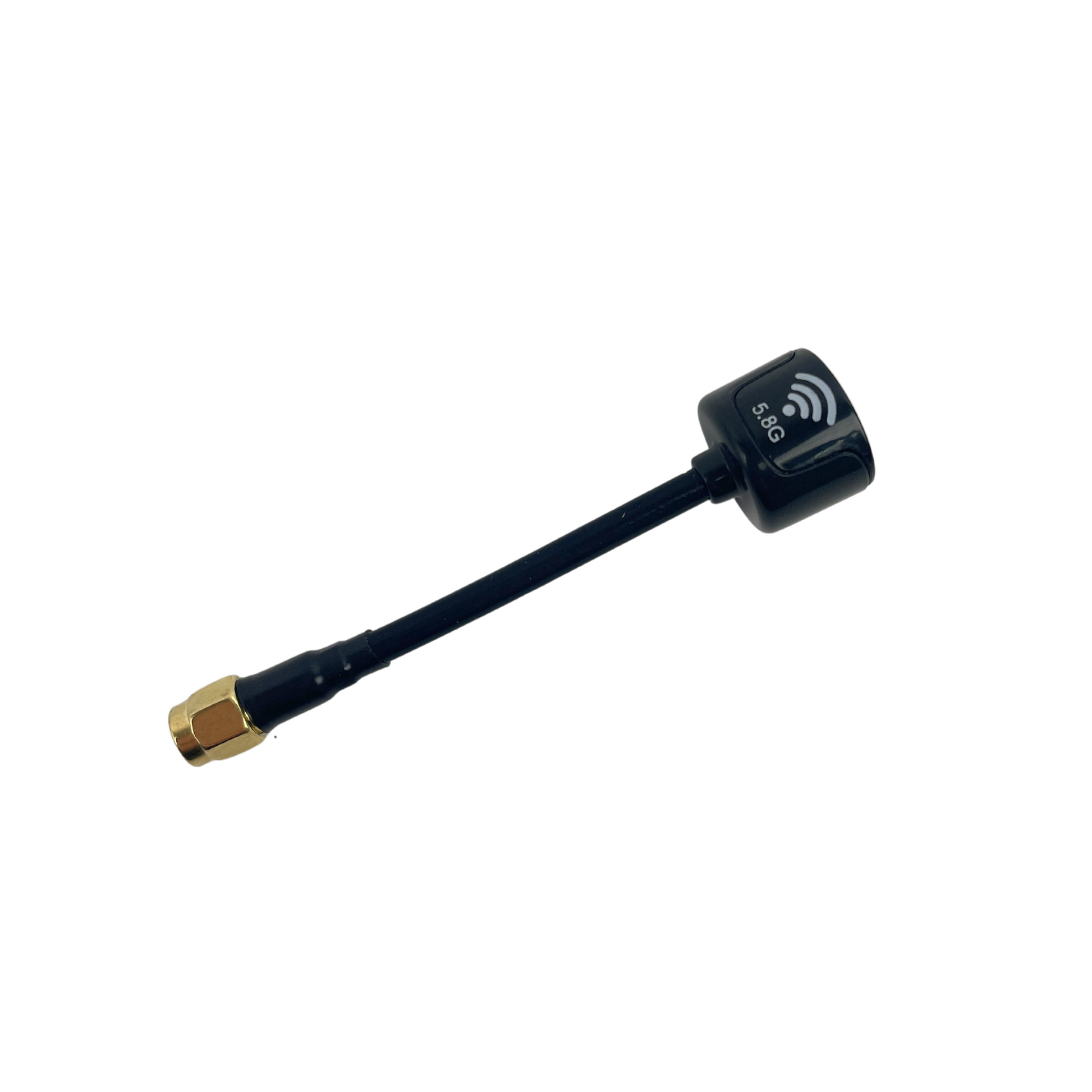

VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm

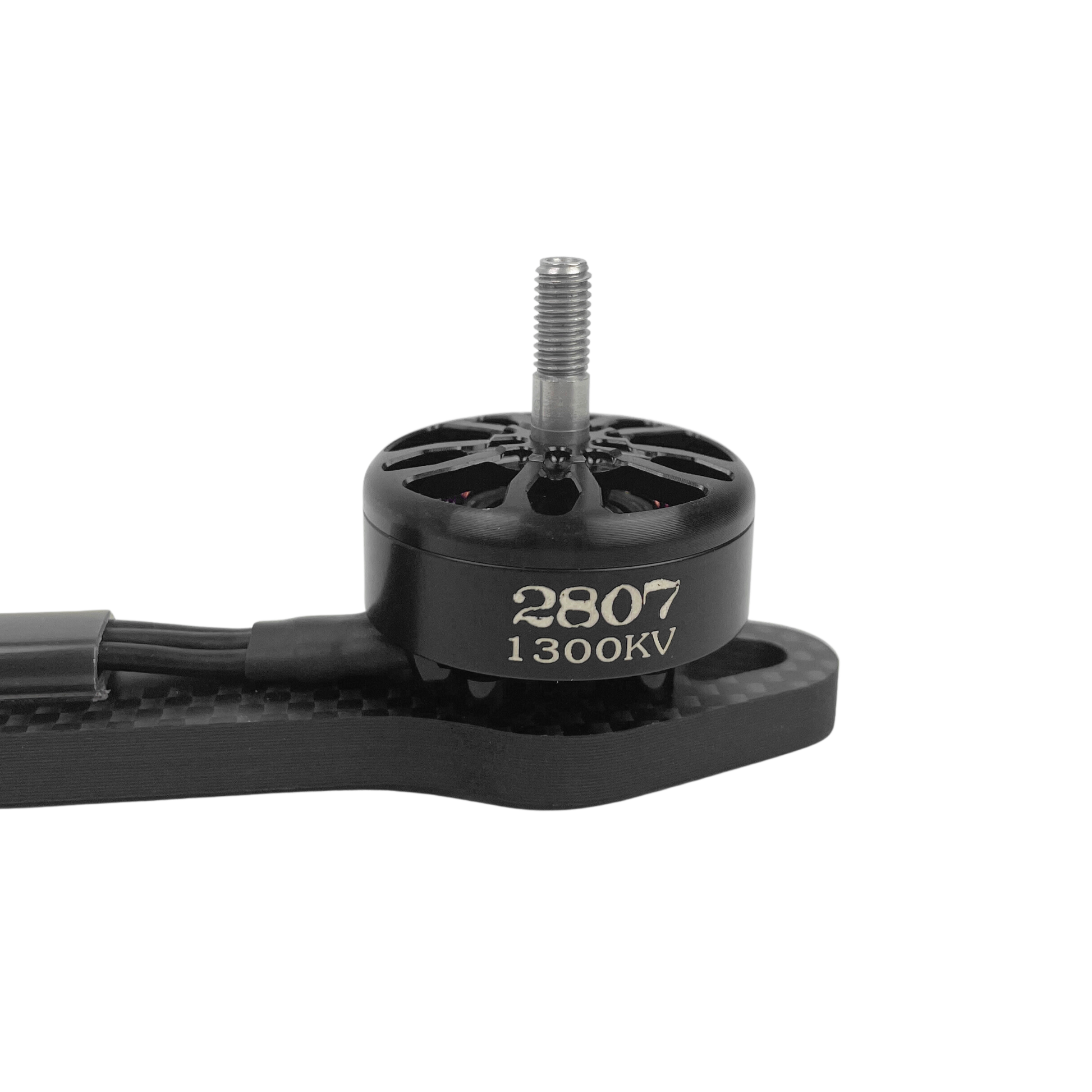

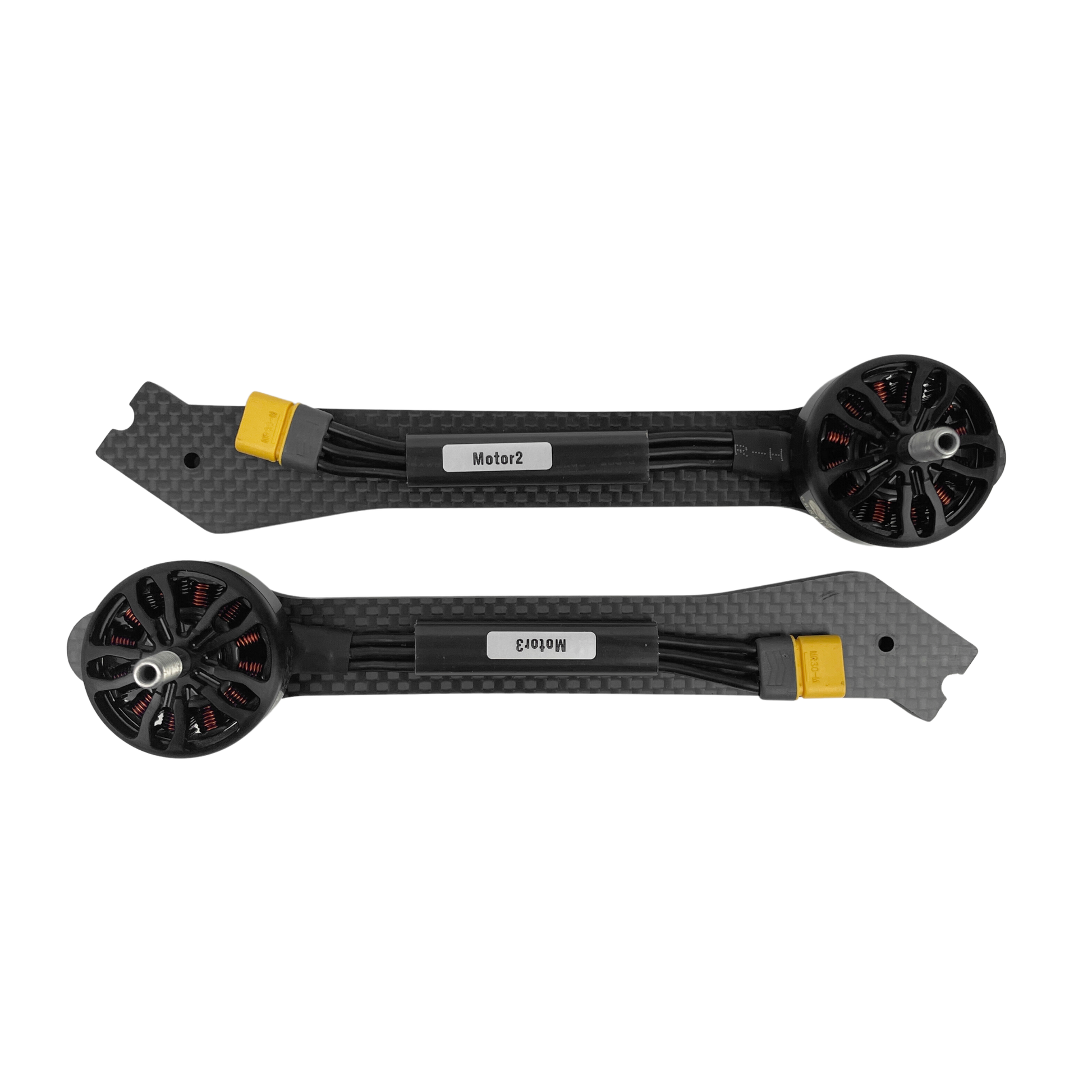

Motors: 2807 1300KV

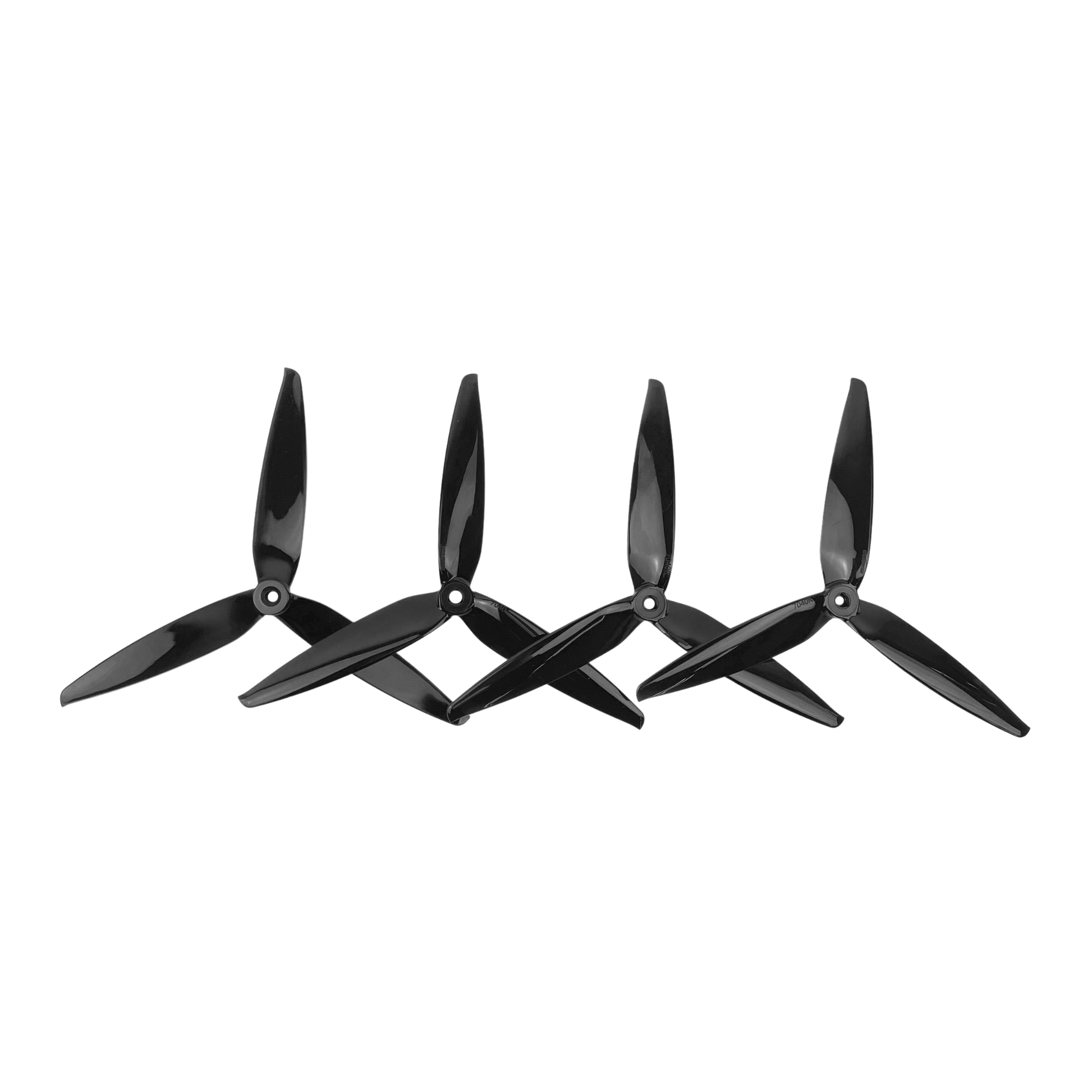

Propeller: Gemfan 7040-3
Camera: Caddx Ratel 2
Gimbal System: None
Receiver: TBS XF Nano SE 915MHz RX
GPS: None
Recommended battery: 6S-6000MAH 60C
Flight time with 8000mAh battery:
- 22 minutes (without load)
- 16 minutes (with 0.5kg load)
- 11 minutes (with 1.5kg load)
Maximum speed: 139 km/h
Maximum flight altitude (MSL): 1500m
Maximum climbing speed: 5m/s
Stable working temperature range: -10° to 50° C
Load: up to 1.5kg
Package contents:
1x Partizan PT7 TBS drone
