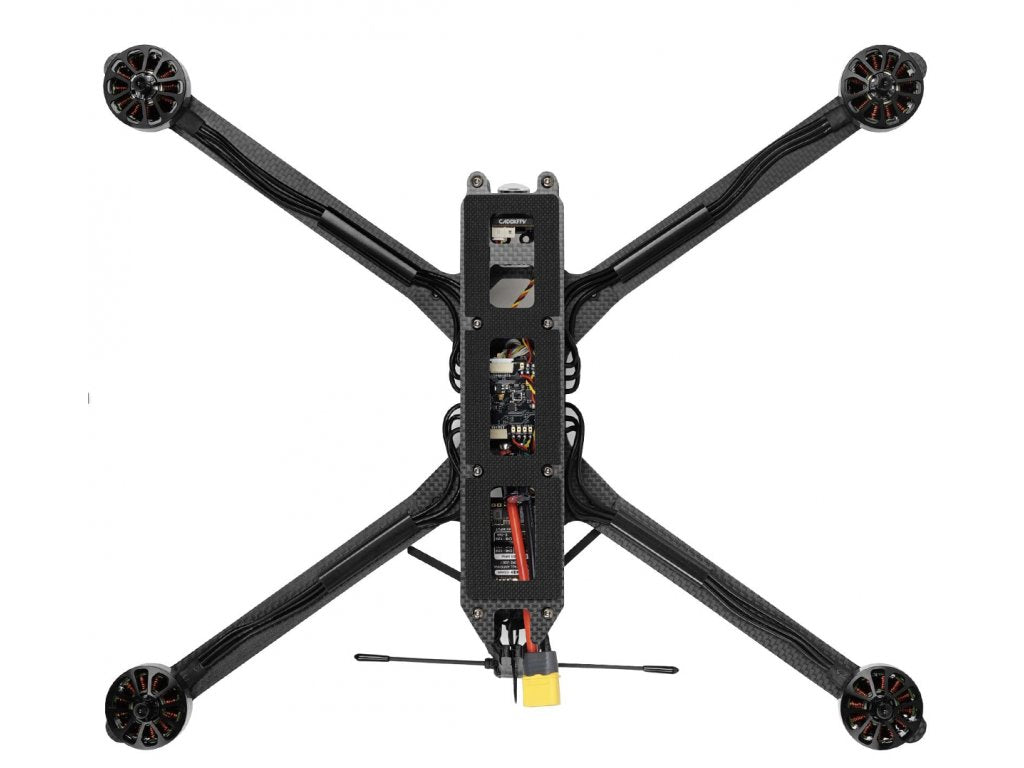

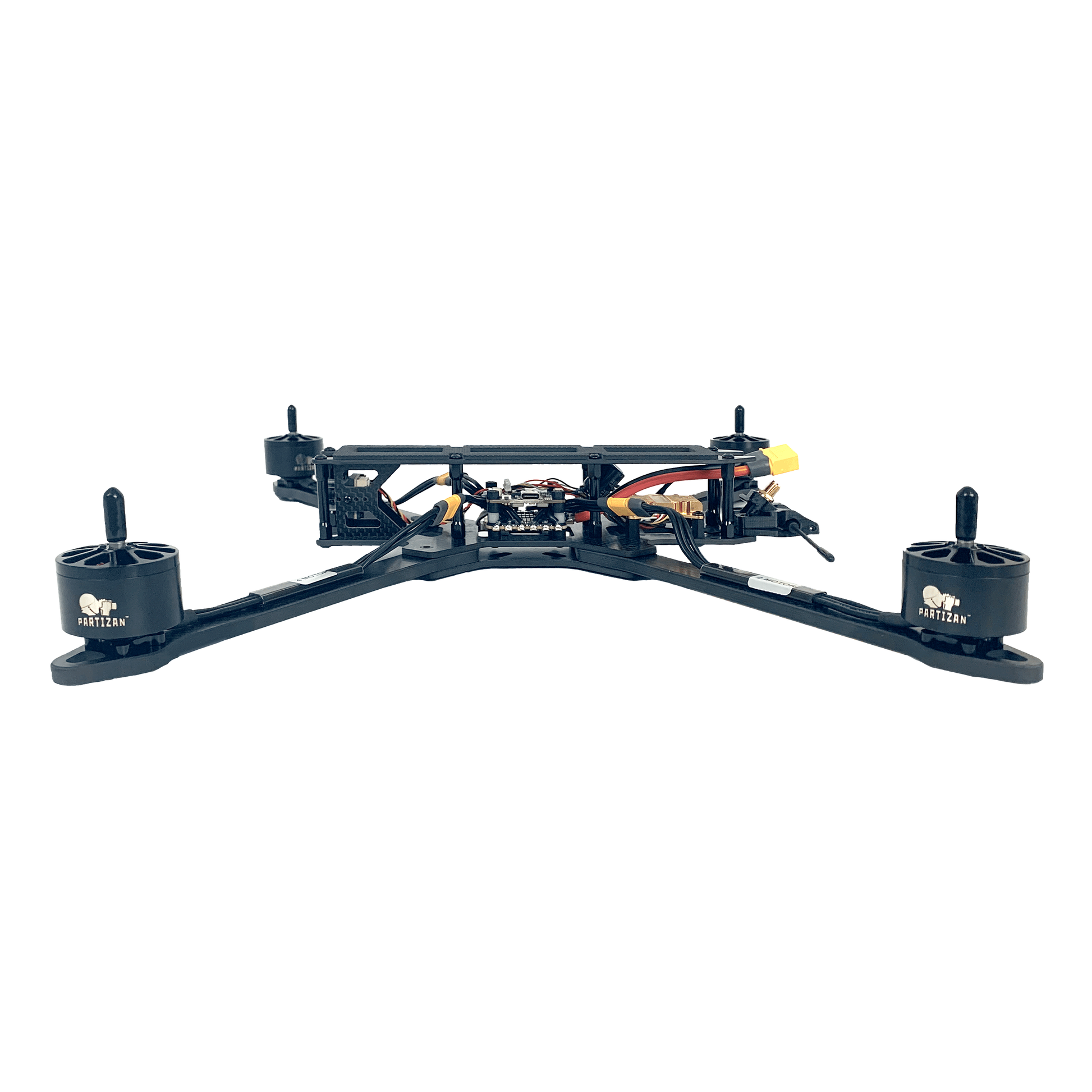

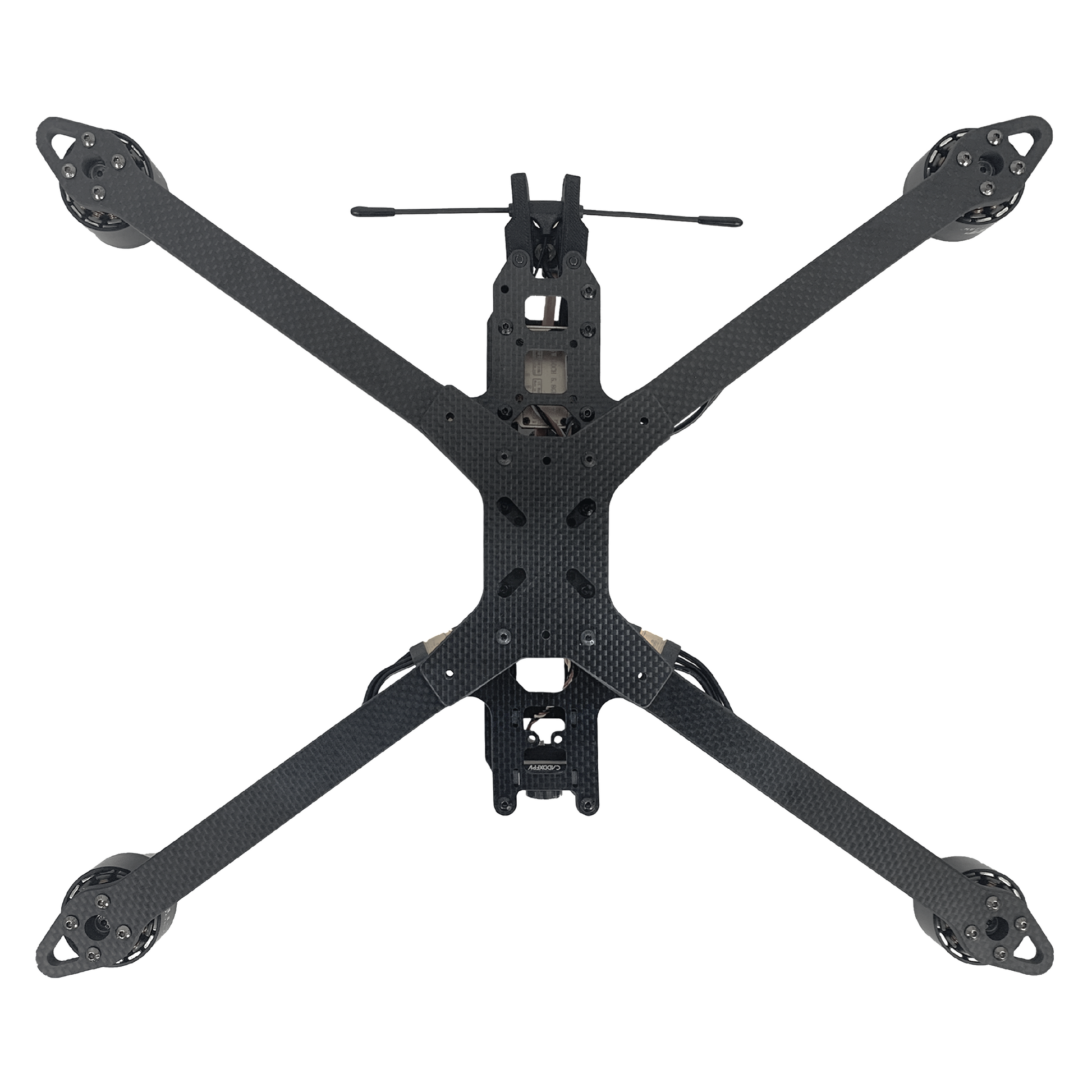

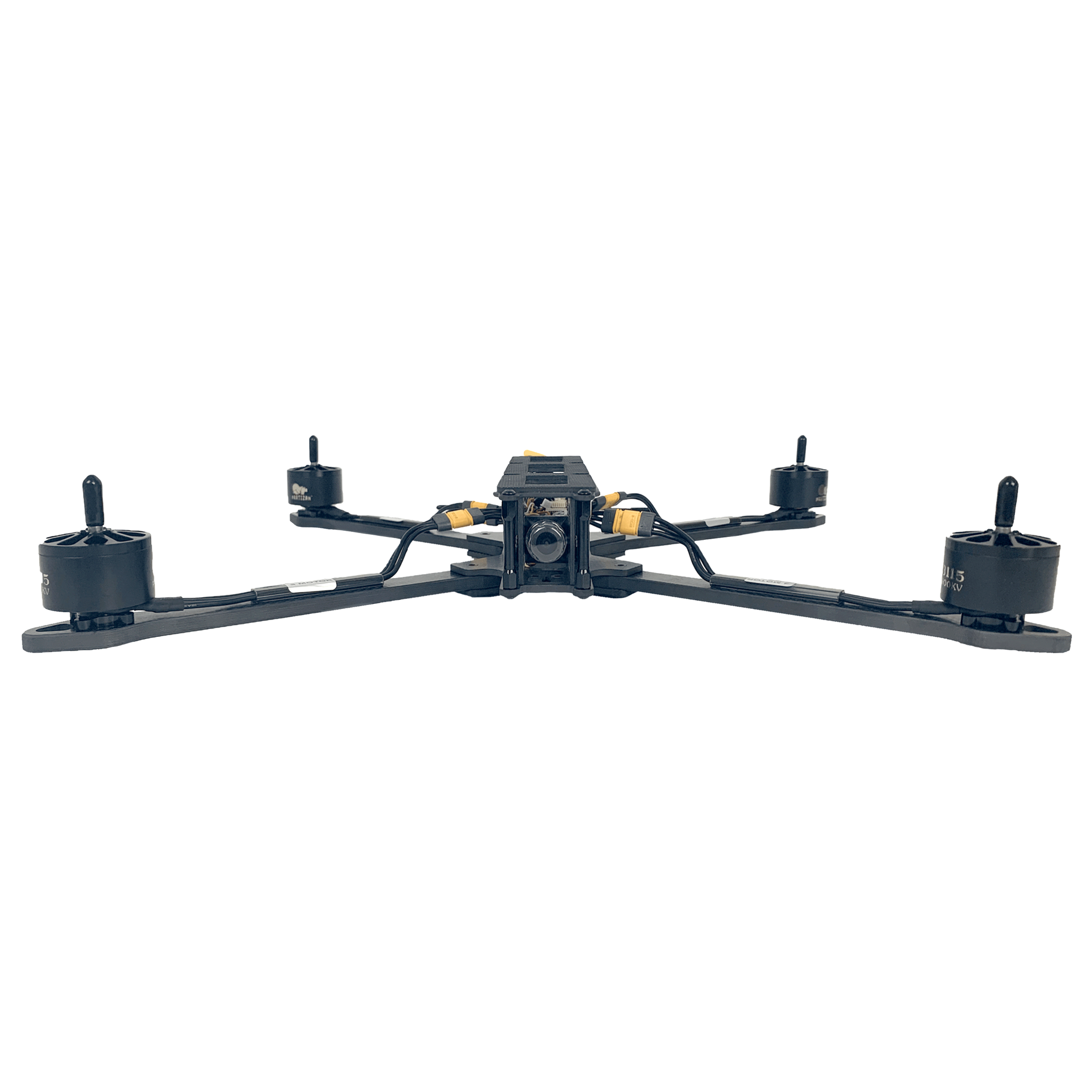

Partizan PT10 ELRS Ratel PRO
The Partizan PT10 ELRS is a high-performance 10-inch FPV drone specially designed for long-distance flights. Thanks to its durable construction and advanced technology, this drone offers exceptional stability, reliability and versatility in flight.
Specifications:
Model: Partizan PT10 ELRS Ratel PRO
Frame: 10” Premium Frame
Dimensions: 374x309x50mm
Weight: 750g
Wheelbase: 428mm
Arm Thickness: 6mm
Bottom/Top Plate Thickness: 2mm
Stack: F405 (F4 FC + 60A ESC 4in1)
VTX: 5.8G 2.5W
VTX Antenna: Ultra Long 5.8G RHCP SMA 160mm
Motors: Partizan 3115 900kv
Propeller: Gemfan 1050-3
Camera: Caddx Ratel PRO 1500tvl
Gimbal System: None
Receiver: ELRS 915Mhz
GPS: None
Recommended battery: 6S 8000mAh Lipo
Flight time with 8000mAh battery:
- 38 minutes (without load)
- 20 minutes (with 2.5kg load)
- 15 minutes (with 3.5kg load)
Maximum speed: 145km/h
Maximum flight altitude (MSL): 6000m
Maximum climb rate: 15m/s
Stable working temperature range: -20℃ to 50℃ (-4°F to 122°F)
Load: up to 3.0kg
Package contents:
1x Partizan PT10 ELRS Ratel PRO drone
