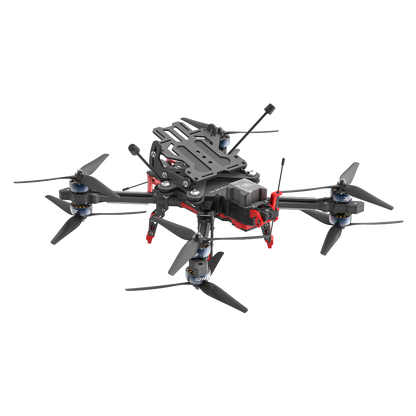

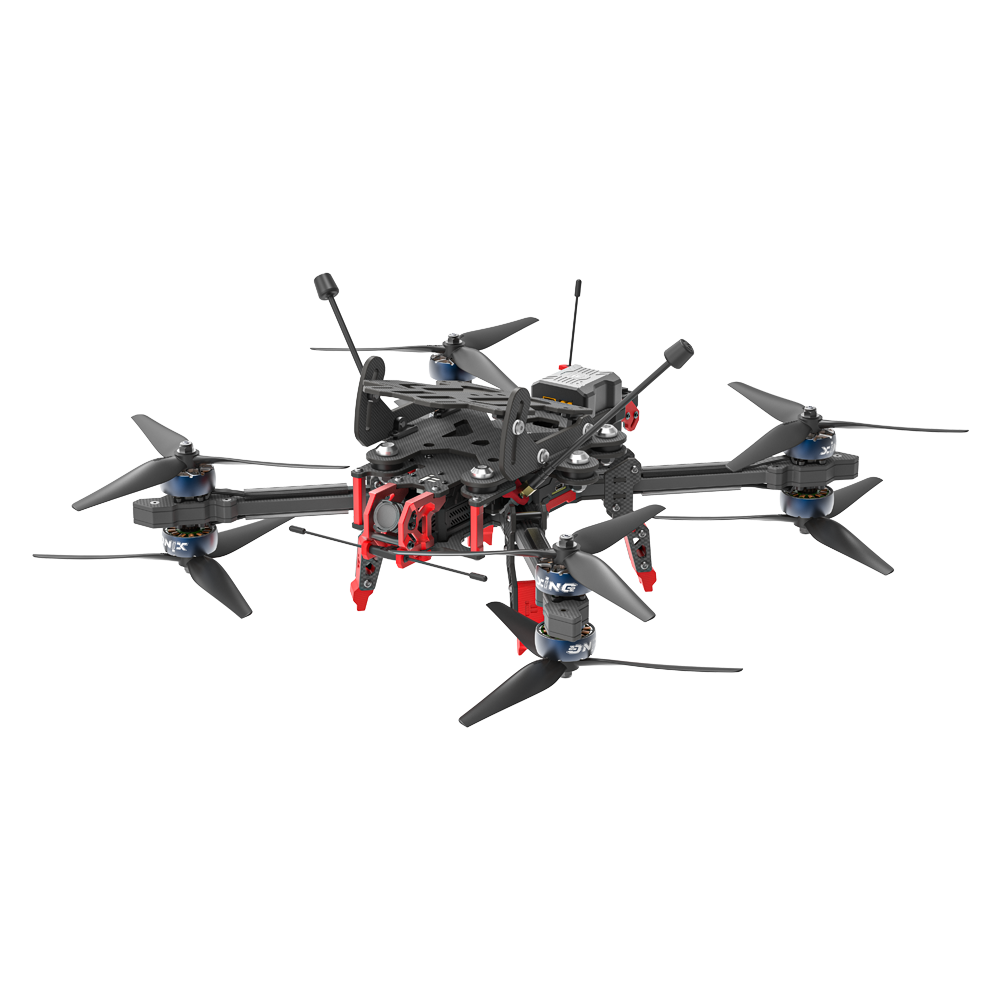

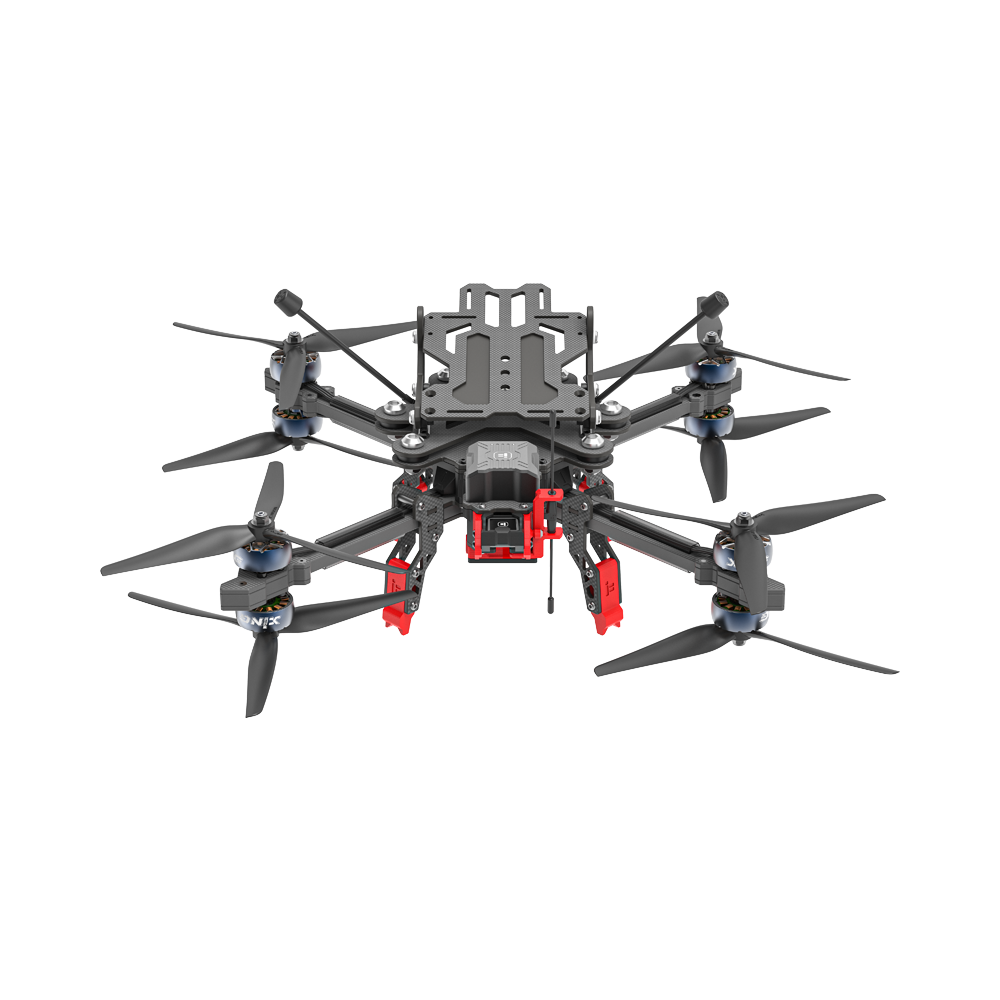

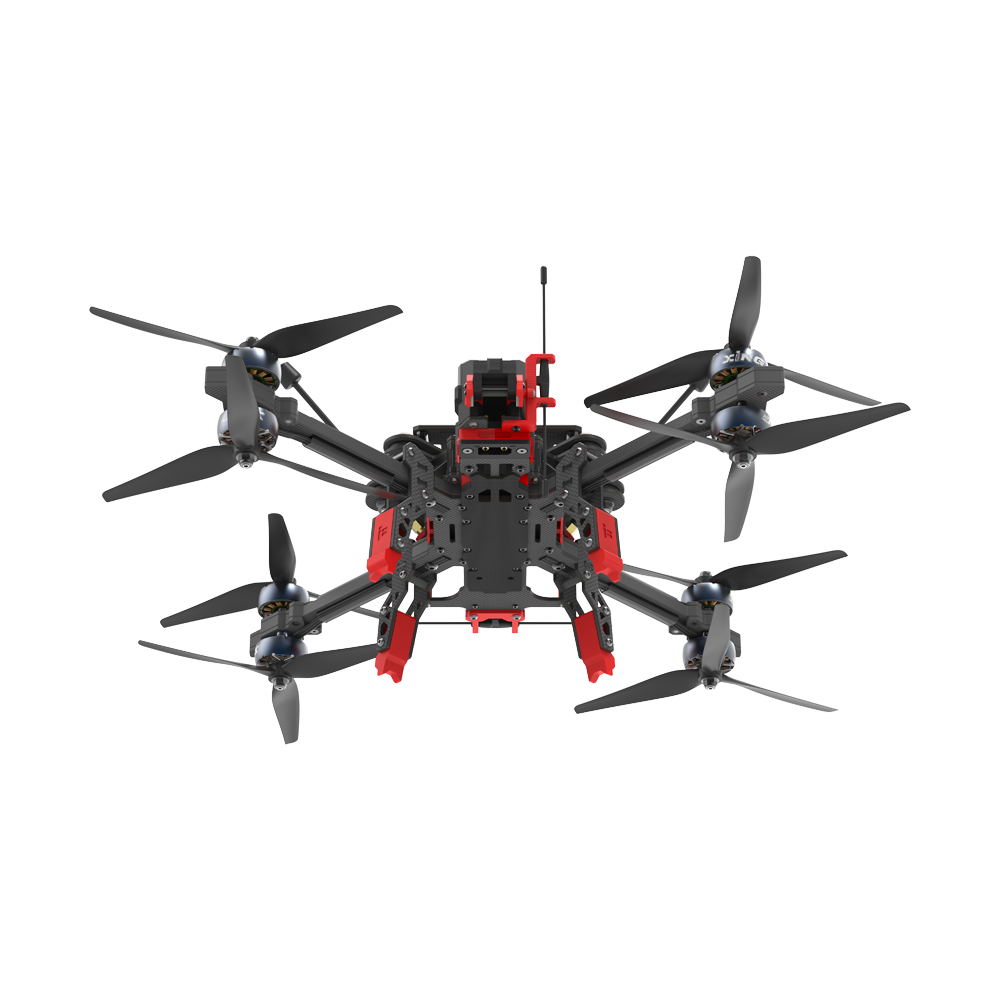

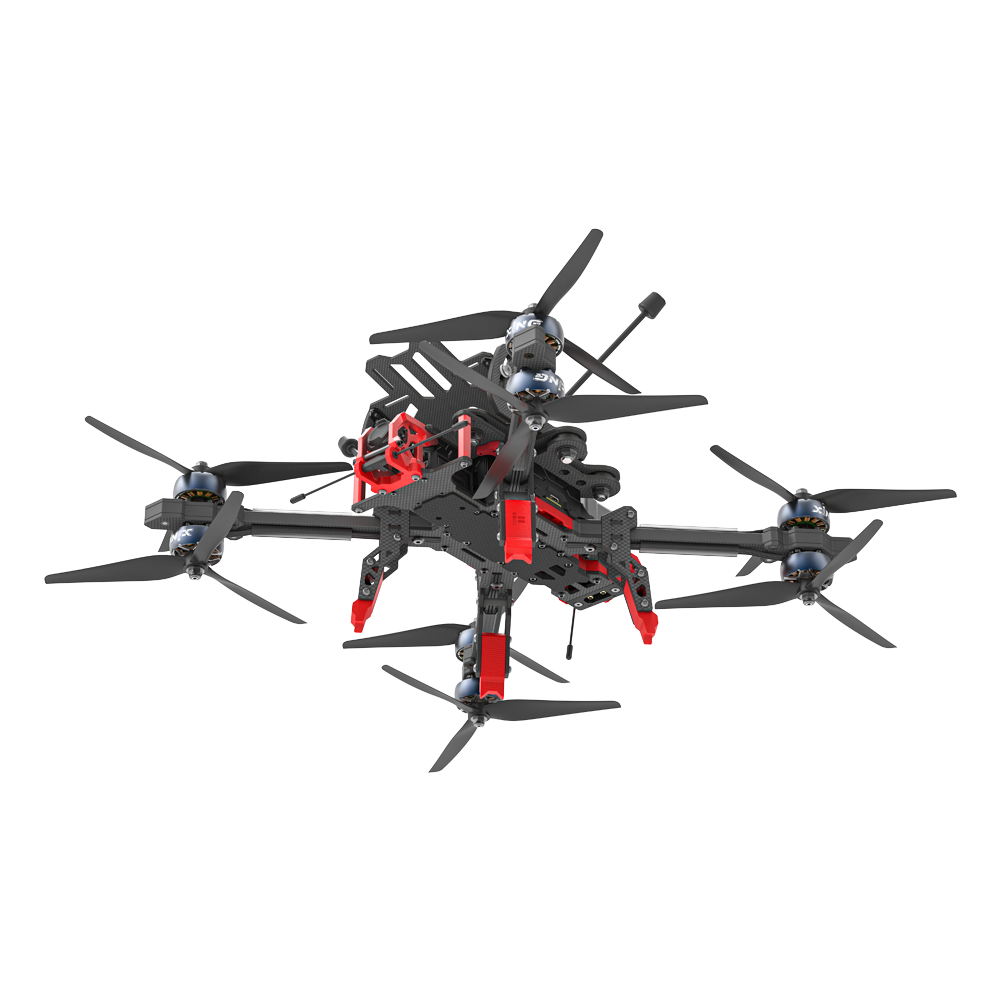

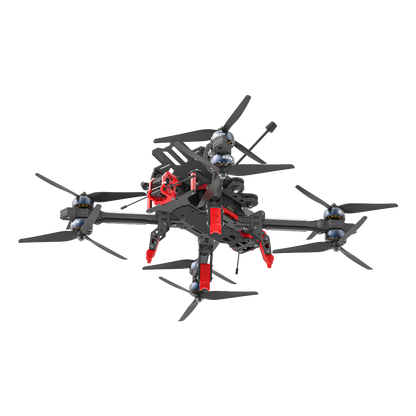

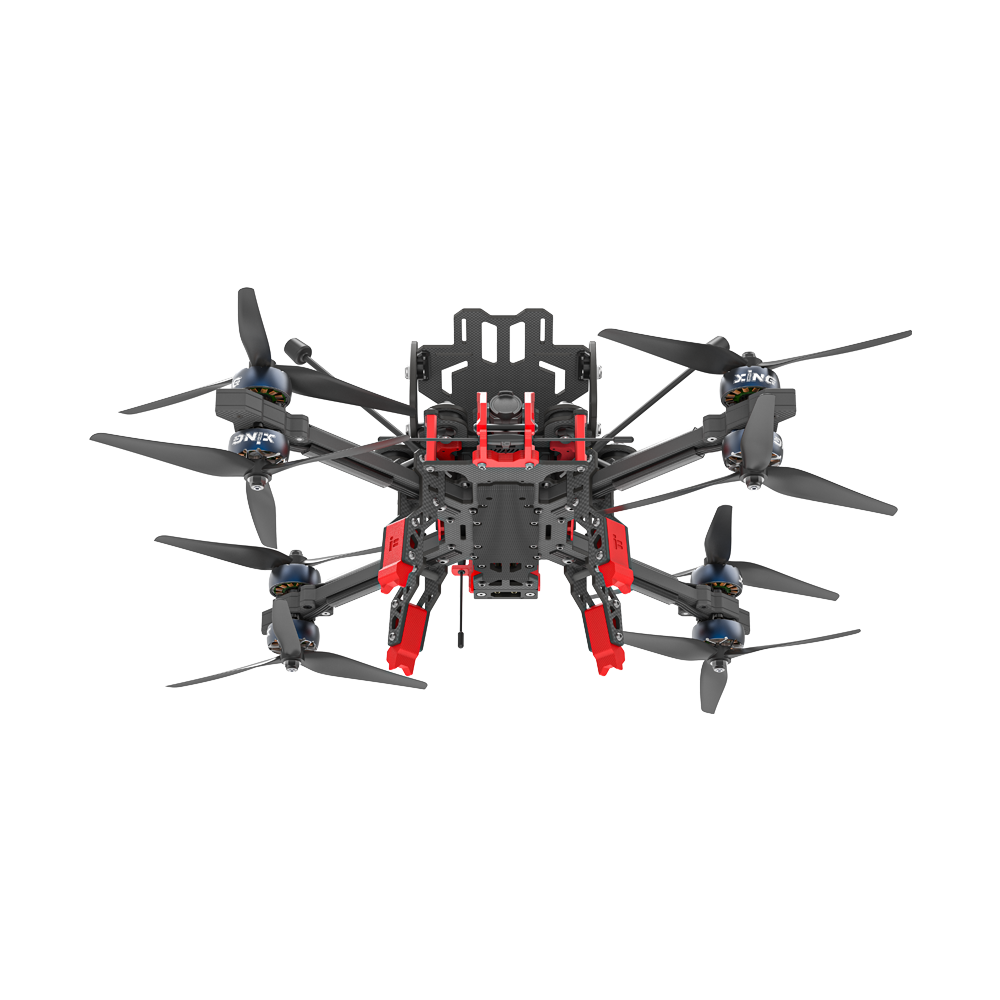

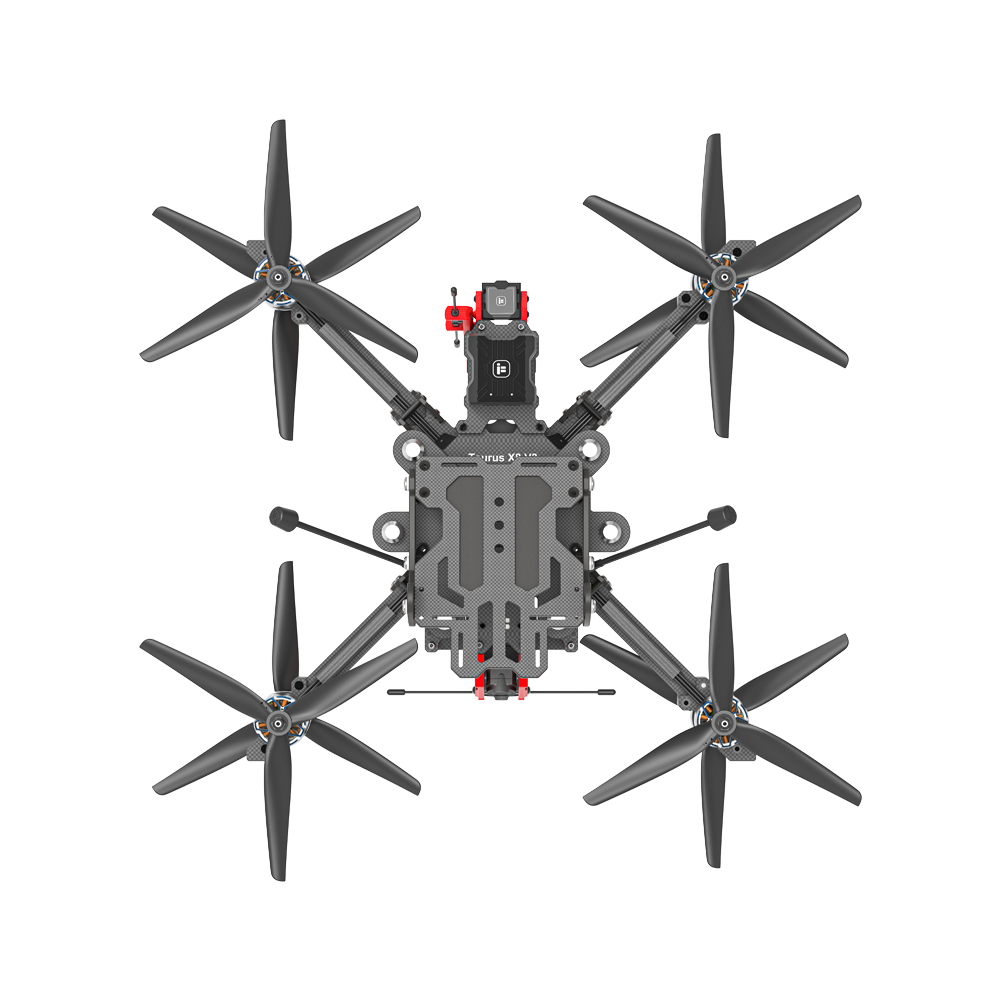

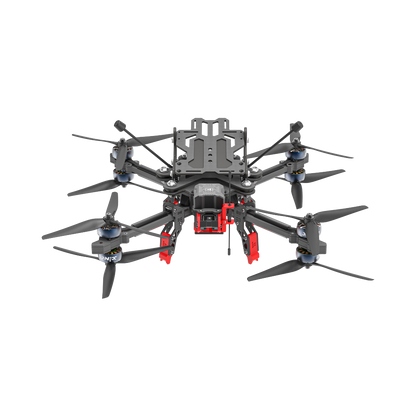

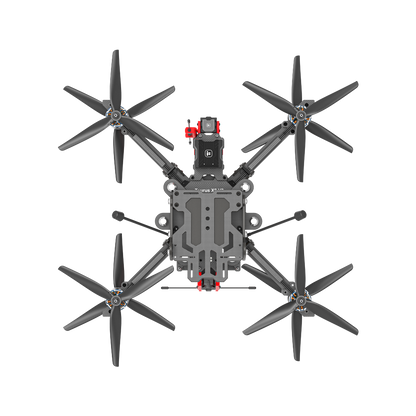

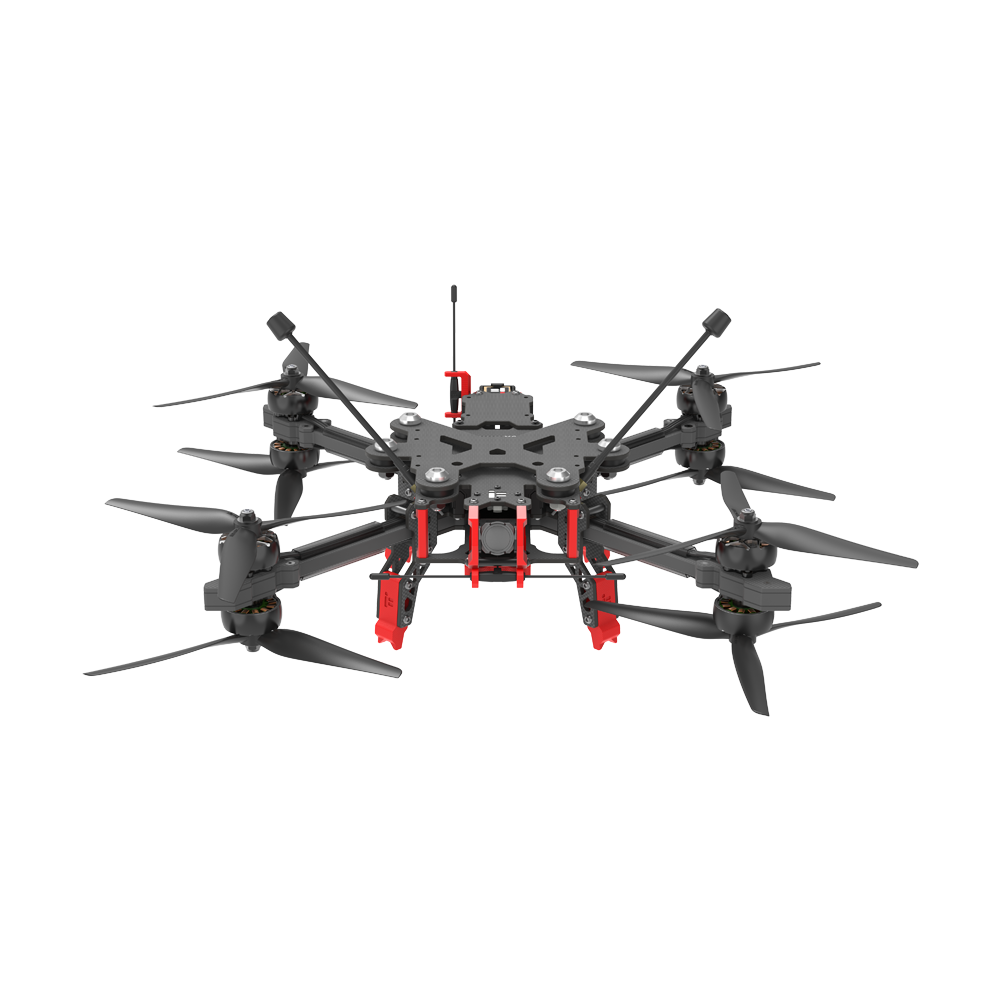

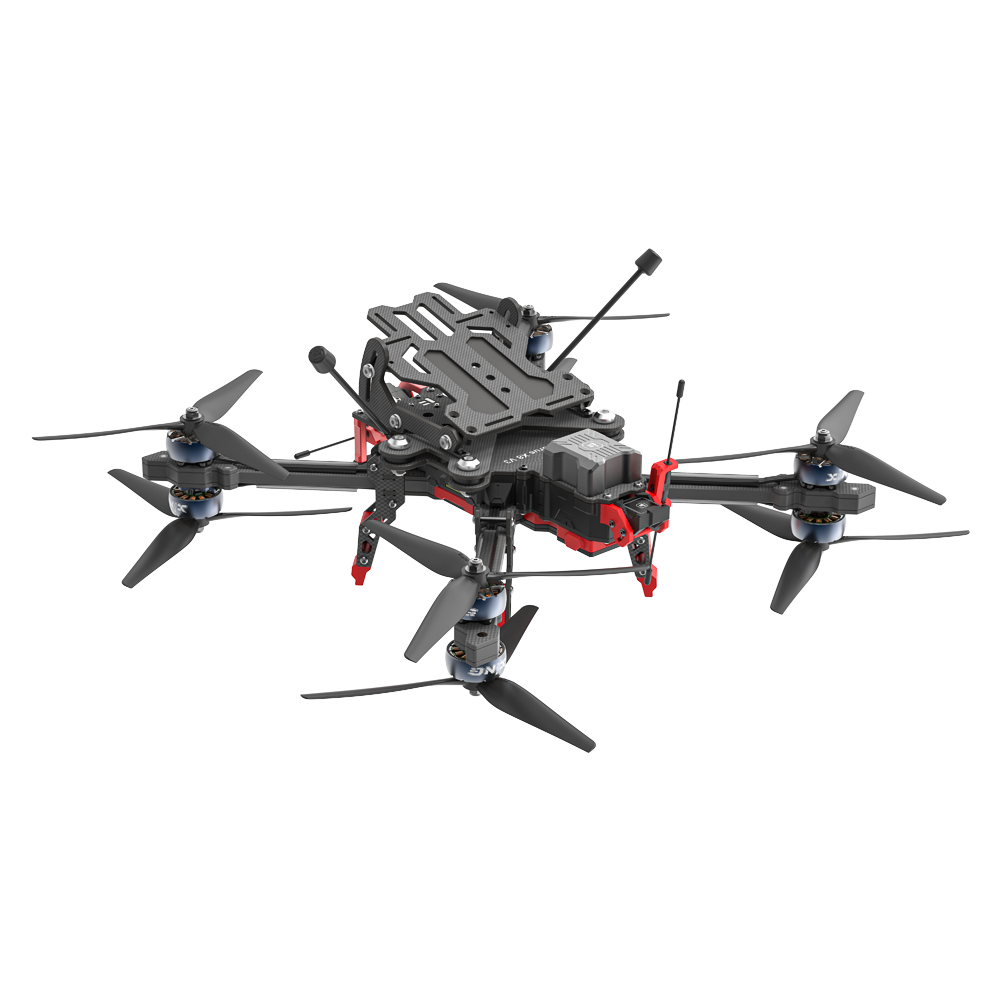

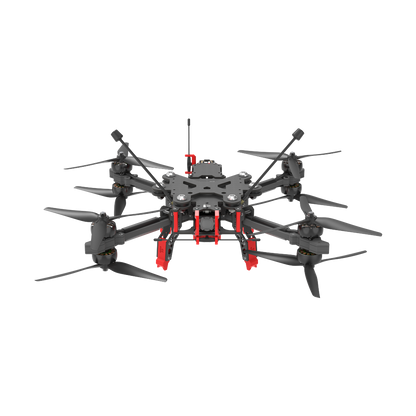

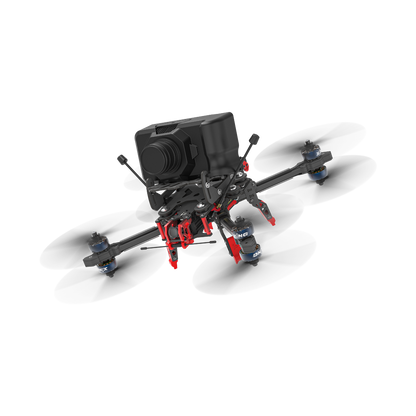

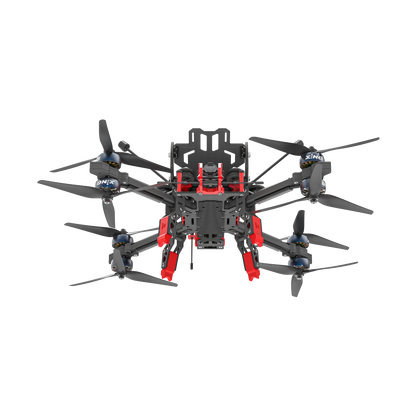

Taurus X8 V3 HD O3 6S BNF Air Unit (TBS)

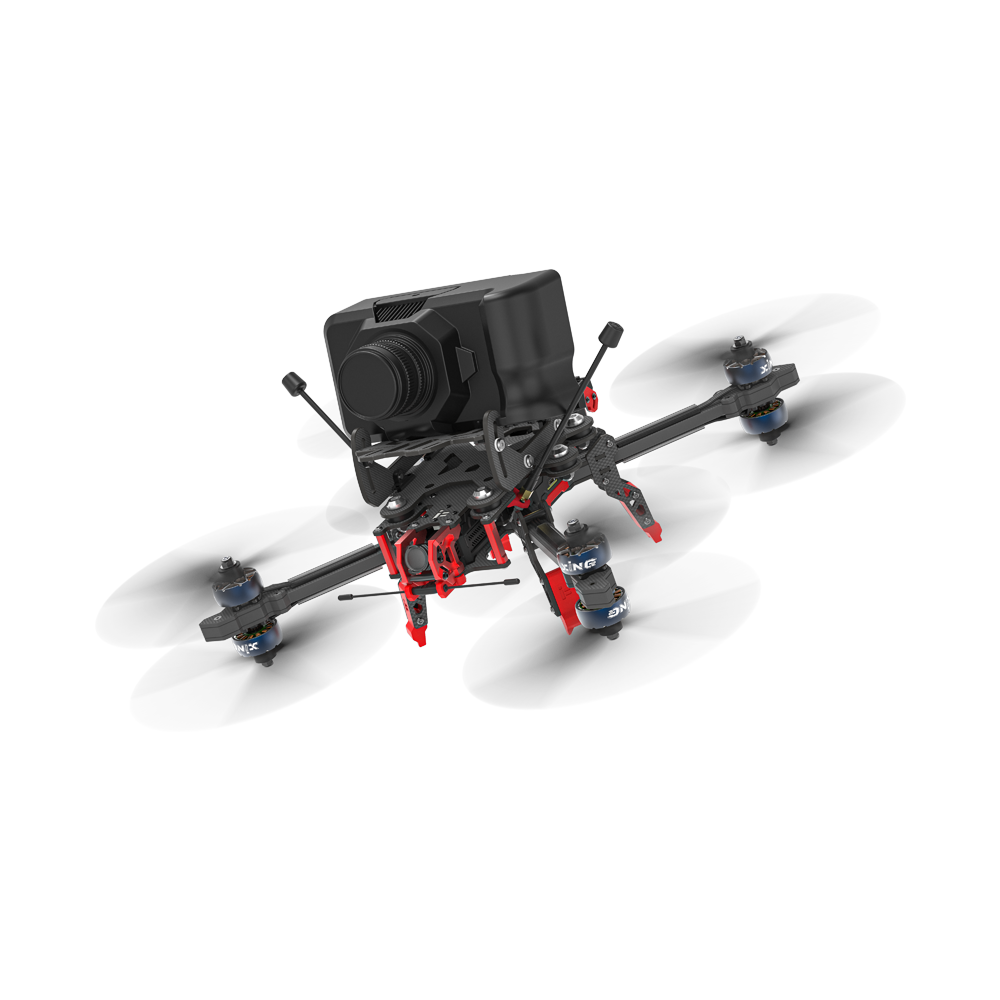

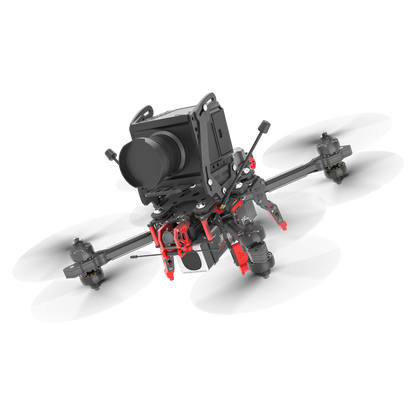

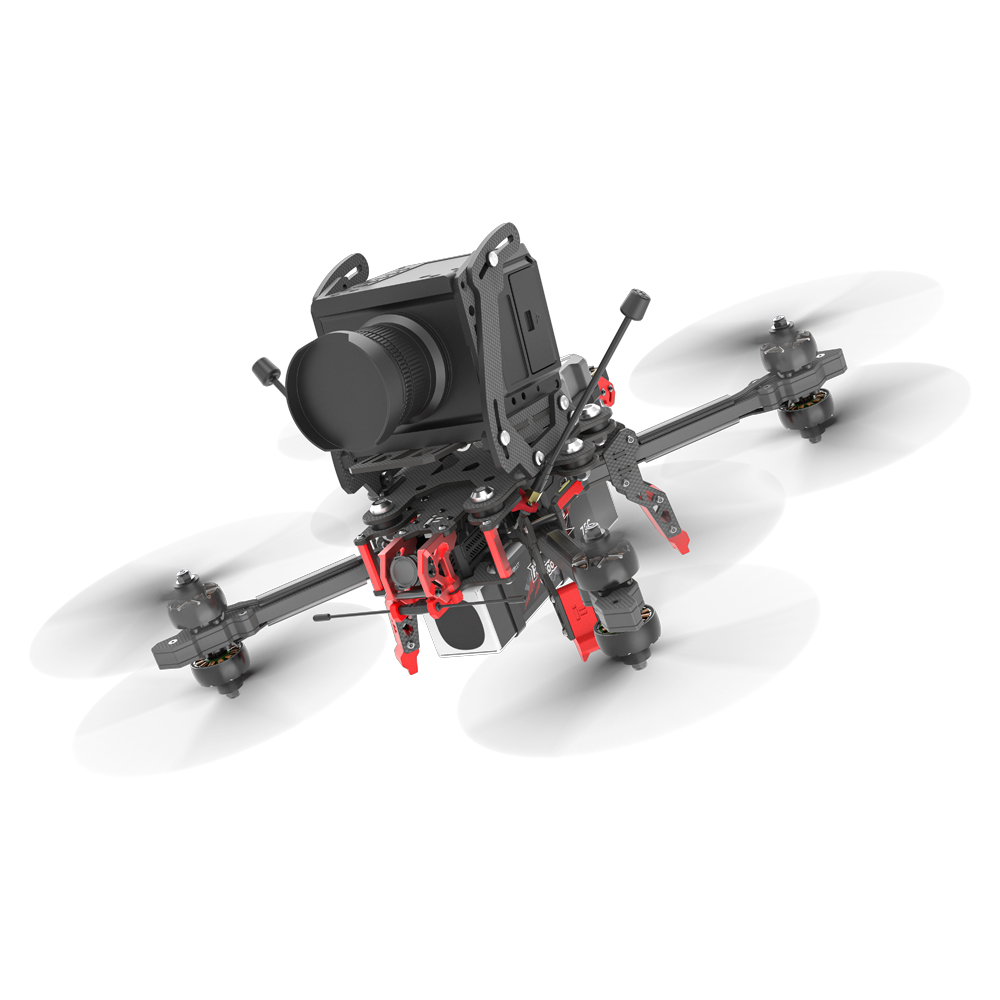

The iFlight Taurus X8 V3 O3 BNF with a maximum payload of 2kg is designed for professionals and offers a softly damped universal platform for DSLR or cinema cameras such as Red Komodo, Zcam, BMPCC, etc., with a DJI FPV HD transmission system. It features redundant ESC and motor tuning for maximum performance and safety. The GPS rescue function automatically takes over in the event of signal interference, loss of radio signal or complete failure of FPV transmission. Integrated TPU chassis provides height and protection when landing. Thanks to the adjustable mounting angles and the carbon base of the camera dampened by a silicone ball, it ensures stable shots without vibrations. Additional software stabilization or hardware modules such as SteadXP are recommended for perfect movie footage.
Function:
- Large size XING2 3110 // Powerful engines with extreme lift and flight performance
- Redundant ESC and motor configuration
- Pre-installed GPS module (BF GPS Rescue or INAV GPS RTH function available)
- DJI O3 HD Air Unit Low Latency Digital Transmission// 4K Stabilized Video with 155° Ultra Wide Angle
- Universal camera mount and accessories for a wide range of cameras to install
- Standard battery will be changed to Fullsend 5600mAh 95C battery
Specifications:
Product name: Taurus X8 V3 O3
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 2-8S 80A 4-IN-1 ESC (without CNC Alum Cover)
Video transmission: DJI O3 AIR Unit
Frame: wheelbase 400 mm
Motor: XING2 3110 1250KV motors
Propeller: HQ 8043 propeller
Receiver option: TBS Crossfire Diversity NANO RX
Weight: 1634±10g
Takeoff Weight: Approx. 2486±20g (with 6S 4500mAh battery)
Dimensions (L×W×H): 283×283×112 mm
Diagonal Distance: 400 mm
Maximum speed: 150 km/h (manual mode)
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 5 minutes with a load of 1.5 kg and a 6S 4500 mAh battery
Maximum flight distance: 5 km
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antennas
GNSS: GPS + Galileo
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5 mm
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
End-to-End latency
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
The package includes:
1 x Taurus X8 V3 O3 BNF
8 x HQ 8X4X3 CW Propellers + 8 x HQ 8X4X3 CCW Propellers (Color May Vary)
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 male to XT60 female adapter cable
1 x FullSend 5600mAh 95C 6S XT90 battery
2 x iFlight Lipo Strap 20*400mm (Black)
2 x iFlight Lipo Strap 20*500mm (Black)
1 x CNC aluminum alloy cam holder
1 x XT90 Smart Smoke Stopper
1 x Propeller Wrench
