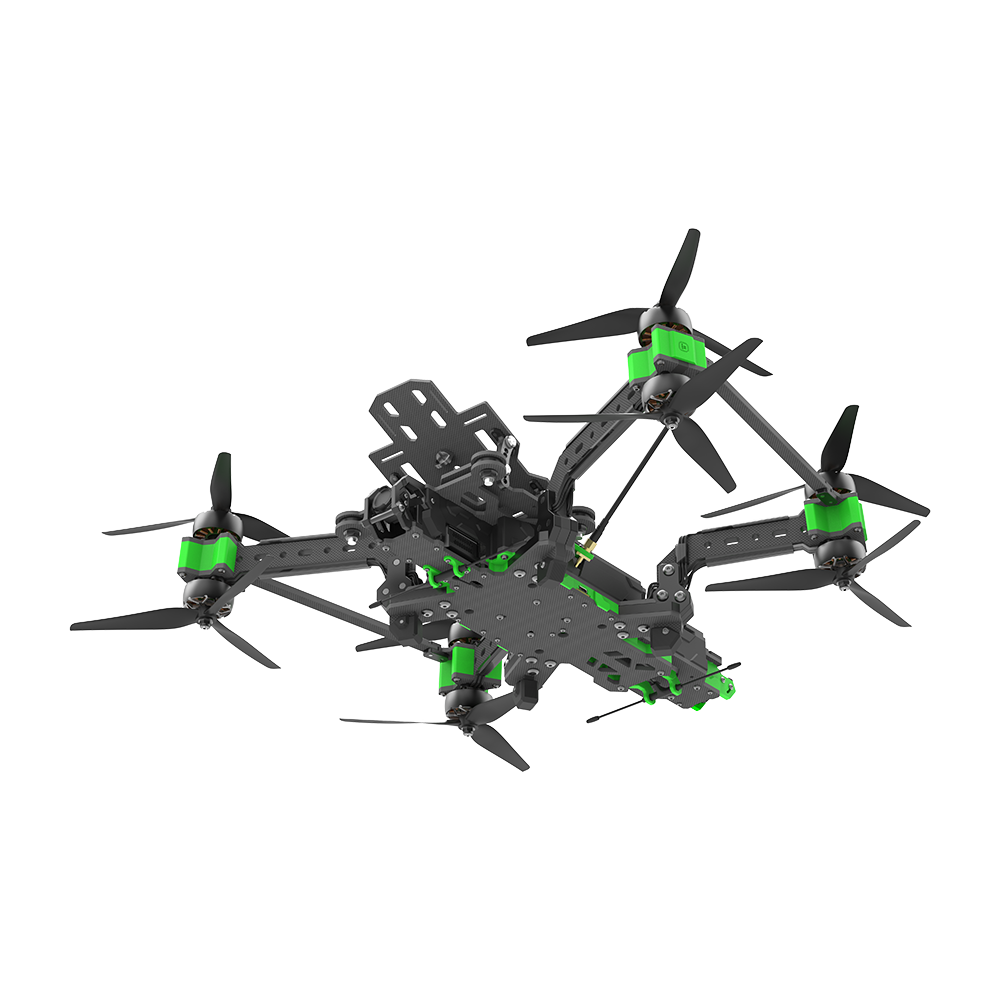

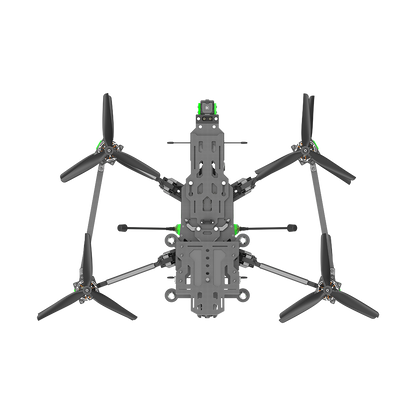

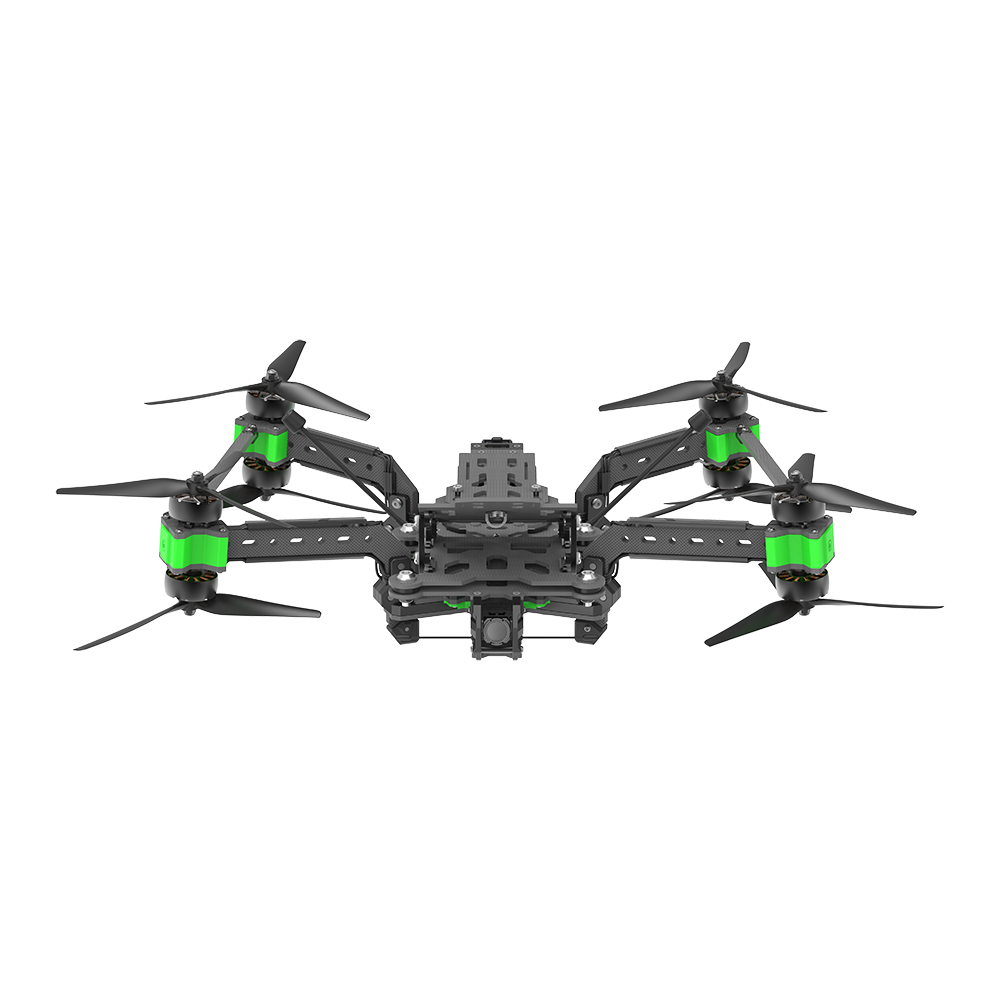

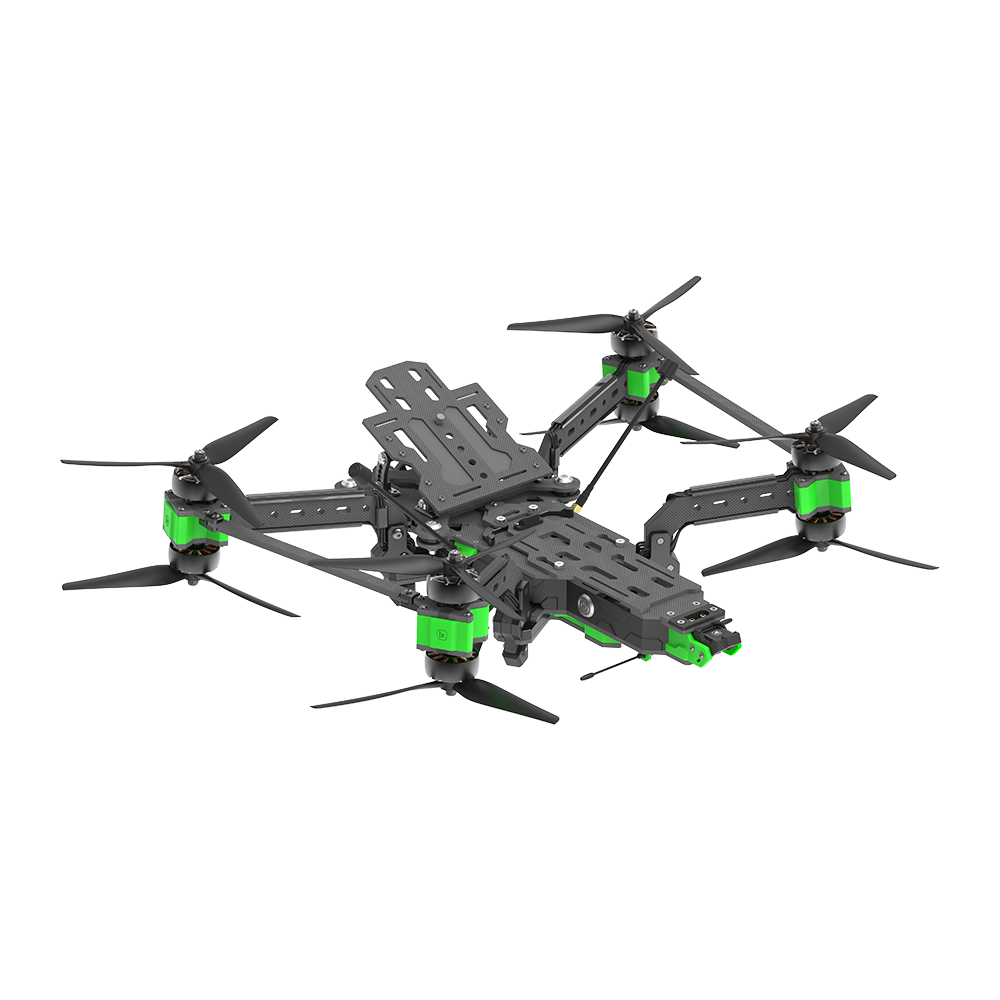

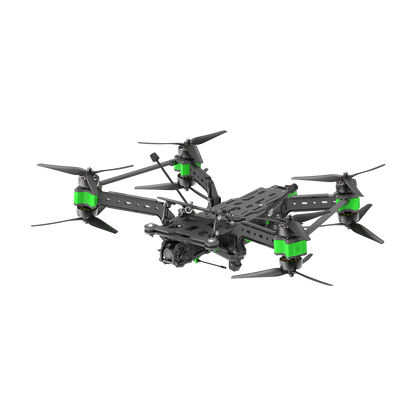

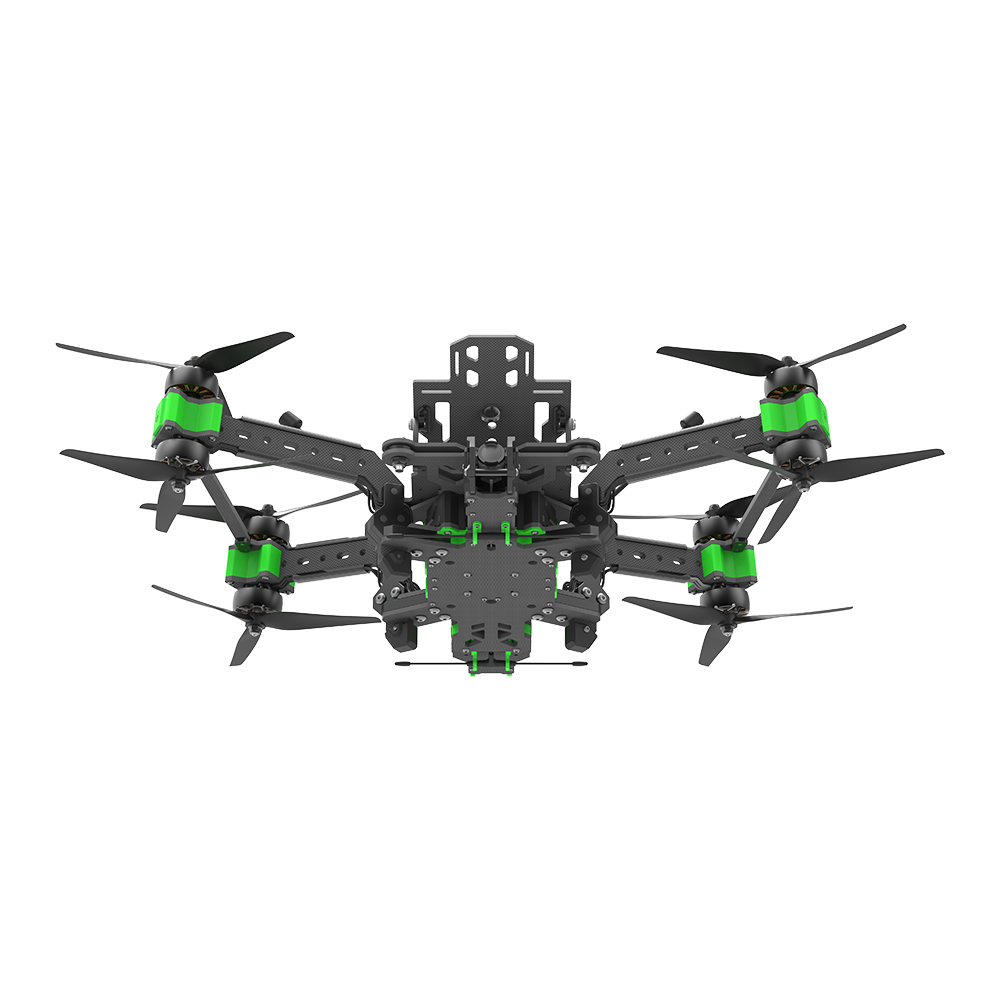

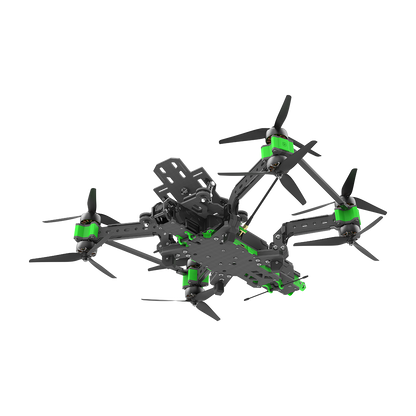

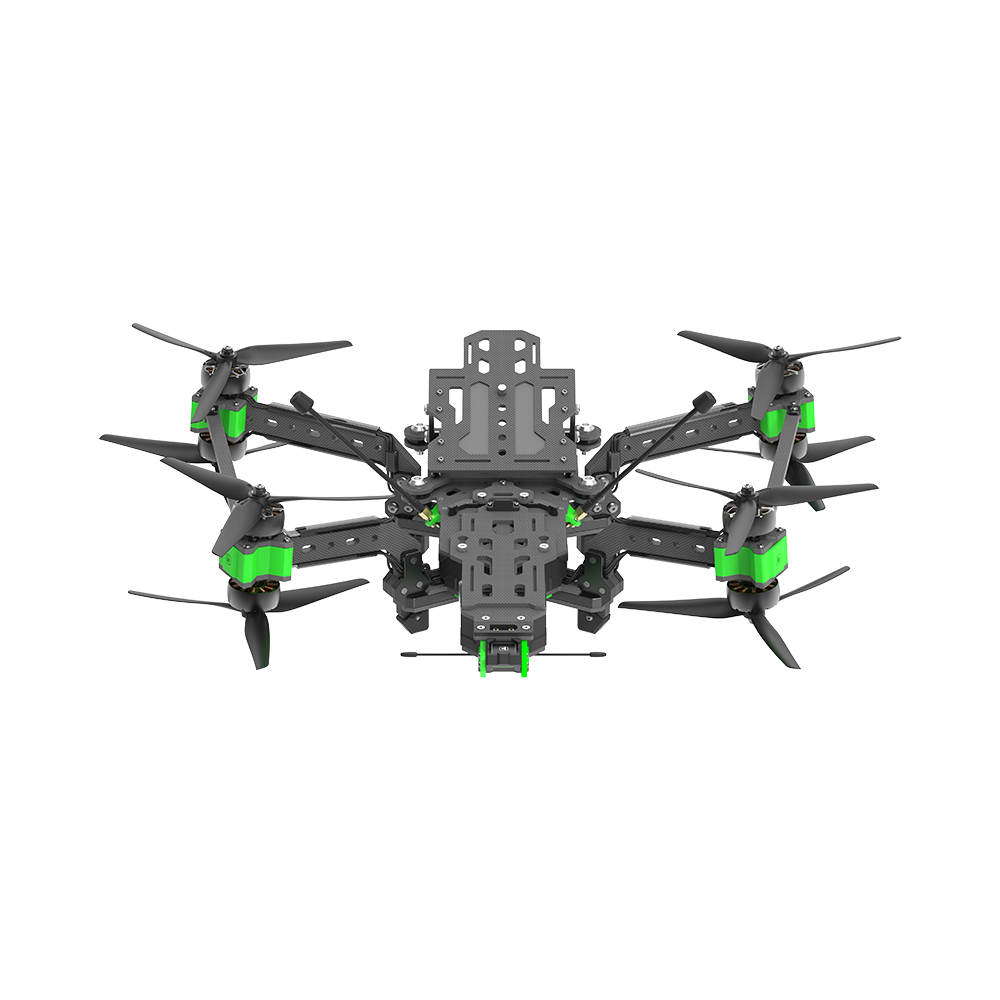

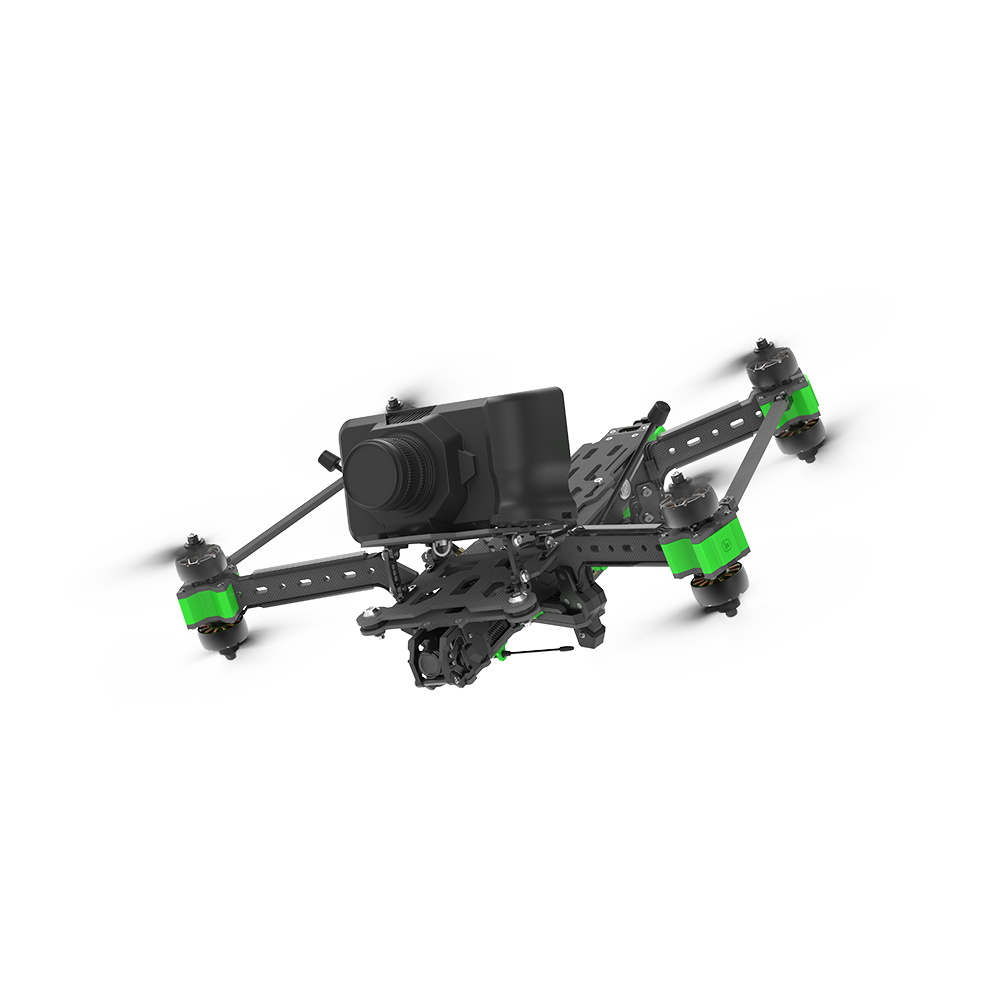

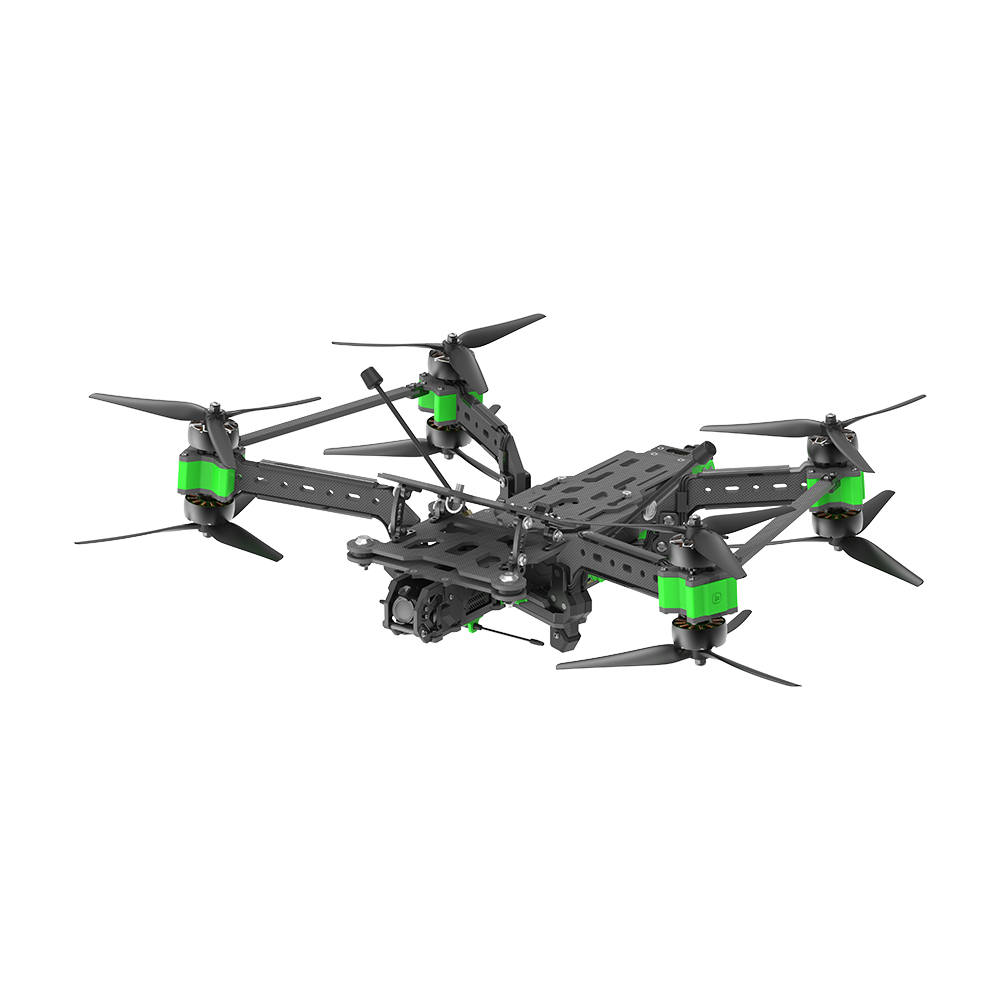

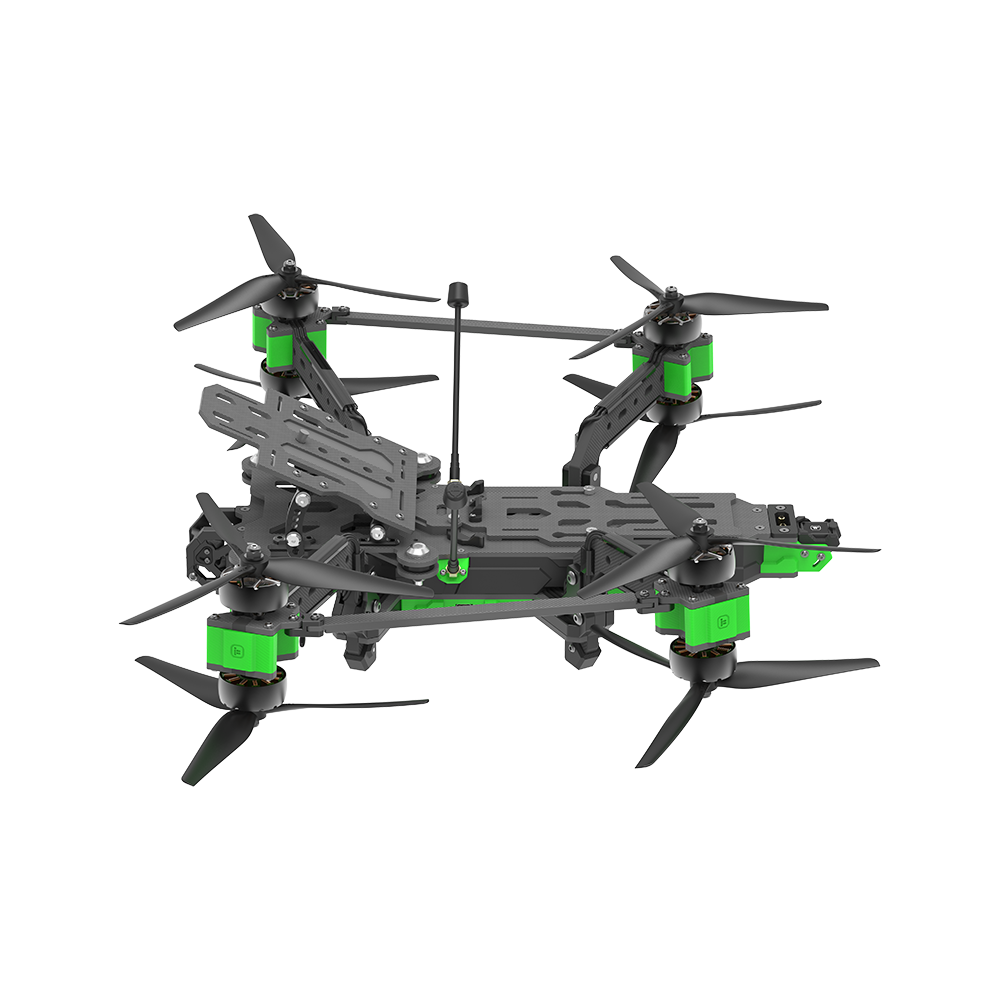

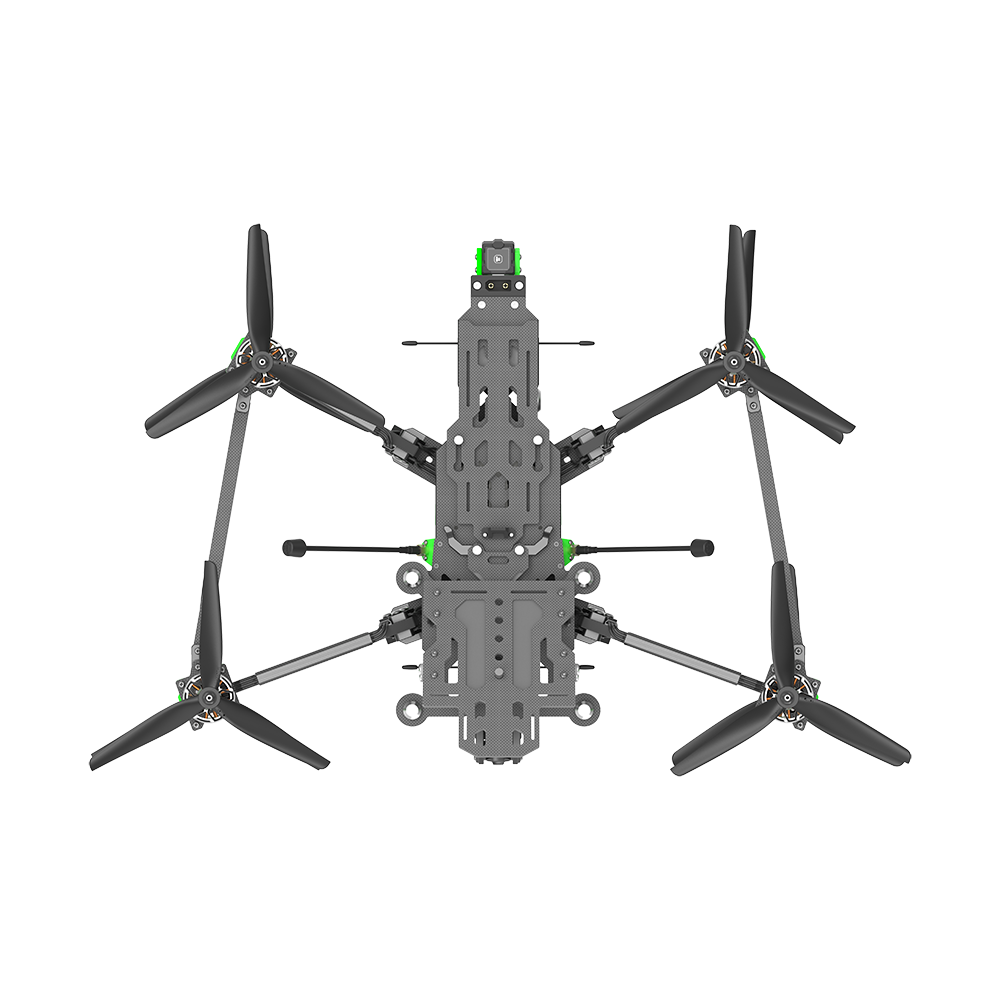

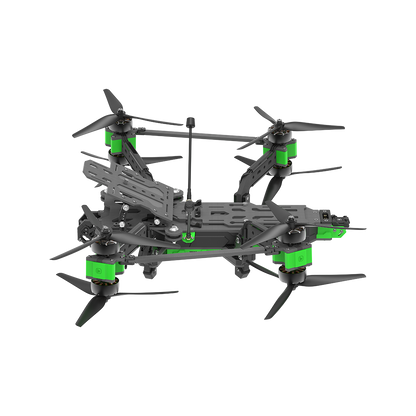

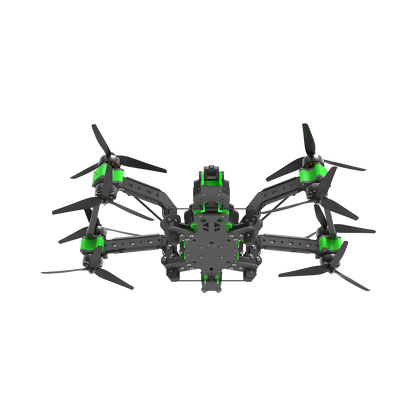

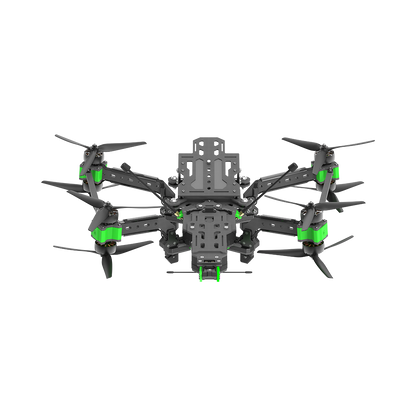

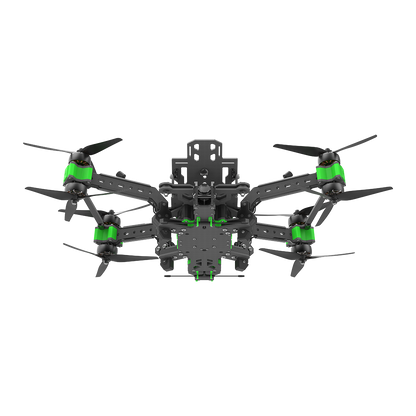

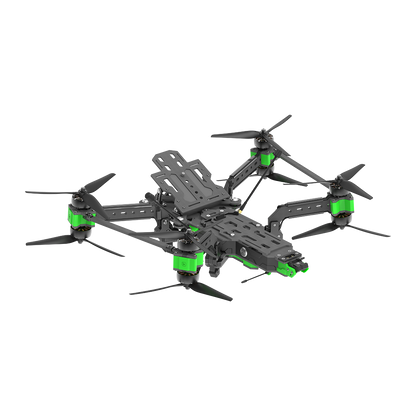

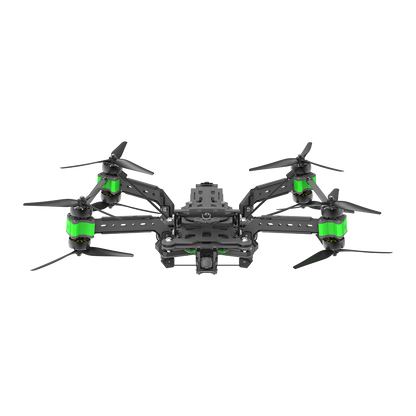

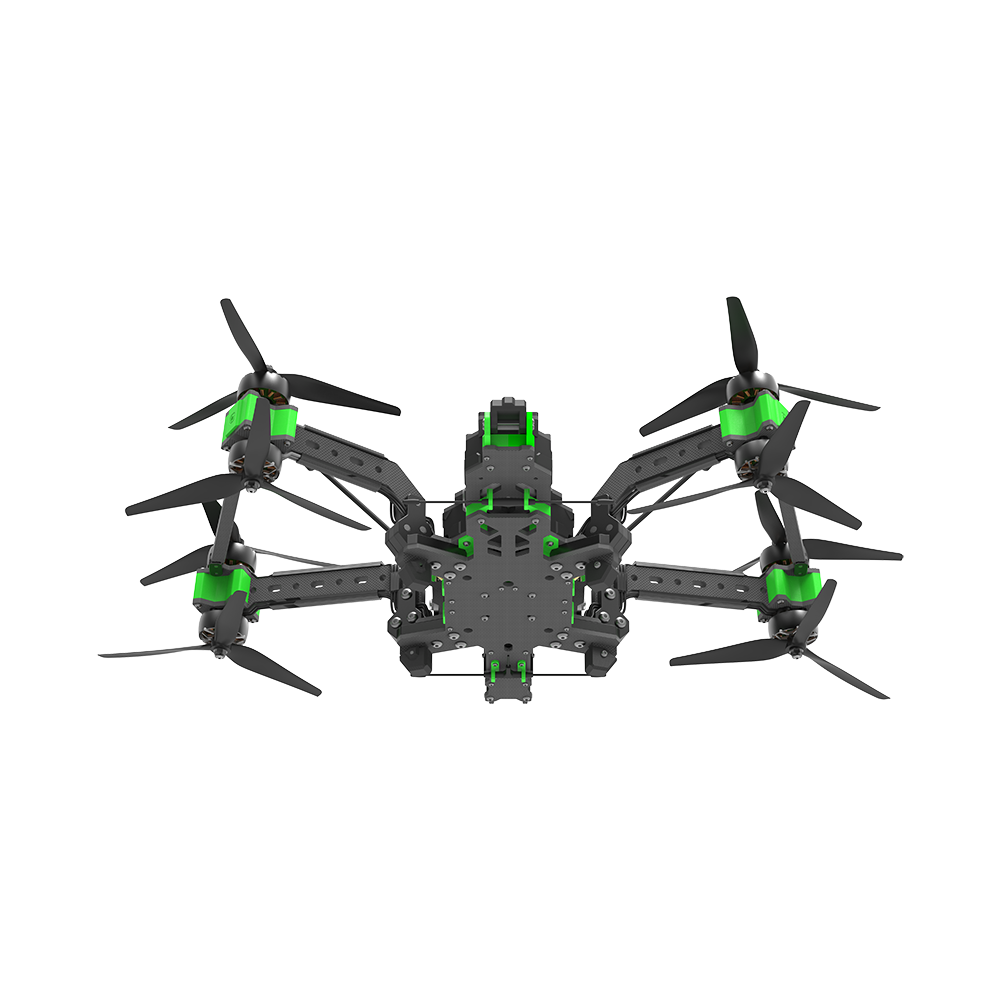

Taurus X8 Pro HD O3 8S BNF air unit (without battery and receiver)
The new iFlight Taurus X8 Pro O3 BNF is designed for carrying heavy loads and provides a stable platform for DSLR or cinema cameras such as Red Komodo, Zcam, BMPCC, etc., with a DJI FPV HD transmission system. With 8 individual X-Class ESCs, it ensures maximum reliability and performance, which is essential for expensive cinema equipment. The GPS rescue function automatically takes over in case of interference or signal loss and guides the drone back to the take-off point. Integrated TPU chassis offers height and landing protection.

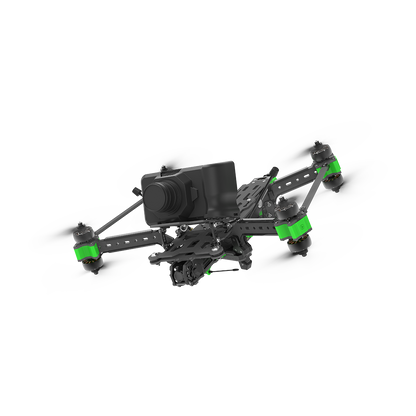

Its maximum payload of 2 kg and adjustable mounting angles ensure a perfectly balanced center of gravity. The top 8S battery acts as a power source and counterweight. CNC aluminum camera mount offers secure placement for consistent results. Our carbon camera base dampened with silicone balls reduces vibration for smooth shots. For perfect footage, we recommend additional software stabilization (Reelsteady, Gyroflow, etc.) or a hardware module (for example, SteadXP).
Function:
- Large size XING2 3314 // Powerful engines with extreme lift and flight performance
- 8S power system // More power and speed
- 8x one X class ESC motor controller for more reliability
- Redundant iFlight ESC Commander PCB // Power distribution board with high capacity, filtering and heat dissipation
- Pre-installed GPS module (BF GPS Rescue or INAV GPS RTH function available)
- DJI O3 HD Air Unit Low Latency Digital Transmission// 4K Stabilized Video with 155° Ultra Wide Angle
- Secure battery plug with spark filter
- Universal camera mount and accessories for a wide range of cameras to install
Specifications:
Product Name: Taurus X8 Pro O3
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 Single ESC (with CNC Alum Cover)
Video transmission: DJI O3 AIR Unit
Diagonal distance: 464±2 mm (wheelbase)
Motor: XING2 3314 900KV motors
Propeller: HQ 8*4*3 propeller
Receiver option: No receiver
Weight: 2356±10g
Takeoff Weight: Approx. 3494±20g (with 8S 5000mAh battery)
Dimensions (L×W×H): 428×249×74 mm
Maximum speed: 150 km/h
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 5 minutes with 8S 5000 mAh battery and 1.5 kg load.
Max Wind Speed Resistance: Level 8
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antennas
GNSS: GPS + Galileo
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Dimensions (L×W×H): L32.5 * W20.5 * H 14.5 mm
Refresh rate: Up to 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz；5.725-5.850 GHz
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
The package includes:
1 x Pre-built and tested Taurus X8 Pro O3 BNF
8 x HQ 8X4X3 CW Propellers + 8 x HQ 8X4X3 CCW Propellers (Color May Vary)
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 male to XT60 female adapter cable
2 x iFlight Lipo Strap 20*400mm (Black)
2 x iFlight Lipo Strap 20*500mm (Black)
1 x CNC aluminum alloy cam holder
1 x XT90 Smart Smoke Stopper
1 x Propeller Wrench
*Battery is not included in the package
