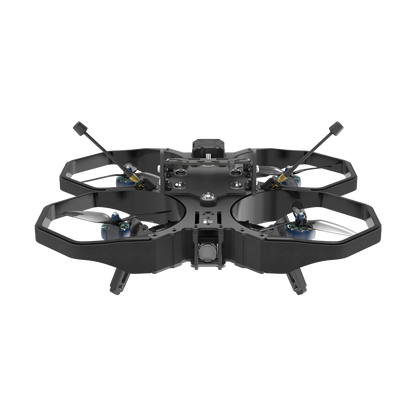

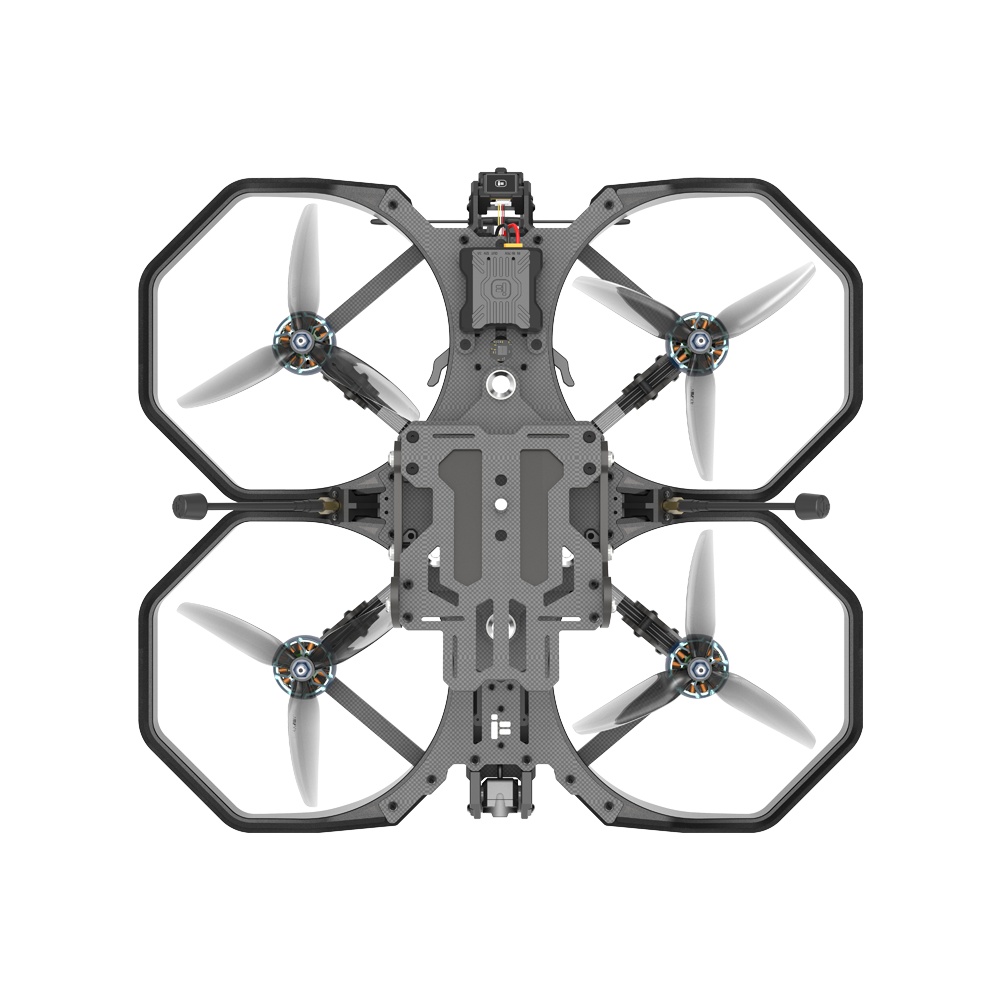

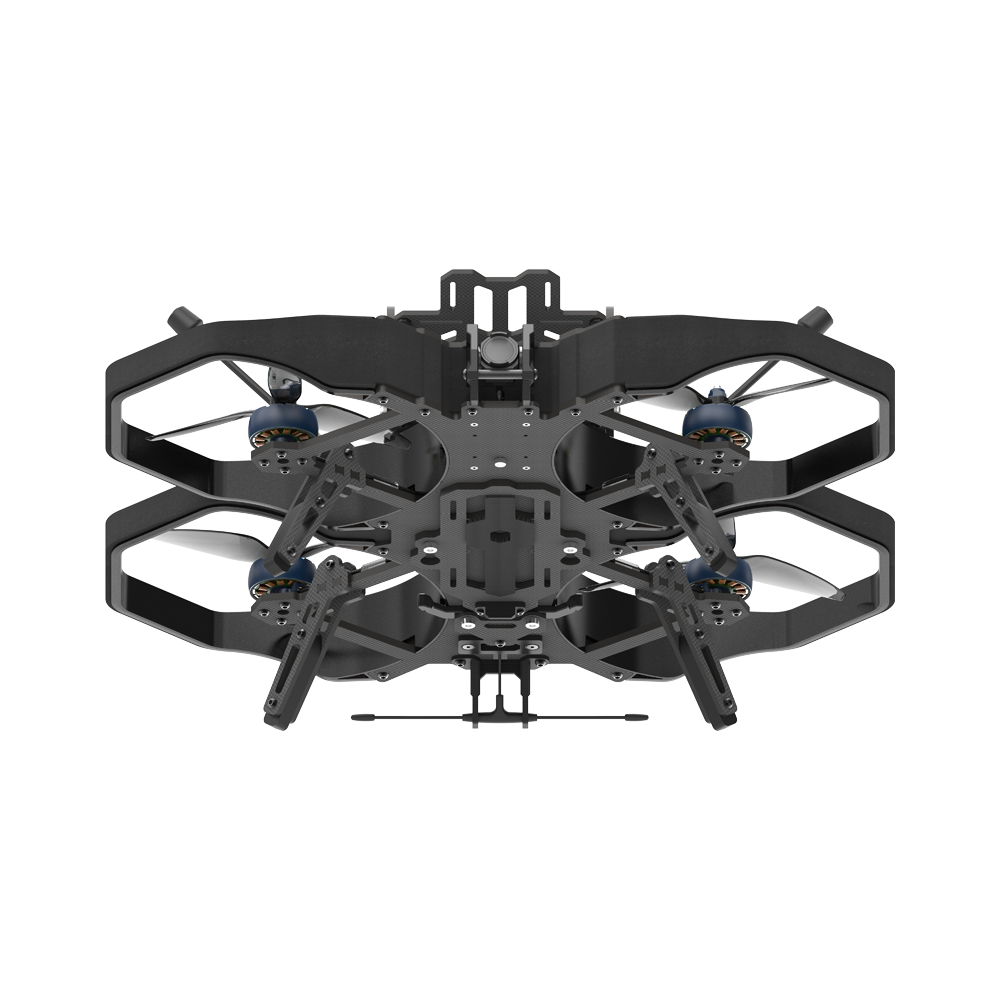

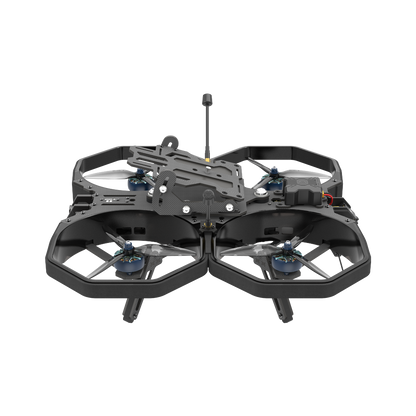

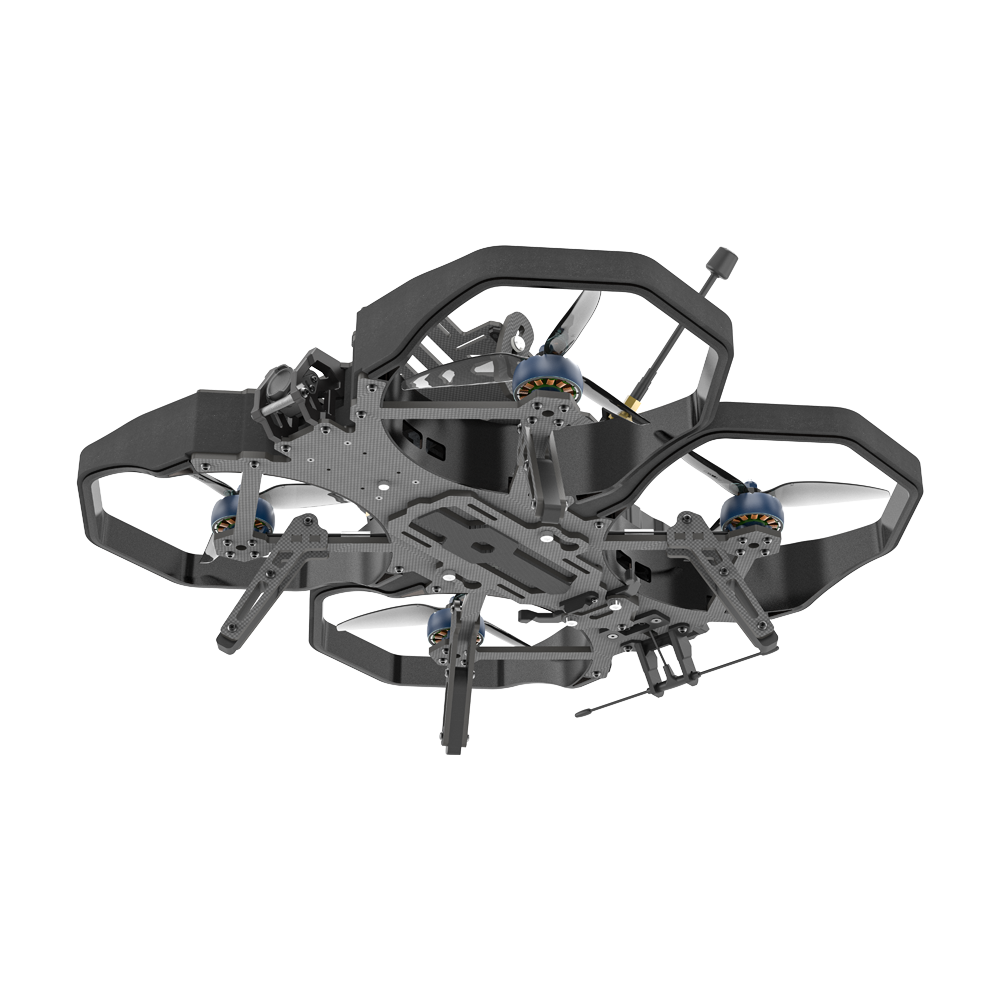

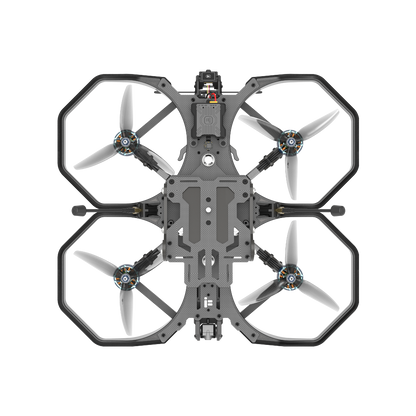

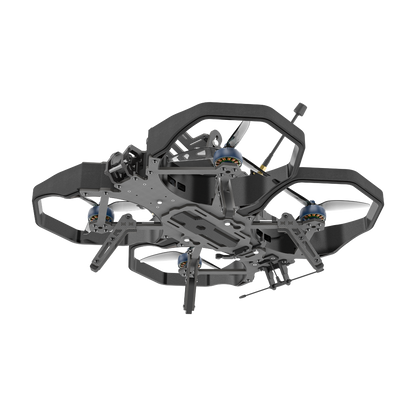

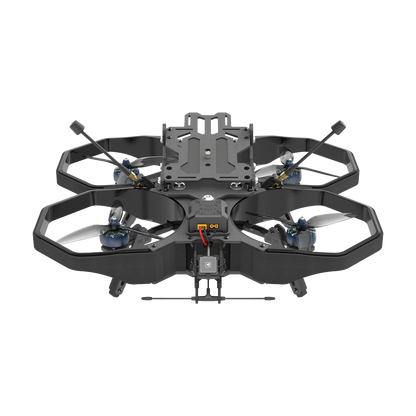

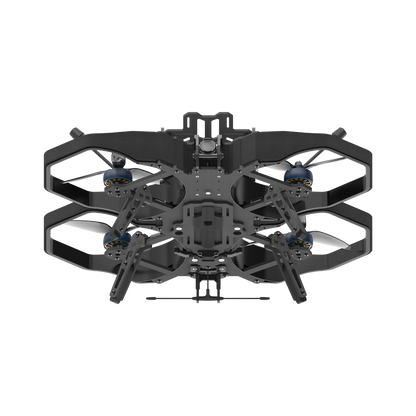

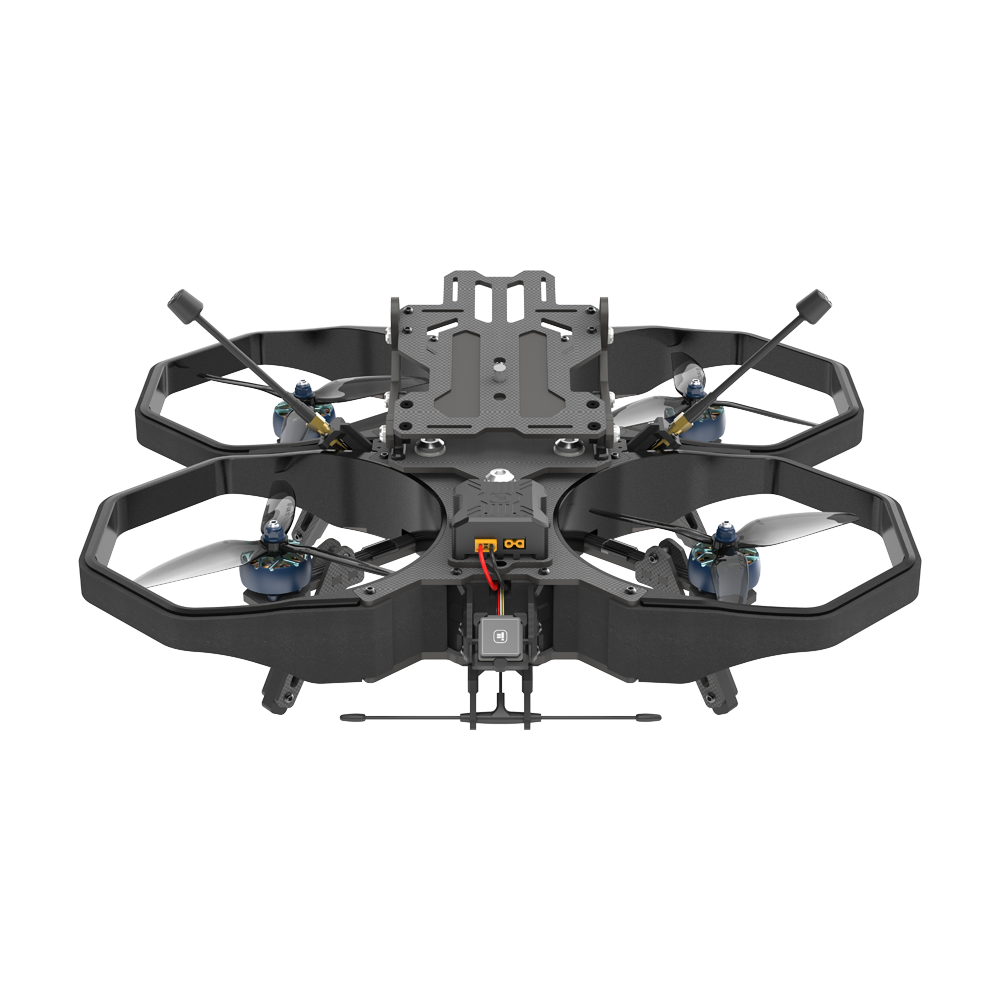

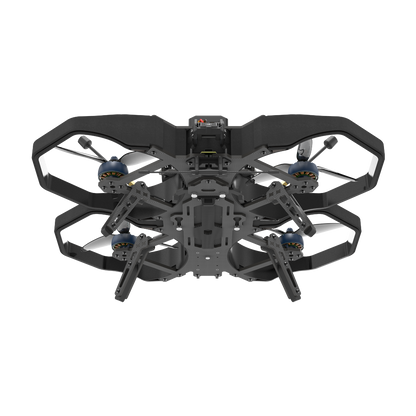

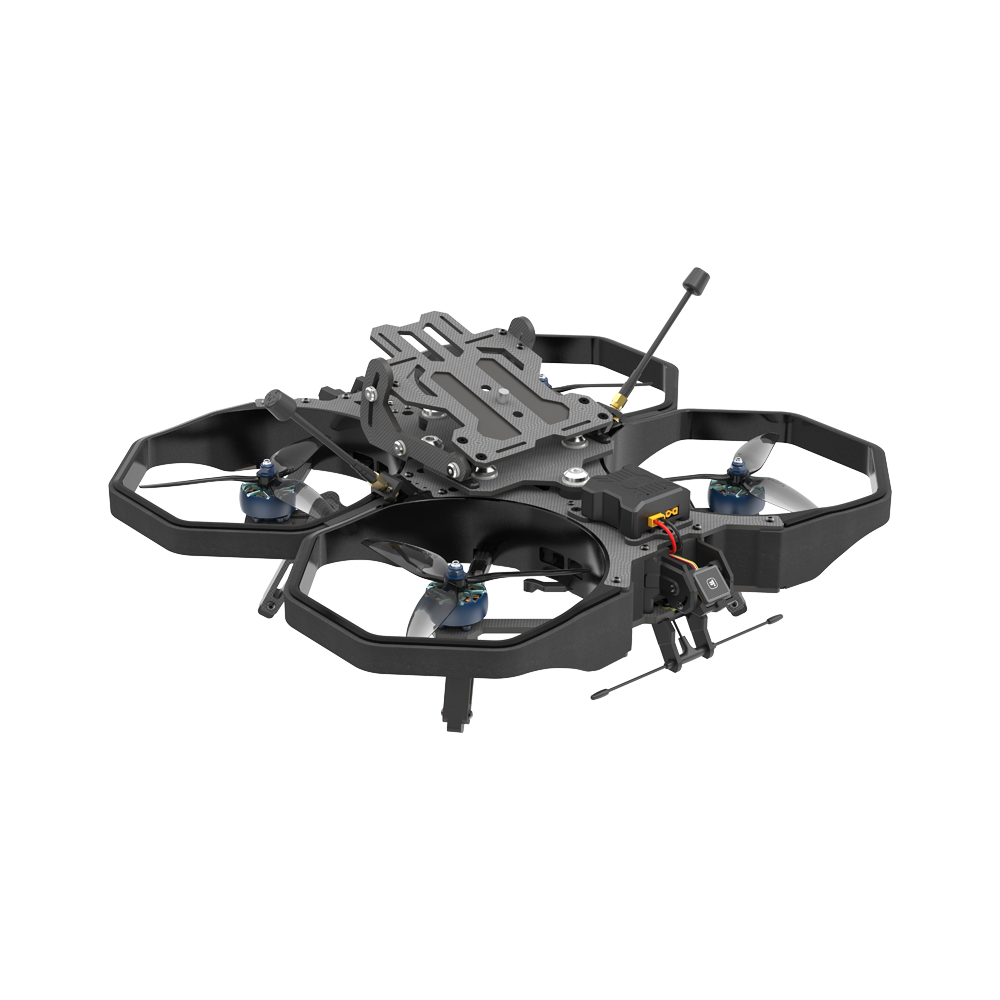

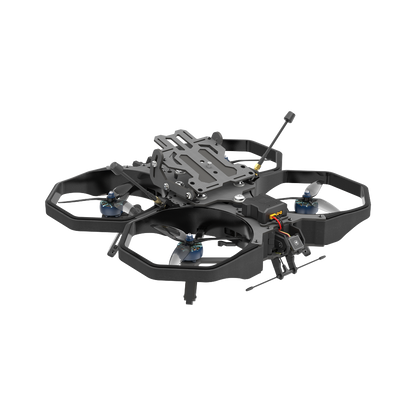

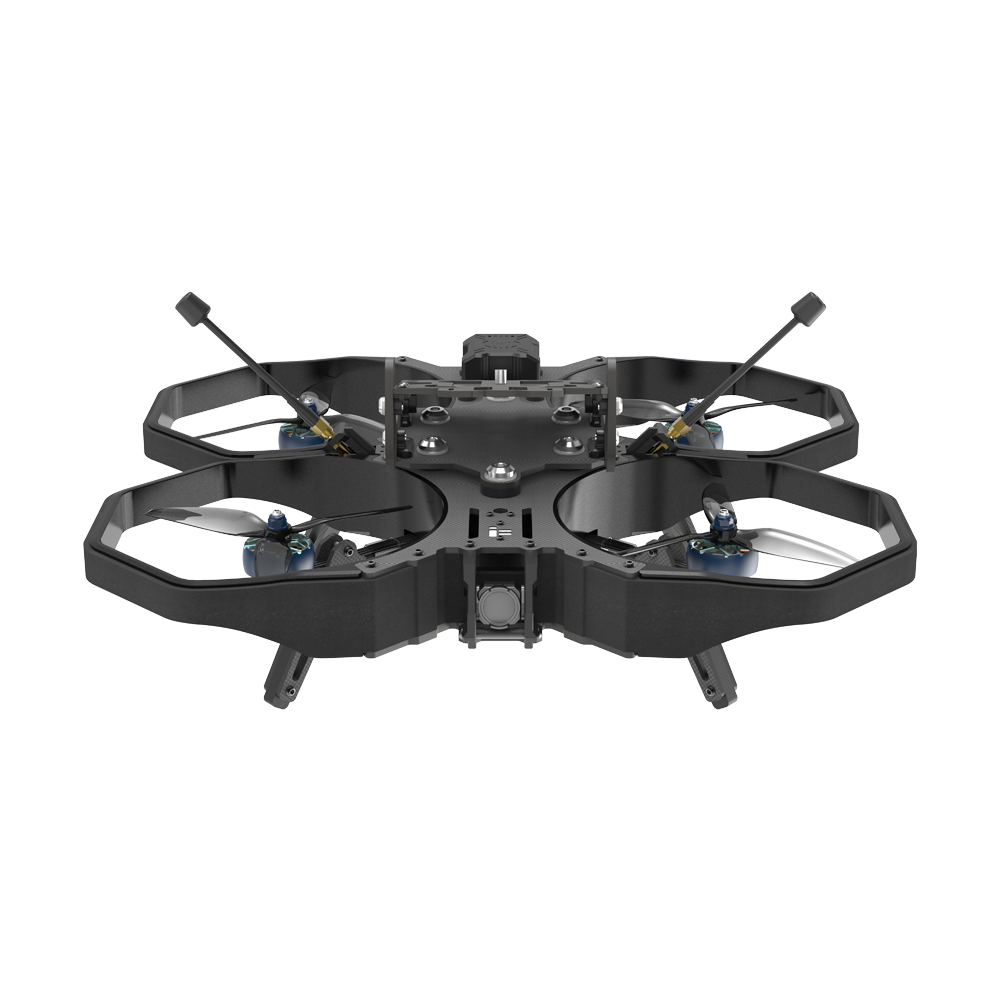

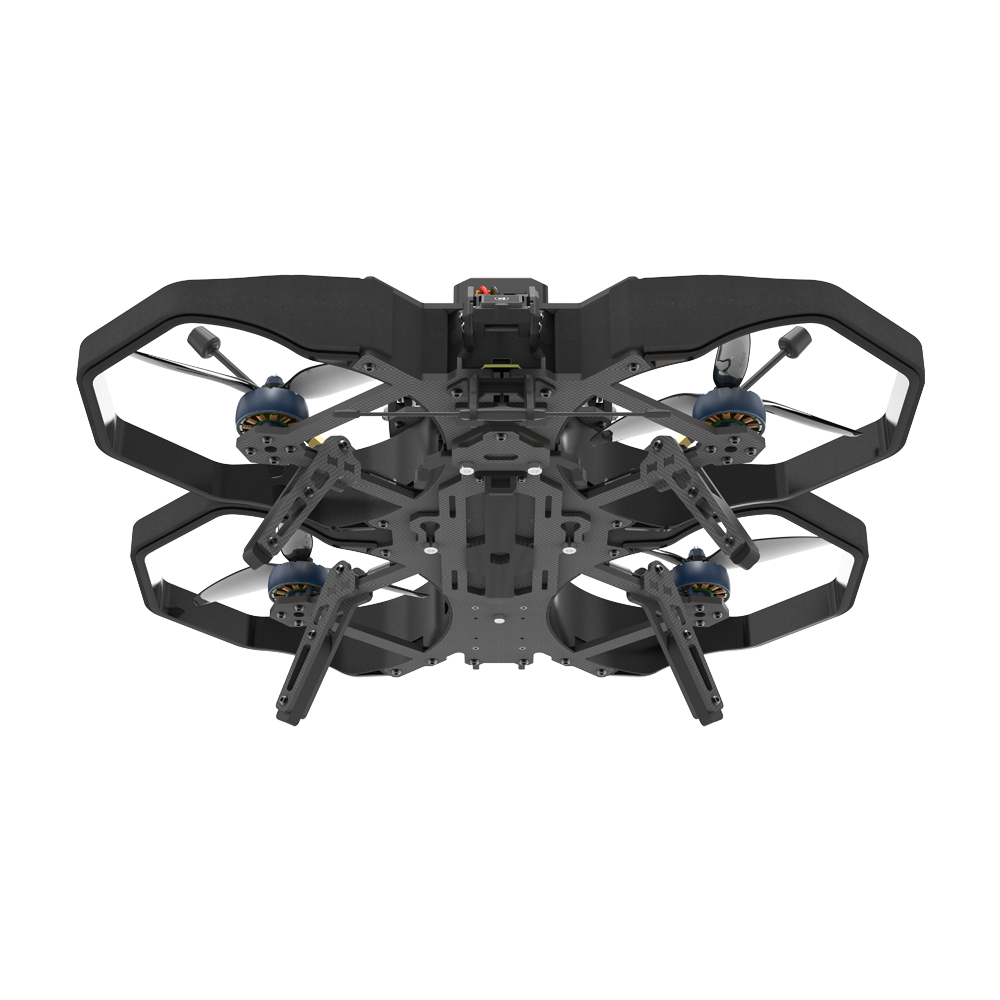

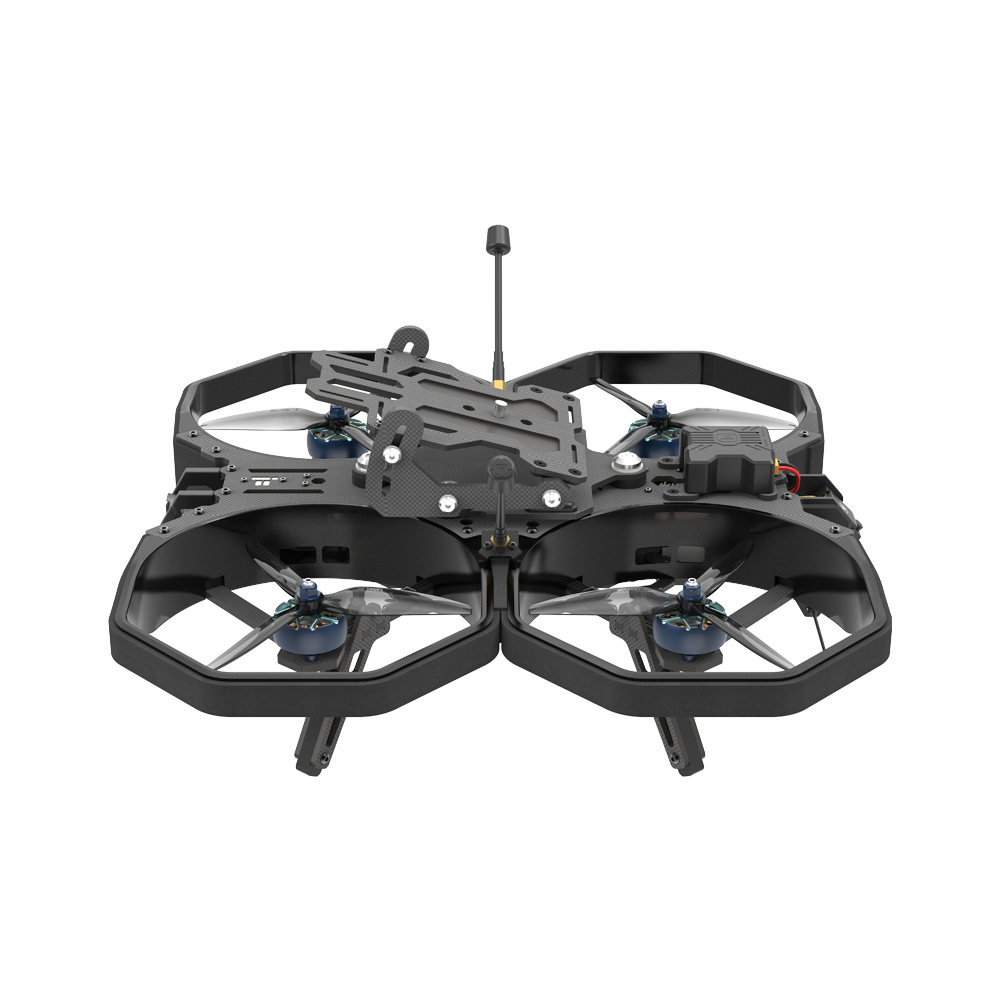

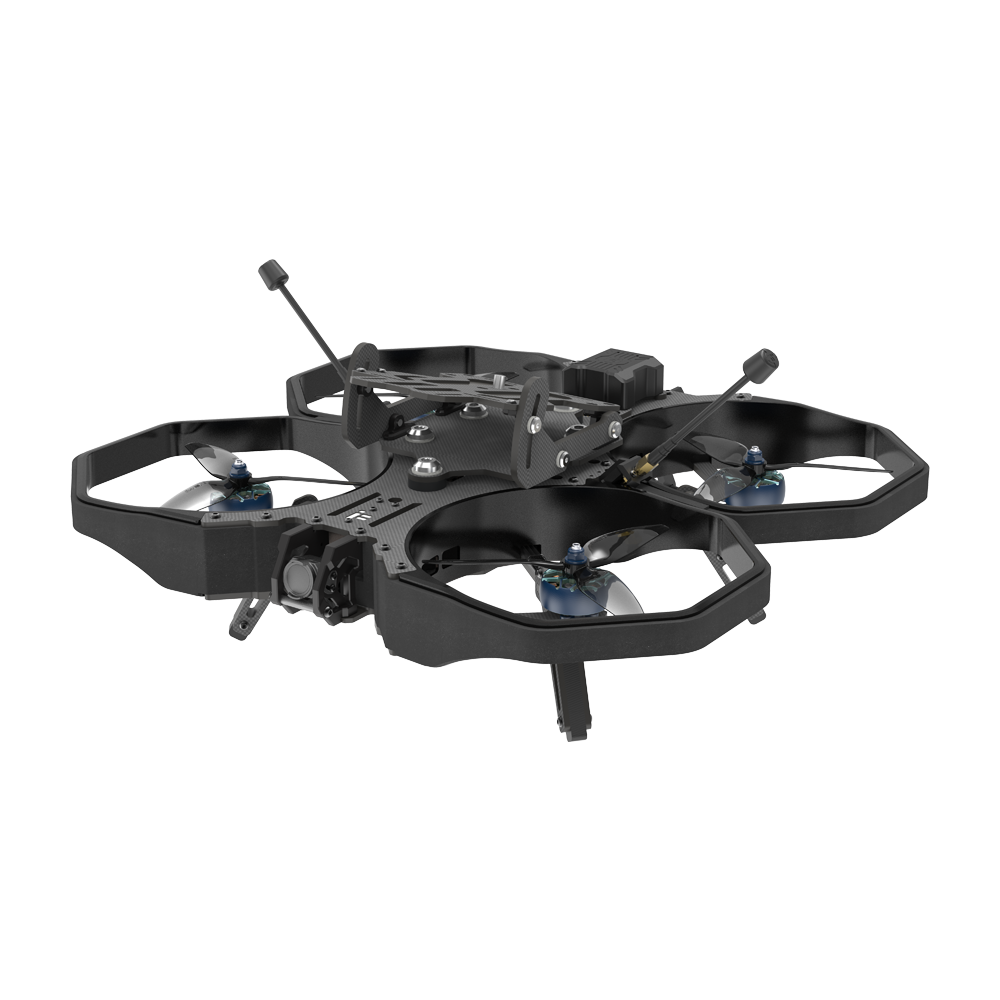

ProTek60 Pro HD O3 BNF (BMPCC, TBS version)
Function:
- Protected propellers for indoor and outdoor use that protect anything you might bump into from nasty cuts
- DJI O3 HD Air Unit Low Latency Digital Transmission with Stabilized 4K Ultra Wide 155° Video

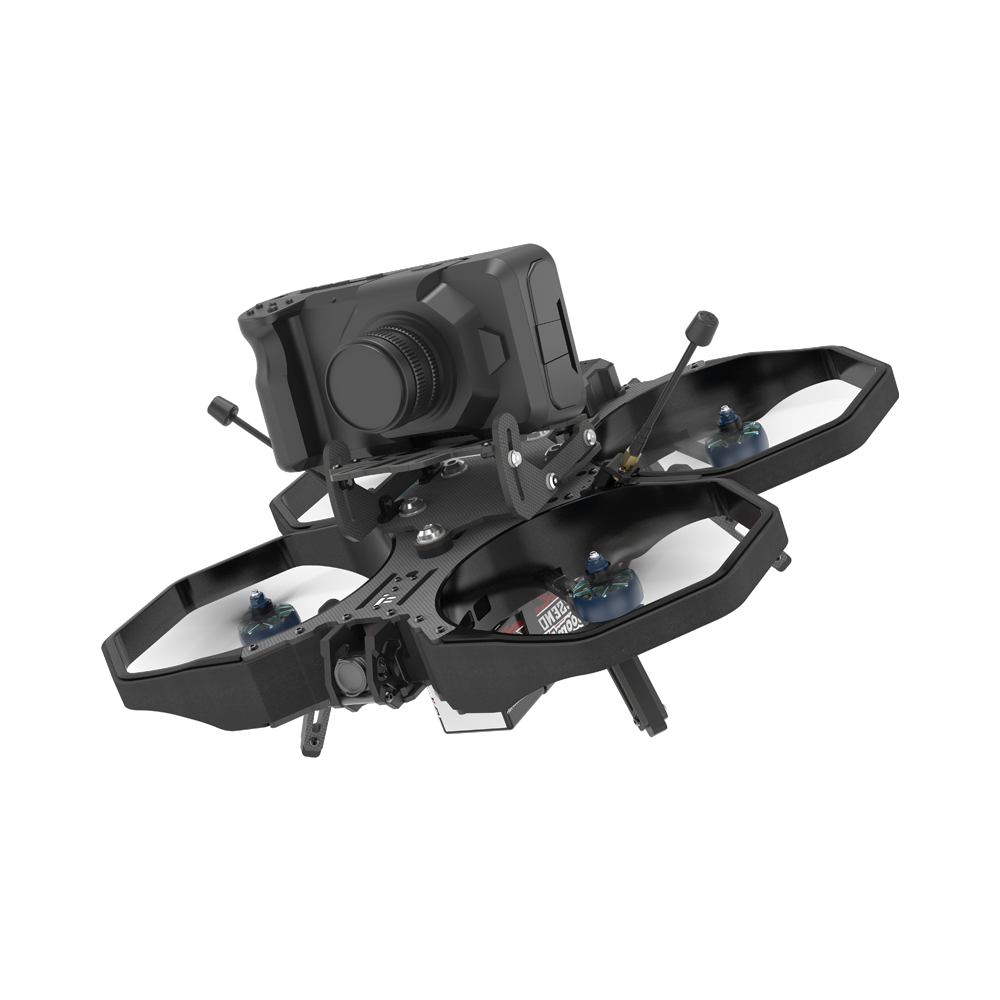

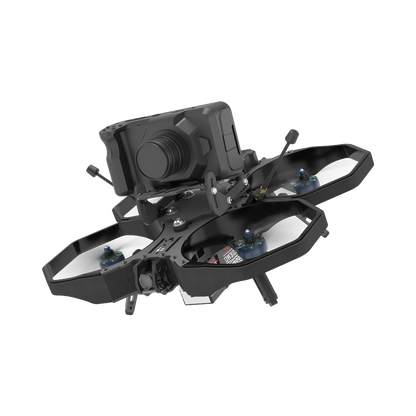

- Universal camera mount and accessories for a wide range of cameras to install
- Updated BLITZ E80 4-IN-1 ESC for more performance and reliability
- Large power XING2 3110 engines with extreme lift and flight performance
- Pre-installed BLITZ M10 GPS module (BF GPS Rescue or INAV GPS RTH function available)
- Camera power supply module // IFlight camera power supply 12V 3A BEC module short circuit protection function
- Including 1x FullSend 5600mAh 95C 6S XT90 battery
Specifications:
Product name: ProTek60 Pro O3
FC: BLITZ F7 Pro Flight Controller
ESC: BLITZ E80 4-IN-1 For ESC
Video transmission: DJI O3 Air Unit
Camera board version: BMPCC version
Receiver option: TBS
Frame: wheelbase 282 mm
Motor: XING2 3110 1600KV motors
Propellers: Nazgul 6x4x3 propellers
Weight: 1466g
Maximum speed: 110 km/h (manual mode)
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 5.5 minutes with a load of 1.3 kg and a 6S 4500 mAh battery
Maximum Wind Speed Resistance: Level 6
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antennas
GNSS: GPS + Galileo
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
- 810p/120fps video transmission quality: Latency is lower than 28ms.
- 810p/60fps video transmission quality: Latency is lower than 40ms.
With DJI Goggles 2:
- 1080p/100fps video transmission quality: Latency is only 30ms.
- 1080p/60fps video transmission quality: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x ProTek60 Pro O3 BNF
1 x Nazgul 6x4x3 propellers (pairs)
2 x Albatross LHCP 5.8GHz SMA FPV Antenna
1 x XT90 male to XT60 female adapter cable
1 x Fullsend X 6S 5600 mAh battery
2 x battery strap
1 x XT90 Smart Smoke Stopper
1 x Propeller Wrench
