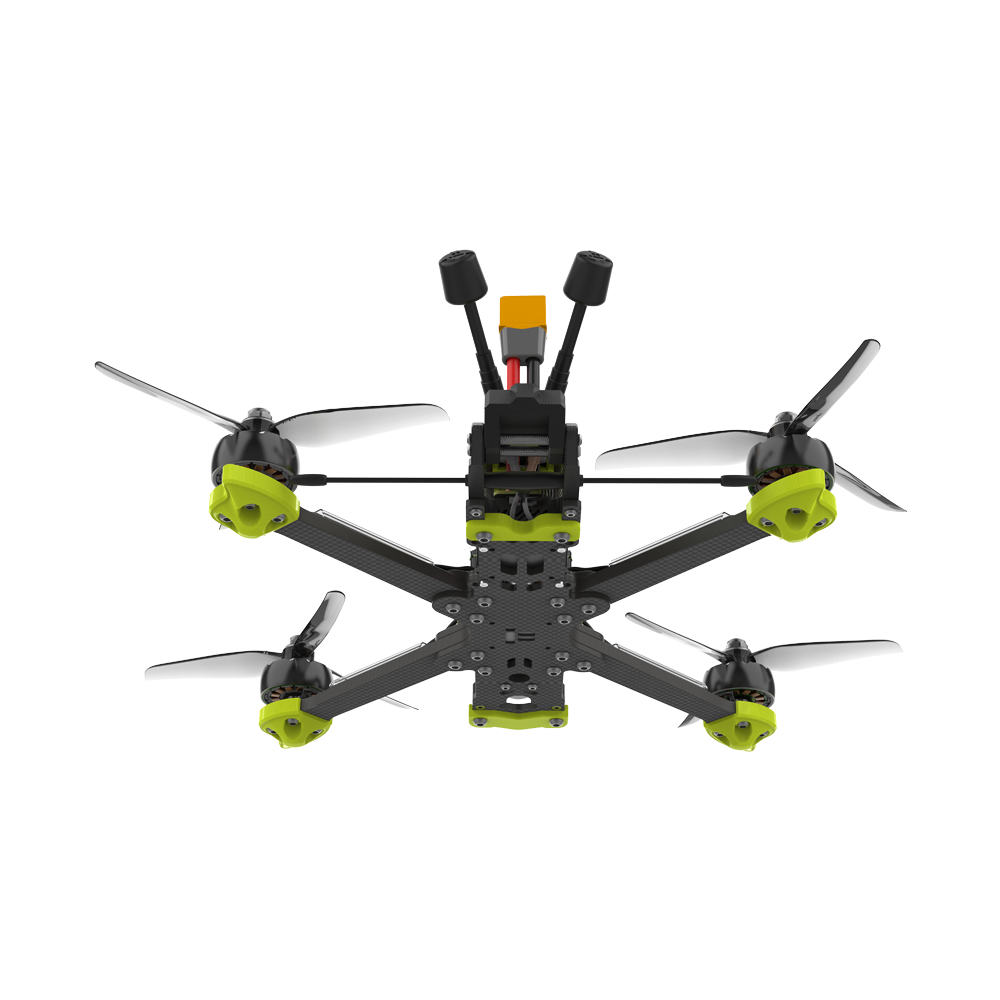

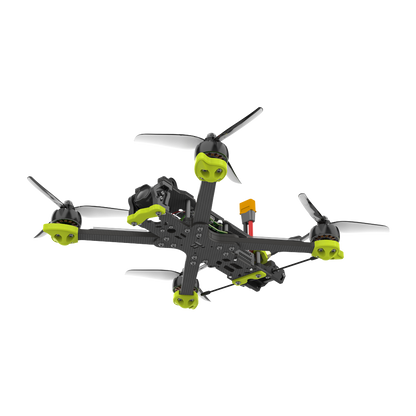

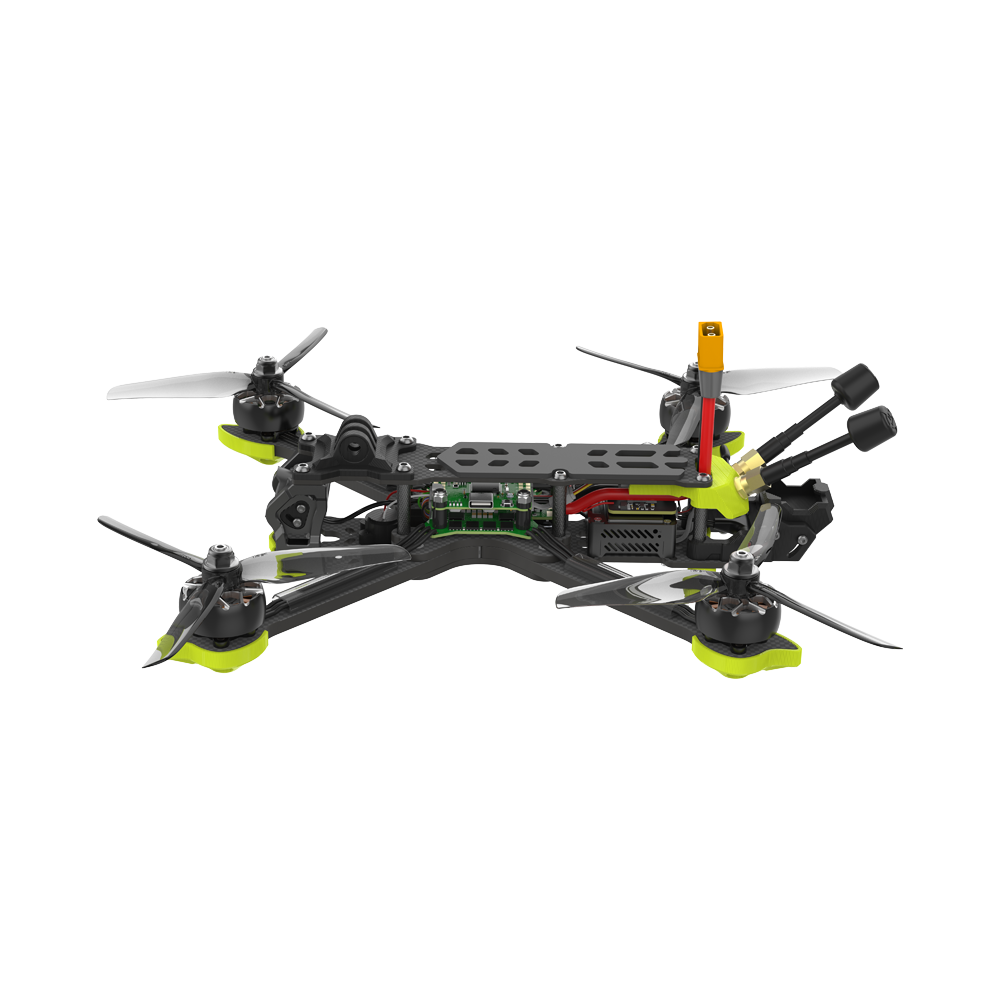

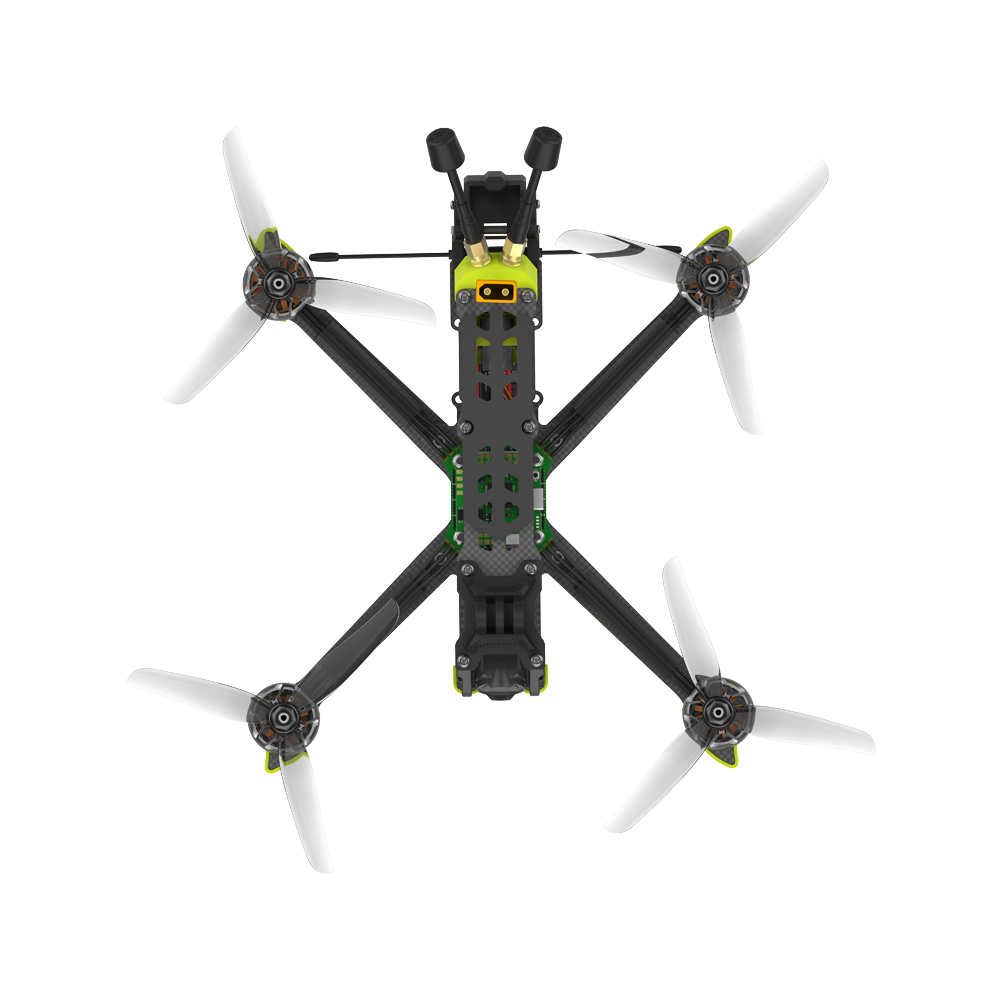

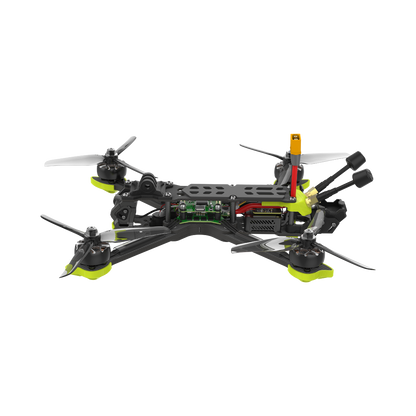

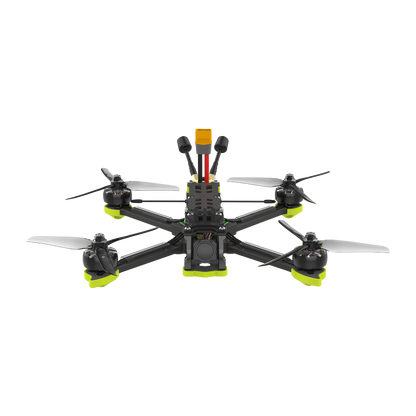

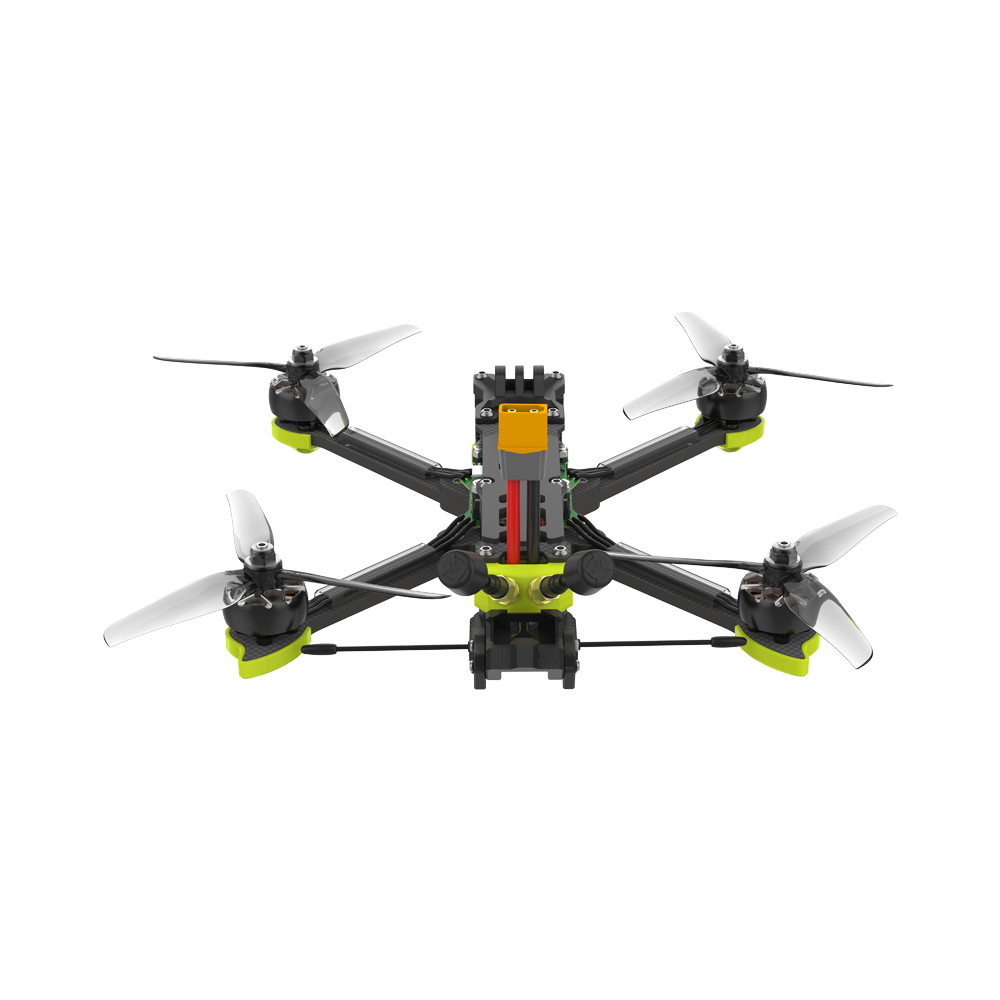

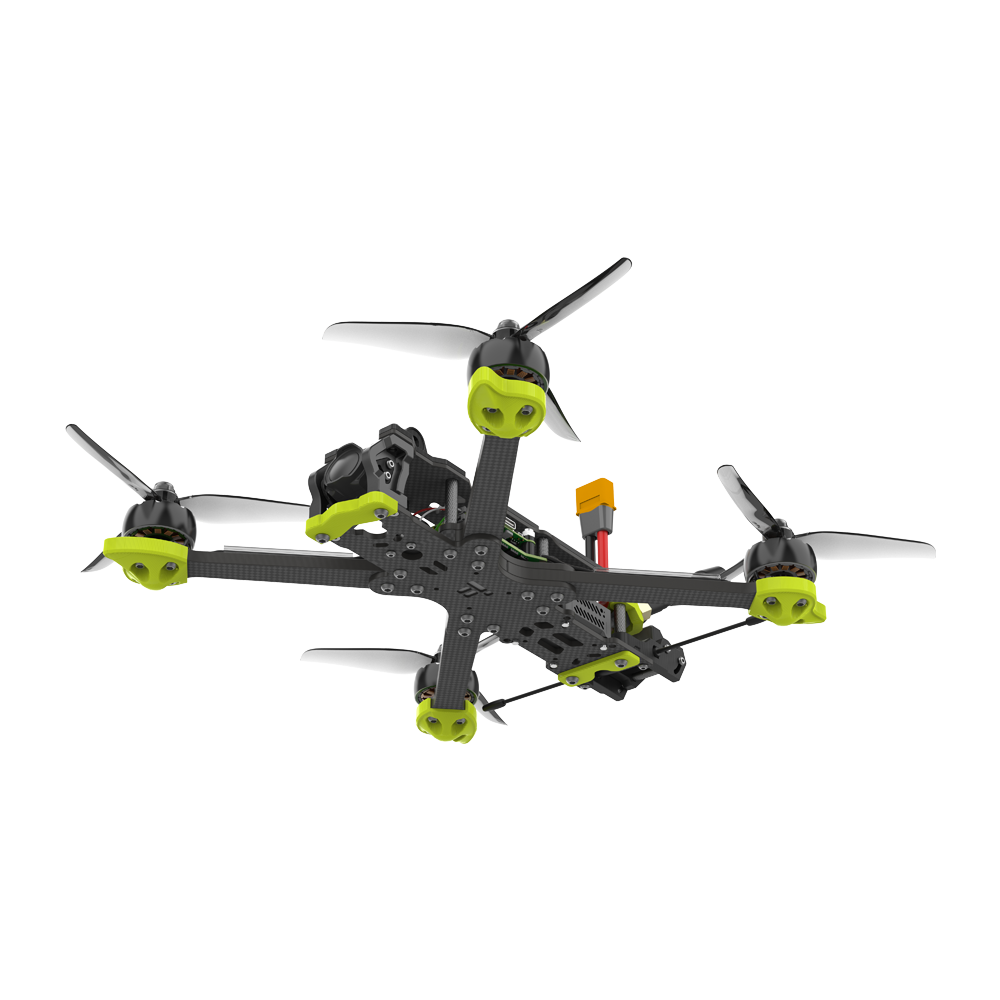

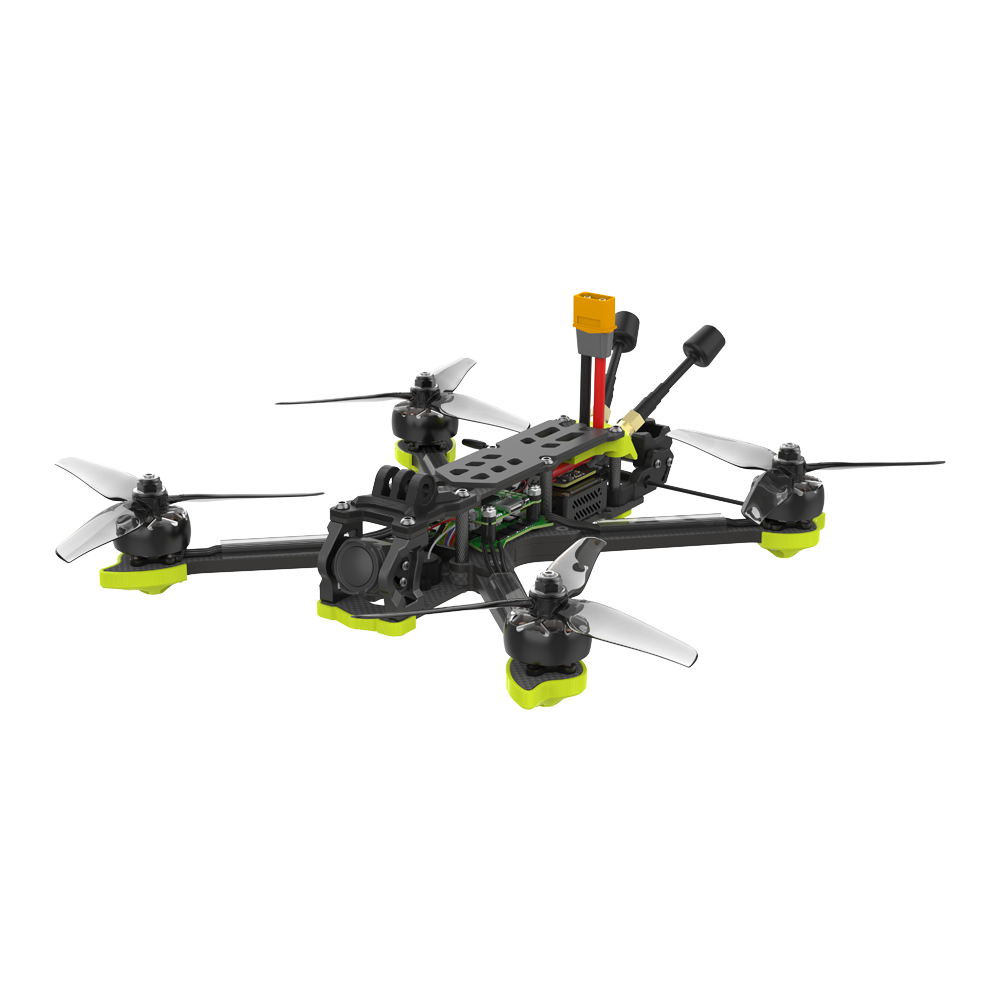

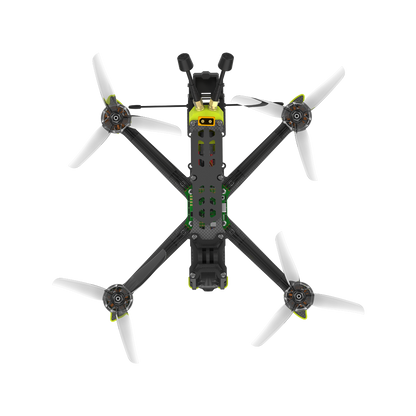

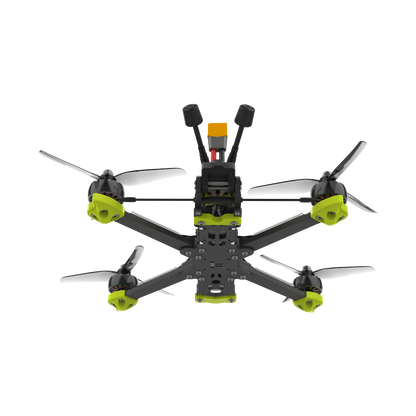

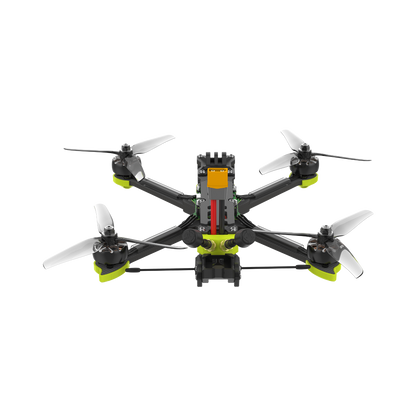

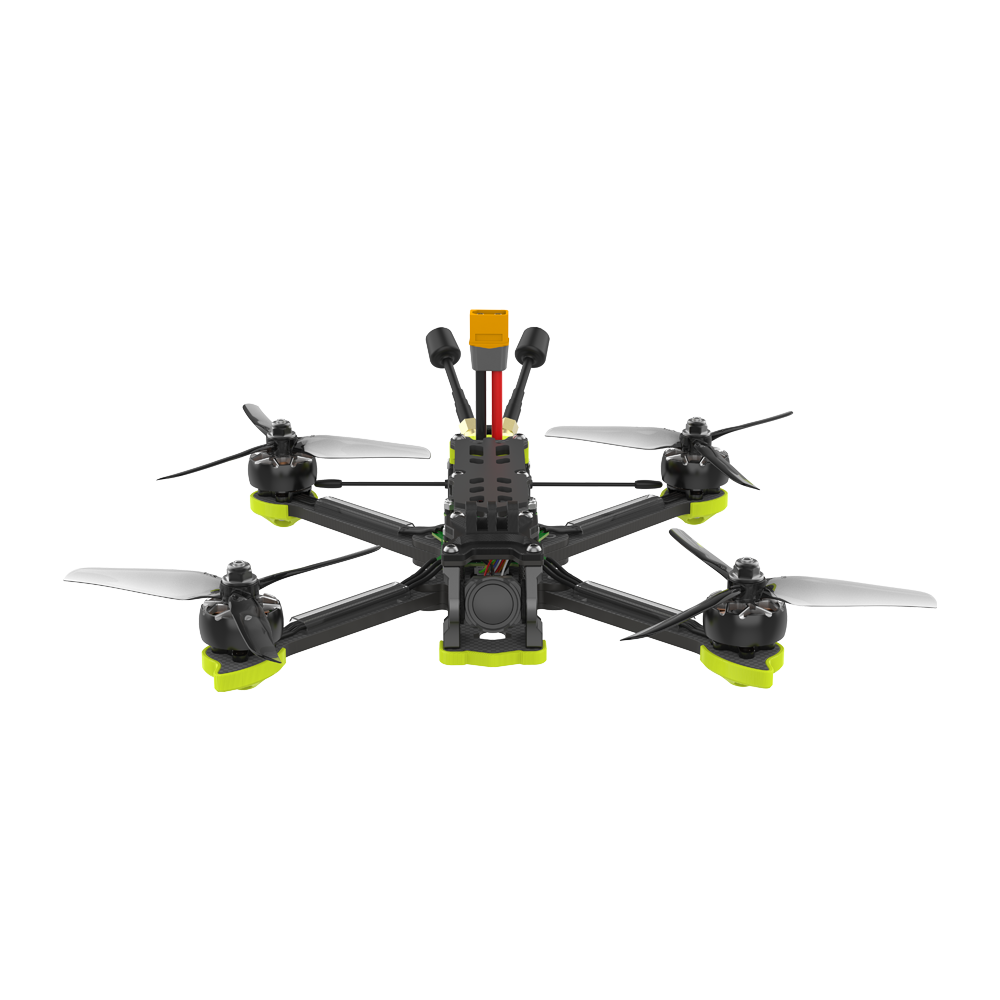

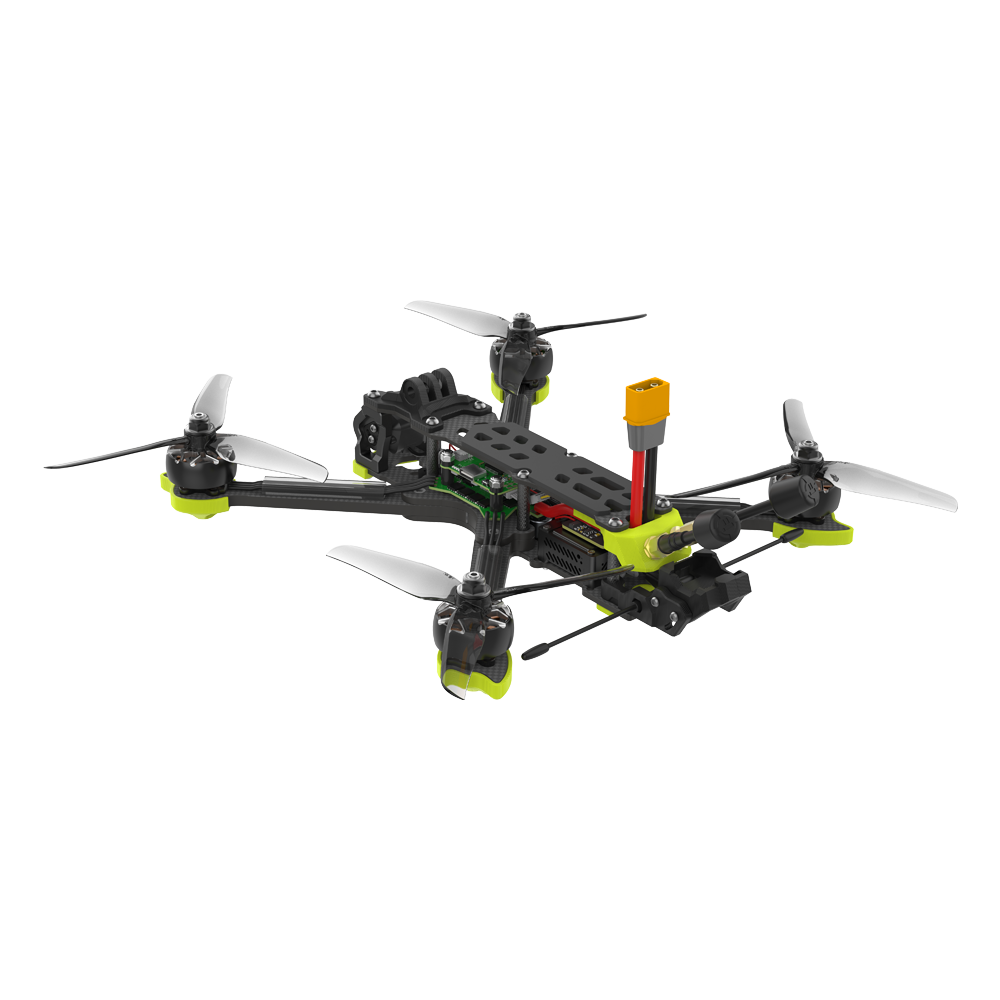

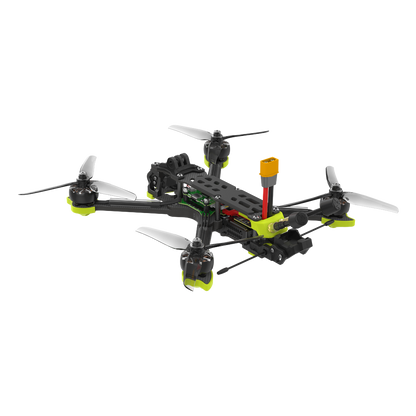

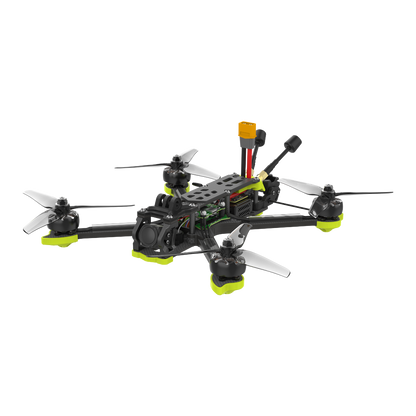

Nazgul5 V3 HD 6S BNF (TBS)
Function:
- XING-E 2207 engines and NAZGUL 5140 props
- 5" version also fits 5.1" propellers.
- Suitable for 30.5x30.5 and 20x20 magazines
- DJI O3 HD system
- 5mm arm design for greater durability
- Popular True-X configuration
- Logo with LED backlight
- TPU bumpers
- Easily replaceable arms
Specifications
Product Name: Nazgul5 V3 6S HD
Geometry: Squashed-X
FC: BLITZ F722 FC
ESC: BLITZ E55S 55A 4-IN-1 ESC
Video transmission: DJI O3 Air Unit
Frame: wheelbase 245 mm
Engine: XING-E Pro 2207 engines
Prop: Nazgul F5 propeller
Takeoff Weight: Approx. 457 g
Dimensions (L×W×H): 173×173×34±2 mm
Maximum speed: 190 km/h (manual mode)
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 7.5 min
Maximum flight distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: 2 antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Receiver option: TBS Crossfire NANO RX
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Dimensions (L×W×H): L32.5 * W30.5 * H 14.5 mm
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Nazgul5 V3 O3 HD BNF (TBS)
2x antenna
2x battery pads
2 x Prop (pairs)
