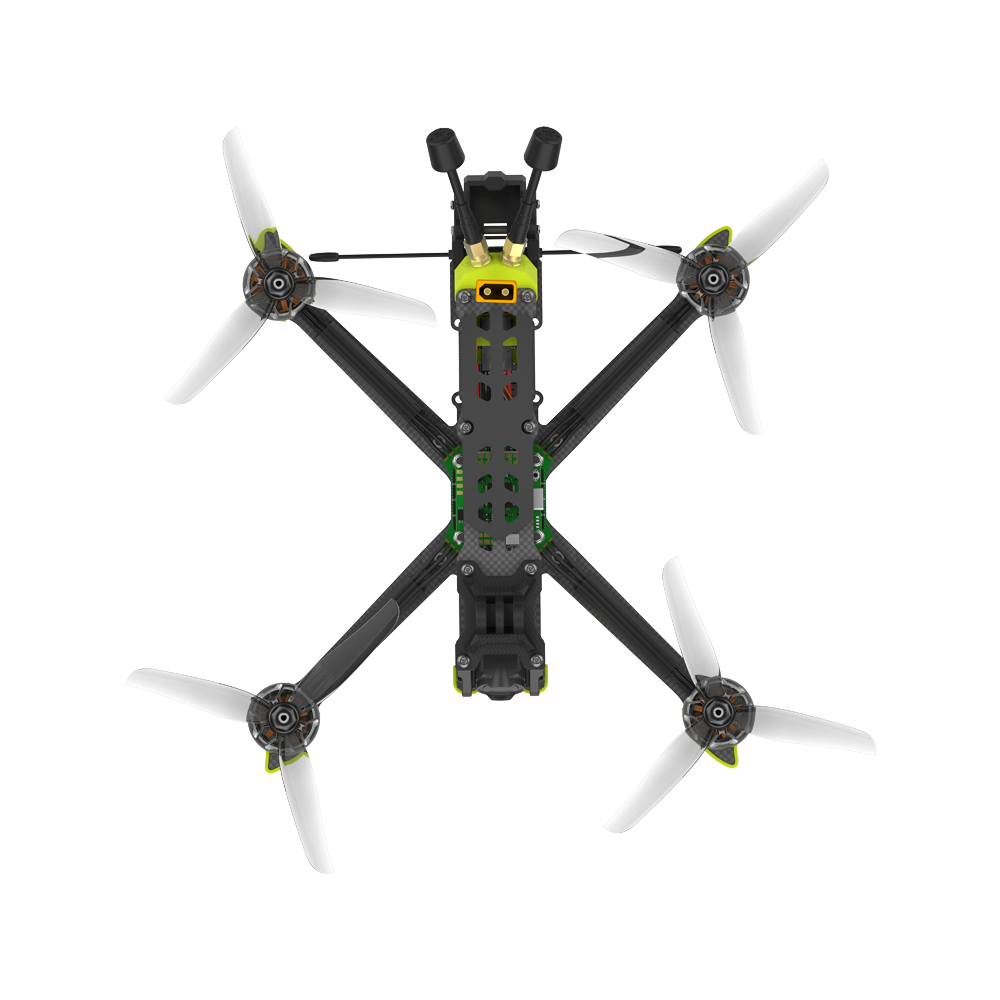

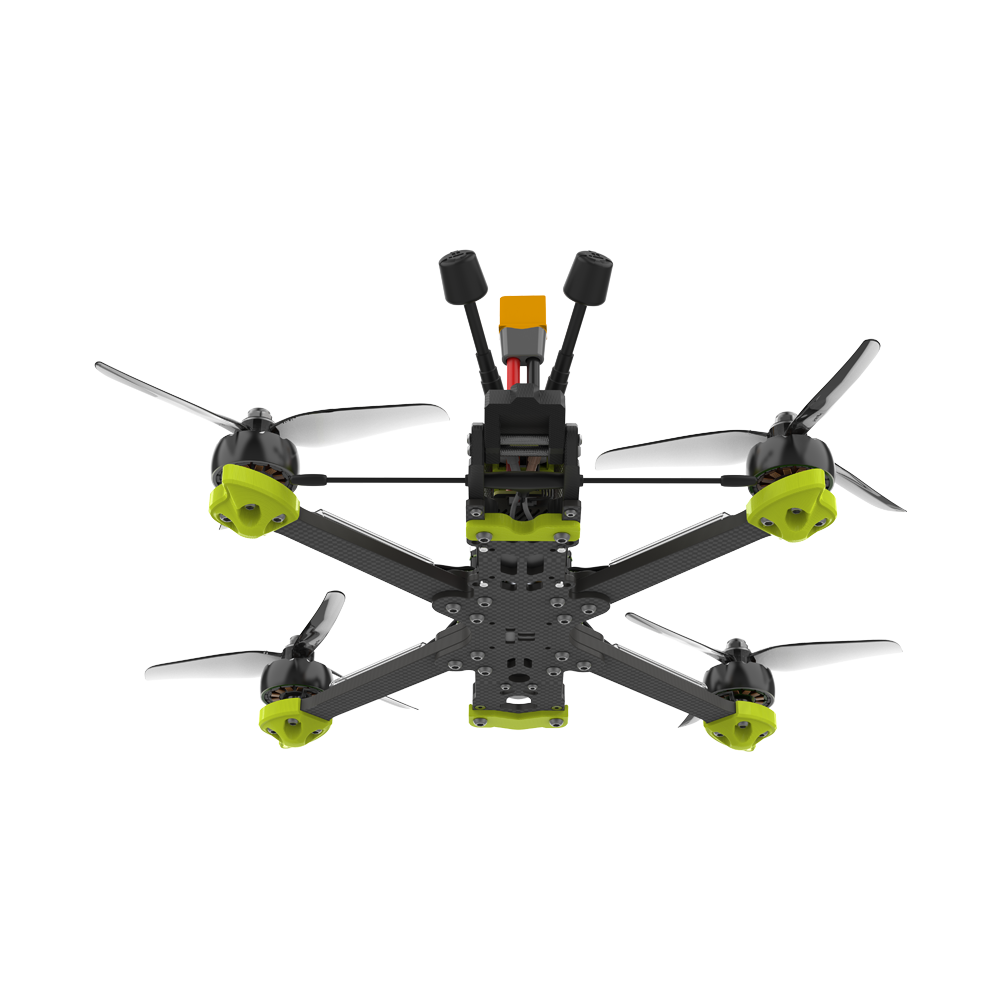

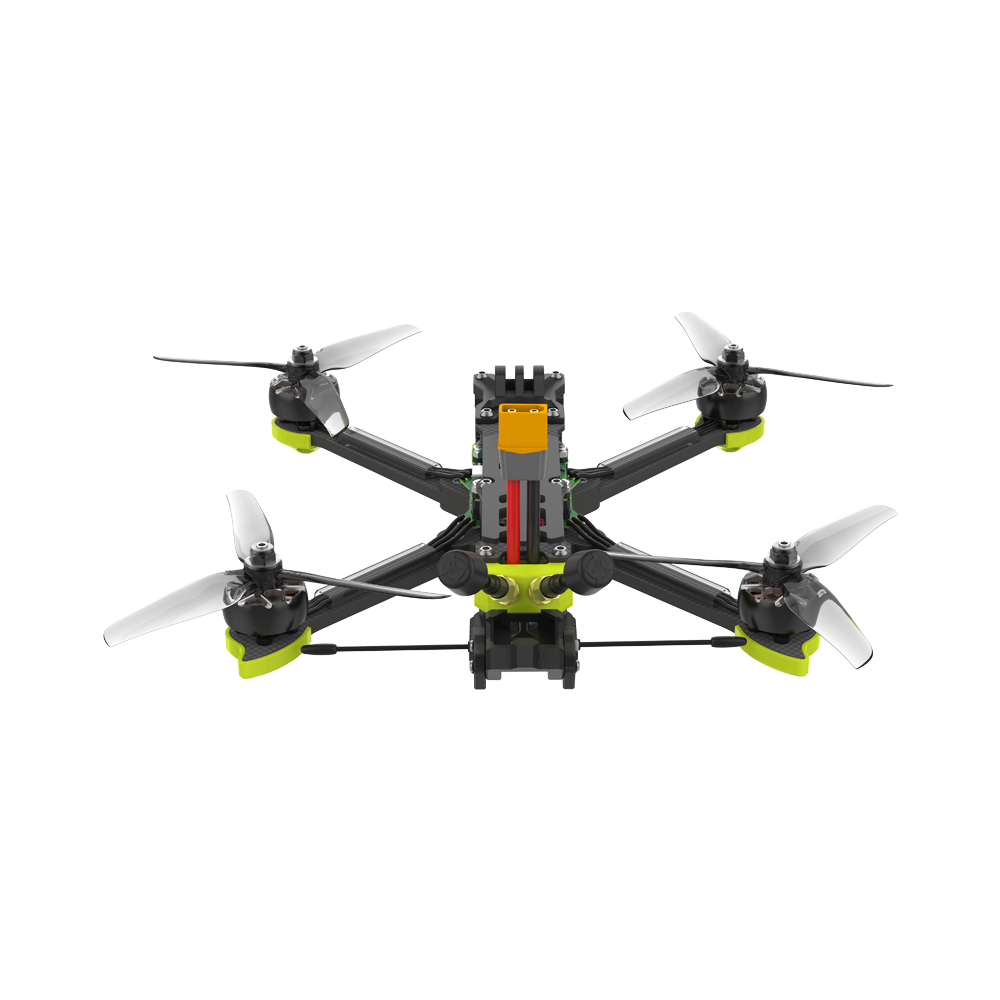

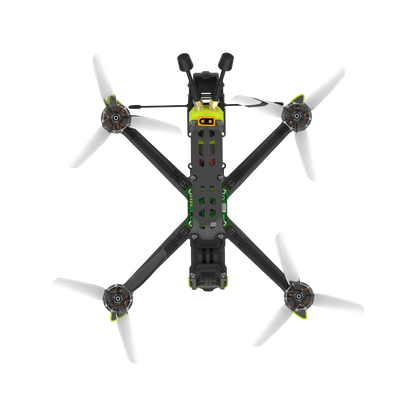

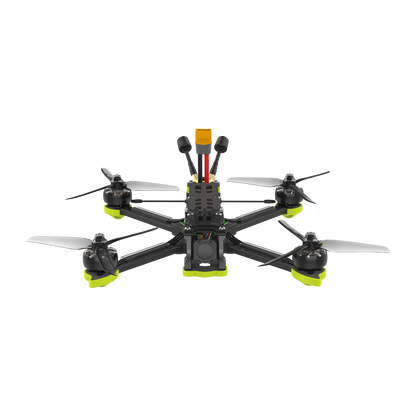

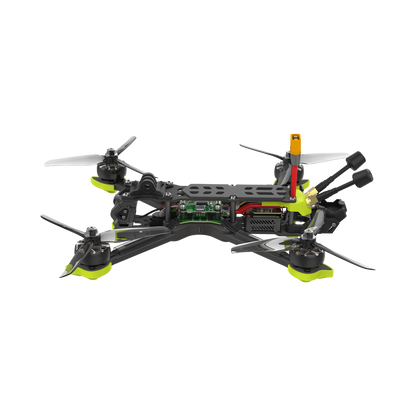

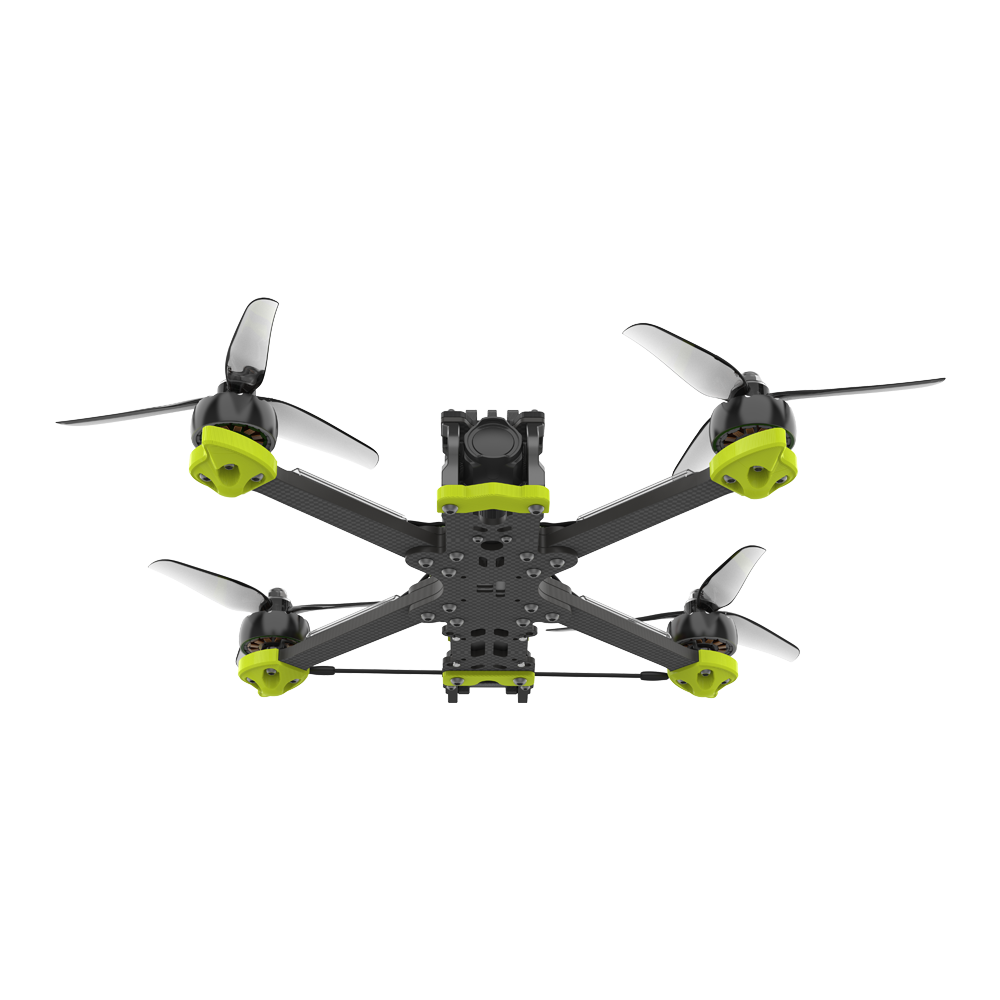

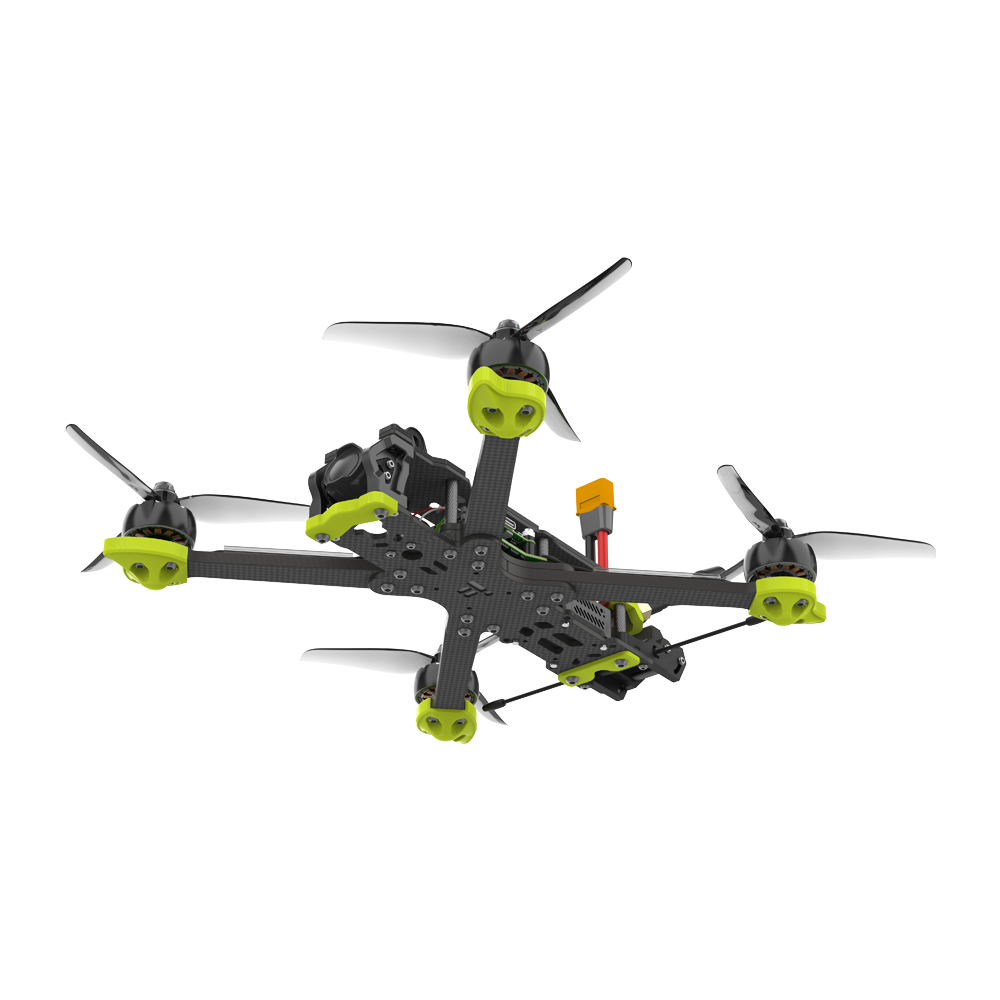

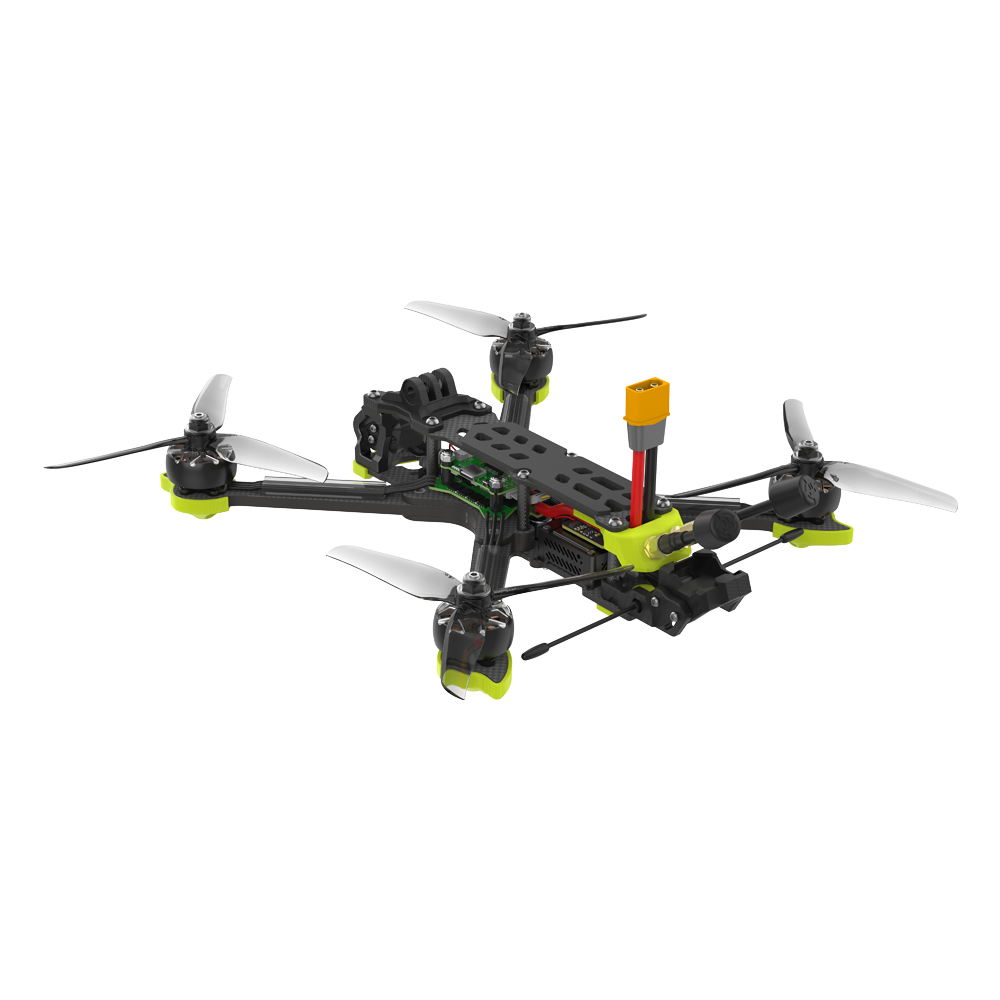

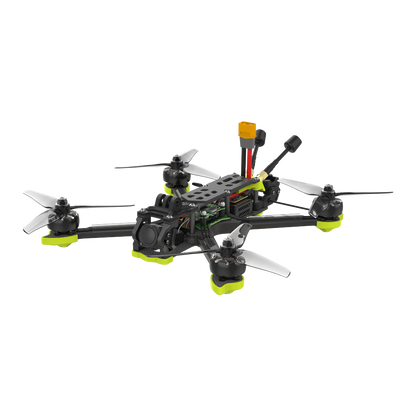

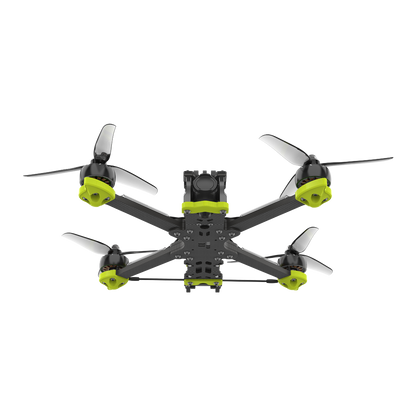

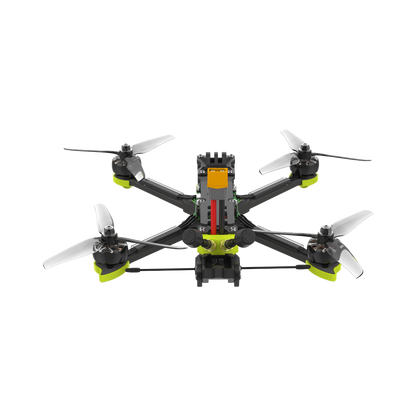

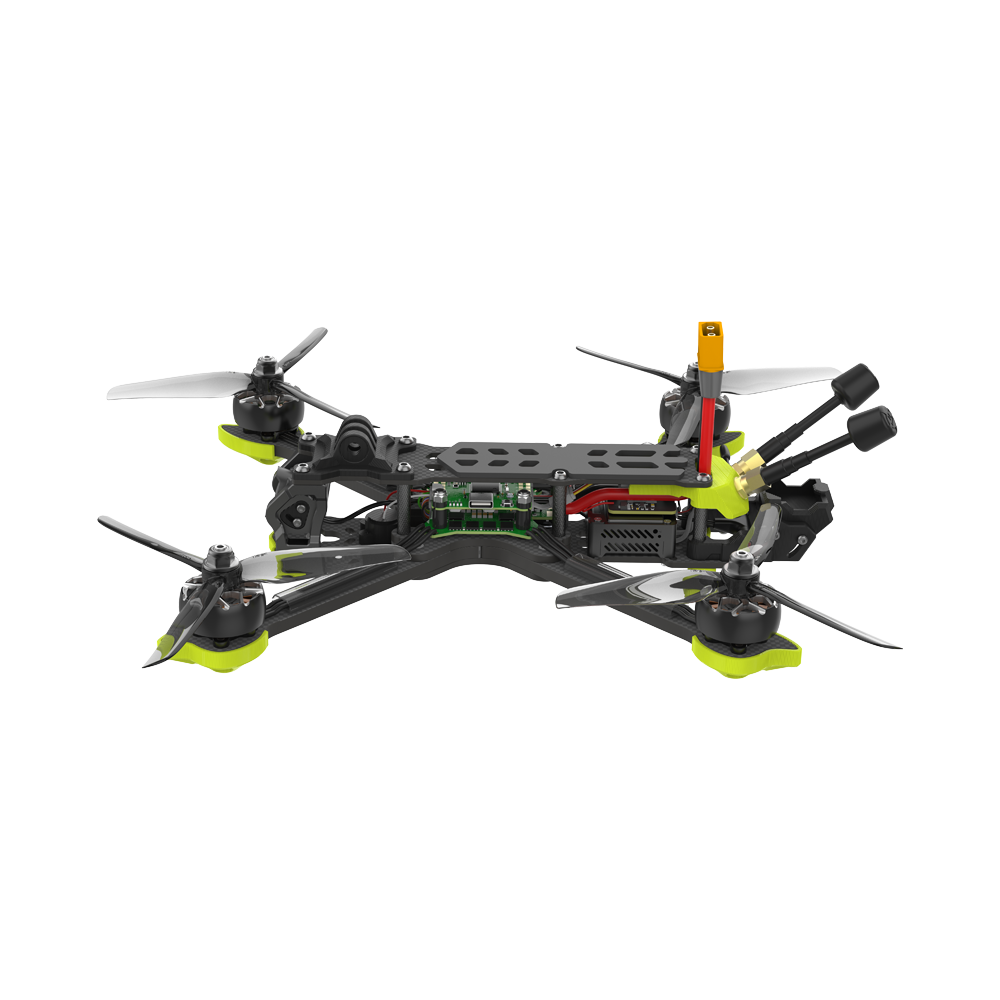

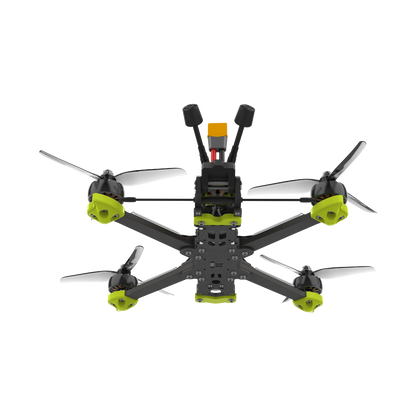

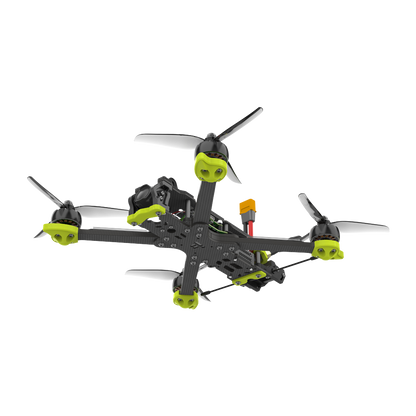

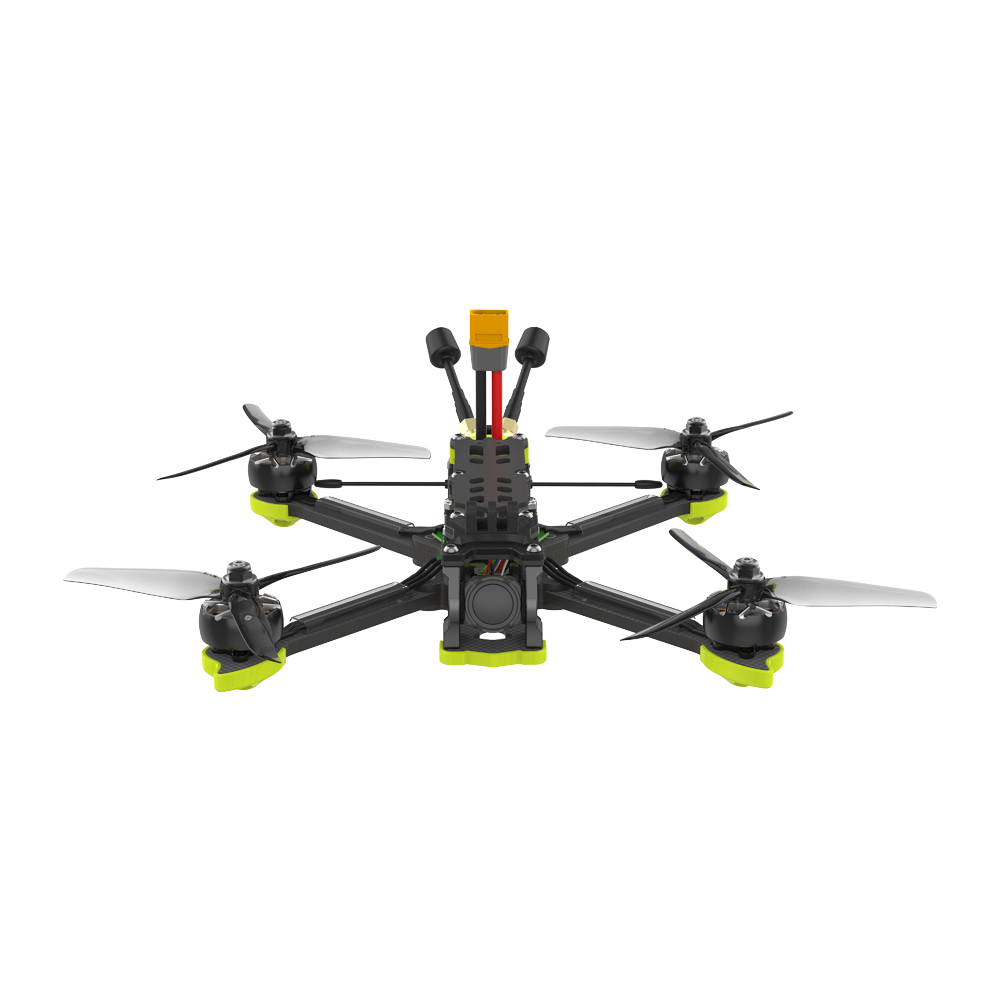

Nazgul5 V3 HD 6S BNF (ELRS 2.4GHz) Function: - XING-E 2207 engines and NAZGUL 5140 props - 5" version also fits 5.1" propellers. - Suitable for 30.5x30.5 and 20x20 magazines - DJI O3 HD system - 5mm arm design for greater durability - Popular True-X configuration - Logo with LED backlight - TPU bumpers - Easily replaceable arms Specifications Product Name: Nazgul5 V3 6S HD Geometry: Squashed-X FC: BLITZ F722 FC ESC: BLITZ E55S 55A 4-IN-1 ESC Video transmission: DJI O3 Air Unit Frame: wheelbase 245 mm Engine: XING-E Pro 2207 engines Prop: Nazgul F5 propeller Takeoff Weight: Approx. 457 g Dimensions (L×W×H): 173×173×34±2 mm Maximum speed: 190 km/h (manual mode) Maximum take-off height: 3200 m Maximum Hover Time: Approx. 7.5 min Maximum flight distance: 5 km Max Wind Speed Resistance: Level 7 Operating Temperature Range: -10° to 40° C (14° to 104° F) Antennas: 2 antennas GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional) Receiver option: iFlight ELRS 2.4 GHz RX Video transfer Product Name: DJI O3 Air Unit Weight: Approx. 36.4 grams (including headband) Dimensions (L×W×H): L32.5 * W30.5 * H 14.5 mm Communication bandwidth: Max 40 MHz FOV (single screen): 155° Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz End-to-End latency With DJI FPV Goggles V2: -810p/120fps Video transmission quality: Latency is lower than 28ms. -810p/60fps Video transmission quality: Latency is less than 40ms. With DJI Goggles 2 Video transmission quality -1080p/100fps: Latency is only 30ms. Video transmission quality -1080p/60fps: Latency is only 40ms. Maximum video transfer rate: 50 Mbps Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC) Operating temperature range: -10° to 40°C (14° to 104°F) Power consumption: 7.4-26.4 V Audio Transmission: N/A The package includes: 1 x Nazgul5 V3 O3 HD BNF (ELRS2.4) 2x antenna 2x battery pads 2 x Prop (pairs)
