FPV Drone iFlight Nazgul XL5 V1.1 ECO Analog BNF (ELRS 2.4GHz)

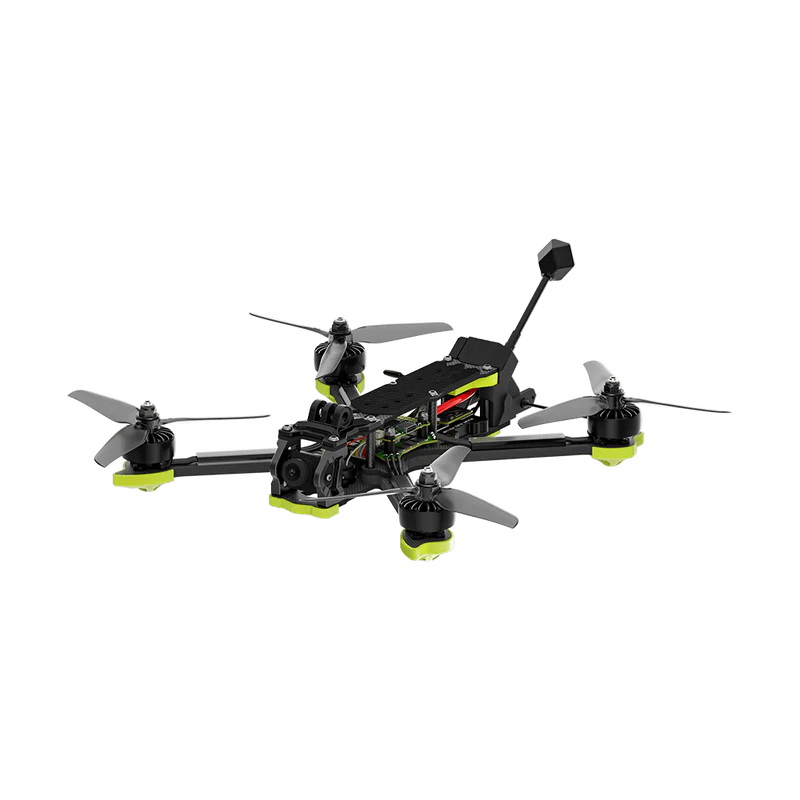

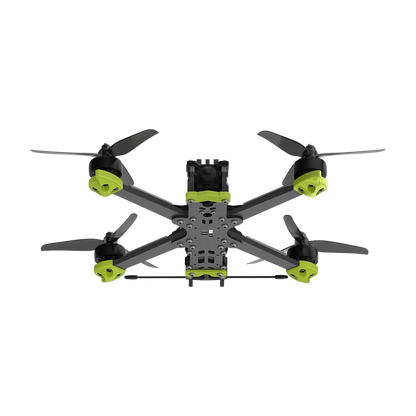

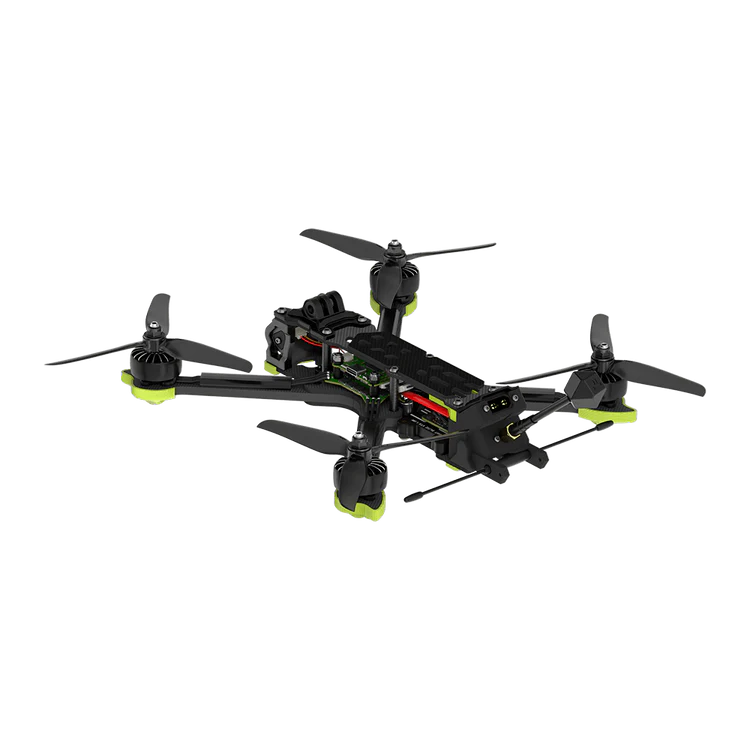

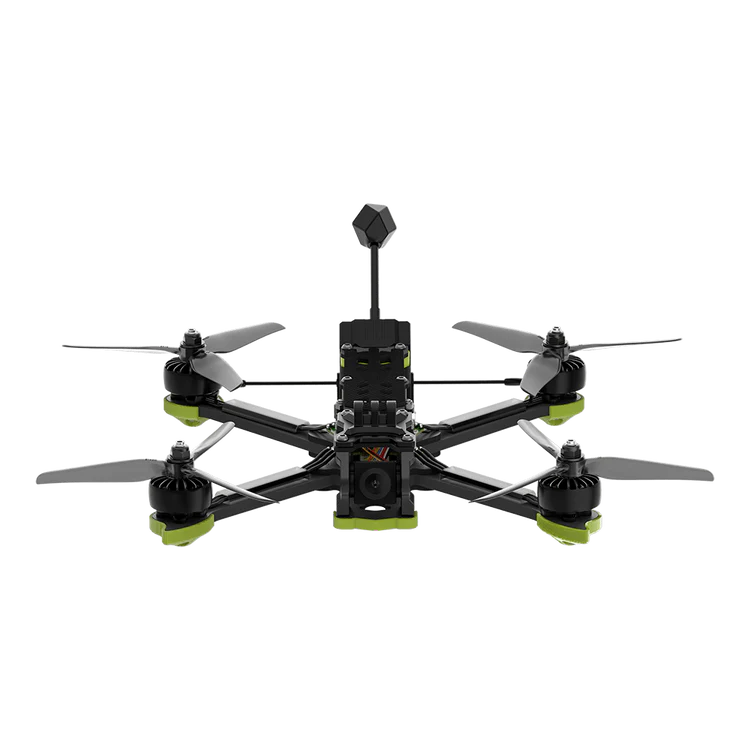

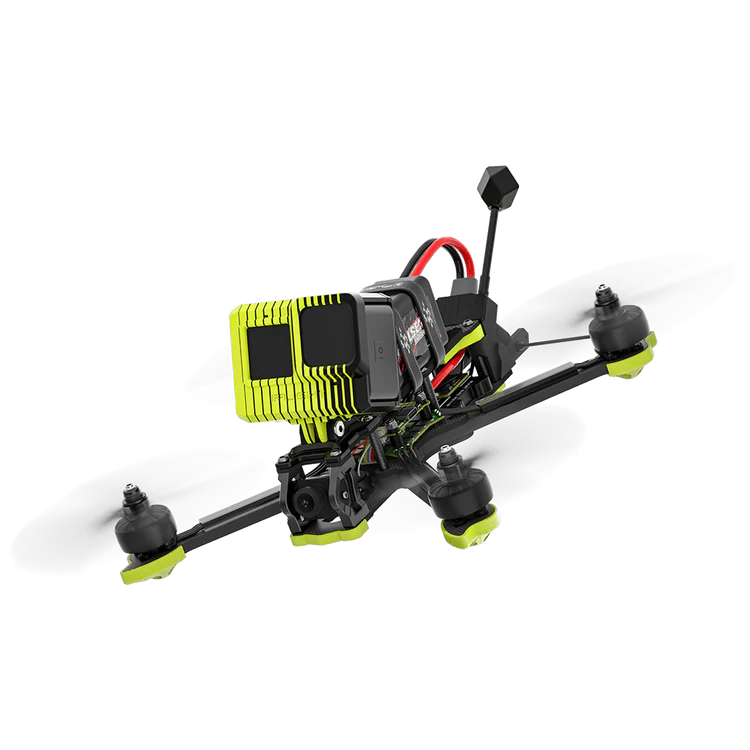

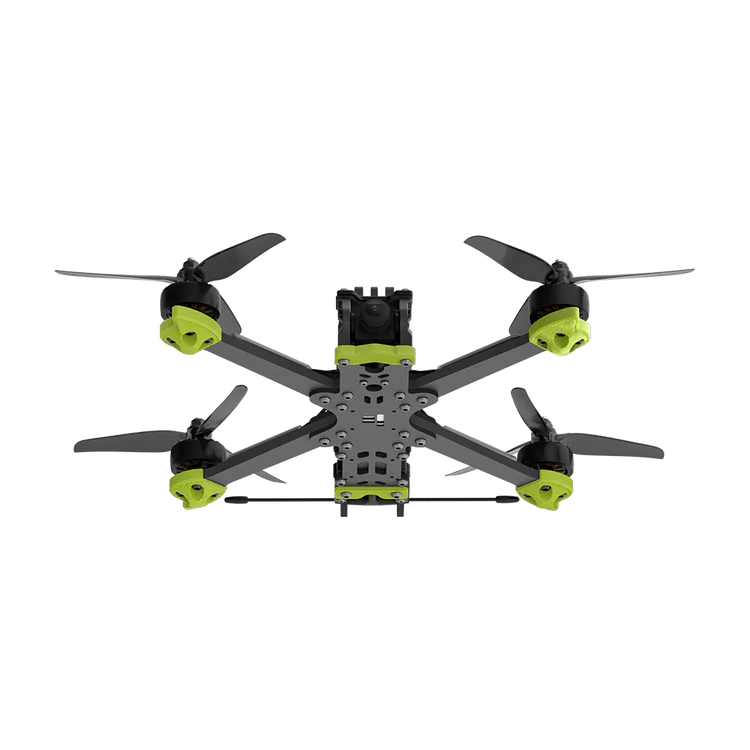

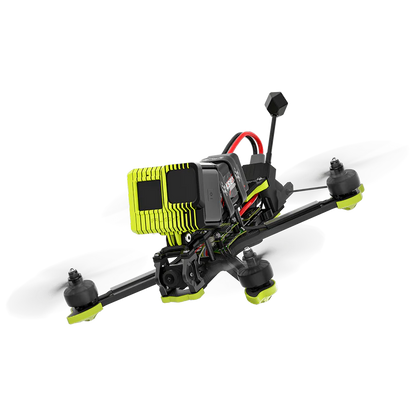

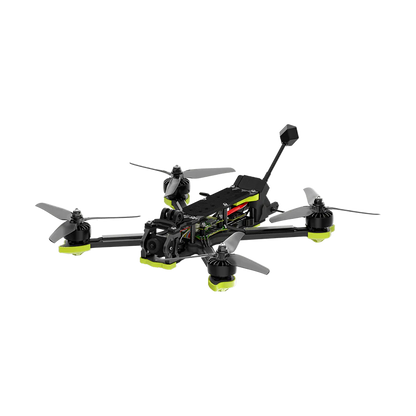

Introducing the Nazgul XL5 ECO – a standard 5-inch freestyle drone that redefines performance and value. Featuring an ATF435 flight controller, a BLITZ 1.6W video transmitter and a BLITZ E55S 2-6S 55A ESC controller, the Nazgul XL5 ECO provides unmatched performance and reliability. The carbon fiber with aluminum camera mount offers lightweight durability, while the included GoPro mount provides versatility to capture your epic freestyle flights. With the Nazgul XL5 ECO you will take your flight experience to a new level.
Key Specifications:
- Product Name: Nazgul XL5 ECO 6S Analog
- Geometry: True-X (for balanced flight performance)
- Flight Controller (FC): BLITZ ATF435 Flight Controller
- Electronic controller (ESC): BLITZ E55S 4-IN-1 ESC
- Video transmission: BLITZ 1.6W VTX
- Frame: 245mm wheelbase, made from carbon fiber for durability
- Motors: XING-E Pro 2207 1800KV motors, providing strong thrust
- Propellers: Nazgul F5 Propellers
- Weight: 427g (without battery)
- Take-off weight: About 652g (with 6S 1400mAh battery)
- Dimensions (L×W×H): 173×173×34±2 mm
- Diagonal distance: 245mm
- Maximum speed: 190 km/h (in manual mode)
- Maximum take-off height: 3200 m
- Maximum hovering time: About 7.5 min (no load with 6S 1400mAh battery)
- Maximum wind resistance: Level 7
- Operating Temperature Range: -10° to 40° C (14° to 104° F)
- Antennas: One antenna
- GNSS: Optional GPS, SBAS, Galileo, QZSS and Glonass support
Video transmission:
- Product name: BLITZ 5.8G 1.6W VTX
- Output power: Adjustable between 0, 25, 400, 800 and 1600mw
- Input voltage: 7-34V (support 2-8S batteries)
-
Workflow:
- ≤pit @20mA
- ≤25mw @65mA
- ≤400mw @130mA
- ≤800mw @150mA
- ≤1600mw @250mA
- Transmission frequency: 40 channels (A-B-E-F-R)
- Antenna interface: MMCX
- Mounting hole: 30.5×30.5/Φ3mm
- Weight: 18.9g (without antenna)
- Dimensions: 38.5×38.5mm
The package contains:
- 1 x Nazgul XL5 ECO 6S Analog BNF (Bind and Fly)
- 1 x Antenna
- 2 x Battery cushions
- 2 x Nazgul F5 propellers (pairs)
