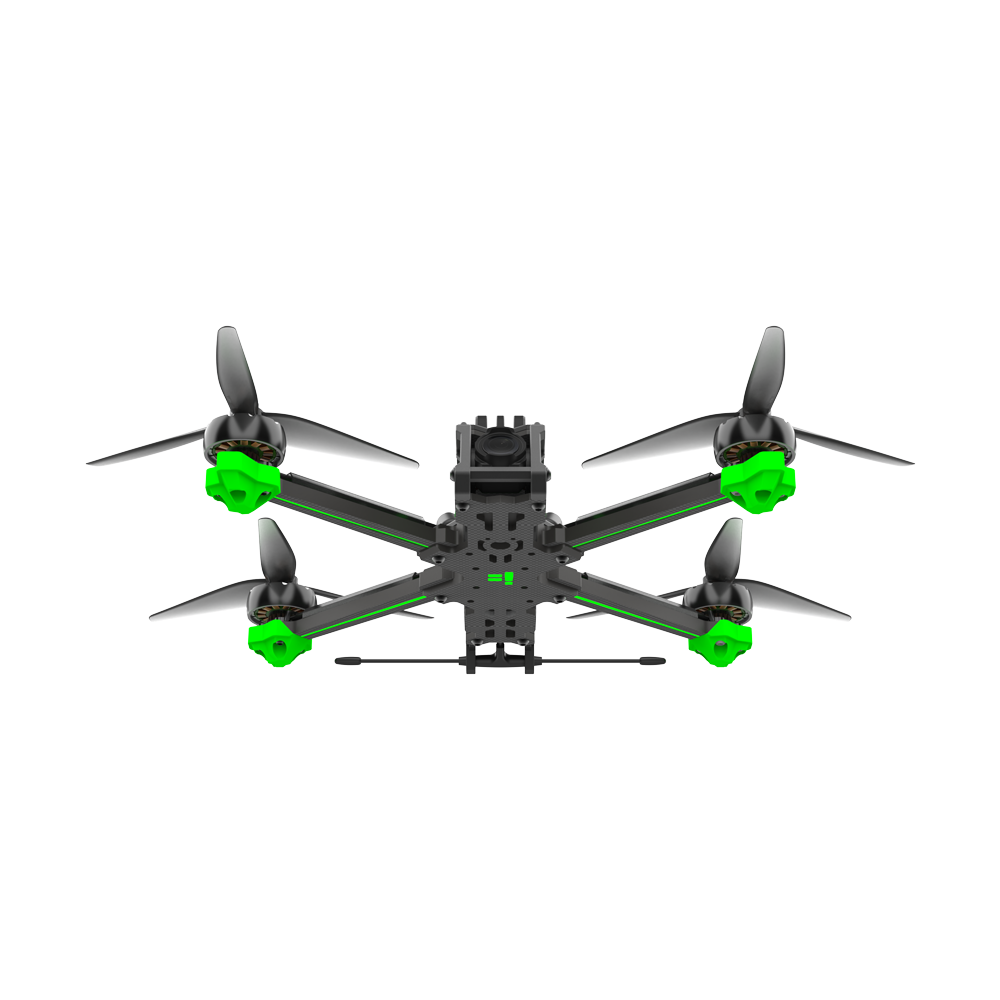

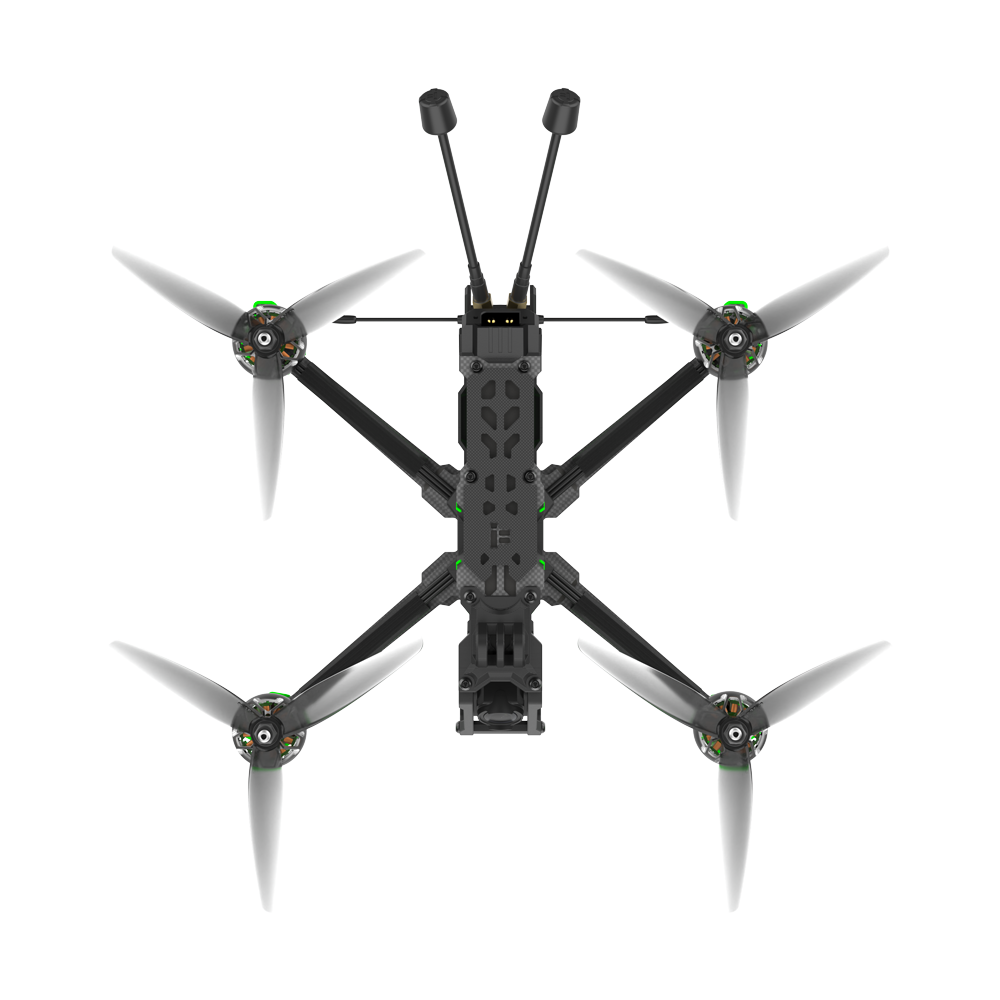

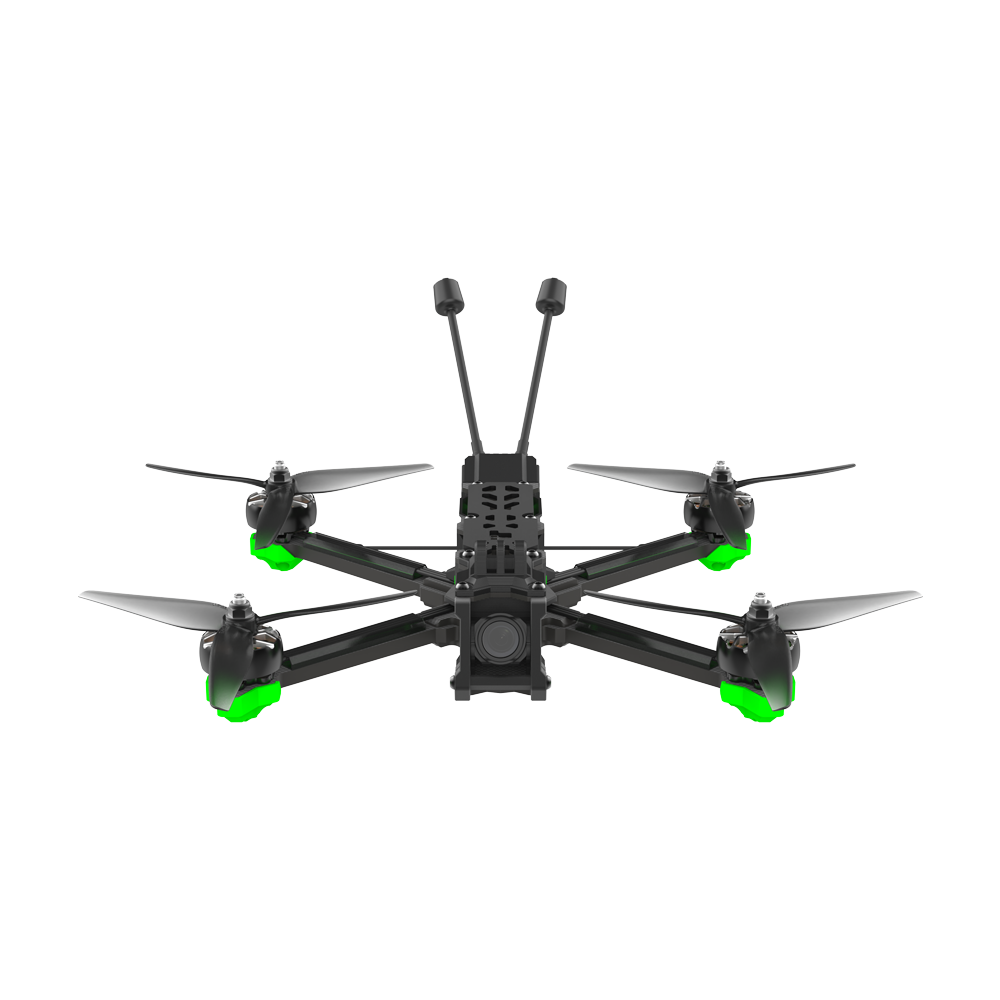

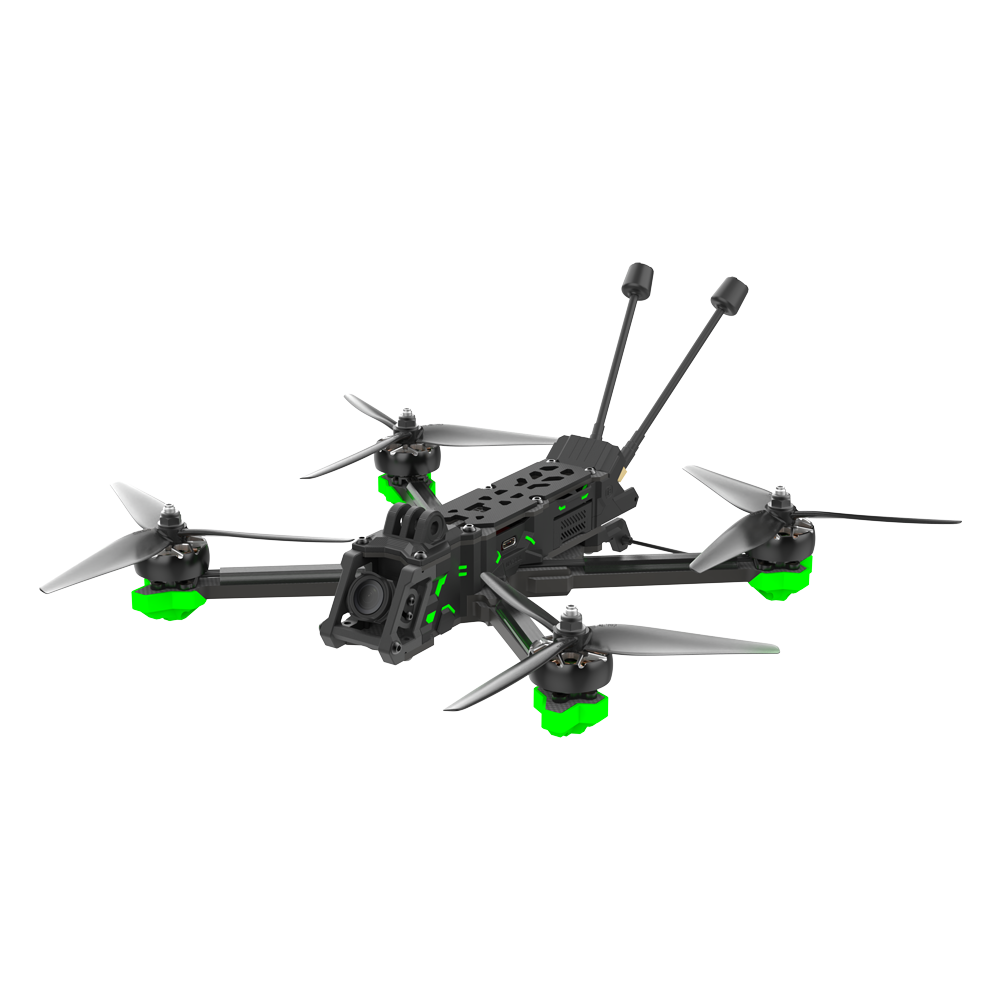

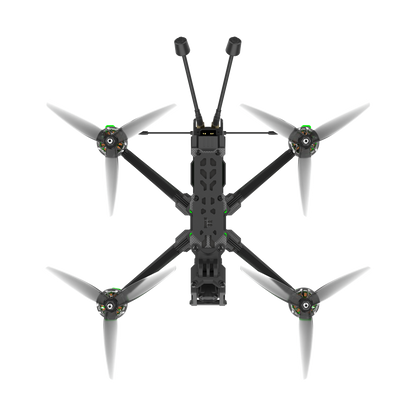

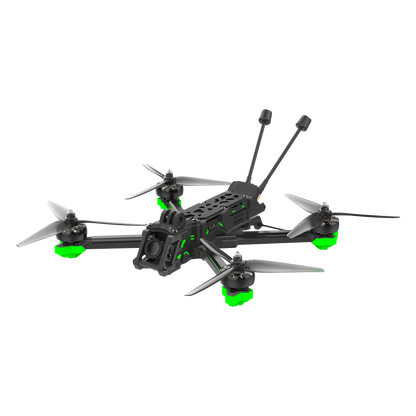

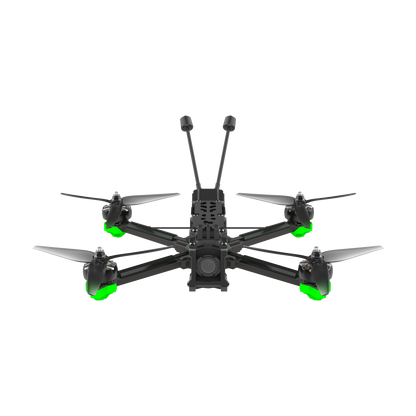

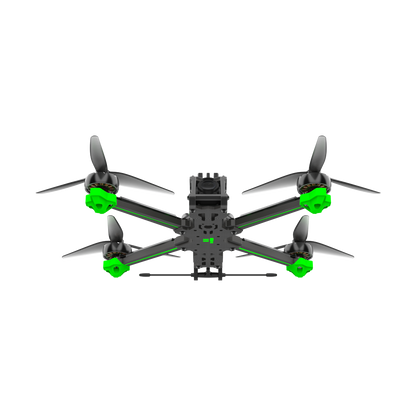

Nazgul Evoque F6X V2 HD 6S BNF (ELRS 2.4GHz)
The Nazgul Evoque F6X V2 6S HD is a high-performance 6-inch freestyle drone built on a Squashed X frame that offers improved agility and speed. Evoque F6X V2 offers 4 receiver options: TBS Crossfire Nano RX, ELRS 868/915 MHz, ELRS 2.4 GHz or No additional receiver to use DJI FPV Remote Controller 2. It provides flexibility for different preferences. The 6-inch drone offers longer flight time with a larger battery and higher efficiency with lower KV motors. This version has a pre-installed GPS module.
Function:
- Smooth and powerful XING2 engines-
Durable unibell (one-piece bell) technology, solid titanium alloy shaft with reinforced bell joint, impact-resistant 7075 aluminum bell, long-life smooth Japanese NSK bearings, N52H curved-arc center-groove magnets, and XING O-ring bushing gap protection.
-Latest Nazgul frame for maximum protection-
The newest frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
-DJI O3 HD Air Unit Low Latency Digital Transmission-
Video transmission range of up to 10 km, enjoy sharp and smooth real-time images in your glasses, even in noisy environments. (Source DJI)
-4K stabilized video with 155° ultra-wide angle-
Along with high-quality display performance, it provides an exceptional image. (Source DJI)
-Secure battery plug with spark filter-
Added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current spikes that can protect your electronics from damage.
-Specially designed cooler for DJI O3 HD air unit-
Improved cooling performance for the high power consumption of the DJI O3 video transmitter. We added a custom CNC heatsink for excellent heat dissipation without overheating, even at high performance levels.
Specifications:
Product Name: Nazgul Evoque F6X V2 HD 6S BNF
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video transmission: DJI O3 Air Unit
Frame wheelbase: 255mm (Squashed X)
Motor: XING2 2506 1500KV motors
Propellers: 6 inch propellers
Weight: 480 grams
Takeoff Weight: Approx. 680 g
Dimensions (L×W×H): 196×164×36±2 mm (squeezed X)
Diagonal Distance: 120 mm
Maximum speed: 180 km/h (manual mode)
Maximum take-off height: 3200 m
Maximum Hover Time: Approx. 8 minutes (with 1400mAh battery)
Maximum flight distance: 5 km
Max Wind Speed Resistance: Level 57
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Receiver option: ELRS 2.4 GHz RX
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Evoque F6 6S HD BNF
2x antenna
1 x battery pad
2x propellers (pairs)
2x battery strap
