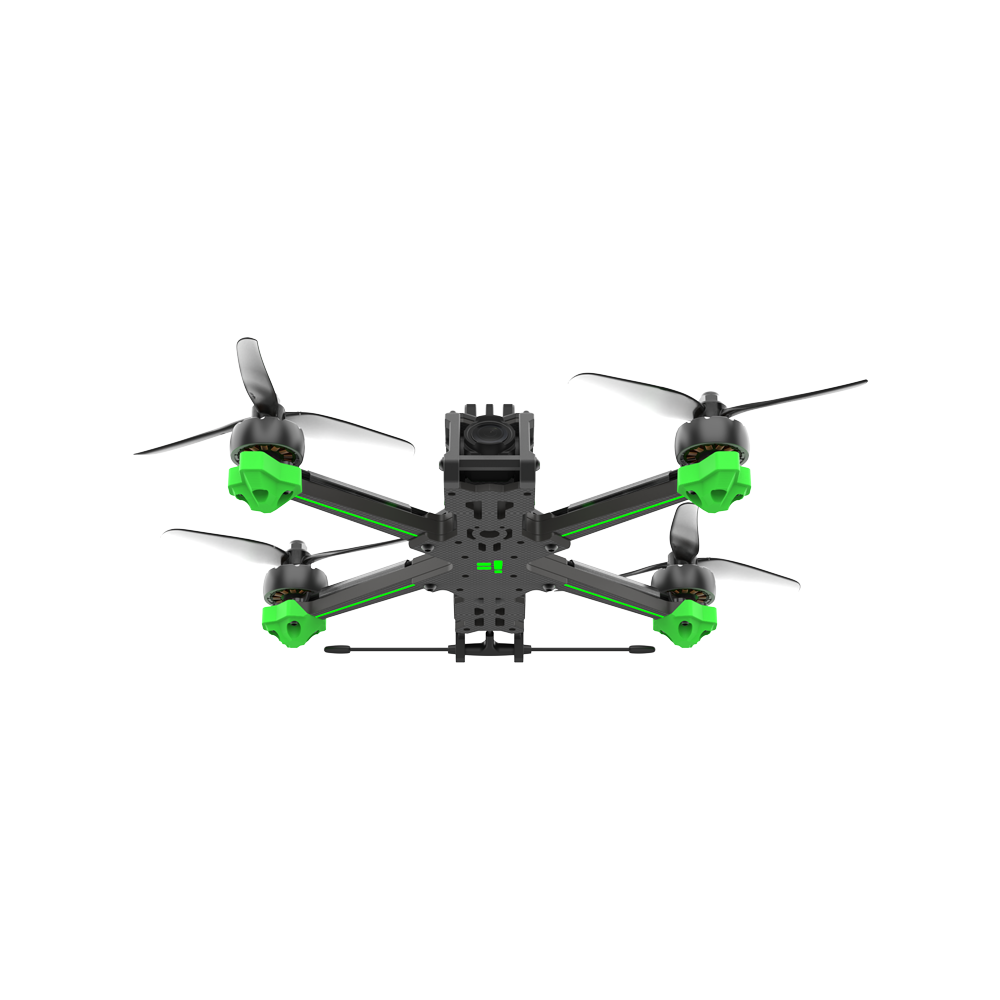

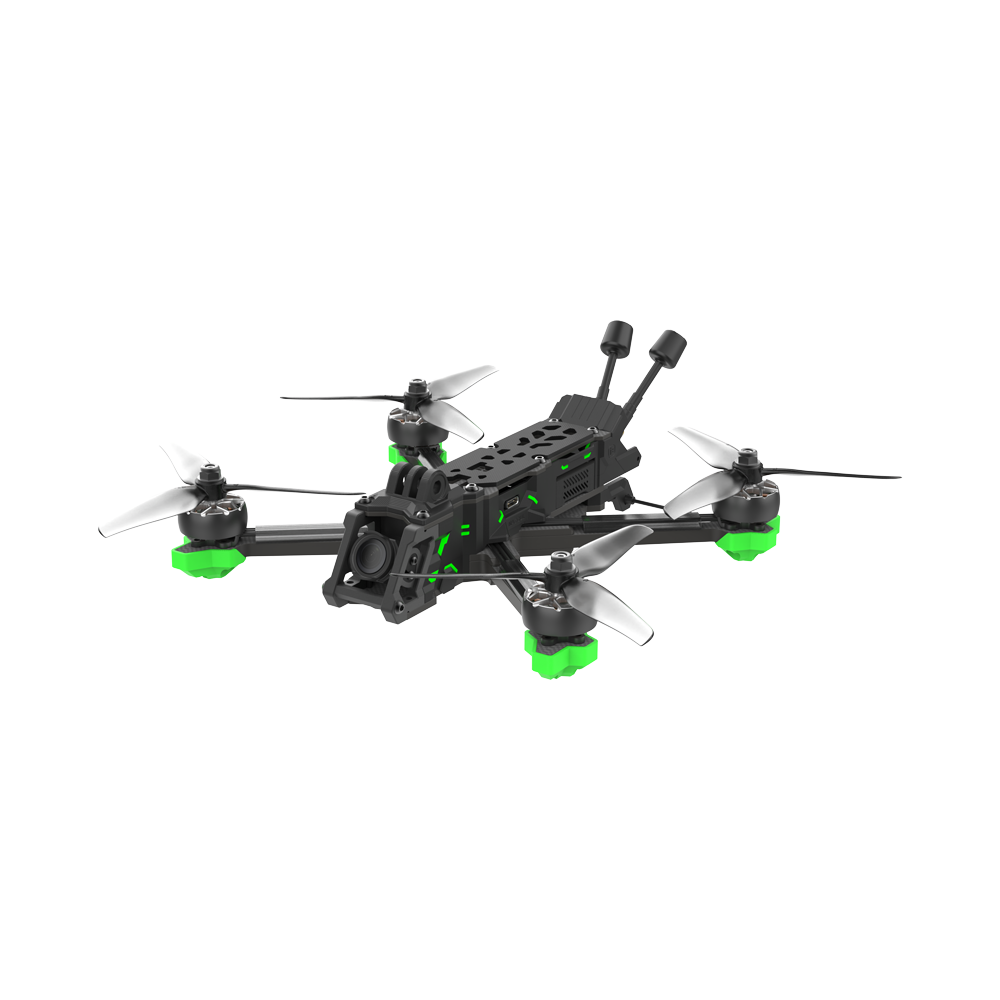

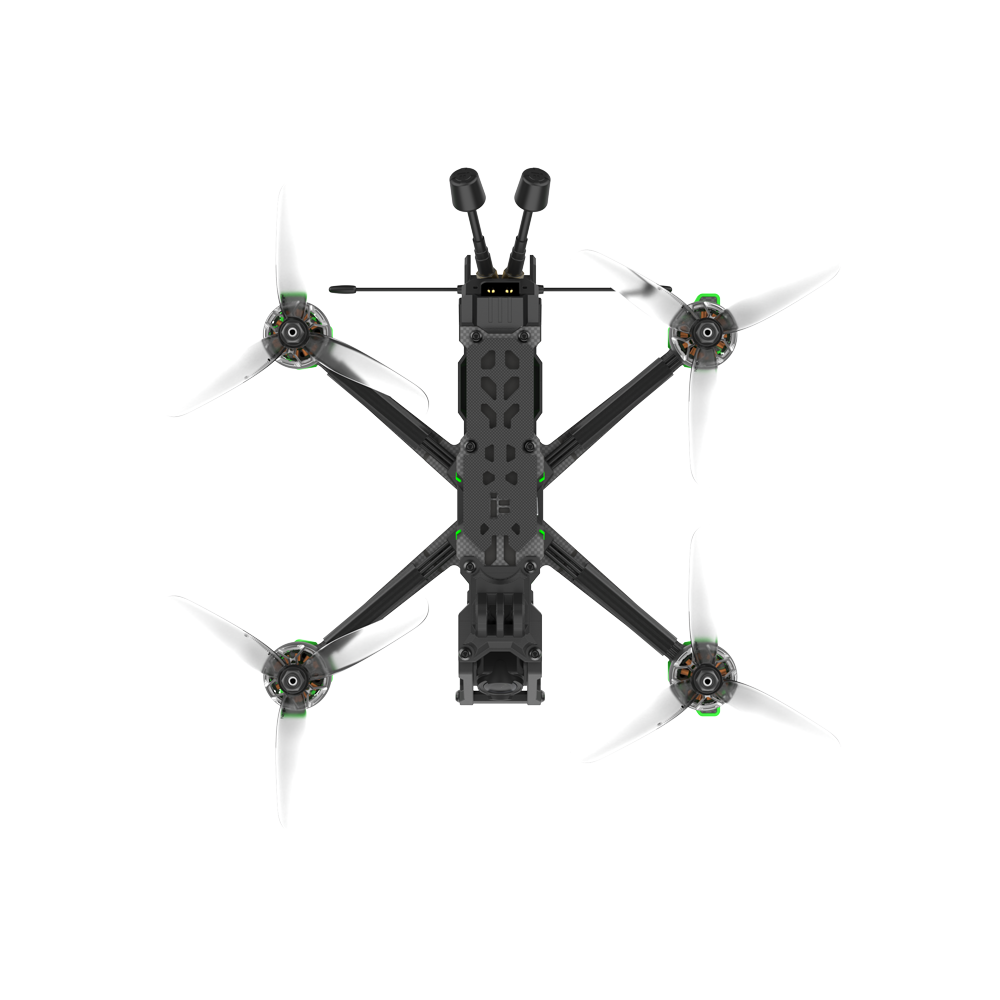

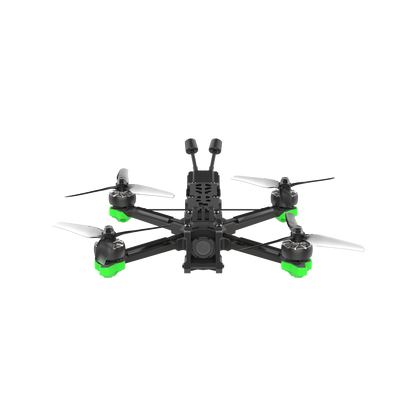

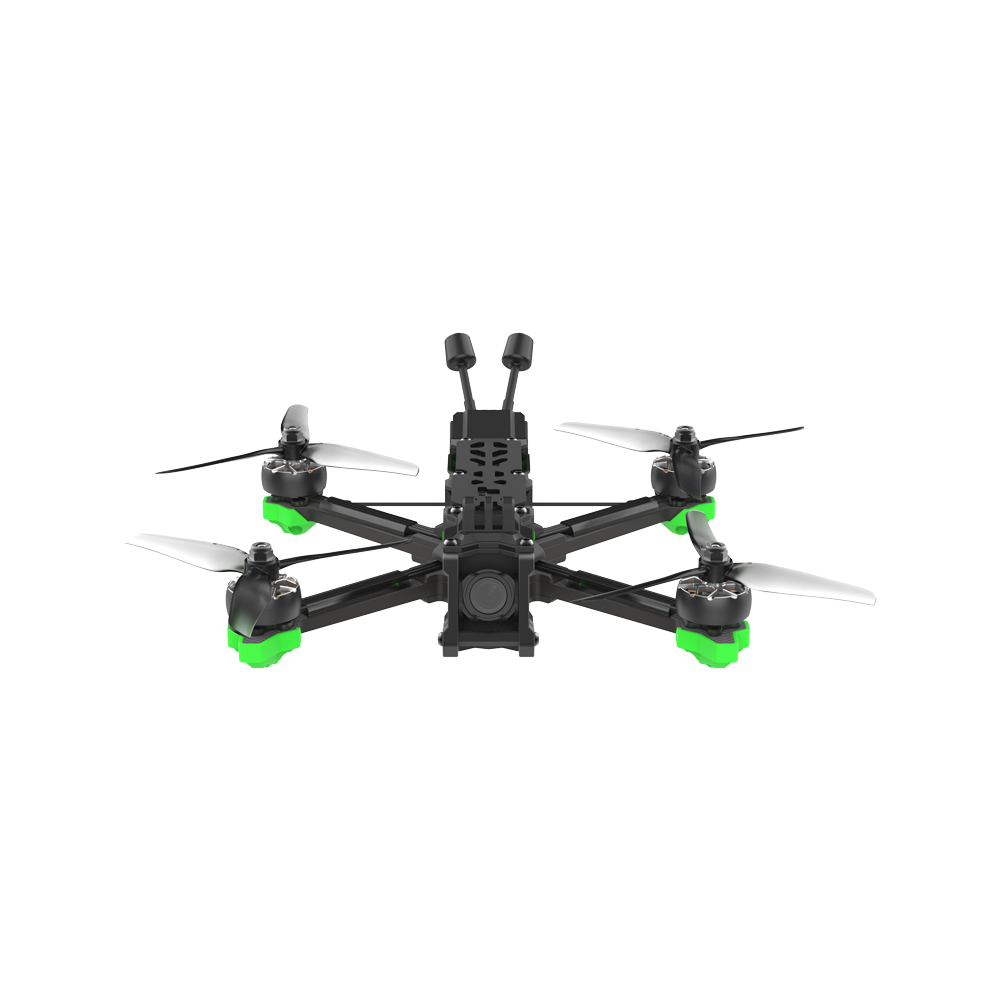

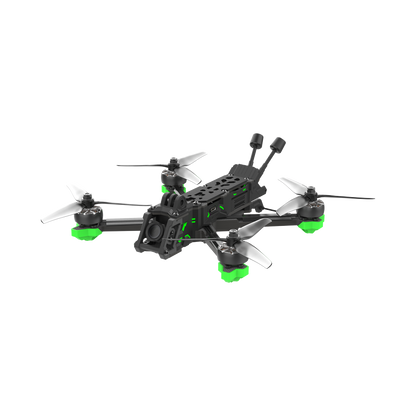

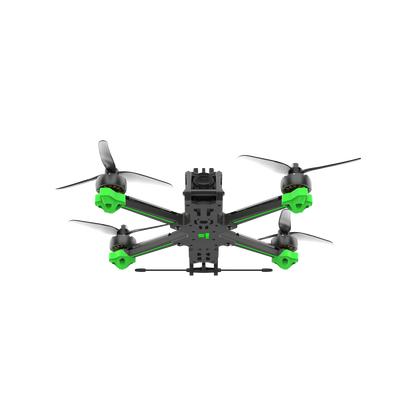

Nazgul Evoque F5X V2 HD 6S BNF (ELRS 868/915 MHz)
- Smooth and powerful XING2 engines-
Durable unibell (one-piece bell) technology, solid titanium alloy shaft with reinforced bell joint, impact-resistant 7075 aluminum bell, long-life smooth Japanese NSK bearings, N52H curved-arc center-groove magnets, and our XING O-ring bushing gap protection.
-Latest Nazgul frame for maximum protection-
The new frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
-DJI O3 HD Air Unit Low Latency Digital Transmission-
Video transmission range of up to 10 km, enjoy sharp and smooth real-time images in your glasses, even in noisy environments. (Source DJI)
-4K stabilized video with 155° ultra-wide angle-
Along with high-quality display performance, it provides an exceptional image. (Source DJI)
-Secure battery plug with spark filter-
Added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current spikes that can protect your electronics from damage.
-Specially designed cooler for DJI O3 HD air unit-
Improved cooling performance for the high power consumption of the DJI O3 video transmitter. Added custom CNC heatsink for excellent heat dissipation without overheating, even at high power levels.
Specifications:
Product name: Evoque F5 V2
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video transmission: DJI O3 Air Unit
Frame wheelbase: 225 mm (Squashed X)
Engine: XING2 2207 engines
Prop: 5 inch Nazgul propellers
Weight: 433g
Takeoff Weight: Approx. 693g/695g (with 1400mAh battery)
Dimensions (L×W×H): 172×145×36±2 mm (squeezed X)
Diagonal: 225 mm
Maximum speed: 190 km/h (manual mode)
Maximum take-off height: 5000 m
Maximum Hover Time: Approx. 8 minutes
Maximum flight distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Dual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Optional receiver: ELRS 868/915 MHz RX
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 36.4 grams (including headband)
Communication bandwidth: Max 40 MHz
FOV (single screen): 155°
Communication frequency: 2.400-2.4835 GHz (RX only) / 5.725-5.850 GHz (RX and TX)
End-to-End latency
With DJI FPV Goggles V2:
-810p/120fps Video transmission quality: Latency is lower than 28ms.
-810p/60fps Video transmission quality: Latency is less than 40ms.
With DJI Goggles 2:
Video transmission quality -1080p/100fps: Latency is only 30ms.
Video transmission quality -1080p/60fps: Latency is only 40ms.
Maximum video transfer rate: 50 Mbps
Maximum video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
Operating temperature range: -10° to 40°C (14° to 104°F)
Power consumption: 7.4-26.4 V
Audio Transmission: N/A
The package includes:
1 x Nazgul Evoque F5X V2 HD 6S BNF (ELRS 868/915 MHz)
2x antenna
1 x battery pad
2x propellers (pairs)
2x battery strap
