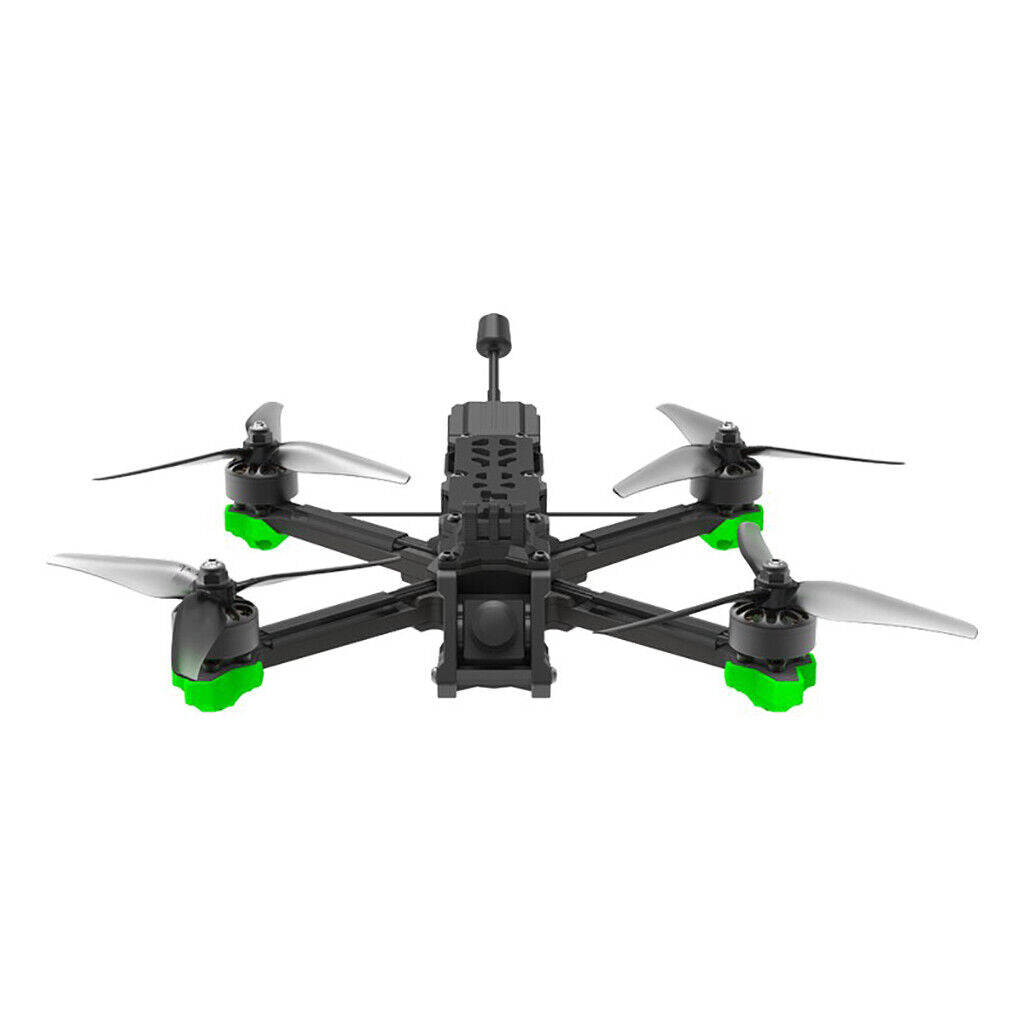

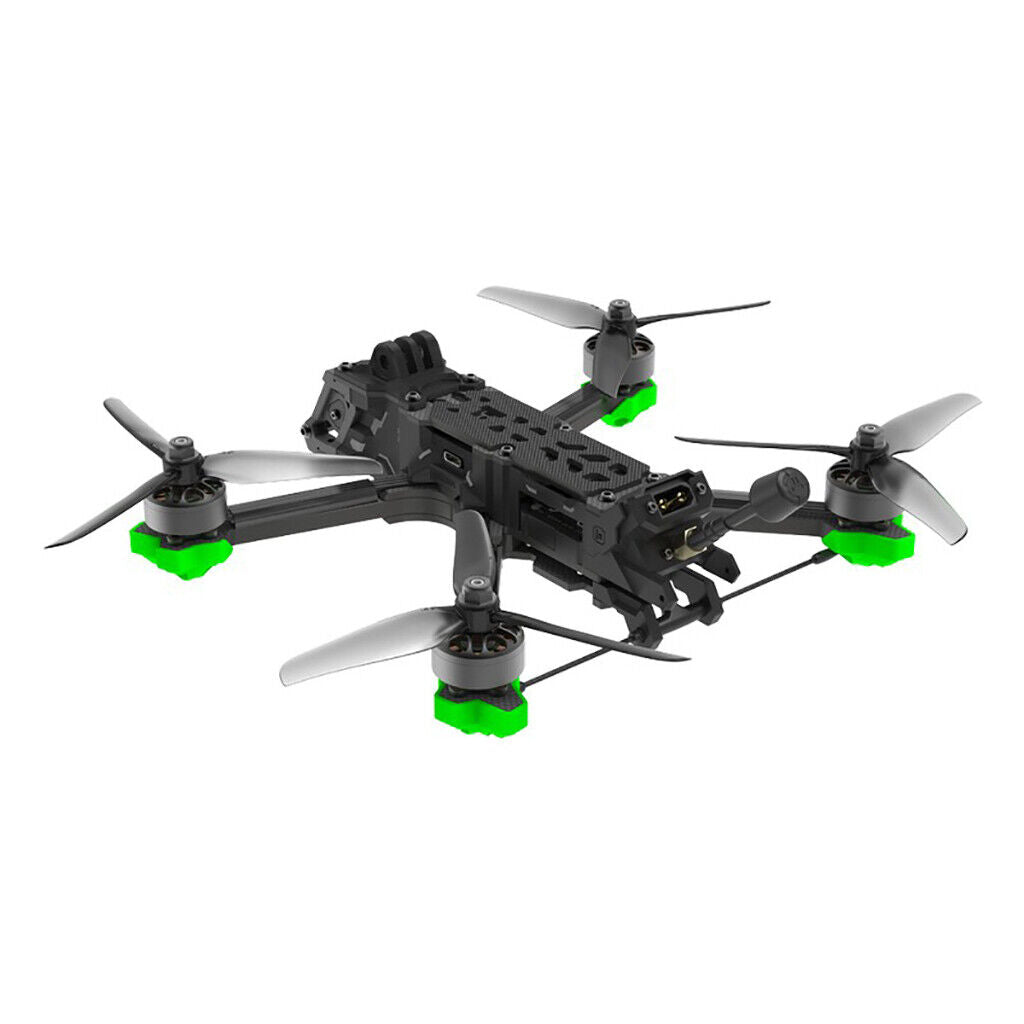

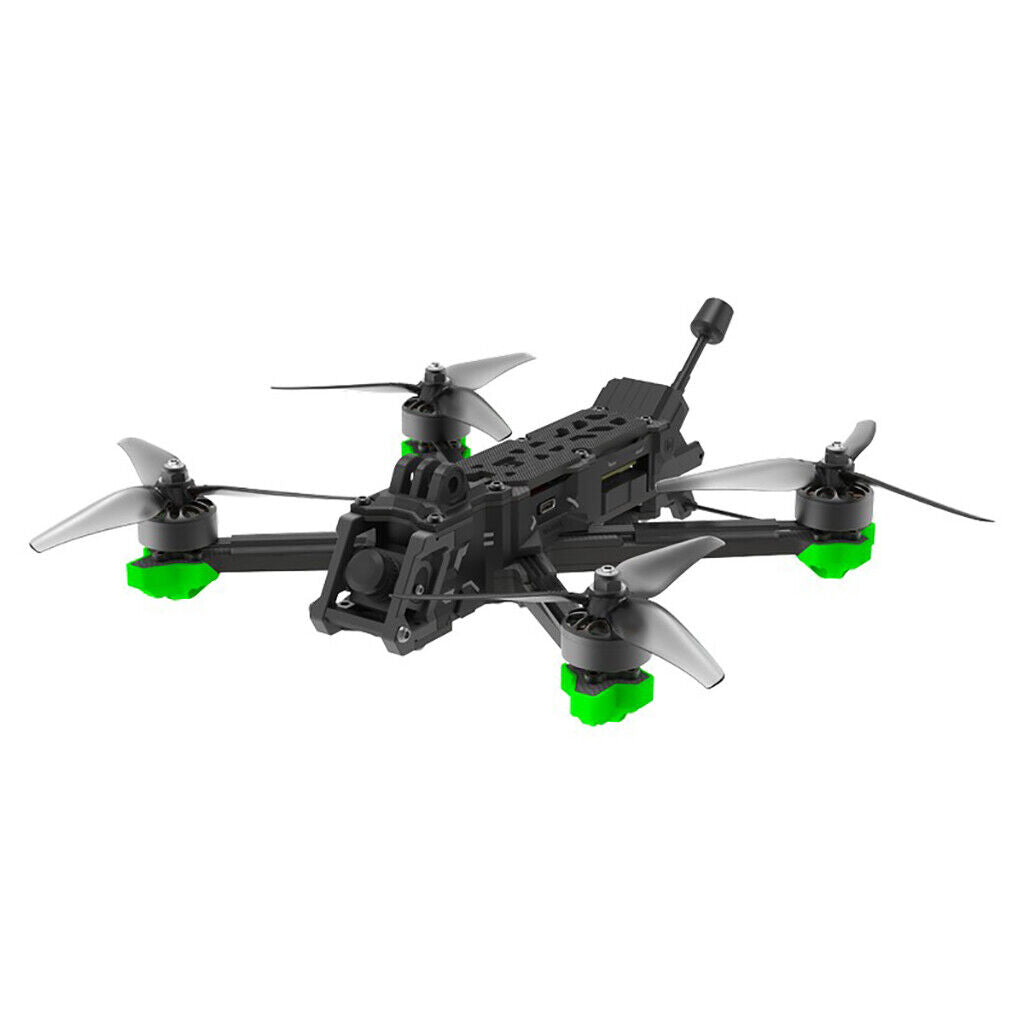

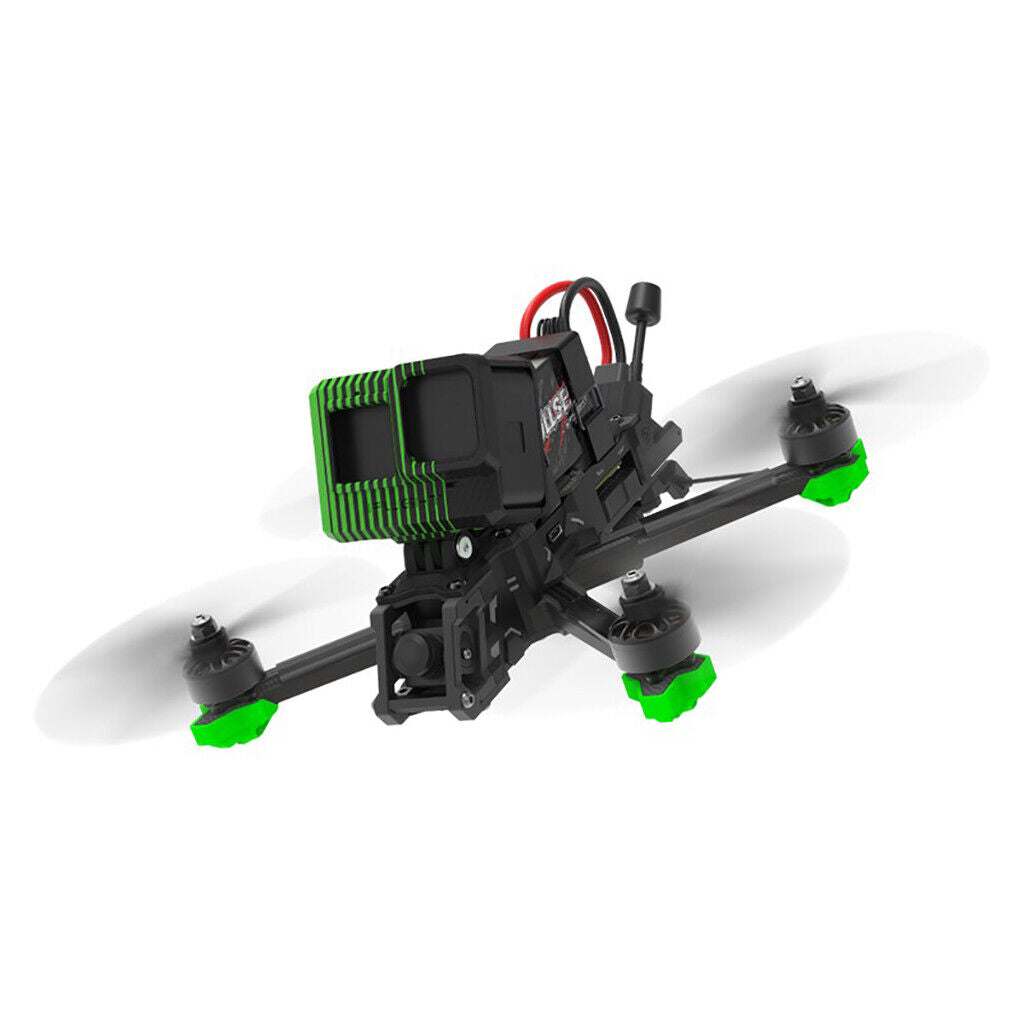

Nazgul Evoque F5X V2 Analog BNF (ELRS 2.4GHz)
The Nazgul Evoque F5X V2 Analog is a high performance freestyle drone built on the Squashed X frame that offers improved agility and speed. Equipped with a RaceCam R1 Mini 1200TVL camera. The Evoque F5D offers 4 receiver options: TBS Crossfire Nano RX, ELRS 868/915 MHz, ELRS 2.4 GHz or no RX (PNP). It provides flexibility for different preferences.
-Latest Nazgul frame for maximum protection-
The new frame reduces dirt that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
-Secure battery plug with spark filter-
Added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current spikes that can protect your electronics from damage.
Specifications:
Product Name: Nazgul Evoque F5X V2 Analog BNF (ELRS 2.4GHz)
FC: BLITZ Mini F722 Flight Controller
ESC: BLITZ Mini E55 4-IN-1 2-6S 55A ESC
Video transmission: BLITZ Whoop 1.6W VTX
Frame wheelbase: 225 mm (Squashed X)
Engine: XING-E Pro 2207 engines
Prop: 5 inch Nazgul propellers
Weight: 433g
Takeoff Weight: Approx. 693g/695g (with 1400mAh battery)
Dimensions (L×W×H): 172×145×36±2 mm (squeezed X)
Diagonal: 225 mm
Maximum speed: 190 km/h (manual mode)
Maximum take-off height: 5000 m
Maximum Hover Time: Approx. 8 minutes
Maximum flight distance: 5 km
Max Wind Speed Resistance: Level 7
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: Individual antennas
GNSS: GPS+SBAS+Galileo+QZSS+Glonass (optional)
Receiver option: iFlight ELRS 2.4 GHz RX
Video transfer
Product name: BLITZ Whoop 1.6W VTX
Input voltage: 7V-34V
Interface: MMCX
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (including Raceband)
Mounting pattern: 30.5x30.5mm/Φ3
Light weight: 18.9 g (without antenna)
VTX telemetry: IRC Tramp
Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!
Table values RC Tramp VTX: 25mW/400mW/800mW/1600mW
Recommended battery: Fullsend 6S 1400mAh battery
The package includes:
1 x Evoque F5X 6S Analog BNF
1x antenna
2 x battery pad
2x propellers (pairs)
2x battery strap
