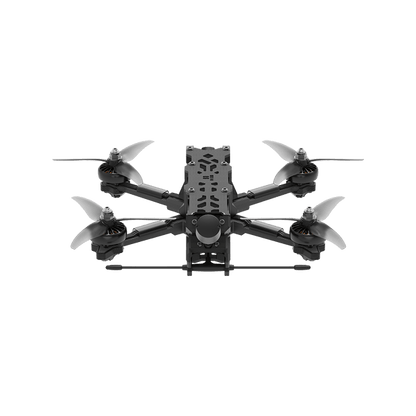

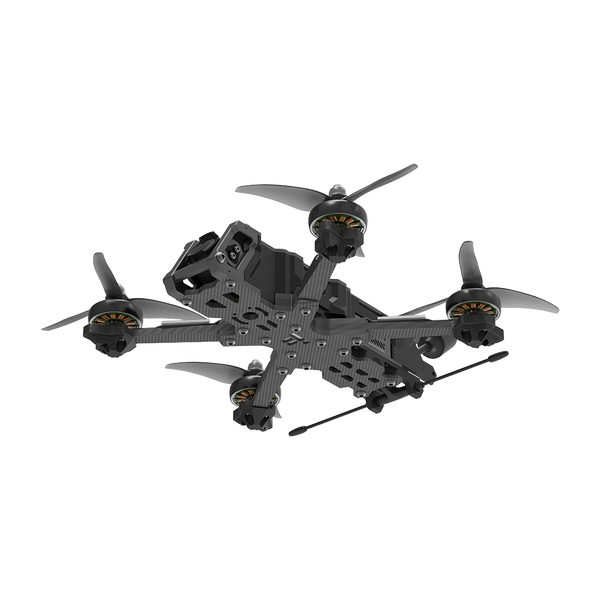

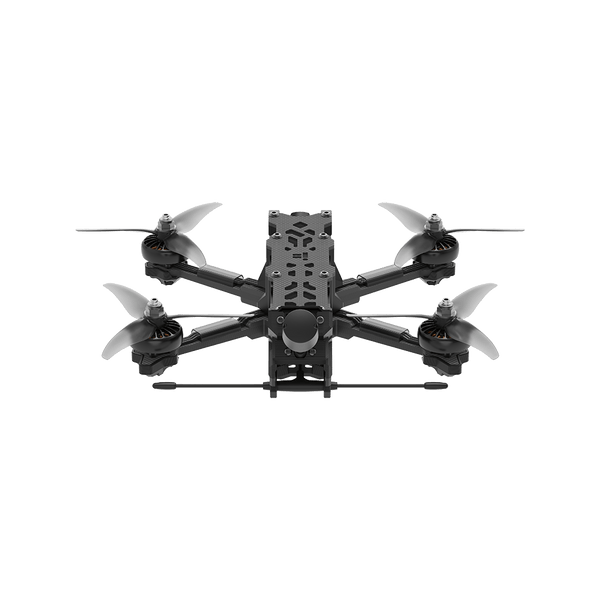

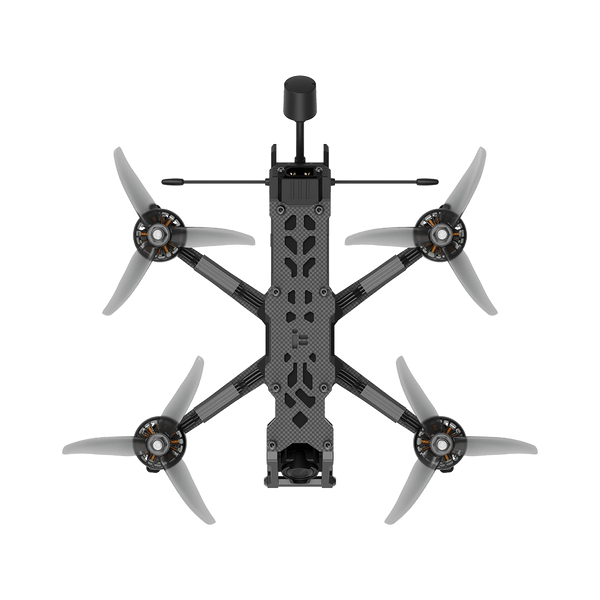

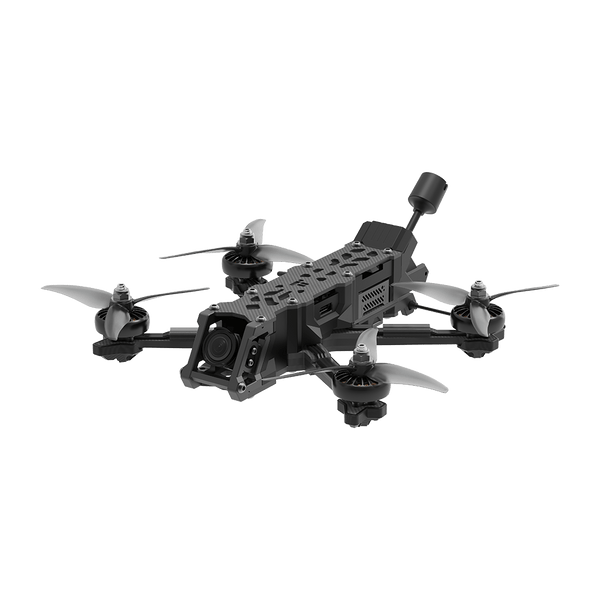

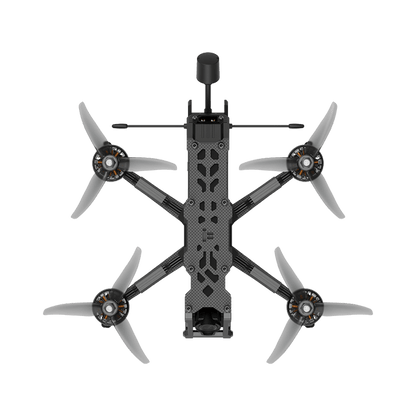

Nazgul Evoque F4X HD 6S BNF (ELRS 2.4GHz)
Function:
-Latest Nazgul frame for maximum protection-
This frame reduces contamination that could build up on your flight controller or ESC, preventing failures or short circuits. Strategic airflow that keeps your components cool and clean without sacrificing weight or performance. Illuminated side panels and 360 degree TPU protective parts.
-DJI O3 HD Air Unit Low Latency Digital Transmission-
Video transmission range of up to 10 km, enjoy sharp and smooth real-time images in your glasses, even in noisy environments. (Source DJI)
-4K stabilized video with 155° ultra-wide angle-
Along with high-quality image performance, it provides an exceptional image (Source DJI)
-Secure battery plug with spark filter-
Connecting the battery can cause a loud spark at the connector, which is caused by the high current of the battery first rushing into the low ESR capacitor, as well as filling the ESC capacitance. We added a protection circuit to extend the life of the XT60 connectors and prevent rapid voltage or current spikes that can protect your electronics from damage.
Specifications
Product name: Evoque F4
FC: BLITZ Mini F7 Flight Controller
ESC: BLITZ Mini E55S 4-IN-1 2-6S 55A ESC
Video transmission: DJI O3 Air Unit
Wheelbase of the frame: 185 mm
Engine: XING2 2205 engines
Propellers: HQ 4*3*3 propellers
Takeoff Weight: Approx. 330 g (without battery)
Dimensions (L×W×H): 148.5×110×36 mm (squeezed X)
Diagonal: 185 mm
Maximum speed: 170 km/h (manual mode)
Maximum take-off height: 7000 m
Maximum Hover Time: Approx. 8 minutes
Maximum flight distance: 5 km
Maximum Wind Speed Resistance: Level 5
Operating Temperature Range: -10° to 40° C (14° to 104° F)
Antennas: DJI O3 Air Unit Dual band antenna
GNSS: GPS+Galileo (optional)
Receiver option: ELRS 2.4 GHz RX
Recommended batteries:
6S 850mAh battery
6S 1050mAh battery
Battery 6S 1400mAh
Video transfer
Product Name: DJI O3 Air Unit
Weight: Approx. 290 grams (including headband)
Dimensions (L×W×H): d167 * w1039 * h 813 mm
Screen size (single screen): 0.49 inches
Resolution (single screen): 1920 × 1080
Refresh rate: Up to 100 Hz
Interpupillary distance range: 56-72 mm
Dioptric correction range: -8.0 D to +2.0 D
FOV (single screen): 51°
Communication frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
Transmission Power (EIRP):
2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)
5.8 GHz [4]:
